Welding helmets with large viewing areas come down to one measurable number: how much of the filter lens you can actually see through. We set the bar at a panel measuring roughly 3.0 by 3.0 inches or more, or a panoramic model that adds side windows and pushes the field of view toward 180 degrees.
That size matters more than most spec sheets admit. A small window forces your head to move every time you check the joint, the filler rod and the fit-up on either side, and a full shift of that adds up to real neck strain. A larger panel also puts arc sensors across more of the arc, which helps detection at odd angles and lower amperage.
We spent October reading owner reviews on twelve large-view helmets and cross-checking every published panel dimension against the listing. Here is what we found, ordered so the biggest glass and the sharpest optics sit at the top.
Top 3 Picks: Best Welding Helmets With Large Viewing Areas (October 2026)
YESWELDER LYG-M800H
- 3.93 x 3.66 inch true color panel
- 4 arc sensors
- 1/30000 second response
YESWELDER 180 Degree Digital
- 4.25 x 3.23 inch main lens plus twin side views
- 5 arc sensors
- digital controls
If you want one helmet and no further reading, the YESWELDER LYG-M800H carries our editor’s choice. It has more owner reviews than anything else we tested and a panel most competitors would charge double for. The Hobart 770890 scores highest on optics, and the digital YESWELDER is the one to buy when peripheral awareness matters more than weight.
Best Welding Helmets With Large Viewing Areas at a Glance
| Product | Key Specs | Buy |
|---|---|---|
|
|
Check Latest Price |
|
|
Check Latest Price |
 |
|
Check Latest Price |
|
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
Two things stand out in that table. Panel width varies far more than most buyers expect, from a 3.78 by 1.58 inch strip on the lightest budget model to a 4.25 by 3.23 inch centre panel with twin side windows on the panoramic design. And true colour optics are no longer a premium-only feature; six of these twelve carry a full 1/1/1/1 rating.
How We Chose
Every helmet here publishes a viewing-area size in inches, and anything without a stated panel dimension was dropped rather than guessed at. From there we read owner reviews looking for three things: whether the lens actually shows the weld puddle clearly, whether the arc sensors trigger at low amperage, and whether the headgear survives a full shift.
We also filtered out anything that cannot be traced to a listed model number, because welding helmets get relabelled constantly and a good rating on one shell says little about the next. Weights and switching speeds quoted below come straight from the manufacturer listings.
What Counts as a Large Viewing Area
Panel size and field of view are not the same thing, and most listings blur them together. Panel size is the width and height of the actual auto-darkening filter in inches. Field of view is the angle of the world you can take in while wearing the helmet, which is what side windows change.
A conventional rectangular hood gives you roughly a 180 degree cone only because you are looking straight ahead. Add two fixed-shade side panels and the usable cone widens noticeably, which is why panoramic models claim 180 degrees of coverage.
True colour is the third factor and it is unrelated to size. A 1/1/1/1 optical class means the lens stays equally clear in light state and dark state, so the puddle and the surrounding metal look the same colour in both. The old green-tinted filters shifted everything toward green and made joint alignment harder to read. Two models below sit at 1/1/1/2, which is a visible step down.
1. YESWELDER LYG-M800H – Best Overall for Large Viewing Areas
YESWELDER Auto Darkening Welding Helmet, Large View, LYG-M800H
Viewing area 3.93 x 3.66 inch
1/1/1/1 true color
4 arc sensors
About 1.32 lb
The Good
- Genuinely large 3.93 x 3.66 inch window with true color clarity
- External shade and sensitivity controls work with gloves on
- Lightweight at roughly 1.32 lb
- Spare inner and outer lenses plus a spare battery in the box
- Cheater lens compatible
The Bad
- Plastic shell and side knobs feel thin and need very tight adjustment
- Headgear pivot can slip forward when you nod down
This is the helmet we kept reaching for. At 3.93 by 3.66 inches the panel covers roughly 14.4 square inches of glass, which puts the joint, both edges of the bead and a good slice of surrounding metal in view at the same time. The 1/1/1/1 true colour rating means what you see in light state matches what you see with the arc struck.
Four arc sensors darken the lens in 1/30,000 of a second, and owners report it catching low-amperage TIG arcs without flicker. All shade and sensitivity controls sit on the outside of the shell, so you can dial it in with welding gloves still on.
At about 1.32 pounds it is one of the lighter large-view helmets here, and the headgear adjusts well enough for a full day. Reviewers coming from older self-darkening hoods describe the jump in clarity as the moment they stopped guessing where the puddle was.
The honest drawback is build quality. Multiple owners describe the plastic shell, the side tension knobs and the strap as flimsy, and a few report strap breakage early. Treat it as a strong optical package in a hobbyist-grade body.
Who the LYG-M800H suits
Hobbyists who weld a few hours a week will get the most out of it, because the large panel makes learning bead placement much easier. If your main worry is low-amp TIG, the four sensors and 1/30,000-second response handle it better than most budget units, though tighten the headgear hard before you start.
Who should skip it
Production welders who hammer their gear daily should look at the Hobart or the ESAB instead. Both carry brand service and warranty backing that this shell does not.
It is also a poor choice if you work in tight quarters where a deep shell catches on structure. The profile is roomy, and some fabricators report it interfering with overhead work.

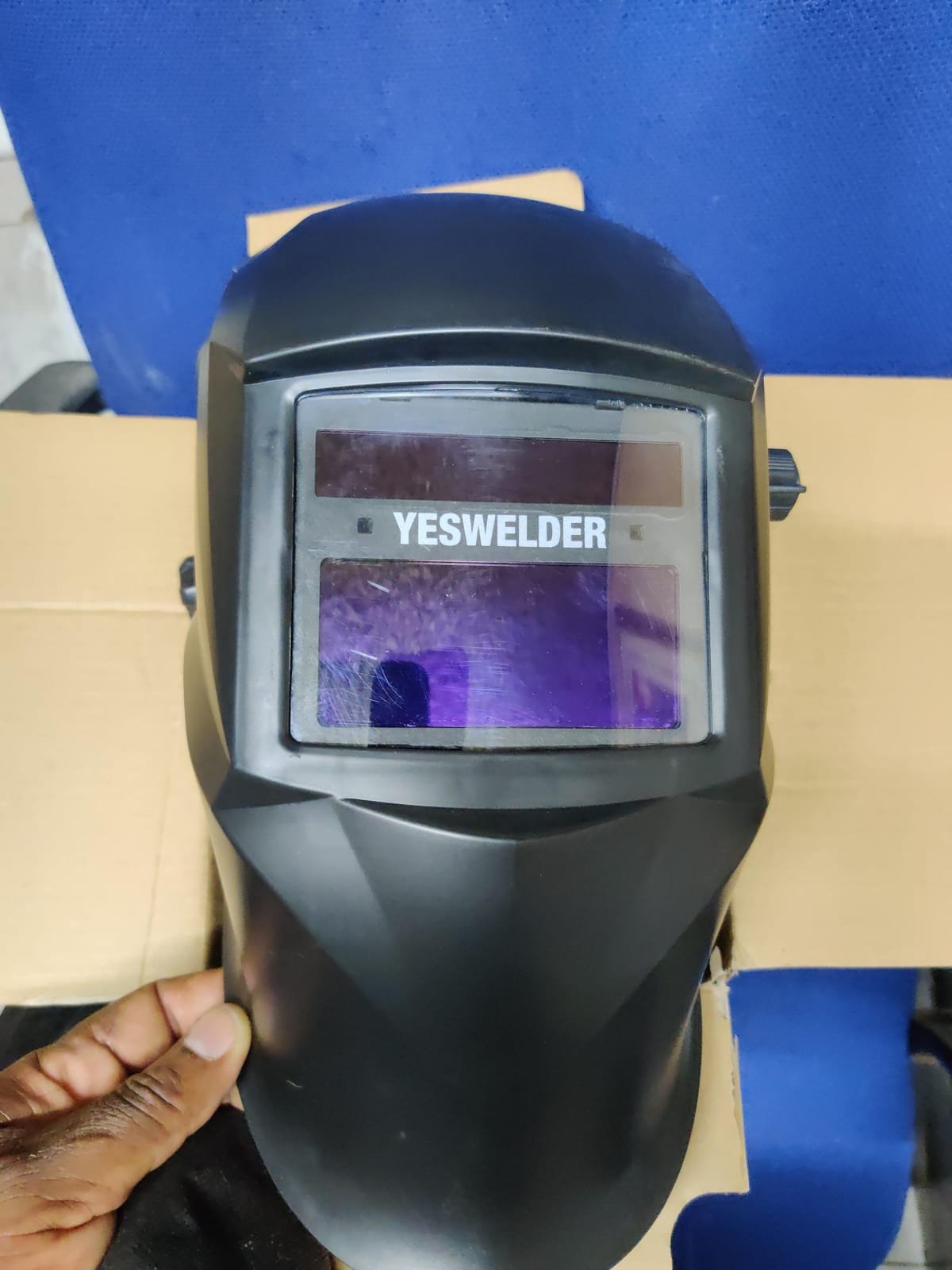

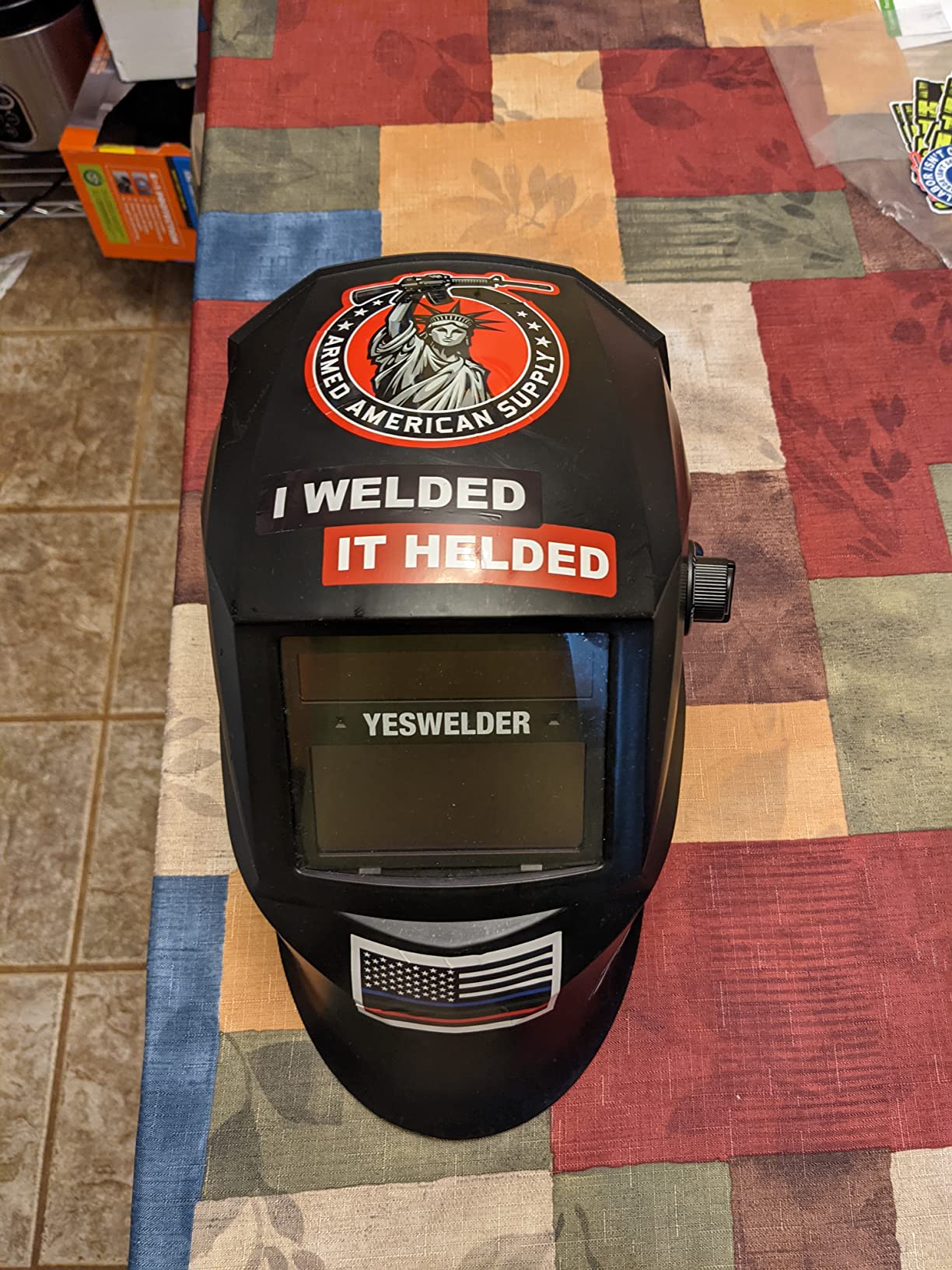

2. YESWELDER BW-10MAXTRI – Best Panoramic Digital Helmet
YESWELDER Auto-Shade Welding Helmet, Internal Digital Control, 180° View
4.25 x 3.23 inch main lens plus twin side views
5 arc sensors
Internal digital control
The Good
- True 180 degree layout with 8.89 x 3.23 inches of total viewing coverage
- Internal digital readout for precise shade sensitivity and delay setting
- Five arc sensors with intelligent auto adjustment
- PA polyamide shell resists impact
- Shade range covers MIG TIG stick tack grind and cut
The Bad
- Shell and headband quality is modest for the price
- Replacement inner lens covers are not sold separately
- Internal liner comfort is only adequate for long sessions
This is the most genuinely panoramic design in the group. The centre auto-darkening panel measures 4.25 by 3.23 inches and each side window adds 2.87 by 2.32 inches, for 8.89 by 3.23 inches of total coverage. You can check the fit-up on both sides of a joint without turning your head.
The internal digital display is the real upgrade over analog knobs. Shade, sensitivity and delay are dialled in numerically and auto-adjust within a nine-level tuning range as arc brightness changes, which matters when you move between 20 amps on a test coupon and 300 amps on production work.
Five arc sensors switch in 1/30,000 of a second, and the shade range of 3/4-8/9-14 covers every process including cut and grind in one hood. The PA polyamide shell keeps weight down for a helmet with this much glass in it.
Owners repeatedly separate the lens from the body in reviews. The filter is described as outstanding for the money, while the shell, headband and liner are called adequate rather than premium. A slight green tint shows through the lens on some units.
Who the BW-10MAXTRI suits
Fabricators working on pipe or structural steel will feel the side windows immediately, and the single shade range covering MIG, TIG, stick, tack, grind and cut removes a lot of dial fiddling. It is also a strong training helmet, because a student can see the gap and the alignment without repositioning.
Who should skip it
Buy elsewhere if replacement inner lens covers matter to you, because the brand does not sell them separately. Long-shift welders should also weigh the liner, which reviews call acceptable rather than comfortable.

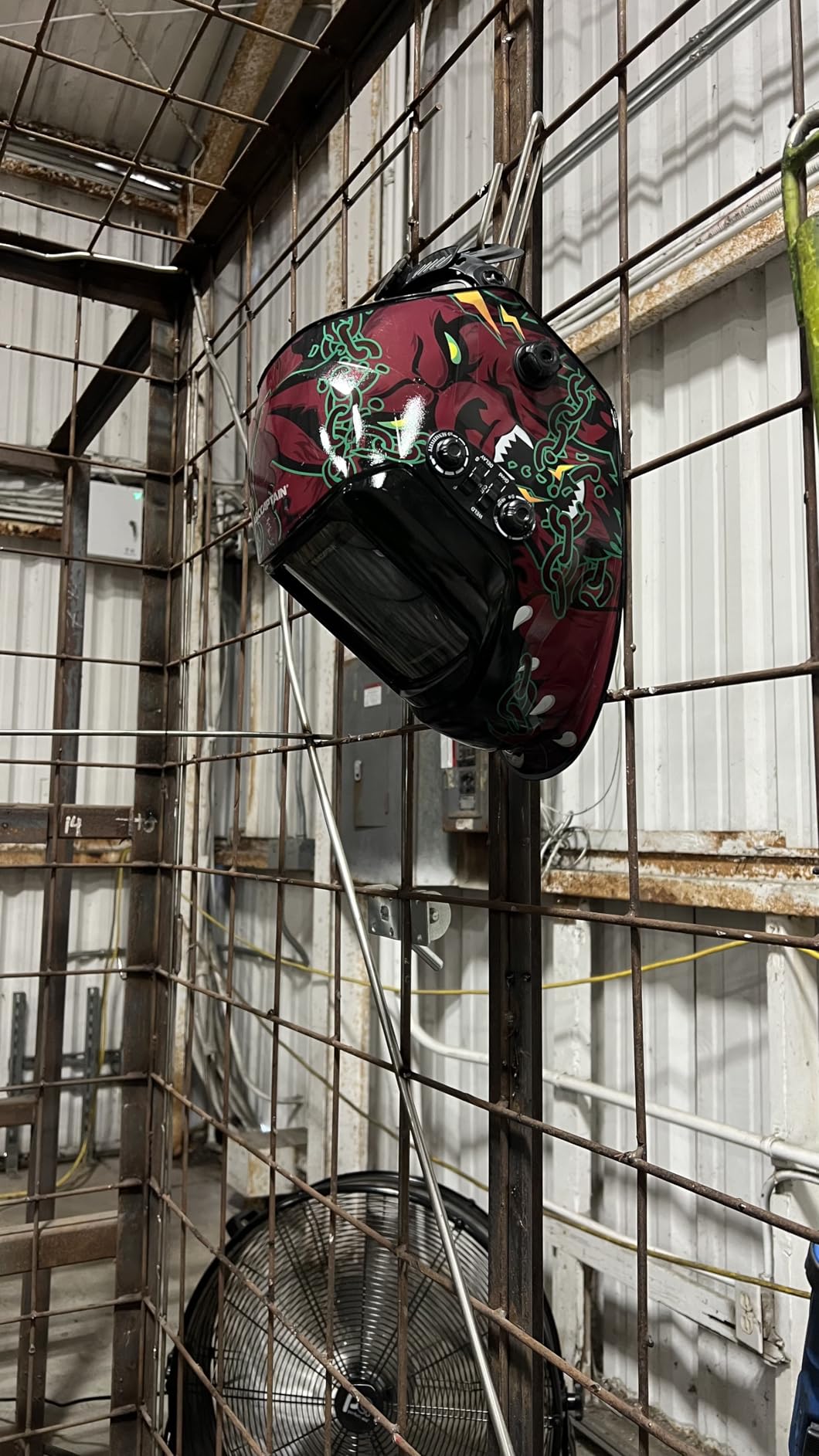

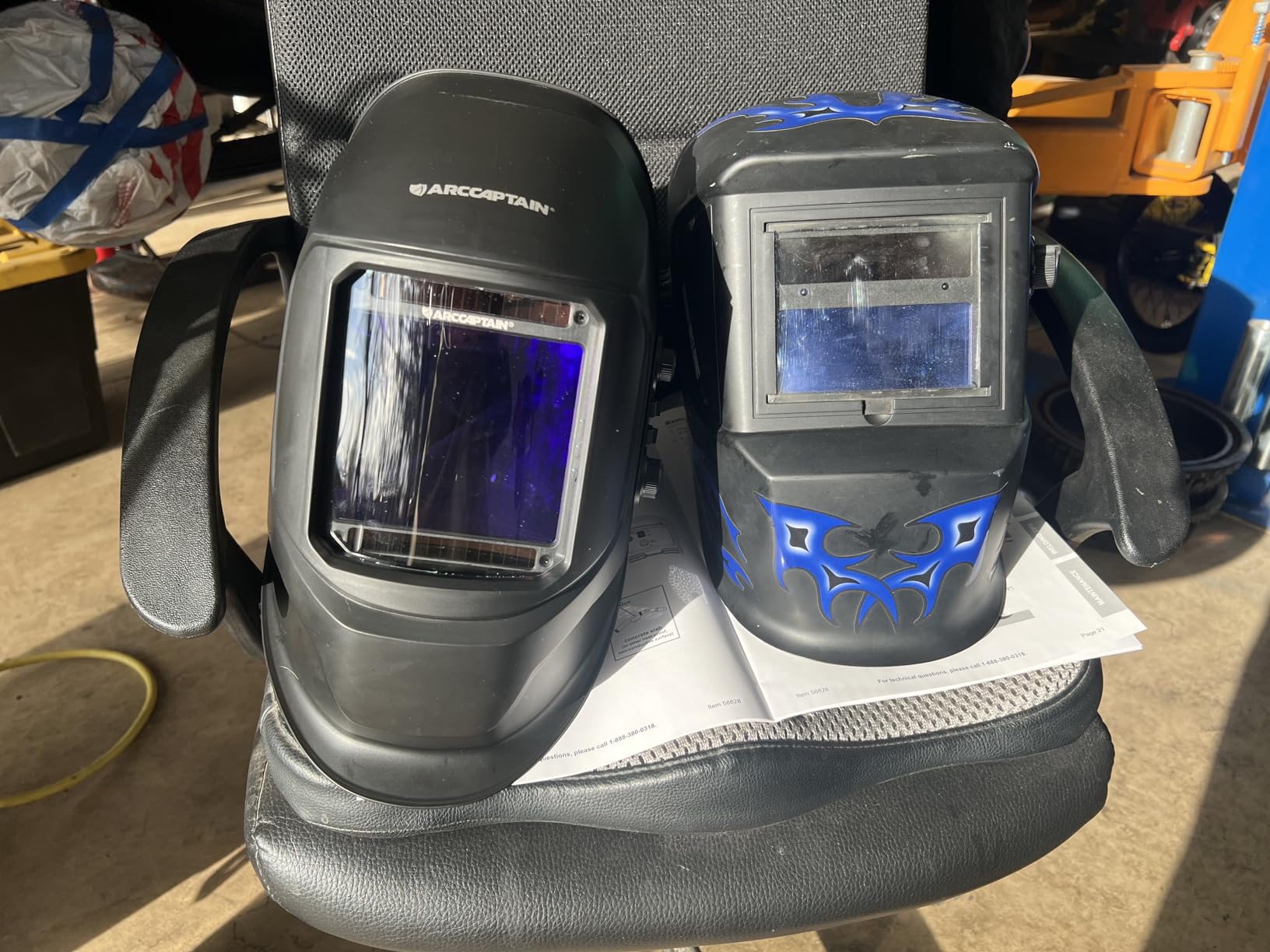

3. ARCCAPTAIN GT995 – Best Budget Large-View Helmet
ARCCAPTAIN Auto Darkening Welding Helmet, 3.94″X3.66″ Large Viewing Screen
Viewing area 3.94 x 3.66 inch
1/1/1/1 true color
Four arc sensors
About 2 pounds
The Good
- Large 3.94 x 3.66 inch screen with true color optics
- Four arc sensors with fast consistent darkening
- Light enough for long sessions
- External controls allow process switching without lifting the helmet
- ANSI Z87.1 EN 379 and CSA Z94.3 compliant
The Bad
- Headgear and suspension feel flimsy and can slip
- Some owners report filter or lens failure within seven months to a year
- Outer clear lens coating can peel with regular use
The GT995 puts a 3.94 by 3.66 inch true-colour panel in a helmet that sits at the entry level of this list, and that combination is hard to argue with. Four arc sensors cover ARC, MIG and TIG modes and darken consistently across the panel.
At roughly two pounds it stays comfortable, and the external grind-mode control means you can move from welding to surface prep without tipping the helmet up. Certification is the strongest in the budget group, listing ANSI Z87.1, EN 379 CE and CSA Z94.3 together.
Several experienced trades welders in the reviews use it as a daily driver instead of a professional hood. The bright light state also makes it a decent grinding helmet, which stretches the value further than the spec sheet suggests.
Durability is the weak spot and it comes up constantly. The suspension and headgear are described as flimsy and prone to slipping, particularly when worn over a welding cap, and a nontrivial number of owners report filter failure within months.
Who the GT995 suits
Weekend welders and students will get plenty from it, and the light state makes it pleasant for grinding work between welds. The three-certification listing is a genuine advantage if you work on regulated jobs or outside the country.
Who should skip it
Skip it if you weld every day in a production shop. The reported filter failures cluster among heavy users, and replacement filter units cost more than you would expect at this tier.
It is also a poor match if you wear a respirator under the hood, since the single locking point at the base of the skull tends to slip forward.
4. Hobart 770890 – Best Optics With a Warranty Behind Them
Hobart 770890 Auto-Darkening Welding Helmet, Large, Black
9.3 inch widescreen viewing area
PureColor lens
Four arc sensors
1.25 pounds
The Good
- Highest rated helmet here at 4.7 stars
- PureColor lens gives an accurate and noticeably clearer view
- Broad widescreen viewing area for situational awareness
- Limited two year manufacturer warranty
- One touch weld to grind switching
The Bad
- Analog knobs offer less fine adjustment than digital models
- Polyamide nylon shell is not as impact resistant as a professional composite
- Hobart replacement parts cost more than generic equivalents
The Hobart has the highest average rating of anything we tested, and the reason shows up in the reviews again and again: the PureColor lens. The view of the weld and the surrounding work area is accurately coloured and clear in a way that makes joint fit-up easier to judge.
At 1.25 pounds with four independent arc sensors, it stays comfortable across a long shift. Continuous UV and IR protection runs the whole time, and auto-on power control triggers at arc strike so you are not toggling switches with gloves on.
The two-year manufacturer warranty is the deciding factor for a lot of buyers who compare it against unnamed budget hoods. The one-touch weld to grind switch is a small thing that you appreciate on the tenth job of the day.
The limitation is control granularity. Analog knobs for shade, sensitivity and delay give you fewer increments than the digital internal models in this roundup, so fine tuning on thin material takes more adjustment than it should.
Who the Hobart 770890 suits
Welders who want the cleanest optics without moving up to professional pricing are the obvious audience, and the two-year warranty makes it a good first helmet for an apprentice. It is built for shop work rather than shipyard knocks.
Who should skip it
Skip it if you want set-and-forget settings across many jobs. There is no memory, so you re-dial shade and sensitivity whenever you change material thickness.
Heavy fabrication is also a stretch. The polyamide nylon shell is durable but not the impact resistance you would want in a shipyard or a scrap yard where the helmet takes knocks.
5. Sunstac SS-A800D – Best for Dim Jobs and Low-Light Work
Sunstac Auto-Darkening Welding Helmet 3.94 x 3.27″ View with Light
Viewing area 3.94 x 3.27 inch
1-1-1-1 true color
Built in rechargeable work light
Solar plus battery
The Good
- Integrated high brightness work light with two beam modes and swivel angle
- Large 3.94 x 3.27 inch true color view with 1/30000 second darkening
- Light and comfortable with a padded adjustable headband
- Solar panel plus lithium battery
- Cheater lens compatible
The Bad
- Battery compartment is awkward to reach
- Headband needs very tight adjustment or the helmet flops forward
- Deep headpiece can hit glasses on smaller heads
The feature that sets this one apart is the built-in work light. It is a rechargeable high-brightness lamp with two beam modes and an adjustable swivel angle, and several users single it out as the reason they stopped fighting dim shop lighting when setting a joint.
The lens itself is a 3.94 by 3.27 inch panel with 1-1-1-1 true colour optics and four arc sensors, darkening in 1/30,000 of a second. That width-to-height ratio is squarer than most, which suits MIG and flux-core work where you watch both sides of the joint.
Power comes from a lithium battery with a solar panel alongside it, and the shade range of 4/5-9/9-13 covers stick, TIG, MIG, cut, MMA and plasma cutting plus grinding. Upgraders from older self-darkening helmets report a dramatic jump in visibility.
Most complaints are ergonomic rather than optical. The battery compartment is hard to reach, the headband needs aggressive tightening, and the deep headpiece conflicts with glasses on smaller heads. There is also a slight delay before first darkening that can look like a fault.
Who the SS-A800D suits
Field crews and anyone welding in a trailer or a basement will use that work light daily, and it is also a sensible pick if you cut plasma as well as weld. Hobbyists who wear glasses should try it on first.
Who should skip it
Skip it if you hate fiddling with coin cells in the cold. The battery compartment is awkward to reach and reviewers repeatedly mention it as the first thing they would change.
Also worth avoiding if you rely on solar charging alone. The panel supplements the battery during welding rather than recharging it, so the light still depends on the cell.
6. TOOLIOM TL-31800H – Best Square True-Colour Panel
TOOLIOM Auto-Darkening True Color Welding Helmet with 3.94 x 3.66 View
3.94 x 3.66 inch viewing area
14.4 square inches
1/1/1/1 optical class
4 arc sensors
The Good
- One of the larger windows in the group at 14.4 square inches
- 1/30000 second darkening with four arc sensors
- True color 1/1/1/1 optics with DIN 3 light state
- Replaceable lithium battery plus solar power
- Sweat absorbing butterfly style headgear with multiple joints
The Bad
- Basic plastic shell with no premium brand backing
- Listed to ANSI Z89.1 rather than the more common Z87.1 standard
- Size variants share the same review pool
- Little long term durability feedback from owners
The TL-31800H gives you 3.94 by 3.66 inches of glass, which works out to 14.4 square inches of viewing area. Buyers repeatedly highlight that number as the largest window they have found at this price, and the 4.6 average rating backs up the optics claim.
Optical class is a full 1/1/1/1, with a DIN 3 light state and 5-9 or 9-13 dark states. Four arc sensors darken in 1/30,000 of a second, and sensitivity, delay and shade are all adjustable for weld, cut and grind modes.
Power is dual, with a replaceable lithium battery backed by solar energy, so a forgotten spare battery is not a dead afternoon. The butterfly-style sweat-absorbing headgear has multiple adjustment joints, which spreads pressure better than a single rear knob.
Criticism here is muted and structural. The shell is basic plastic with no established brand name behind it, and the listing cites ANSI Z89.1 rather than the Z87.1 standard most competing large-view helmets carry. Owners simply have not been around long enough to report durability.
Who the TL-31800H suits
Anyone who cares most about seeing the joint and wants true colour without stepping up a tier will be happy, and the padded butterfly suspension suits people who sweat. The square panel is particularly good for MIG and flux-core work.
Who should skip it
Check your certification requirements before buying. Some contractors and regulated sites ask specifically for Z87.1, and this helmet is listed to Z89.1 instead.
Skip it if you need brand service. With no established name behind the shell, a failed filter means a replacement unit rather than a warranty repair.

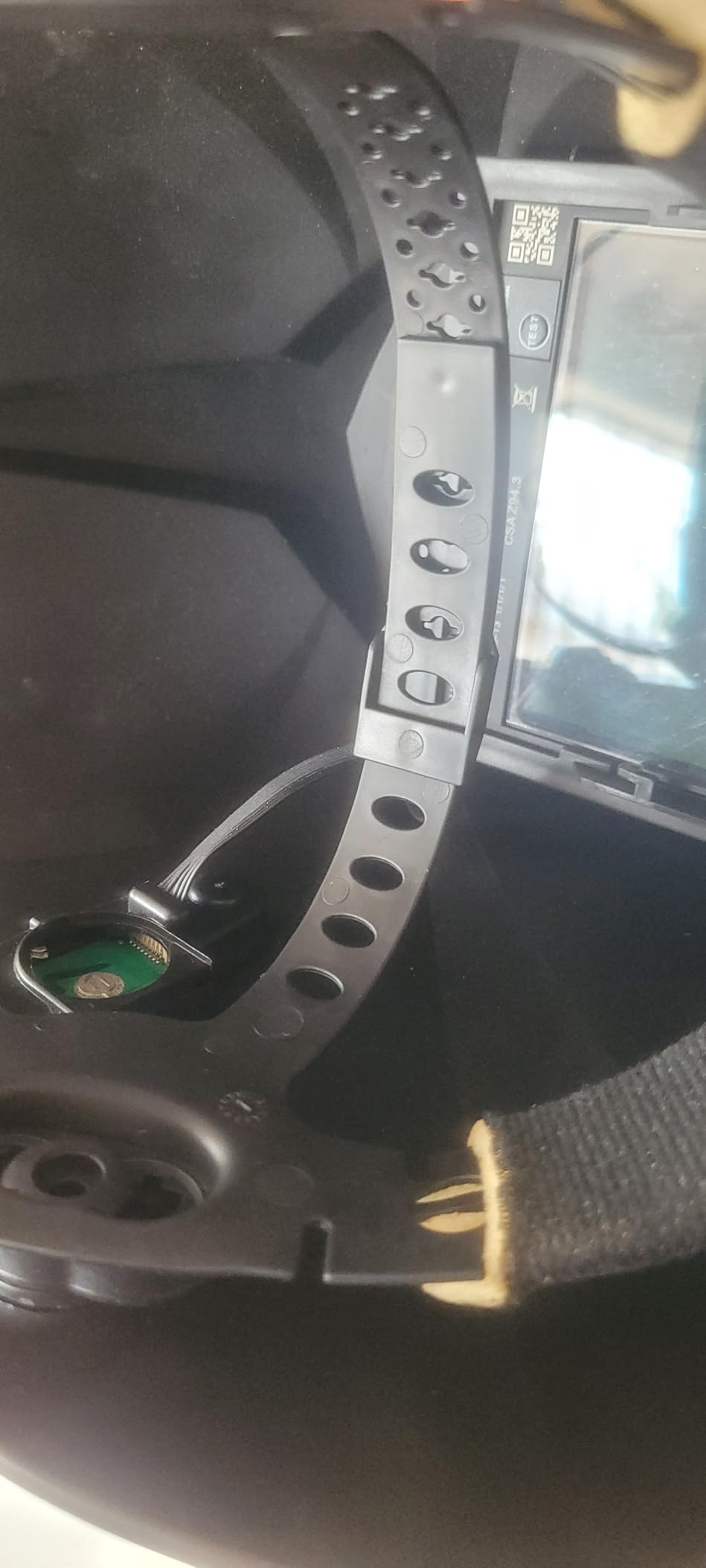

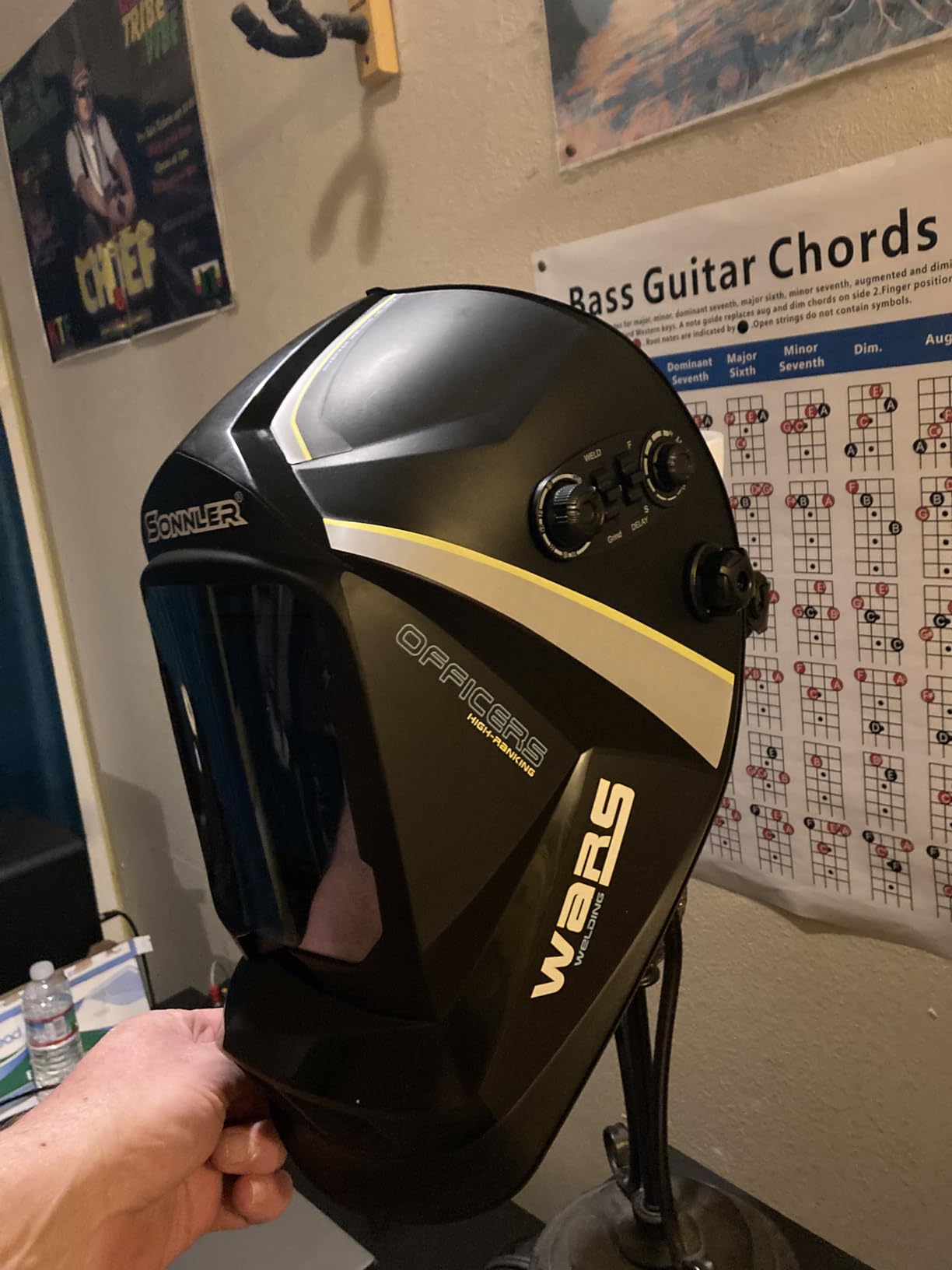

7. SONNLER WH-0130 – Best First Helmet With the Biggest Spare Kit
Welding Helmet Auto Darkening,SONNLER Large Viewing 3.94″ *3.66″1/1/1/1 True Color Welding Helmet, Solar/Battery Power Welding Hood With 4 Arc Sensor,Wide Shade 4~5/9-9/13 Welding Mask For TIG MIG ARC
Viewing area 3.94 x 3.66 inch
1/1/1/1 optical clarity
4 arc sensors
One year warranty
The Good
- Full size 3.94 x 3.66 inch true color window at the lowest entry point
- Sensitivity and delay knobs mounted outside the shell
- Includes 6 outer shields 4 inner shields 2 batteries and a bag
- Adjustable headgear with sweat absorbent sponge lining
- One year manufacturer warranty
The Bad
- Basic PP shell with light build quality
- Slower 1/25000 second switching than peers in the same tier
- No cheater lens or setting memory
- Written owner feedback is thin relative to the rating count
The SONNLER is the most economical way into a full-size true-colour window, and the box contents are genuinely generous. You get six replacement outer shields, four inner shields, two button batteries and a storage bag, more consumables than any other helmet in this roundup.
Four arc sensors switch light to dark in 1/25,000 of a second with automatic protection to DIN 16. Sensitivity and delay sit on the outside of the shell, so adjustments happen with gloves on rather than with the helmet tipped back.
At 3.94 by 3.66 inches with 1/1/1/1 clarity, the panel matches most of the mid-tier models here. The light state is DIN 4 and the dark states are 5-9 and 9-13, which covers MIG, TIG, stick, cutting and grinding.
The trade-offs are honest ones. The PP shell is basic, switching speed is a notch slower than the 1/30,000-second units above it, and there is no cheater lens or memory despite the wide window.
Who the WH-0130 suits
Someone buying their first auto-darkening helmet will get more value here than almost anywhere, since the spare lens bundle means the first scuffed outer lens is not an extra trip to a supplier. It also suits anyone who grinds as much as they weld.
Who should skip it
Low-amperage TIG specialists should look elsewhere. Fewer sensors and slower switching are exactly the two weaknesses that matter when you are chasing a 20 amp arc on thin stainless.
Heavy shop users should also pass. Build quality is light and there is very little long-term owner feedback to reassure you.

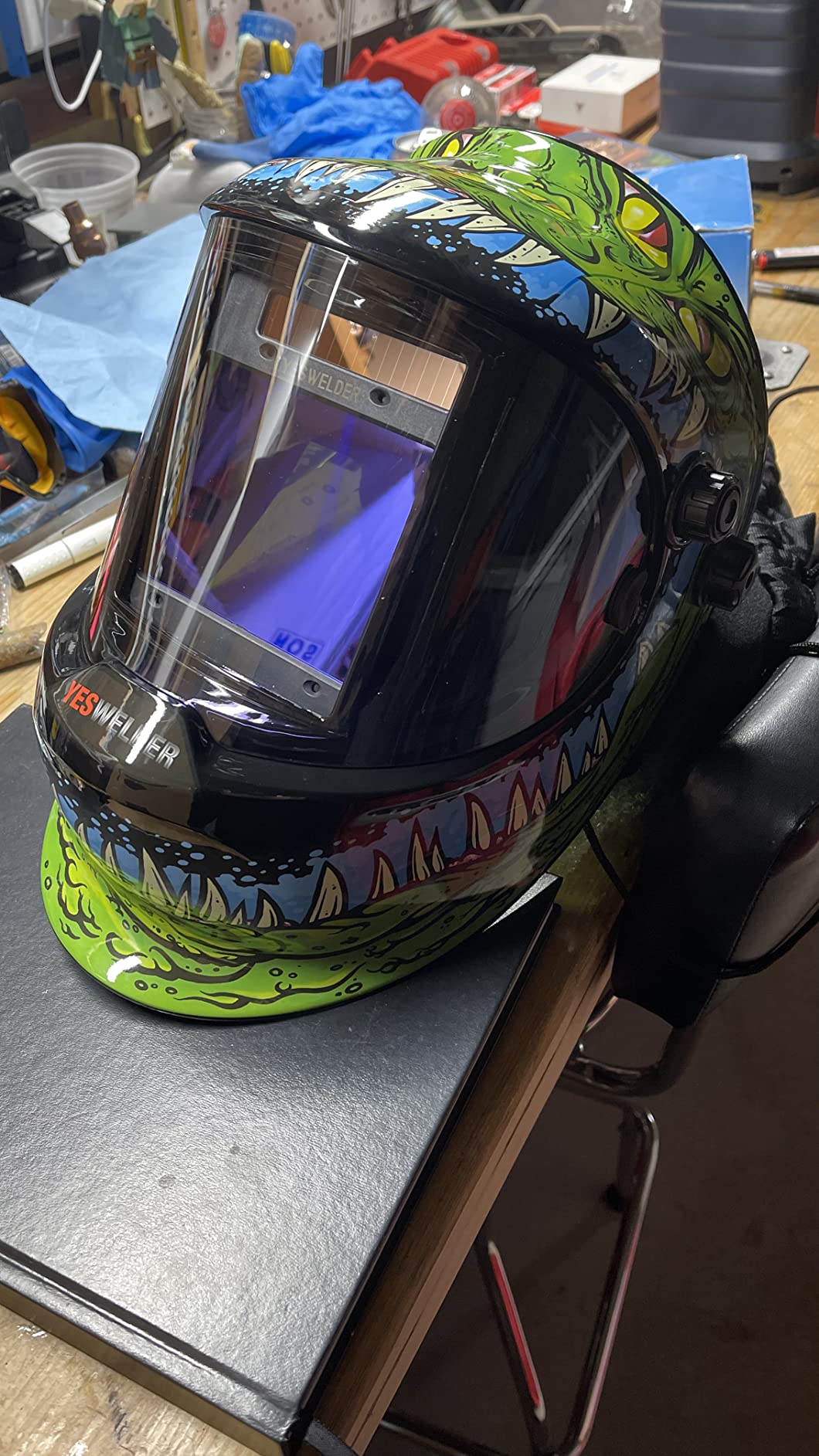

8. YESWELDER LYG-Q800D – Best Side View With Blue Light Filtering
YESWELDER Auto Darkening Welding Helmet with SIDE VIEW, 180° Panoramic View, 1/1/1/1 True Color Solar Powered Welder Hood, Wide Shade 3/5-9/9-13 Welder Mask for TIG MIG ARC CUT and GRIND, LYG-Q800D
3.94 x 3.23 inch main window
DIN 5 side views
1/1/1/1 true color
Blue light blocking lens
The Good
- Panoramic layout with a large main window plus fixed DIN 5 side views
- Blue light blocking outer lens reduces eye fatigue in long sessions
- Four arc sensors with 1/30000 second switching
- Shade range 3/5-9/9-13 covers TIG MIG MMA cut and grind
- Solar panel plus replaceable CR2450 battery with three spare lenses
The Bad
- Side windows are fixed DIN 5 and do not track the main lens
- Reinforced PP shell still feels light duty
- No digital readout or memory for settings
The LYG-Q800D pairs a 3.94 by 3.23 inch auto-darkening window with a pair of DIN 5 side views, which is the most affordable route to genuine panoramic coverage in this list. You can glance left or right at the fit-up without tipping the helmet.
The blue light blocking outer lens is the sleeper feature. Several buyers say it reduces end-of-shift eye strain on long jobs, and with a 1/1/1/1 true colour filter underneath, the view stays bright and neutral rather than green.
Four arc sensors switch in 1/30,000 of a second, and the shade range of 3/5-9/9-13 handles TIG, MIG, MMA, cutting and grinding in one hood. Power comes from a solar panel with a replaceable CR2450 lithium cell, and three replacement lenses are included.
The recurring limitation is that the side windows are fixed at DIN 5 and do not auto-darken with the main filter. That means peripheral vision stays dark while the arc is struck, which some see as a tradeoff and others as a problem in bright fabrication work.
Who the LYG-Q800D suits
Fabricators working on pipe or plate where checking both sides of a joint matters will get real value from the side panels, and anyone with long days and sensitive eyes should notice the blue light filter.
Who should skip it
Skip it if you need the side windows to track the arc. On work where you strike an arc and immediately need peripheral awareness of both edges, fixed DIN 5 panels leave you working half blind at the sides.
It is also not ideal over a respirator or a tight cap, since the pivot headgear does not lock firmly enough for that combination.
9. ESAB Sentinel A60 – Best for Production Shops
ESAB® Sentinel™ A60 Welding Helmet, Black Low-Profile Design, High Impact Resistance Nylon, Large Viewing Area 4.65 in x 2.80 in
Viewing area 4.65 x 2.80 inch
OpTCS true color
9 setting memory
16 ounces
The Good
- Highest rated with 87 percent five star reviews
- Wide 4.65 x 2.80 inch window with crisp OpTCS true color optics
- Extremely light at 16 ounces with the weight centred over the head
- On board memory for up to 9 settings and half shade increments
- Low profile round shell fits tight spaces and goes over a respirator
The Bad
- Highest cost in the roundup and branded consumables cost more
- Ratchet headgear feels cheap and must not be overtightened
- Will not stay flipped up because the lock nuts do not hold
- No onboard light for low light work
The Sentinel A60 is the professional-grade end of this roundup, and professional welders say so directly. A 4.65 by 2.80 inch window with ESAB OpTCS true colour optics is wide enough to read the joint and both edges, and the round low-profile shell fits inside tight structure.
Internal ADF controls let you set sensitivity and delay from inside, and the on-board memory stores up to nine settings. Shade runs from DIN 3 to 5-13 in half-shade increments with a shade lock, so you are not re-dialing between every job.
At 16 ounces with the weight centred over the head, it is the lightest shell here by a wide margin. Ironworkers using it daily cite the elimination of neck fatigue, and the stiff grind button is hard to trigger by accident in confined work.
It shares a 4.7 rating with the Hobart but carries the higher share of five-star reviews. The criticism is narrow and consistent: the ratchet headgear feels cheap, the flip-up lock does not hold, and cover lenses scratch if set down carelessly.
Who the Sentinel A60 suits
Professional fabricators welding eight hours a day will feel the lightness and the setting memory more than the panel size, and it is the pick for overhead or confined work because the low-profile round shape clears structure and fits over a respirator.
Who should skip it
Skip it if you are still learning. The price and the branded consumables are hard to justify until you know which shade and delay settings suit your own work.
Low-light work is another reason to pass. There is no onboard light, and the flip-up lock that will not hold is a genuine annoyance when you are constantly lifting the helmet to check a joint.
10. ARCCAPTAIN LY800J-CC – Best Wide Peripheral Layout
ARCCAPTAIN Welding Hood, 180° Panoramic View Auto Darkening Welding Helmet
3.94 x 7.06 inch total field of view
Centre screen plus side views
4 sensors
1/25000 second
The Good
- Widest layout here at 3.94 x 7.06 inches total field of view
- Upgraded knobs adjust while wearing welding gloves
- Redesigned interior fits the head more comfortably for long wear
- Two front solar panels plus two CR2450 batteries
- 12 in 1 filter with automatic DIN 16 UV and IR protection
The Bad
- Side views are fixed DIN 5 and do not track the main filter
- Basic PP shell despite a mid tier price
- No digital readout or setting memory
- Very few written owner reviews relative to the rating count
This helmet sits between the budget rectangular hoods and the full panoramic models. The centre auto-darkening screen is 3.94 by 3.66 inches at DIN 16, and two side views of 3.94 by 1.70 inches bring the total field of view to 3.94 by 7.06 inches.
Four advanced sensors switch light to dark in 1/25,000 of a second across TIG, MIG, arc and grinding modes. The knob section is upgraded so you can adjust while still wearing welding gloves, and the interior layout was rearranged to sit more comfortably on the head.
Power is generous, with two front solar panels and two CR2450 lithium batteries. The 12-in-1 smart filter handles automatic DIN 16 UV and IR protection, and the PP shell has published tensile and flexural figures.
Who the LY800J-CC suits
Fabricators working on pipe or plate where watching the far end of the bead matters will like the horizontal coverage, and the redesigned interior plus dual battery setup suits long production days.
Who should skip it
Skip it if you need side windows that darken with the arc. The side panels are fixed at DIN 5, so peripheral vision stays dark while the arc is live.
We would also hold off if longevity matters more than features. There are very few written owner reviews relative to the rating count, so durability conclusions here carry less weight than for the better-documented models.
11. VILSIN K23-5022-HY – Best Lightweight Helmet on a Tight Budget
VILSIN True Color Auto Darkening Welding Helmet with Flames Welding Mask Large View Wide View Welding Hood with 2 Arc Sensor,Wide Shade 3/4-8/9-13 for Mask Tig Mig Arc Welding Shield K23-5022-HY
Viewing area 3.78 x 1.58 inch
1/1/1/2 optical class
2 arc sensors
1.54 pounds
The Good
- Very light at 1.54 pounds with a padded front band and two top straps
- Side and rear knobs adjust angle and tightness for different head shapes
- Wide shade coverage handles plasma cutting grinding TIG MIG and MMA
- Bundle includes 3 outer and 2 inner replacement lenses
- Replaceable CR2032 battery assisted by solar cells
The Bad
- Only 2 arc sensors which reduces reliability on low amperage work
- Optical class 1/1/1/2 rather than full 1/1/1/1 clarity
- Viewing window is modest at 3.78 x 1.58 inches
- PE plastic shell offers little impact resistance
The VILSIN is one of the lightest helmets in the roundup at 1.54 pounds, and it earns a 4.6 average that outranks models costing several times as much. Comfort is the theme across reviews, particularly the soft padded front band and two top straps that spread weight across the top of the head.
Side and rear knobs let you adjust the angle and tightness for different head shapes, which matters more with a long day in it. The cartridge is 4.33 by 3.54 inches, giving more physical room around the lens than the viewing window itself suggests.
Shade coverage is broad at 3/4-8/9-13, covering plasma cutting, grinding, DC and AC TIG, MIG/MAG and MMA from one hood. Three replacement outer lenses and two inner clear lenses come in the box, and the CR2032 cell is replaceable with solar cells assisting.
Who the K23-5022-HY suits
Anyone who finds helmets tiring after a couple of hours will notice the weight difference first, and the shade range reaching the higher values lets it double as a plasma cutting and grinding helmet.
Who should skip it
TIG welders working at low amperage should look elsewhere. Two arc sensors are the fewest here, and that is exactly the configuration most likely to miss a faint arc.
Clarity seekers should also note the 1/1/1/2 optical class and the narrow 3.78 by 1.58 inch window. Both are a visible step down from the full-size true-colour panels above, and the PE shell gives almost no impact protection.
12. TGR 180 View Solar Helmet – Best for Welders Who Travel
TGR Panoramic 180 View Solar Powered Auto Darkening Welding Helmet – True Color (Carbon Fiber)
Panoramic 180 degree view with side screens
1.1.1.2 optical class
4 arc sensors
Solar powered
The Good
- Genuine 180 degree layout with side screens for shop awareness
- Bright view in all DIN states with a slight blue tint that shows bead peaks
- Solar panel charges quickly and extends battery life meaningfully
- Visor down design stops the lens scratching when set down
- Backed by responsive warranty service
The Bad
- Switching speed of 1/10000 second is slower than modern competitors
- Optical class 1.1.1.2 is one step below full 1/1/1/1 clarity
- Headgear is noticeably lower quality and will need replacing
- In bright direct sunlight the lens sometimes fails to return to clear
The TGR is the most travel-oriented helmet here. The carbon fiber style nylon shell hides scratches well, the rounder shape suits tight spaces, and the visor-down-on-a-surface design means you can set the helmet on a bench without scratching the lens.
The panoramic side screens let you check your surroundings under the hood, and the front filter shows a clear, bright view in every DIN state with a slight blue tint that highlights the peaks and valleys of a bead rather than flattening it.
The solar panel charges quickly and meaningfully extends battery life. One long-term owner in the reviews reports four years of continuous daily use from the setup, and another had a flickering screen replaced within three days under warranty.
The reservations are concrete. Switching is 1/10,000 of a second, slower than the 1/25,000 to 1/30,000-second norm here, and optical class is 1.1.1.2. In bright direct sunlight the lens sometimes fails to return to its clear state, and the headgear is built to a lower standard than the rest.
Who the 180 View suits
Site welders who move between jobs will like the scratch-hiding finish and the visor-down design, and the solar panel means fewer flat batteries in a toolbox.
Who should skip it
Skip it if you work in direct sunlight outdoors, where owners report the lens struggling to return to clear. Low-amp TIG is also a poor fit given the slower switching speed.
Expect to replace the headgear eventually. Several owners describe it as comfortable but noticeably lower quality, and it is the part most likely to fail first.
Side-View Helmets Versus Front-Panel Helmets
Side windows add real value in specific situations and pure weight in others. If you weld pipe, structural plate or anything where you need to see both edges of a joint without moving your head, the panoramic models are worth the extra glass and the extra grams.
If you work on flat plate with a consistent torch angle, a big rectangular panel like the YESWELDER LYG-M800H gives you most of the benefit at lower weight. The ESAB Sentinel A60 at 16 ounces and the Hobart at 1.25 pounds are the two lightest shells in this roundup.
One compromise applies to every side-view model except the digital YESWELDER: the side panels are fixed-shade and do not darken with the main filter. Welding forums discuss this constantly, and the honest summary is that it matters most when you strike an arc and immediately need to see around the joint.
Large-View Helmets for Aging Eyes
Near vision starts to go before most people expect it, and a small filter lens makes it obvious fast. On the Garage Journal thread about welding helmets and older eyes, one poster recommends shade 5 side wings specifically because they give a much greater field of view when moving around the shop, not just while the arc is live.
The practical rule is simple. If you have started holding work further away, or you catch yourself lifting the helmet constantly to check a bead, a panel at least 3.9 by 3.66 inches is the cheapest fix available. Six of the helmets here hit that size.
True colour optics help more than raw size at this point, because an accurate colour view of the puddle lets you judge penetration and bead profile without straining to filter green light through tired eyes. The Hobart PureColor and the ESAB OpTCS lenses are the clearest of the twelve.
Our broader picks across all helmet types, including auto-darkening models without an oversized panel, are collected in our [best welding helmets guide](https://hellskitchenfleamarket.com/best-welding-helmets/).
How to Choose: Shade, Sensors, Power and Comfort
Certification comes first. ANSI Z87.1 is the US standard and covers impact and optical quality for industrial safety eyewear, while EN 379 is the European welding-specific standard that tests filter behaviour under arc conditions. The ARCCAPTAIN GT995 and the TGR list ANSI Z87.1, and the GT995 adds EN 379 CE and CSA Z94.3, which is the broadest certification set here.
Shade range should match your process rather than impressing you on paper. MIG typically runs shade 8 to 13 depending on material thickness, stick wants 10 to 13 for most work, and low-amp TIG needs the bottom of the range around shade 8 to 10. Cutting and grinding need their own settings, which is why every model in this roundup carries a grind mode and why the widest ranges top out at 9-13 or 9-14.
Arc sensors matter more than most buyers expect. Four or five sensors spread across the panel detect the arc at more angles and at lower amperage. The VILSIN with two sensors is the clearest example of what that costs, and low-amp TIG work is where the difference shows first.
Power logistics decide whether a battery dies mid-job. Solar panels supplement rather than replace the cell, so treat them as a bonus rather than a solution, and check that the battery type is a common coin cell you can buy locally. We cover this in more detail in our [auto-darkening welding helmet guide](https://hellskitchenfleamarket.com/best-auto-darkening-welding-helmets/).
Weight and headgear are the last piece and the one that pays off most across a full shift. The ESAB at 16 ounces and the YESWELDER LYG-M800H at roughly 1.32 pounds are the two to benchmark against. Anything above about 2.5 pounds tends to produce neck complaints over a long day, which is the exact problem a large panel was supposed to solve.
Once the helmet is chosen, the rest of your kit matters too. Our picks for [welding gloves](https://hellskitchenfleamarket.com/best-welding-gloves/), [welding aprons](https://hellskitchenfleamarket.com/best-welding-aprons/) and [welding tables](https://hellskitchenfleamarket.com/best-welding-tables/) cover the rest of the bench.
Frequently Asked Questions
What welding helmets have a large viewing area?
A helmet qualifies as large-view when its auto-darkening filter panel measures roughly 3.0 by 3.0 inches or more, or when it adds side windows to reach a panoramic field of view near 180 degrees. In our roundup the YESWELDER BW-10MAXTRI has the widest layout at 8.89 by 3.23 inches of total coverage, while the YESWELDER LYG-M800H, ARCCAPTAIN GT995 and TOOLIOM TL-31800H each use a 3.93 to 3.94 by 3.66 inch panel.
Which welding helmet has the best visibility?
The Hobart 770890 has the best visibility in this roundup. Its PureColor lens gives an accurately coloured, noticeably clearer view of the weld and work area, it carries the highest average rating of the twelve at 4.7 stars, and the 9.3 inch widescreen viewing area gives broad situational awareness. The ESAB Sentinel A60 matches its rating with an even lighter shell.
What welding helmet has a large lens?
The largest single rectangular panels in our roundup are the YESWELDER LYG-M800H, the ARCCAPTAIN GT995 and the TOOLIOM TL-31800H, all at about 3.94 by 3.66 inches or 14.4 square inches. The ESAB Sentinel A60 pairs a wide 4.65 by 2.80 inch window with a very light shell at 16 ounces. For true panoramic coverage, the YESWELDER BW-10MAXTRI and the ARCCAPTAIN LY800J-CC add twin side windows on top of the centre panel.
What is considered the best welding helmet?
For most people buying welding helmets with large viewing areas, the best overall is the YESWELDER LYG-M800H, which combines a 3.93 by 3.66 inch true-colour panel with four arc sensors, 1/30,000-second switching and the largest review base we tested. The best optics come from the Hobart 770890 and the best panoramic layout from the digital YESWELDER BW-10MAXTRI.
How big should a welding helmet viewing area be?
At least 3.0 by 3.0 inches for general work, and 3.9 by 3.66 inches if you weld more than a few hours a week. Below about 3.5 by 1.6 inches you will find yourself moving your head constantly, which drives neck strain over a shift. Above 4.5 inches wide, as on the ESAB Sentinel A60, you get broad situational awareness but pay for it in weight and cost.
Is a bigger welding helmet lens better?
Bigger is better for seeing the joint, the filler rod and your surroundings without turning your head, and larger panels place arc sensors across more of the arc. It is not automatically better in every direction. Wide lenses add weight, the deepest shells can hit glasses or catch on structure in tight quarters, and on side-view models the side windows are usually fixed-shade rather than auto-darkening.
Final Verdict
After reading every set of owner reviews we could find, the best welding helmets with large viewing areas come down to panel size, sensor count and weight, in that order. The YESWELDER LYG-M800H wins on the combination of a 3.93 by 3.66 inch true-colour panel, four fast sensors and the heaviest review base we tested.
Buy the Hobart 770890 instead if lens clarity is your priority, the ESAB Sentinel A60 if you weld all day and want the lightest shell made, and the digital YESWELDER BW-10MAXTRI if seeing around the joint matters more than weight. Whichever you choose, check the certification marking against what your work requires before you order.
