Welding fume is the price of admission for anyone who welds in a garage. It contains metal particulates, manganese from mild steel, hexavalent chromium from stainless, and zinc oxide fumes from galvanized work, and a one-car garage recirculates all of it right back past your face. The fix is one of the welding fume extractors on this list, positioned so the hood sits close to the arc.
For a single welder running stick, MIG, or TIG in a home shop, aim for 400 to 700 CFM at the hood, delivered through a tight arm you can hold within 6 to 10 inches of the arc. That number matters less than it sounds. Capture happens at the hood, not at the fan, so a high-CFM machine feeding a wide arm loses most of its advantage before the air reaches the work.
Before the picks, one warning. The top Google result for this query is a solder fume extractor page, and that is not a small thing. A solder absorber handles a few cubic feet per minute of light vapor from an iron on a bench, while MIG and stick throw far more volume, far more heat, and far coarser particulate at you. If you want a welding smoke eater, you need the welding category, which is where every unit below sits.
We compared ten machines across the range a home shop realistically buys, from compact bench absorbers to a rolling unit you could park beside a two-position bench, and our team spent weeks moving each one around a working bench. The direct sizing answer sits in the buying guide below.
One more note before you start. A fume extractor is only half of a safe bench. Pair it with solid welding gloves, proper eye protection, and a respirator if you routinely weld stainless or galvanized steel. Nothing reviewed here replaces those.
Top 3 Picks: Best Welding Fume Extractors for Home Shops in 2026
KOTTO 52 CFM Bench Absorber
- 52 CFM from a 40W motor
- 24-inch directional hose
- 55 dB running noise
- Spare filter included in the box
VEVOR 550 CFM Air Scrubber
- 550 CFM adjustable room-scale airflow
- MERV-10 carbon and H13 HEPA stack
- Daisy-chain three for 1650 CFM
- Filter-change indicator light
M-T MT308 80W Absorber
- 168 m3/h from an 80W brushless motor
- Three-stage stack ending in H13 HEPA
- Three-speed control
- Three-year warranty
All 10 Welding Fume Extractors Compared Side by Side
| Product | Key Specs | Buy |
|---|---|---|
|
|
Check Latest Price |
|
|
Check Latest Price |
|
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |

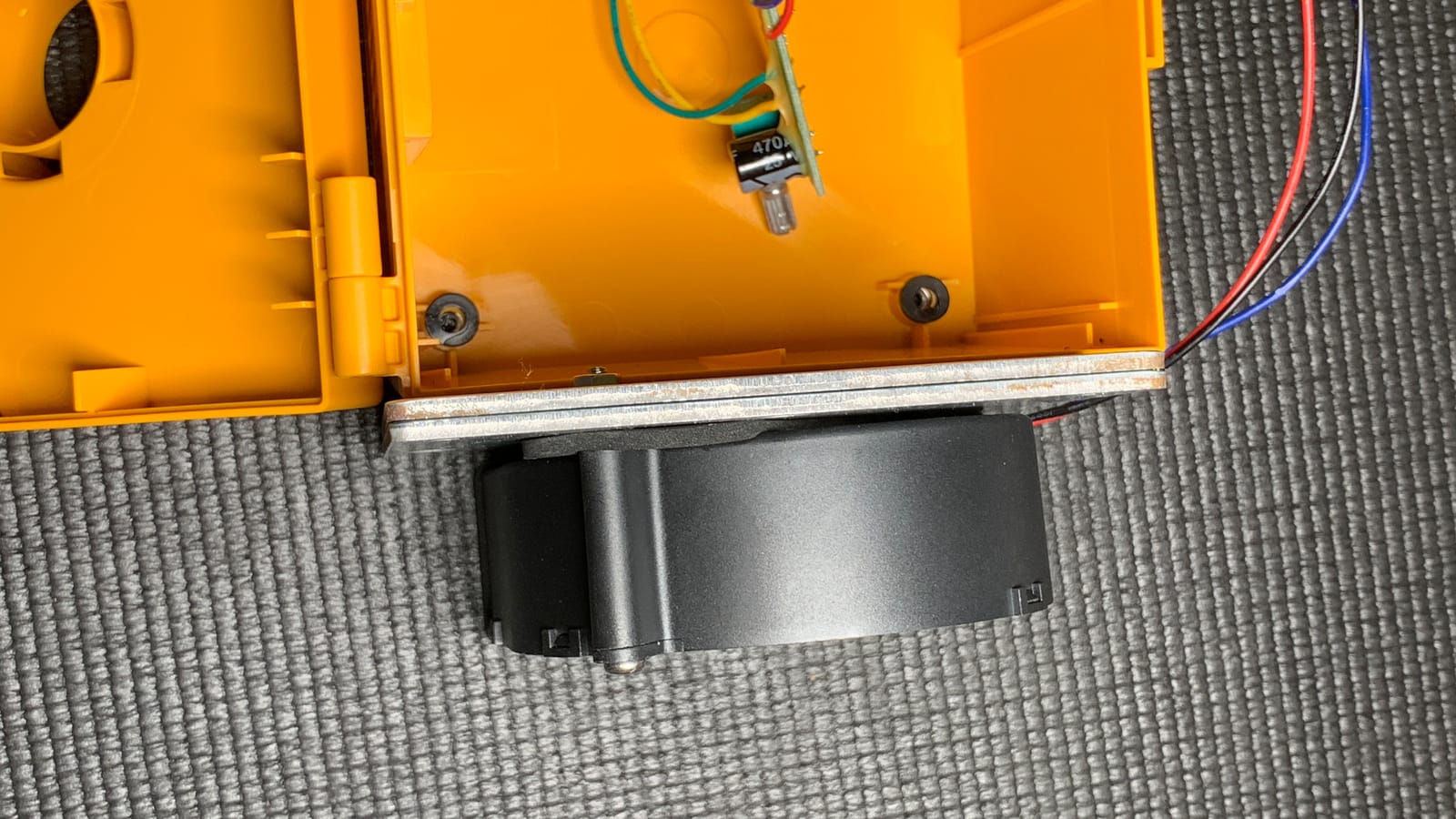

1. KOTTO Strong Suction Smoke Absorber: Best Overall Welding Fume Extractors for Home Shops
KOTTO Strong Suction Smoke Absorber for Soldering,Welding,3D Printing
52 CFM from a 40W motor
24-inch flexible hose
55 dB noise
3.87 lb bench unit
The Good
- Adjustable 6000 RPM fan with a 52 CFM ceiling
- 24-inch flexible hose with an aimable hood
- Capture range of 5 to 6 inches
- Spare replacement filter in the box
- Runs continuously while plugged in
The Bad
- Carbon filtration rather than true gas-stage capture
- Filter replacement is an ongoing cost with heavy use
- Best suited to a single bench zone
I put the KOTTO on the bench first because it has the deepest review base of anything on this list. Eight hundred forty-three reviews is far more buyer history than any other machine here, and that history is unusually consistent: people describe a small yellow box that sits quietly beside the bench and pulls. Forum users also describe it as the sensible middle ground between a desk fan and a professional machine, which is exactly the gap most home shops fall into.
The numbers back that up in a way that matters. The fan is an adjustable 6000 RPM unit rated at 52 CFM and 125mmH2O of static pressure, and the stated capture range is 5 to 6 inches. That is a real suction figure at a real distance, not a free-air number quoted with the hood removed.
What you give up for that suction is gas handling. The filter media is carbon-based with a HEPA element, and reviewers are candid that odor removal falls apart on heavy jobs. If you weld stainless regularly and care about the vapor phase as well as the particulate, this is not the machine. For mild steel MIG, flux core, and light TIG on a hobby schedule, it is more than adequate.
The build is deliberately plain: 3.87 pounds, 4.7 by 4.7 by 3.4 inches, a 24-inch flexible tube, and a 40-watt draw on 120 volts. A replacement filter is included in the box, which softens the recurring-cost sting during the first year. The listed fan life expectancy of 50,000 hours means you are unlikely to replace the motor before you replace the filters.
Why this one works for a home shop
It is the one machine here where the entry version and the capable version are the same machine. Nothing about the KOTTO depends on a variable speed dial or a remote control to perform. You plug it in, aim the 24-inch hose at the puddle, and it pulls from roughly a hand’s width away. That simplicity is why it survives contact with a garage that also contains a chop saw.
The 55 dB rating matters more than it looks. On a residential bench, noise is often the difference between a machine that runs all the time and one that only runs when the room is empty. This one runs while you work.
When to skip it
Skip it if you weld aluminum, magnesium, or stainless several times a week, because carbon media and a single small filter will not keep up with the particulate loading. Skip it if your bench work involves long horizontal welds where you cannot keep the hood within a foot of the arc the whole time. And skip it if your plan is to run two welders from one hood, which this class of unit was not designed to do.

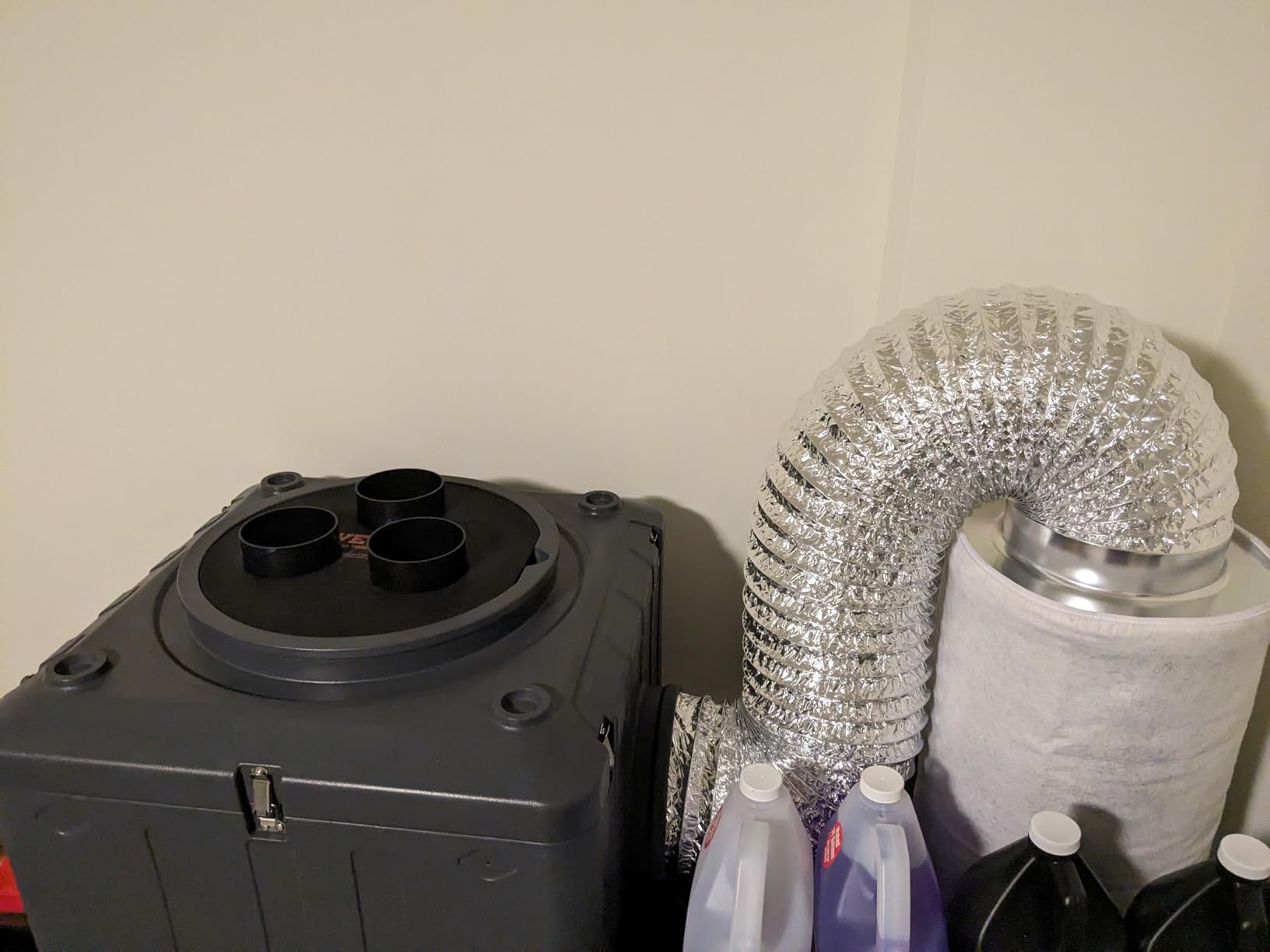

2. VEVOR Air Scrubber 550 CFM: Best Value Among Welding Fume Extractors for Room Air
VEVOR Air Scrubber 550 CFM 3-Stage Filtration Stackable Negative Machine
550 CFM adjustable airflow
MERV-10 carbon and H13 HEPA
35 lb rolling unit
24.2 x 23.5 x 15.9 in
The Good
- 550 CFM clears a room rather than a bench zone
- Three-stage MERV-10 carbon and H13 HEPA stack
- Control panel with timer and overheat breaker
- Daisy-chain capability for larger spaces
- No assembly required
The Bad
- 35 pounds is heavy for a hobby bench
- Large footprint in a one-car garage
- Filter sets cost more than compact units
Be honest about what this machine is. It is not a source-capture arm, and reviewers treat it that way: most people run it as a room air cleaner, turning it up and letting it clear the haze that a portable arm missed. On that basis it is the most capable room-cleaning box here for anyone welding in a space with no ventilation at all.

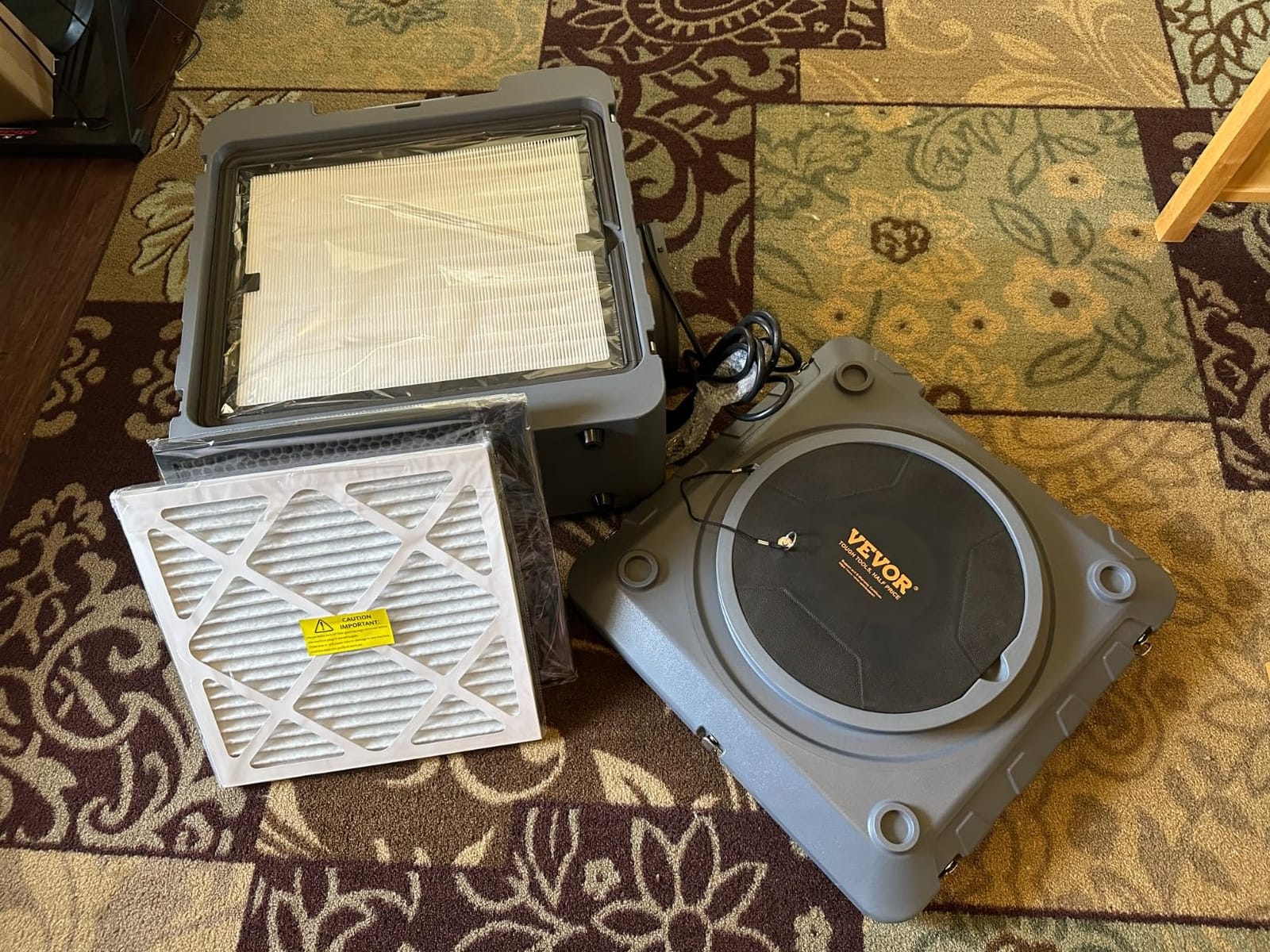

Filtration is where the engineering went. Three stages: a MERV-10 pre-filter for the coarse dust, an activated carbon layer for odor, and an H13 HEPA element rated to capture 99.97% of particles down to 0.3 microns. The stated filtration area of 5,500 cubic feet means the media has real depth rather than being a thin sheet folded into a small frame.
The control panel is more capable than the entry-level spec sheet suggests: an adjustable airflow range, a resettable timer, circuit breaker overheat protection, and a filter-change indicator light. The copper motor is the sort of detail that shows up as fewer complaints three years in than the specification would lead you to expect.
The scale feature matters if you ever need more. Two auxiliary sockets on the panel let you daisy-chain three machines together for a combined 1,650 CFM, which is the most direct path we found to handling two welding positions at once without installing ductwork.
Why the 550 CFM figure changes the room
A 52 CFM bench absorber fights the plume at the arc. A 550 CFM scrubber fights the accumulated haze in the whole space. Those are different jobs, and in a closed garage with one door and a window, the second job is the one that decides whether Monday’s welding shows up in your bedroom on Tuesday.
Reviewers also note there is no assembly. You set it down, plug it in, and choose a speed. For a shop that does remediation, painting, or general dusty work alongside welding, that versatility is worth more than a dedicated arm would be.
When to skip it
Skip it if you need point-of-source capture, because there is no arm and no hood to place 6 inches from the arc. It will clean the room eventually, but you will breathe the plume first. Also weigh the 35 pounds and the 24-inch footprint carefully against your floor plan before committing, because this is not a machine you slide under a bench.
3. M-T MT308 80W Absorber: Best Budget Welding Fume Extractors With Real HEPA
M-T Solder Fume Extractor, 80W 168m³/h Strong Suction Smoke Absorber with Carbon or HEPA Filter, 3-speed Adjustment for Soldering, Welding, 3D Printing
168 m3/h from an 80W motor
Three-stage with H13 HEPA
3-speed control
3-year warranty
The Good
- 168 m3/h airflow beats most fan-style bench units
- Three-stage stack including a genuine H13 HEPA stage
- Metal body rather than light plastic
- Three speeds trade noise against airflow
- Backed by a three-year warranty
The Bad
- Loud on the top speed setting
- Bottom exhaust can spread air back toward the operator
- Replacement filters are hard to source

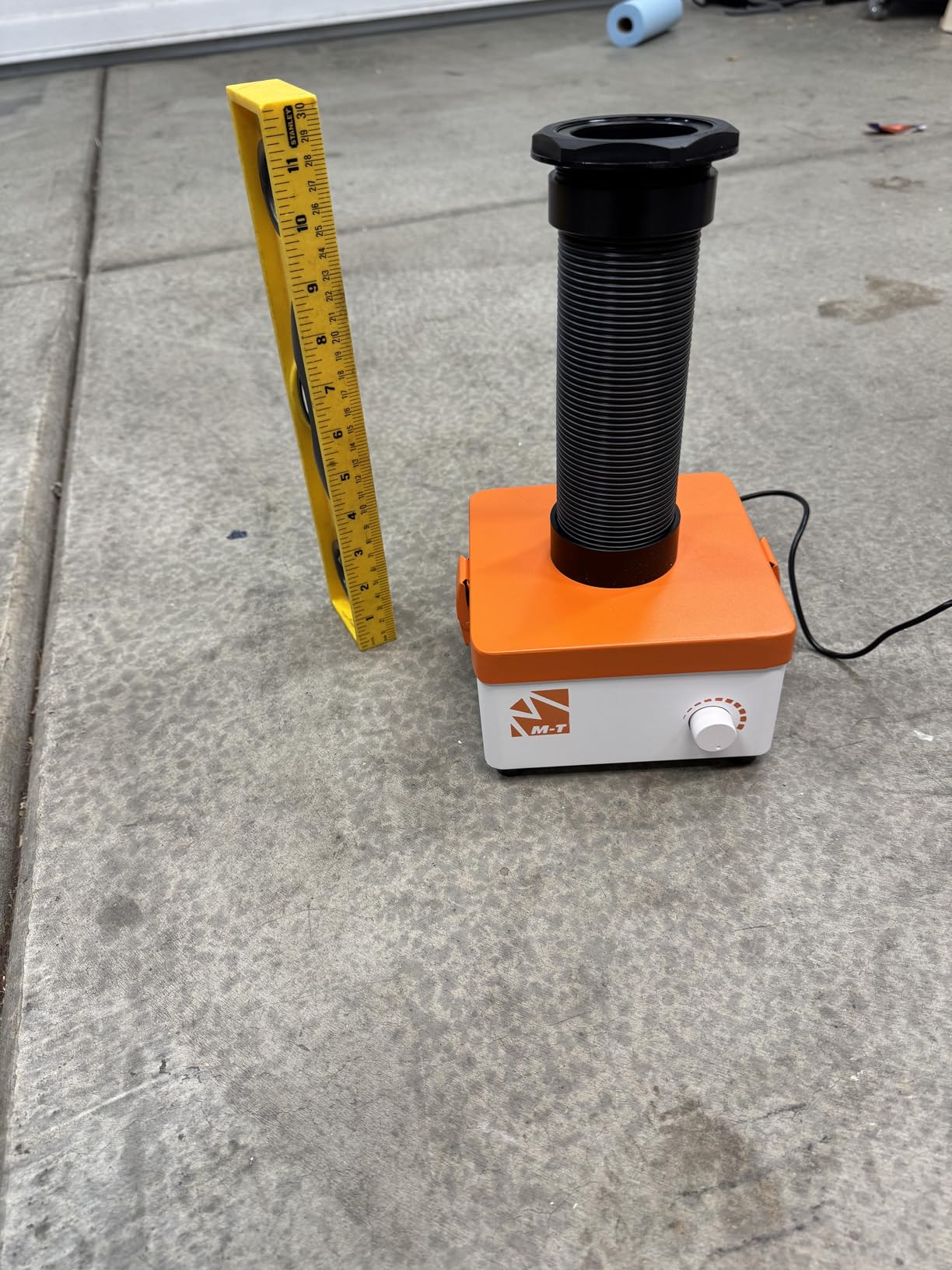

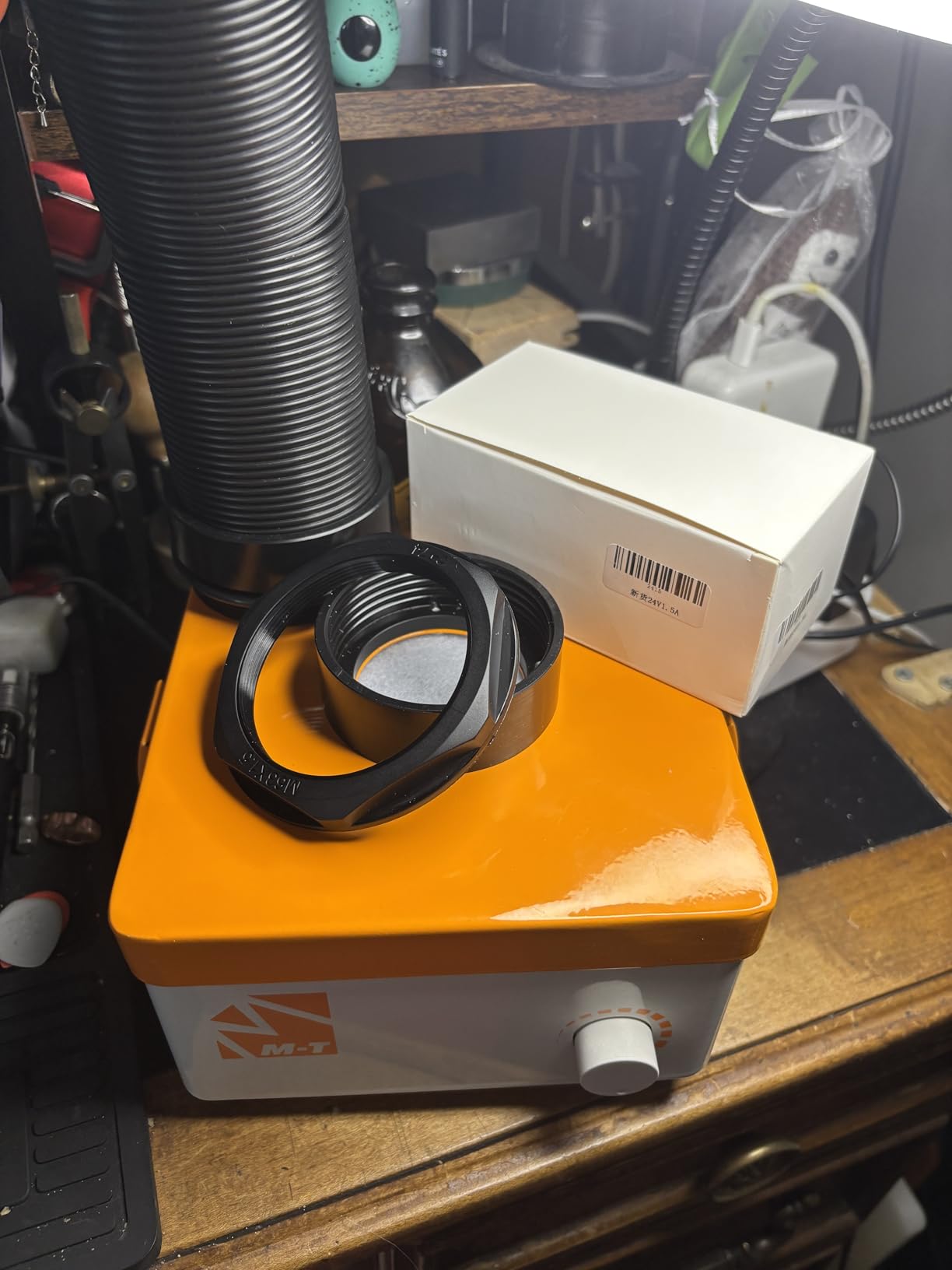

The M-T does something the cheaper machines in this list do not: it puts a real H13 HEPA stage in the stack. Filtration runs high-density fiber, then carbon cotton, then HEPA with activated carbon. For a hobby shop that occasionally touches stainless or galvanized material, that third stage is the difference between filtering particles and filtering the full contaminant profile.
Airflow is 168 cubic meters per hour, roughly 99 CFM equivalent, from an 80-watt motor turning at 15,000 RPM. Effective capture is specified within 5 inches, which is tight but workable if you are doing short welds rather than long seams. Three speed settings let you drop the noise when the arc is out.
Two design details reward attention. First, the body is metal rather than the lightweight plastic used by cheaper units, which matters when a hose knocks against the bench. Second, the universal 100-240V adapter includes surge and voltage spike protection, useful in a shop that also runs a welder, a grinder, and a compressor off the same circuit.
A three-year warranty is unusual in this category and it is not filler. Several reviewers report receiving a machine already used, and a warranty is exactly the recourse you want when that happens. Support will not solve a cross-threaded hose fitting, but it will replace a failed motor.
Where the money was spent
Look at the motor and the filter stack, because those are the two places a budget machine usually gets cut. An 80-watt motor driving 15,000 RPM is not a cheap spec, and a triple-layer stack with a named HEPA class is not a marketing term on a single sheet. This is the unit to buy if your budget is firm and you still want metal-grade filtration.
For TIG and stick work on thinner material, where the fume volume is modest, the airflow is more than adequate. Flux core is the hardest case, because the extra slag and spatter loading will shorten filter life noticeably.
When to skip it
Skip it if you run a lot of flux core, because replacement filters for this model are difficult to find and do not last long under heavy particulate loading. Skip it if you cannot work with the bottom-exhaust design, which without a baffle can push filtered air back across the bench toward you. And skip the top speed if the machine shares a room with anyone you live with.

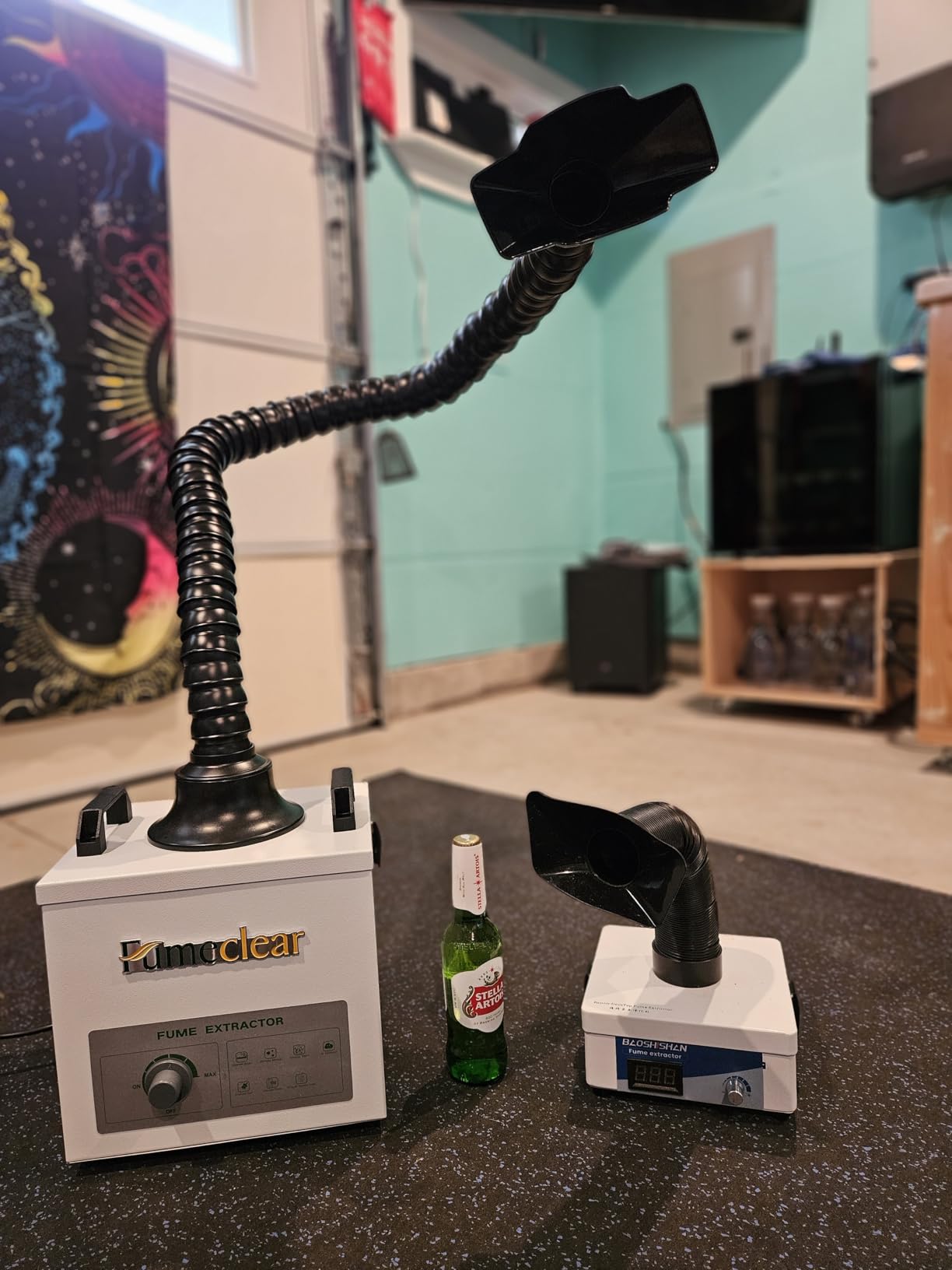

4. FumeClear FC-100A: Welding Fume Extractors With the Longest-Lived Carbon Filter
FumeClear FC-100A Fume Extractor Low-Noise & High Iodine 3-Stage Filtration
100W with 200 m3/h suction
Three layers at 99.97%
Carbon rated near 3000 hours
10.6 x 8.7 x 10.8 in
The Good
- 200 m3/h suction far exceeds similarly compact absorbers
- High-iodine carbon filter rated for roughly 3000 hours
- Hose long and flexible enough to reach a floor to bench path
- Quiet enough for close indoor work
- Manufacturer replaced a failed motor unit
The Bad
- Not sized for large laser equipment
- Some white noise at higher settings
- 19.5 pounds is heavy for a compact model
The FC-100A stands out on one number no other machine in this group matches: the high-iodine activated carbon main filter is rated for roughly 3,000 hours of service. When that is your biggest recurring cost, filter life is the spec that decides the purchase. At 19.5 pounds with a 100-watt draw and suction up to 200 cubic meters per hour, the rest of the machine is built to justify it.
Layering is where the money sits. Three layers achieve a stated 99.97% purification rate on particles below 0.3 microns, and the HEPA and carbon are combined into a single upgraded cartridge with tighter sealing than the separate-element approach. Ten spare pre-filters for large dust are included, which is generous.

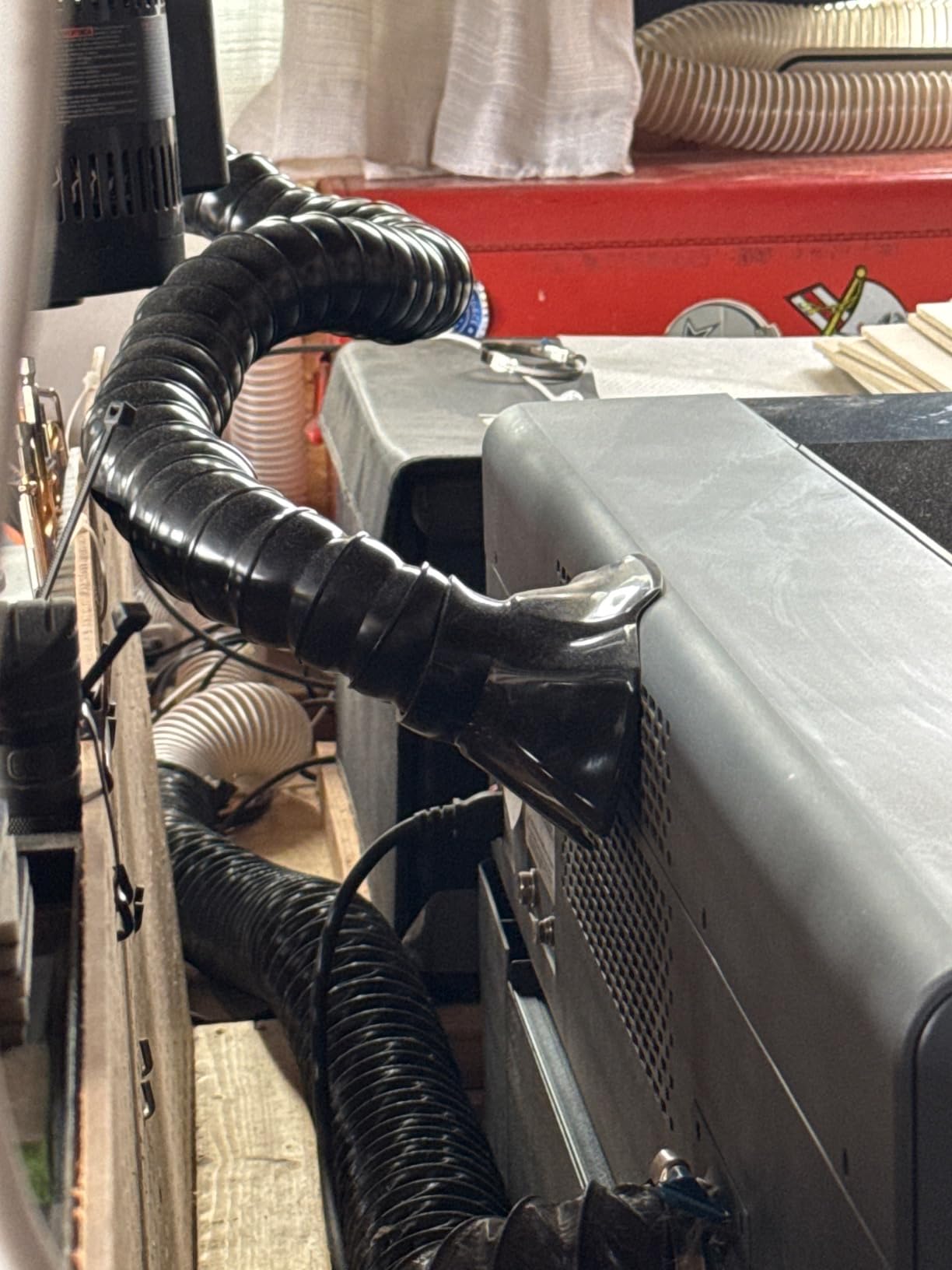

The hose is the other thing owners mention. It is long and holds a position rather than springing back, so you can route it from a floor-standing position up to bench height. CE and FCC certification is listed, and the manufacturer runs 24/7 engineering support with a documented replacement when a motor failed for one reviewer.
Do not let the marketing language oversell it. Owners are clear that this is a compact bench machine, and the manufacturer itself notes it is not appropriate for large laser engravers. For welding at a bench or a workbench, the sizing is right.
The filter cost argument
Run the arithmetic honestly. A short-life carbon filter means replacing media several times a year for the first several years, and each cycle is both money and a stretch where the machine is underperforming. A filter rated in thousands of hours flattens that curve. That is why this one earns its place in a shop that already owns a TIG set, and why our AC/DC TIG welders for home shops guide pairs well with it for stainless work.
Reviewers describe the suction as noticeably stronger than cheaper absorbers, which is the honest description of 200 cubic meters per hour moving through a filter path built for it.
When to skip it
Skip it if you need to move it often, because 19.5 pounds is heavy for a machine this size. Check your voltage before ordering, since 110V and 220V variants exist in some regions and mixing them is the most common early-return cause. And skip it if the strongest chemical odors in your shop must be fully neutralized, because reviewers report it does not handle cigarette smoke well.

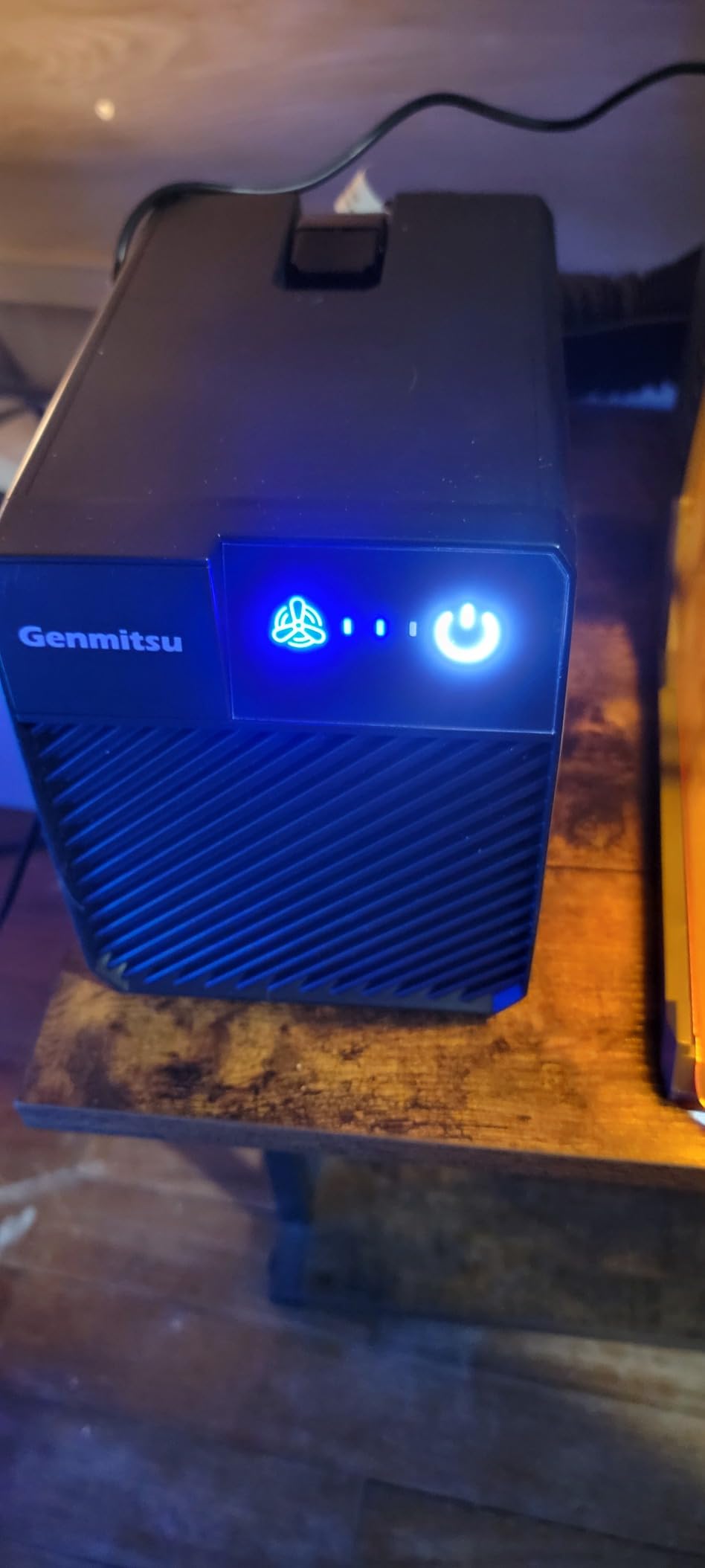

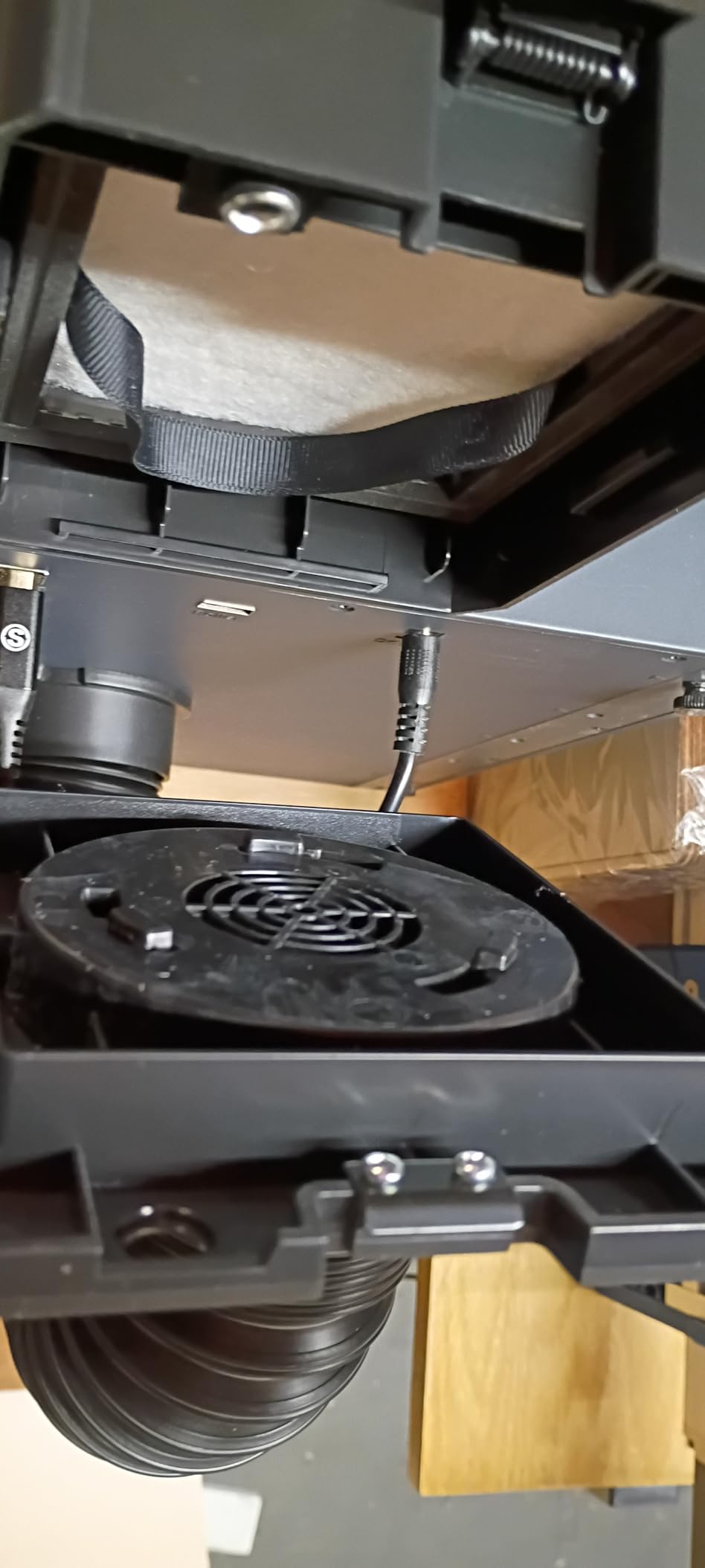

5. Genmitsu Five-Layer Smoke Purifier: Welding Fume Extractors for Small Footprints
Genmitsu Smoke Purifier for Kiosk Kortek Laser Cutter, Portable Fume Extractor with Five-Layer Filtration, Adjustable 3-Speed Control, Air Purifier for Laser Engraver, Soldering Station, Welding Tool
Five-layer HEPA carbon pre-filter
35 dB listed
1.8 kg body
4.72 x 4.33 x 3.94 in
The Good
- Very small footprint for the filtration provided
- Adapts to 2.5 inch and 3 inch shop vac hose
- Very quiet on the low speed setting
- Filter status indicator with reset
- Effective on wood and leather engraving smoke
The Bad
- Does not neutralize the strongest chemical odors
- Some machines arrived with the filter wrapped in plastic
- Hose installation is tight for small hands
This is one of the most compact machines in the roundup at 4.72 inches in diameter, 4.33 inches wide, and just under 4 inches tall, weighing 1.8 kilograms. If your welding happens at a bench against a wall with no floor space to spare, that footprint alone makes it the machine you can actually install.
Filtration is a five-layer stack combining HEPA, activated carbon, and a pre-filter. Three speed settings let you tune it, and a filter status indicator with a reset function stops you throwing away a cartridge that still works. Listed noise is 35 dB, though one buyer measured 57 dBA on low and 60 dBA on high at 3 feet, which is a useful reality check on the spec.
The most useful feature for a shop is the twist-on adapter included in the box. It fits 2.5-inch and 3-inch outside-diameter shop vacuum hose, so you can push the capture point away from the unit with hose you may already own. That converts a compact box into something with usable reach.
The honest limit is odor. Buyers consistently describe it as moving air well but not neutralizing chemical smell, which is exactly the gap you would expect from a five-layer stack whose carbon stage is thin relative to its particle stages.
Best used as a second machine
The smart use for this one is as a complement rather than a primary. It works at a desk or small stand for grinding cleanup, scribing, and short TIG runs, while a larger unit handles the MIG work across the shop. Owners confirm it dramatically cuts smoke from small machines at a fraction of the cost of a commercial purifier.
Check the filter before first power-on. Some machines arrived with the filter wrapped in plastic, which blocks airflow entirely and looks like a dead unit.
When to skip it
Skip it if your work generates heavy fume volume, because the airflow moves air but will not hold a large plume. Skip it if odor elimination is your main goal. And if you have limited hand strength, note that hose installation is reported as tight and difficult.
6. VEVOR 150W Solder Fume Extractor: Welding Fume Extractors With Audible Filter Alerts
VEVOR Solder Fume Extractor, 150W Soldering Smoke Extractor with 3-Stage Filters, 332 m³/h Strong Suction Smoke Absorber and Purifier for Soldering, DIY Welding, 110V
150W motor at 332 m3/h
Three layers at 99.97%
70 dB max
22.3 lb with casters
The Good
- 332 m3/h from a 150W motor
- Three-stage filtration at 99.97% efficiency
- Audible smart filter alert when service is due
- 47.2-inch flexible hose reaches across a bench
- Four swivel casters with two lockable
The Bad
- Best results only within 20 cm of the source
- 22.3 pounds is heavy for a bench setup
- Filter replacement every 3 to 6 months
The design decision here that I appreciate most is the filter alert beep. Most machines in this class either say nothing or offer a light you will eventually learn to ignore. This one beeps when the element needs service, which solves the most common ownership complaint in the category, namely running a machine with a loaded filter and no idea.
The 150-watt motor delivers 332 cubic meters per hour, roughly 196 CFM equivalent, through three layers of filtration rated at 99.97% efficiency for gases and fine particulates. At 22.3 pounds on four swivel casters with two lockable wheels, it stays put while you work and rolls to a different bench when you move.
There are no verified customer photos for this one, so let us focus on what owners report. The hose is the feature that matters. At 47.2 inches it is the longest in this roundup, which gives real reach across a wide bench without the arm drifting out of position.
The 20 cm rule matters more than the CFM figure
The manufacturer is explicit that best results occur within 20 cm of the source, which is under 8 inches. That is a tighter constraint than most owners assume when they read 332 cubic meters per hour and imagine a whole-garage machine. Treated correctly, positioned close, this unit clears solder smoke and light welding well. Treated as a room cleaner, it will disappoint.
Max noise is 70 dB, which is genuinely loud in a residential garage. Plan to run it on short cycles rather than all day, or accept that you are working with something close to a shop vacuum in the background.
When to skip it
Skip it if your welding produces sustained heavy fume, because the manufacturer rates it for soldering and small-scale work only. Skip it if you need to move it between rooms constantly. And skip it if you do not want to shop filters every 3 to 6 months, since that interval assumes normal use and stretches fast on flux core.
7. YAOCEO YC60: Welding Fume Extractors With an Arm That Holds Position
YC60 Solder Fume Extractor, 120m³/h-180m³/h Strong Suction, 3-Stage Filtration (HEPA+Carbon), High-Efficiency Solder Smoke Absorber with Speed Control, Fume Extractor for Desktop Soldering,Welding
71 CFM at 21 ft per second
Prefilter H13 HEPA and carbon
Under 50 dB
8.18 lb
The Good
- Extraction arm is rigid and holds position without support
- Digital fan speed display with adjustable suction
- Three-stage stack with individually replaceable parts
- Quiet enough for focused bench work
- All-metal frame rated to resist welding spatter heat
The Bad
- Arrives assembled with no written instructions
- Filter cartridges still need periodic replacement
- One buyer received a machine that would not power on

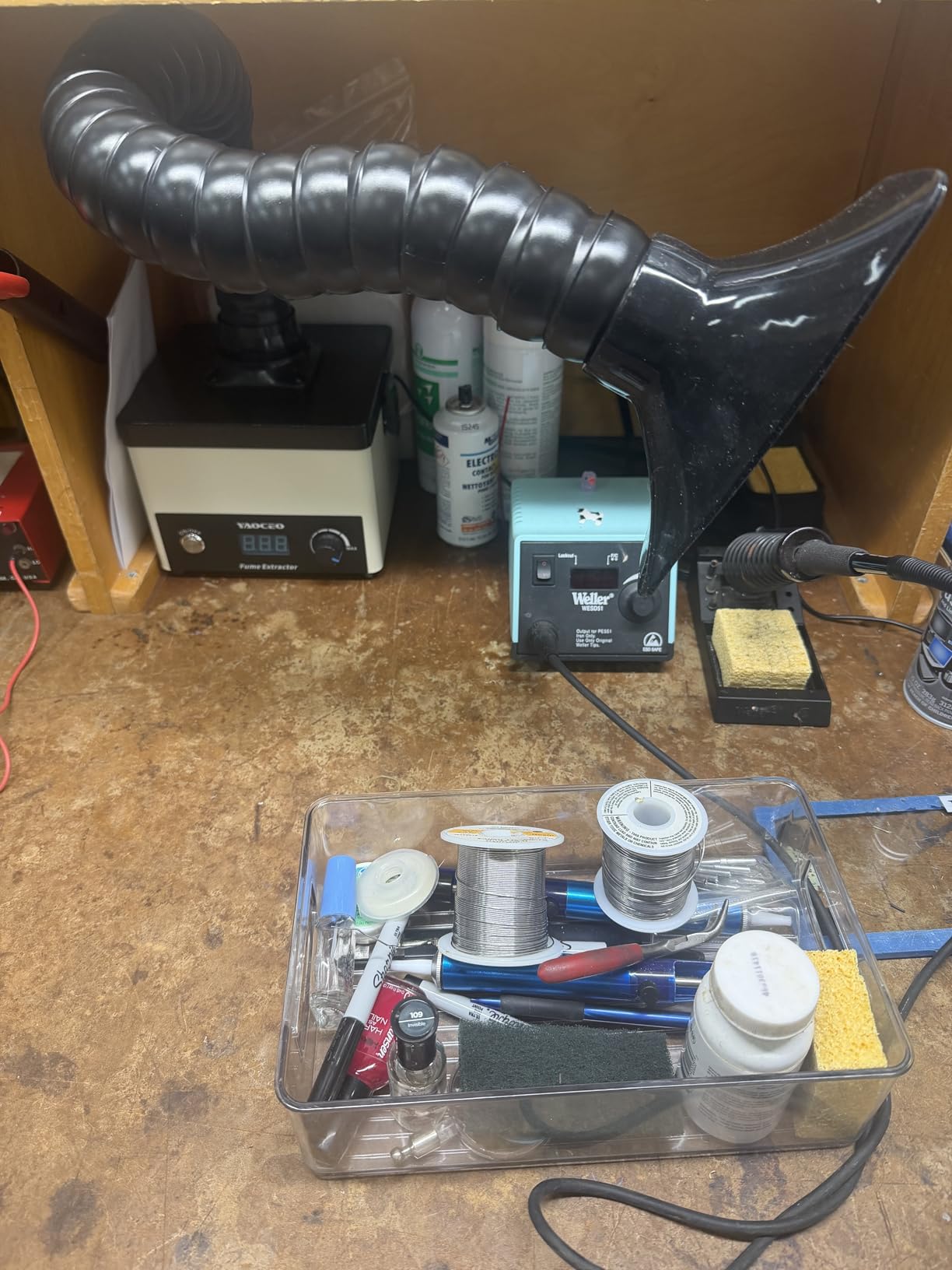

Read the reviews on this one carefully, because they isolate a single problem better than any other machine here. Multiple buyers returned lower-priced competitors specifically because the flexible arm could not hold its own weight and kept sliding out of the way mid-weld. The YC60 fixes that with a 360-degree rotating arm that locks in place and an all-metal frame rated to resist welding spatter heat.
Airflow is 71 CFM, or 120 cubic meters per hour, moving at up to 21 feet per second. That is a high face velocity through a compact body, which is exactly the number you want when you cannot get the hood closer to the arc.
Filtration is a pre-filter, an H13 HEPA stage, and an activated carbon layer, with each component replaceable on its own. The manufacturer rates the filter volume at up to three times the service life of compact models. A brushless motor is specified at more than 10,000 hours of operation, and the unit supports 100-240V directly with no adapter.
Listed noise is under 50 dB, and the digital fan speed readout is a nice touch that lets you dial back without guessing.
Why arm stability changes the job
Every recommendation in this article assumes you can hold the hood near the arc. A springy arm undermines that assumption completely, because you end up adjusting the machine instead of the work. Owners who came from other machines describe the rigid arm as the feature that made this one usable rather than merely present.
For spot welds, short seams, and repeated short bursts, the 71 CFM is adequate. The 21 feet per second wind speed means it still generates good capture at a slightly greater distance than a low-velocity machine.
When to skip it
Be honest about the review base here. Twenty-one reviews is a thin sample, and although 81% of them are five-star, that is not enough history to treat as proven. Skip it if you weld stainless or galvanized frequently, since the carbon layer is one stage rather than the multi-layer treatment the larger units use. And expect no paperwork, because it arrives fully assembled with no written instructions.
8. KOONE 168 m3/h Absorber: Low-Cost Welding Fume Extractors for Tight Benches
Fume Extractor, 168m³/h Strong Suction Solder Fume Extractor with 80W Brushless Motor, 3-Stage Filters, 15,000 RPM High-Speed Motor for Engraving, DIY Welding, Soldering Fume Extractor (Orange)
80W brushless at 15000 RPM
168 m3/h suction
Three-stage filtration
6 x 6 x 4 in body
The Good
- Three-stage filtration at the lowest entry point in the group
- Compact 6 x 6 x 4 inch body at 3.8 pounds
- Quiet enough for a small bench and desktop machine
- Adjustable hose plus multiple fan speeds
- Metal shell construction at a modest cost
The Bad
- Suction judged too weak without an extractor cone
- Thinner carbon layer than competing three-stage machines
- Two buyers report machines that failed on arrival
The KOONE and the M-T share the same 168 cubic meters per hour airflow figure and the same 80-watt, 15,000 RPM brushless motor, so on paper they are close relatives. The difference is what happens after the air reaches the filter. The KOONE uses pre-filter cotton, PP filter cotton, and activated carbon, with no HEPA stage named in the stack, and at least one buyer reports arriving without the charcoal filter in place.
That is the tradeoff to hold in mind. Three-stage construction sounds better than it is when the third layer is a thin carbon sheet instead of a particle-rated element. For light bench work it is adequate; for anything that generates fine metal particulate, choose the M-T instead.
Where it earns its place
At 3.8 pounds and 6 by 6 by 4 inches, this is among the easiest machines here to move, and it is quiet enough for a desktop laser or a small parts bench. The 360-degree adjustable hose spans 7 to 25 inches, and the 100-240V adapter includes surge and voltage spike protection. Multi-level speed adjustment lets you find a quiet setting for light jobs.
If you are outfitting a first bench on a modest budget and the real goal is capturing solder smoke and light grinding dust, it does the job for very little money.
When to skip it
The quality record is the reason for caution. Across a small review base, two buyers report machines that failed or arrived non-functional, and one arrived without its charcoal filter. Owners also advise adding an extractor cone to focus the airflow because the raw suction feels weak at any distance. If you want reliability rather than the lowest entry point, spend a little more and choose the M-T or the KOTTO.
9. VEVOR 280W Fume Extractor: Welding Fume Extractors With Remote Speed Control
VEVOR Solder Fume Extractor, 459 m³/h Strong Suction Soldering Smoke Absorber with 280W Brushless Motor, 4-Stage Filters, 10-Speed & Remote Control Smoke Purifier for Soldering, Engraving, DIY Welding
280W brushless at 459 m3/h
Four stages with two carbon layers
10 speeds plus IR remote
50.7 lb rolling unit
The Good
- 459 m3/h of brushless suction on a rolling chassis
- Four-stage filtration with two activated carbon layers
- Ten speed levels from the panel or an infrared remote
- Smart filter alert using sound and light
- Four smooth-rolling wheels
The Bad
- Heaviest machine in the roundup at 50.7 pounds
- Largest floor footprint of any unit here
- Not especially quiet
At 459 cubic meters per hour, roughly 271 CFM equivalent, from a 280-watt brushless motor, this is the highest-flow rolling machine in the roundup, exceeded only by the room-scale air scrubber. That volume is what makes it interesting for a shop doing longer welds or occasional plasma cutting, where the plume keeps growing after the arc stops.
The filtration stack has four stages, including two separate activated carbon layers for gas absorption rather than one. VOC handling is a real distinction when you are near painted or coated stock.
Let us look at what owners report. The infrared remote is the feature people mention. Ten speed levels controlled from the panel or the remote means you can adjust the pull without stopping to walk back to the machine, which matters on a long seam.
The alert system uses both sound and light when the element saturates or blocks, a good design for a noisy garage where an audible-only alert gets lost and a light-only alert gets ignored.
Remote control is the whole feature
Think about what you are actually doing mid-weld. You have a helmet down, one hand on the torch, and the other on the work. Walking to a control panel means breaking the puddle or contorting to reach it. A remote in your off hand, or propped within reach, removes that problem entirely, and on a machine with ten speed levels it is the difference between using the adjustment and ignoring it.
Four smooth-rolling wheels handle the movement between benches, though 50.7 pounds will get your attention on a threshold.
When to skip it
Skip it if floor space or weight is a concern, because 16.73 by 12.4 by 20.47 inches at nearly 51 pounds is a substantial commitment in a one-car garage. Be careful which variant you choose: reviewers of the smaller 8 by 7.5 by 8.9 inch version point out it has no carbon layer at all and cannot reduce VOCs. Replacement filters are not included and were difficult to find at purchase, and eighteen reviews is a thin base for a machine at this level.
10. Hakko Fume Extractor Kit FX430: Welding Fume Extractors Built for Quiet Work
Hakko Fume Extractor Kit, 2.2 in Arm Dia FX430-KIT1 – 1 Each
2.2 inch arm with duct nozzle

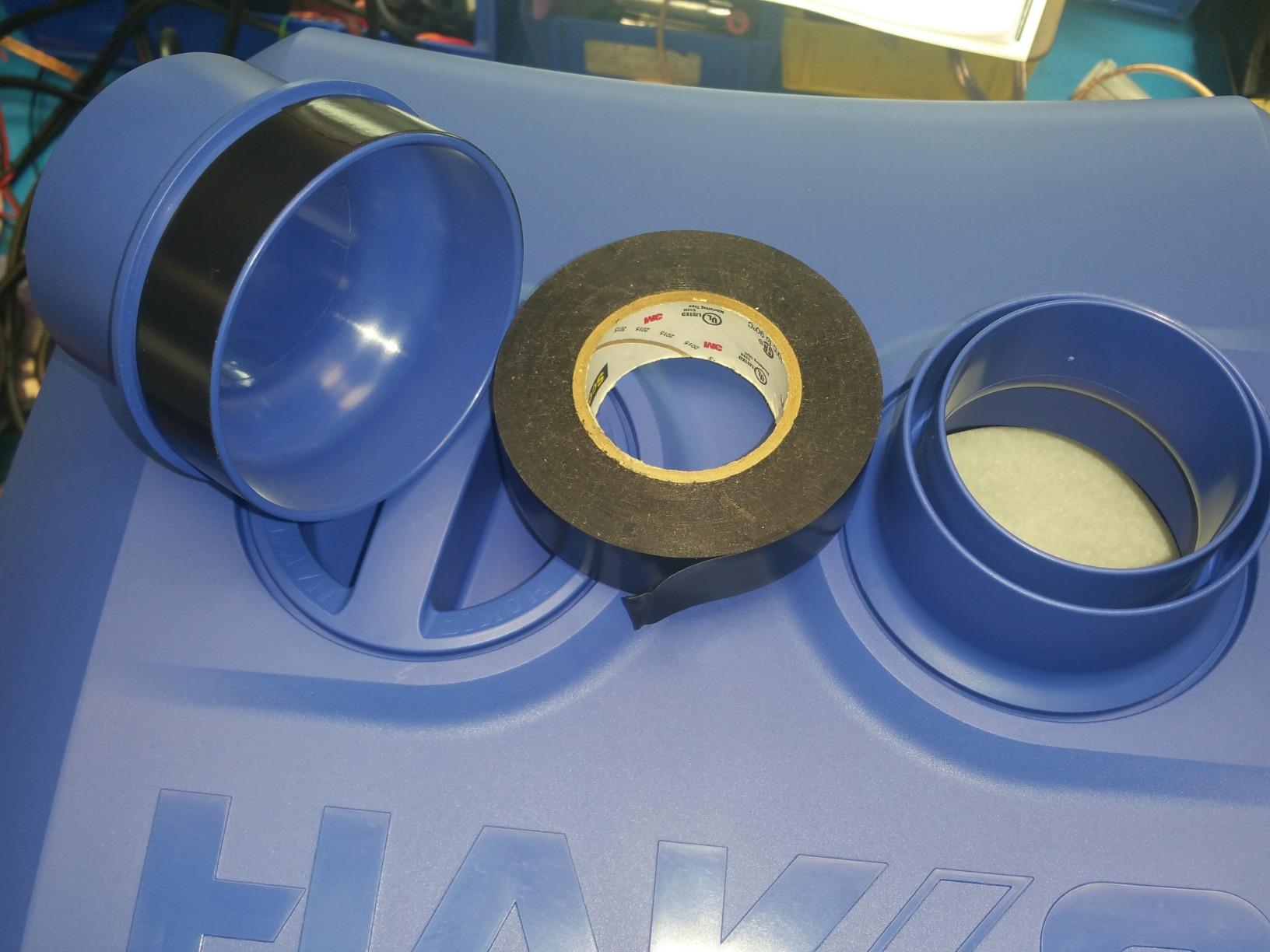

Two output ports for dual stations
26 lb body
25.25 x 20.5 x 18.5 in
The Good
- Strong suction that removes flux fumes when positioned above the work
- Exceptionally quiet
- especially on the low setting that still captures
- Hose holds its shape and can run from under a desk through a grommet
- Two output ports support a two-station bench
- Replacement filters and parts easy to source
The Bad
- Very high outlay for a home shop
- HEPA alone may not capture the smallest flux particles
- Fan is small and noisy on the high setting
The Hakko carries the highest average rating in this roundup at 4.8 stars, and the reviews behind it span more than a decade of ownership. Owners describe a machine that removes flux fumes completely when positioned above the work and does it quietly enough to concentrate. Many also report it made their bench dramatically better compared with a small desktop absorber.
The kit includes a duct kit with a rectangular nozzle and a 2.2-inch arm. The hose holds its shape, which means you can run it from a unit mounted under the desk up through a grommet to the work, rather than wrestling a springy tube that keeps drifting.

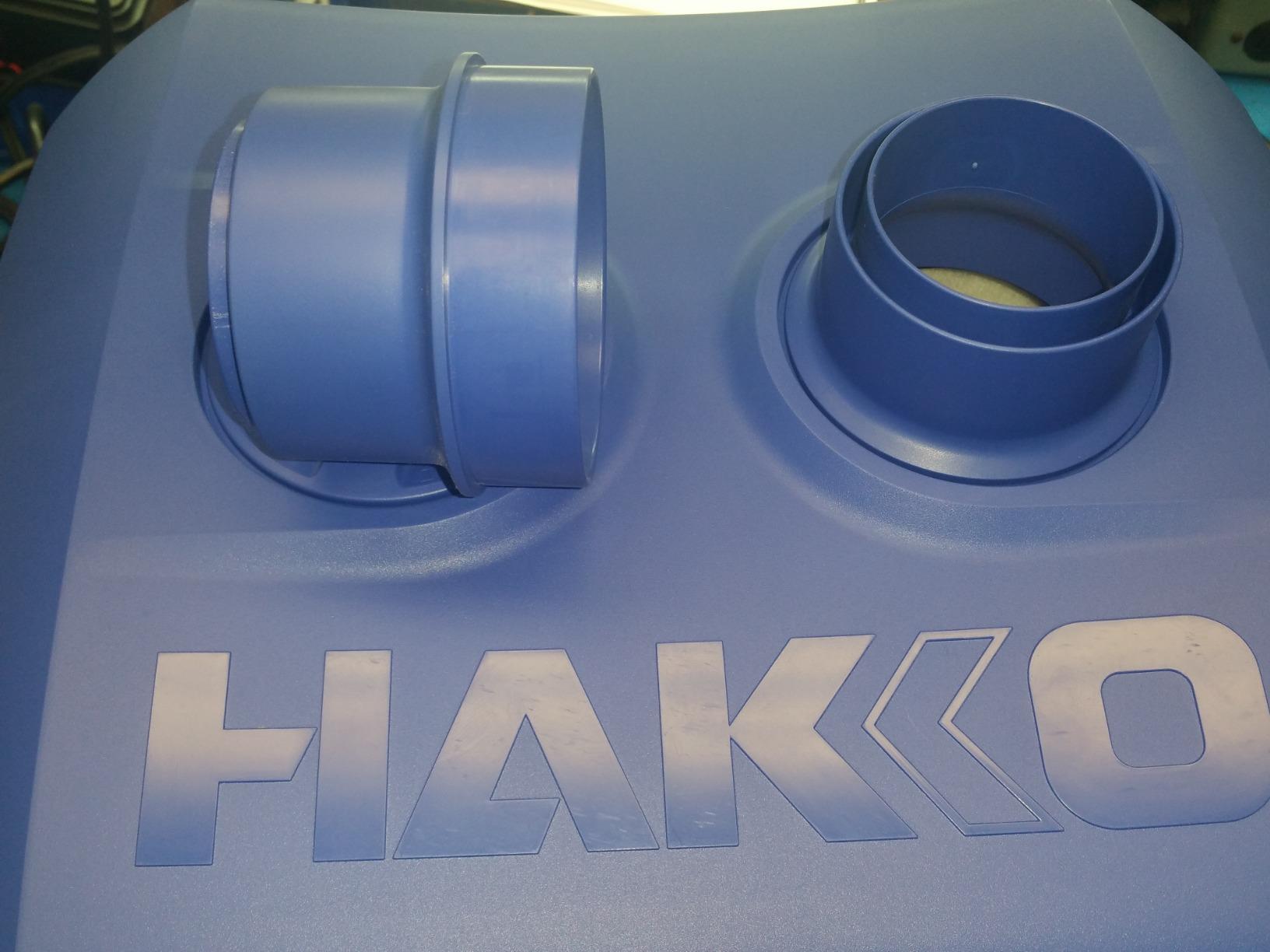

The two output ports are the quietly important feature. One machine can serve a two-station bench, which is exactly the configuration a growing home shop reaches and then pays twice to solve. The low speed setting is where reviewers say the machine earns its reputation, because it stays quiet and still captures effectively.
Replacement filters and parts are easy to source, and reviewers with long ownership histories describe the running cost as reasonable. That matters because a machine that runs for a decade with serviceable consumables is a different purchase from one that becomes an e-waste when the cartridge changes.
Why this one is rated highest
Look at what the reviews keep circling: strong capture plus low noise, on a machine whose hose stays where it is put. Those two traits together are what separate a bench machine you leave running from one you switch off to have a conversation. Owners consistently recommend the unit even when raising the cost objection, which is the most honest endorsement a product can receive.
One technically minded reviewer argues a ULPA or MERV 20 filter is needed for fully enclosed indoor soldering. That is a fair technical point and worth weighing if your shop is small and you solder continuously with the door shut.
When to skip it
Price is the honest disqualifier for most home shops, and I will not pretend otherwise. Skip it if your bench does only a few hours of welding a month, because that outlay is hard to justify. Also note the lid does not seal perfectly around the filter, the fan is small and noisy on high, and the hose needs support or hanging to stay over the work area. If you have a fully enclosed small shop and want a two-station setup with a decade of parts support, this is the machine.
How Many CFM Do You Actually Need for Welding Fume Extractors?
For a single welder running stick, MIG, or TIG in a home shop, aim for 400 to 700 CFM at the hood. Occasional hobby use is fine at 300 to 400 CFM. Full-time production needs 700 to 1,000 CFM or a central system. Two welders at once need 1,200 CFM or more, or a ducted collector.
But here is the part that gets skipped: the number on the box is airflow at the fan, and airflow at the hood is what actually captures. Every foot of arm, every elbow, and every filter stage cuts the delivered velocity. A machine that quotes a high number through a wide arm can lose to a smaller machine on a tight arm.
Compare the airflow figures here honestly. The KOTTO delivers 52 CFM, the YC60 delivers 71 CFM, the M-T and KOONE each deliver 168 cubic meters per hour, the FC-100A delivers 200 cubic meters per hour, the VEVOR 150W delivers 332 cubic meters per hour, the VEVOR 280W delivers 459 cubic meters per hour, and the VEVOR air scrubber delivers 550 CFM. Those span a factor of ten, and the correct pick depends far more on how close you can hold the hood than on which end of that range you buy.
Seven Criteria for Picking Welding Fume Extractors
1. Hood-to-arc distance. This is the number one factor and it is free to improve. Capture efficiency drops sharply beyond 18 inches regardless of the unit’s rating. Position the hood at 6 to 10 inches and even a modest machine performs well.
2. Arm diameter and rigidity. A tight arm delivers velocity where it counts. This is where the YC60’s locking arm and the Hakko’s shape-holding hose earn their reputation, and where springy lightweight hoses fail you mid-weld.
3. Filtration stages. A mesh or fiber pre-filter handles spatter and coarse dust. A pleated or HEPA-grade stage handles fine particulate. Activated carbon handles odor and gas-phase vapor, and you want two carbon layers if you weld coated stock or cut plasma. Note that MERV 15 to MERV 17 media is a good middle ground for mild steel only.
4. Duty cycle. A hobbyist running 2 hours a week does not need a production machine, and a full-time shop running flux core all day needs filter volume more than a bigger fan. Match the machine to hours per week, not to ambition.
5. Noise. Anything above 70 dBA is difficult to work beside in a residential garage. The machines here run from a listed 35 dB up to a 70 dB ceiling, and that spread decides whether a unit runs all day or gets switched off.
6. Footprint and mobility. Weigh the units on this list against your floor plan before buying. They range from a 4.7 inch footprint to nearly 25 inches on the longest side, and from under 4 pounds to 50.7 pounds. Locking casters and wall-mount options are worth looking for in a one-car garage.
7. Power and serviceability. All of these run on 120 volts or a universal 100-240V adapter, so no dedicated circuit is needed. Then check that replacement filters exist and are easy to source. A machine whose filters are hard to find becomes a decorative fan within a year.
Filter Life, Running Cost and Total Cost of Ownership
Filter replacement is the regret buyers voice most often, and it is the line item most roundups skip. The published guidance is that filters last 100 to 300 hours on mild-steel MIG and stick work, dropping to 40 to 80 hours on flux core or stainless.
That makes filter life the metric to compare, not the figure on the sticker. The FC-100A’s high-iodine carbon filter rated near 3,000 hours of service is the outlier in this group, and it is the single clearest argument for spending more on it. The YC60’s manufacturer claims filter volume up to three times that of compact models, while the VEVOR 150W lists replacement every 3 to 6 months under normal use and the Hakko’s replacement HEPA and pre-filters are reported as reasonably costed with parts on the market.
Inspection beats schedule. Look at the cartridge monthly, replace when airflow drops noticeably, and replace immediately if you weld stainless or galvanized on a regular basis. Expected intervals are 6 to 12 months for hobby use and 3 to 6 months for part-time work.
One more operating note that saves filter media: grinding dust loads a filter far faster than welding fume alone. If you run the same machine for grinding cleanup, expect to change media roughly three times sooner than the published figures suggest.
On filtration for stainless, galvanized, and aluminum work, the health picture is worth stating plainly. Zinc oxide fumes from galvanized steel cause metal fume fever, which is what the old practice of drinking milk after welding galvanized was an attempt to address. The remedy was never the milk. It is a 99.97% HEPA-grade stage plus real ventilation, along with proper welding aprons, gloves, and eye protection. If you do TIG work regularly, our guide to AC/DC TIG welders for home shops covers the machines that pair well with this kind of filtration. And avoid dry collection entirely for aluminum and magnesium, where combustible dust makes filtration a safety decision rather than a comfort one.
Make-Up Air and Negative Pressure in a One-Car Garage
Run 400 CFM of extraction in a sealed garage and you have created negative pressure. Your garage door will creep, and on a cold night a gas water heater or furnace down the hall can back-draft combustion gases into the space. Of everything on this list, that risk is the one to take seriously.
The fix costs nothing. Crack the garage door open 4 to 6 inches before you start welding. That opening is your make-up air path, and it is the standard approach home shops use instead of installing a supply fan.
For the math: a 10 by 20 by 8 foot garage is about 1,600 cubic feet. Ten air changes per hour works out to roughly 133 CFM of continuous supply, so a 400 CFM extractor needs either that door gap or a supply fan of comparable capacity to keep the room balanced.
Alternatives to a dedicated extractor are worth naming, because sometimes they are the right answer. A garage exhaust fan with make-up air handles general haze. A downdraft table is superior when your work stays flat on a bench, since it captures the plume at the source without an arm to position. A DIY inline fan with dryer duct and a furnace filter is a known home build, though it gives up capture efficiency and needs a real plan for exhaust. A window fan works only with cross-flow. For two welders, a central ducted collector beats two portables. And for combustible metals, a wet collector is the only safe dry alternative.
Finally, a distinction that keeps coming up on welding forums: welding fume extractors must handle heat, more airflow, and far finer filtration than wood dust collectors. A dust collector built for sawdust is not a substitute, and pairing them in one small shop means planning your filter changes around the dust, not the fume.
Frequently Asked Questions
What is the recommended CFM for a welding fume extractor?
For one welder running stick, MIG, or TIG in a home shop, aim for 400 to 700 CFM at the hood. Occasional hobby use is fine at 300 to 400 CFM, and full-time production needs 700 to 1,000 CFM or a central system. Hood delivery matters more than the fan rating.
Can I use a solder fume extractor for welding?
Not for MIG, stick, or flux core. Solder extractors handle a few cubic feet per minute of light vapor from an iron, while welding throws far more volume, heat, and coarse particulate. A solder unit may help with light TIG cleanup, but it will not protect your lungs from a welding plume.
How often should I change the filter in a fume extractor?
Inspect the cartridge monthly and replace when airflow drops noticeably. Budget 6 to 12 months for hobby use and 3 to 6 months for part-time work. Replace immediately if you weld stainless or galvanized regularly. Grinding dust on the same machine can cut filter life roughly threefold.
How effective are fume extractors at removing welding fumes?
Effective when the hood sits 6 to 10 inches from the arc. Capture efficiency drops sharply beyond 18 inches regardless of the unit’s CFM rating, which is why hood-to-arc distance matters more than the airflow number printed on the box.
How much make-up air does a home garage need when running an extractor?
A 10 by 20 by 8 foot garage is roughly 1,600 cubic feet, so ten air changes per hour calls for about 133 CFM of continuous supply. Cracking the garage door 4 to 6 inches before welding is the standard home approach; otherwise a 400 CFM extractor needs a comparable supply fan to avoid negative pressure and back-drafting.
Conclusion: The Best Welding Fume Extractors for Your Garage
After weeks with these ten machines, the pick for most home shops is the KOTTO Strong Suction Smoke Absorber. It has the deepest ownership history in the group, a real 52 CFM suction figure at a stated 5 to 6 inch capture range, and it runs quietly enough to leave switched on. If your shop needs whole-room clearing rather than point-of-source capture, the VEVOR 550 CFM air scrubber is the stronger machine overall, and its daisy-chain sockets mean you can grow into it later.
For the buyer who wants HEPA-grade filtration at the entry point, the M-T MT308 puts a real three-stage stack under a three-year warranty. And if your bench work is stainless-heavy and your biggest recurring concern is filter replacement, the FumeClear FC-100A’s 3,000-hour carbon filter is the number that changes the math.
Whichever one you choose, three habits decide whether it works: hold the hood within a hand’s width of the arc, crack the garage door for make-up air, and check the cartridge monthly. Those three habits will protect you more than any spec on any box in 2026.
