Most projector mount buying mistakes come down to three numbers: how much weight the mount carries, how far the drop extends, and what your ceiling is actually made of. Get one of those wrong and you end up with a projector sitting at the wrong height, a keystone-corrected image you did not want, or a ceiling grid that should never have carried the load in the first place.
We compared 12 projector mounts for ceilings side by side, from low-profile brackets that hang a projector 4.5 inches below the plaster to a gear-driven professional mount rated at 50 lb. This roundup covers drop ceiling tile replacements, telescoping pole mounts, single-joist adapters and wall-and-ceiling combos, plus the anchoring rules that decide whether the finished install stays square or drifts after a month.
If you are still choosing the screen to pair with your mount, our projector screen roundup is worth reading alongside this one, because drop length and screen size are two halves of the same calculation.
Top 3 Picks: Best Projector Mounts for Ceilings (October 2026)
If you want the short version, these three cover the most common installs: a low-profile steel mount for most rooms, a telescoping value pick for high ceilings, and a precision mount for heavy projectors.
VIVO MOUNT-VP01B
- 6-inch low-profile drop
- 30 lb capacity
- Quick-release hooks
- Three-year warranty
VIVO MOUNT-VP02B
- Telescoping 15-23 inch drop
- Internal cable channel
- 30 lb capacity
- 360 degree rotation
Peerless-AV PRG-UNV
- 50 lb load capacity
- Precision gear alignment knobs
- Pre-assembled slide-in design
- Security strap included
Best Projector Mounts for Ceilings at a Glance
Every mount below is a universal-fit bracket rated in pounds, with the drop length and articulation that actually differ between them. Read the load rating against your projector’s listed weight before anything else.
| Product | Key Specs | Buy |
|---|---|---|
|
|
Check Latest Price |
|
|
Check Latest Price |
|
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
Are Projector Ceiling Mounts Universal?
A universal projector ceiling mount fits any projector whose mounting holes match its hole pattern, usually a single bolt or a square of four holes that the bracket arms slide along, and whose weight sits under the mount’s rated capacity. A model-specific mount instead bolts to one projector body and fits nothing else. Most brackets sold today are universal because the four-hole pattern is close to an industry norm, which is why measuring hole spacing before you buy matters more than the brand name on the box.

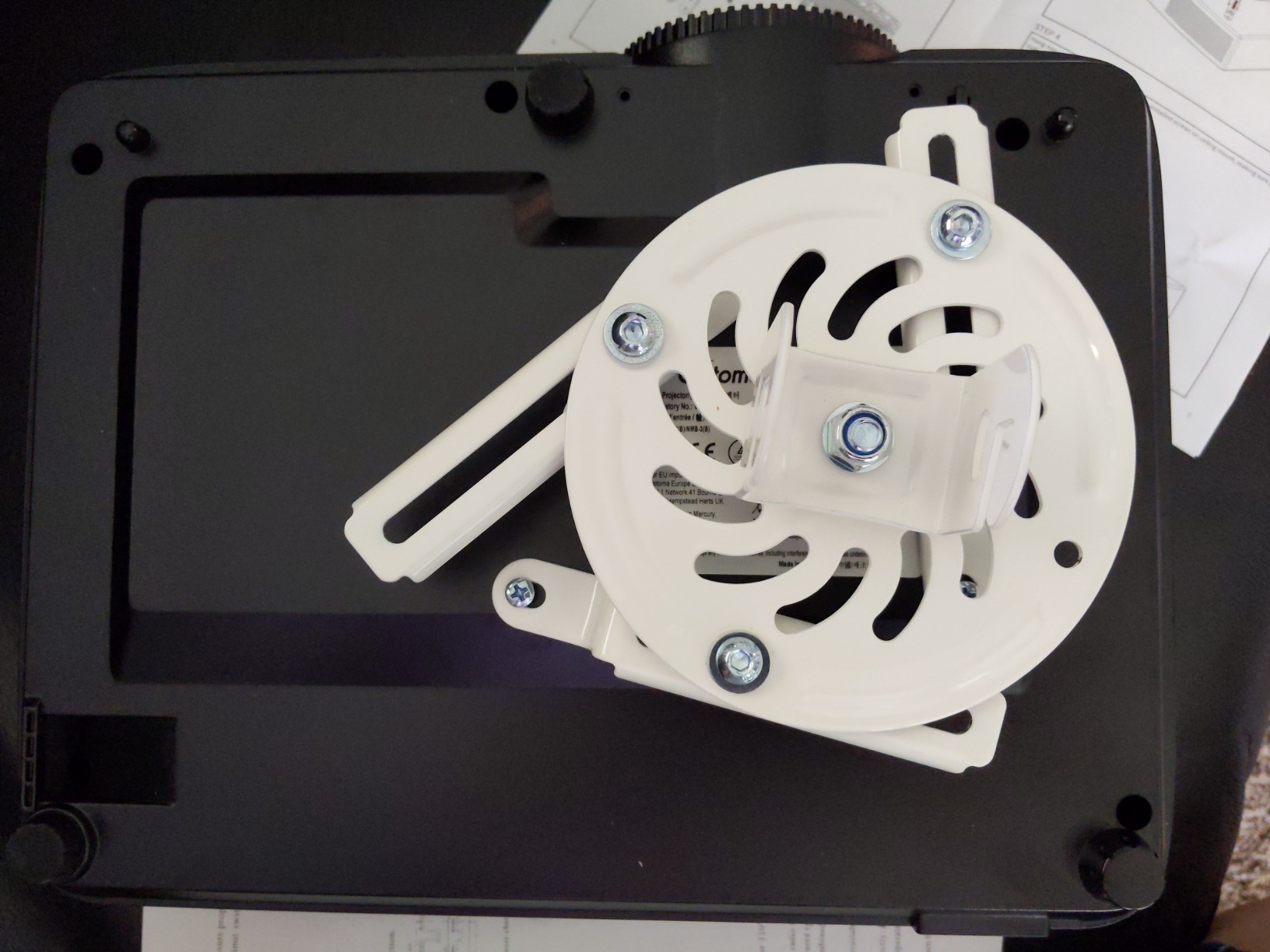

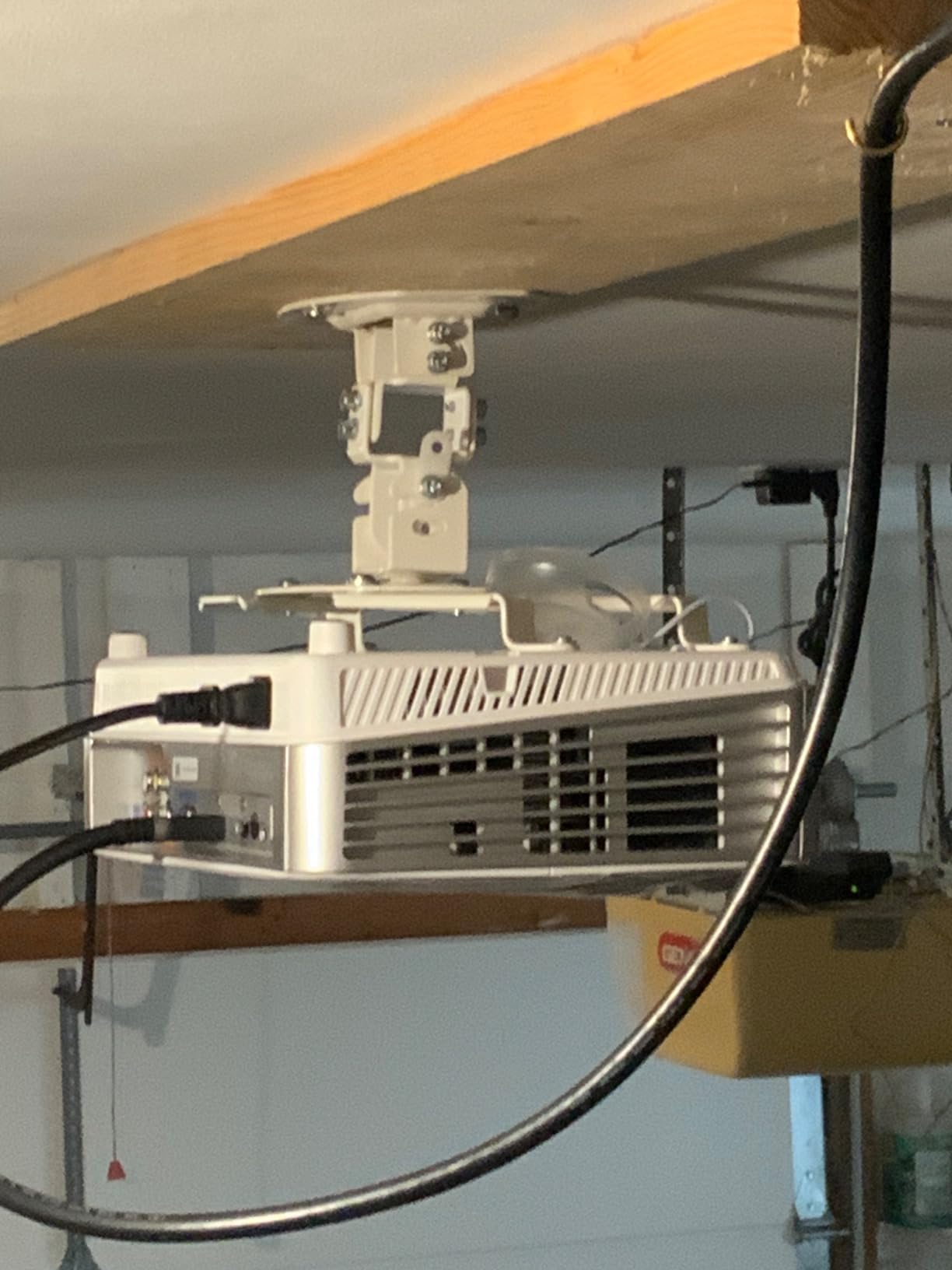

1. VIVO MOUNT-VP01B Low-Profile Ceiling Mount for Short Drops
VIVO Black Adjustable Ceiling Projector Mount, MOUNT-VP01B
Alloy steel
6 inch drop from ceiling
30 lb load capacity
15 degree tilt and swivel
The Good
- Short 6 inch drop suits low ceilings
- High-grade steel with 30 lb rating covers most home and office projectors
- Quick-release hooks make servicing fast
- Alignment holds for months without drift
- Three-year warranty
The Bad
- Fixed drop height cannot be changed after install
- Extension arms must be removed for mini projectors
- Yaw range limited versus full-motion mounts
This is the mount we come back to most often because the drop is only 6 inches, which puts the lens exactly where it needs to be in a room with a normal ceiling and a seating row that sits further back. The bracket is all high-grade steel with a 30 lb rating, and the mounting hole distance on your projector must be 12.5 inches or under for it to attach.
Adjustment runs to 15 degrees of tilt, 15 degrees of swivel and 360 degrees of rotation, which is enough to square up a standard rectangular screen without touching the projector’s digital keystone. That matters because ceiling-mounted images that rely on keystone correction come back softer, and the whole point of a rigid mount is to avoid that trade.
Quick-release hooks are the feature owners mention most. You loosen the bolts, the projector comes down for a bulb or filter change, and it goes back up without re-aiming from scratch. With more than 10,000 ratings on file, the pattern is consistent: people set it once and stop touching it.
The trade-off is fixed height. There is no telescoping tube here, so if your screen centre sits higher or lower than 6 inches of drop allows, you solve it with the projector’s lens shift or you accept a keystone-corrected picture. Mounting holes under 12.5 inches also rule out the widest chassis, and mini projector owners must pull the extension arms off before fitting.
When this mount is the right call
Standard ceiling height, projector under 30 lb, hole spacing 12.5 inches or less, and a screen you can centre at the lens line. It suits a living room, a bedroom above the bed or a small office install where nothing heavy walks under the beam.
If your room is unusually tall, a low drop often cannot be reconciled with throw distance, and you need the extending variant instead.
When to skip it
Skip it if your projector weighs over 30 lb, if the chassis holes are wider than 12.5 inches, or if you already know you will need to change the drop height later. It is also the wrong pick for a suspended grid ceiling, where a tile plate is the correct hardware.

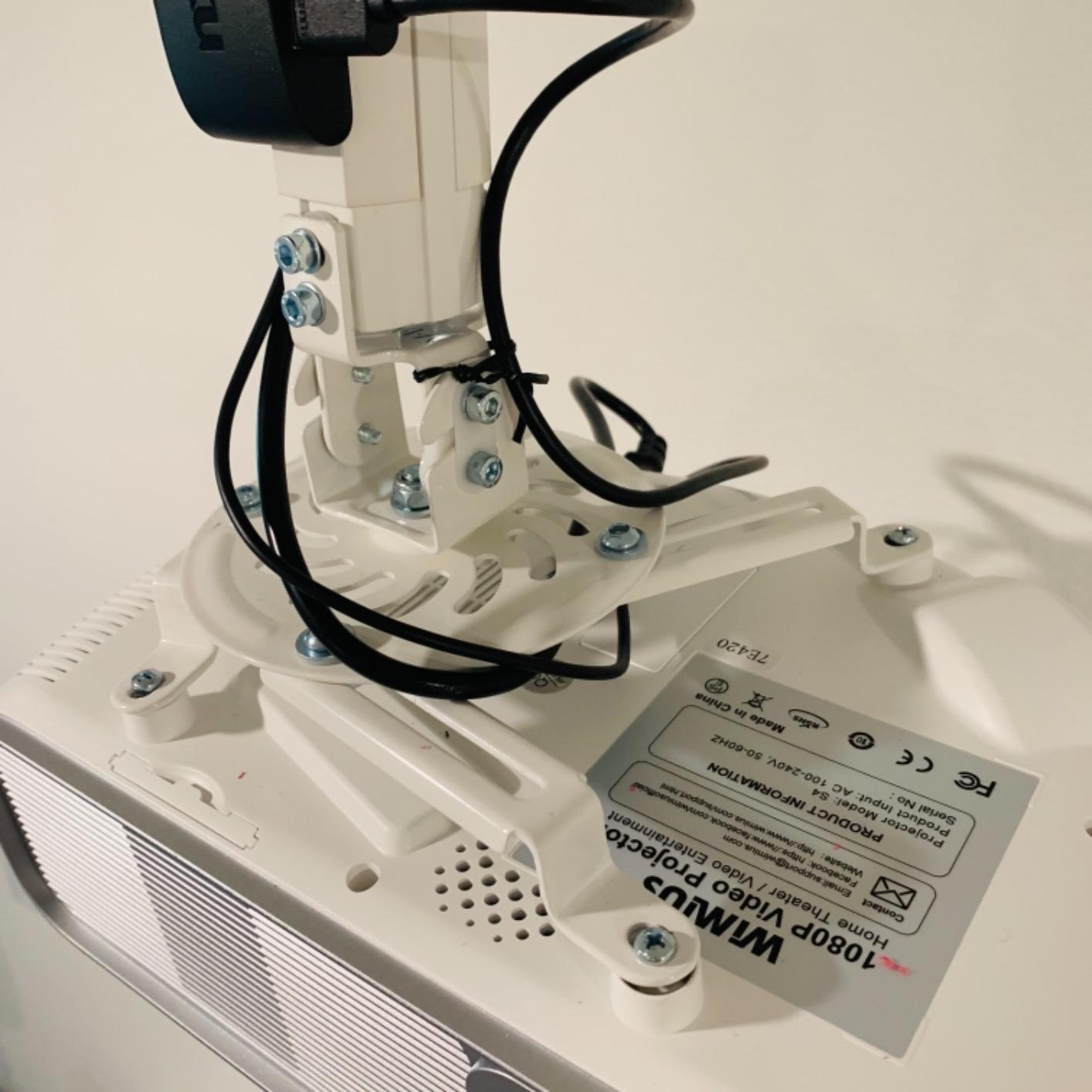

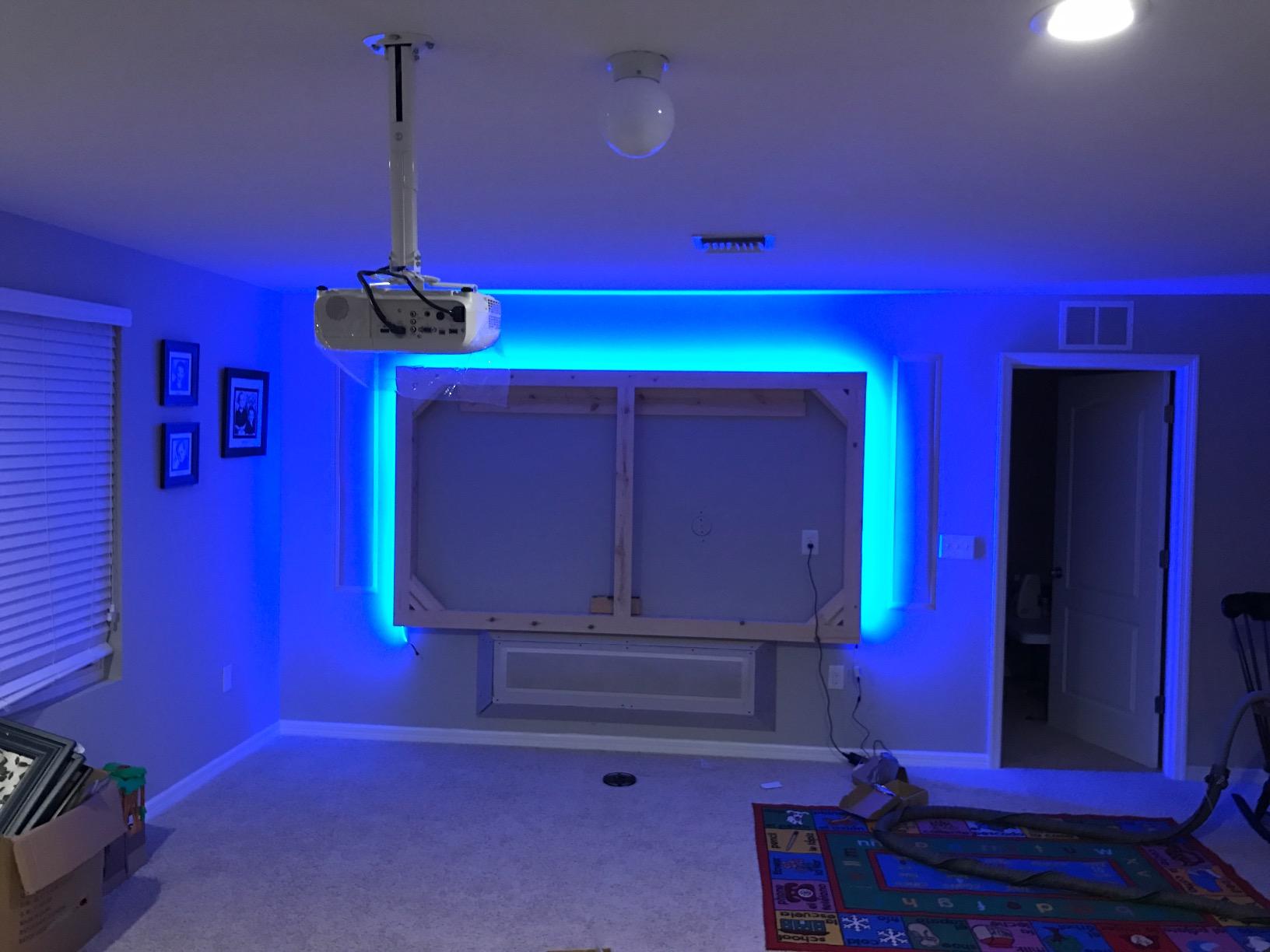

2. VIVO MOUNT-VP02B Telescoping Ceiling Mount with Internal Cable Channel
VIVO Black Extending Adjustable Ceiling Projector Mount, MOUNT-VP02B
Metal construction
Extends 15 to 23 inches below ceiling
30 lb load capacity
Hollow pole cable routing
The Good
- Real telescoping range from 15 to 23 inches
- Hollow pole hides power HDMI and trigger cables
- Four-point bracket centres even three-hole projectors
- Can be pre-assembled on the projector then slid onto the shaft
- Holds alignment over long periods
The Bad
- Tightening one hex bolt often shifts another
- Thick bolts can split a newer wooden ceiling stud
- Awkward to assemble while holding a projector on a ladder
This is the default recommendation for a room with a taller ceiling, and the reason is the 15 to 23 inch telescoping range. Owners who once used a fixed-drop mount report that being able to dial the lens height to the screen removed the keystone correction they had been living with.
The hollow core pole is the second reason to pick this one. Power, HDMI and trigger cables run inside the tube and exit at the projector, so the finished ceiling has no visible wire loop, which is exactly what people notice when the projector is installed above a seating area.
The bracket accepts hole spacing from 5.25 to 12.5 inches with the arms, and 1.5 by 1.5 inches with them removed. A useful install trick that reviewers mention: bolt the bracket to the projector first on the floor, then lift the whole assembly onto the ceiling shaft, which turns a two-person ladder job into a one-person one.
The adjustment head is the honest weakness. Every tilt or swivel change tends to disturb another axis, so squaring the image takes patience rather than a single bolt turn. Several owners also found the thin aluminium pole easy to cut down with a hacksaw for an awkward ceiling height, and warned that the telescoping stop tabs alone should not be trusted with the projector’s weight.
Compatibility is worth checking against your model before ordering. The manufacturer lists the Epson LS1100, 3010, 3200, 3700, 3800, 8350, 8500UB and 4010, along with the Mitsubishi XL25U and LG HU915QE, as models this mount does not fit.
What you get with this mount
An adjustable drop you can set once and keep, a cable route that hides the wiring, and a bracket that stays with the house if you upgrade projectors. It carries 30 lb and rotates 360 degrees with 15 degrees of tilt and swivel.
It is the best all-round choice for a home theatre room where the ceiling is 9 feet or higher and the seating row is far back from the screen.
Who should choose something else
Pick a different mount if fine final alignment matters more than height range, if your ceiling stud is a newer softwood that may split under thick bolts, or if your projector is one of the excluded models listed above.

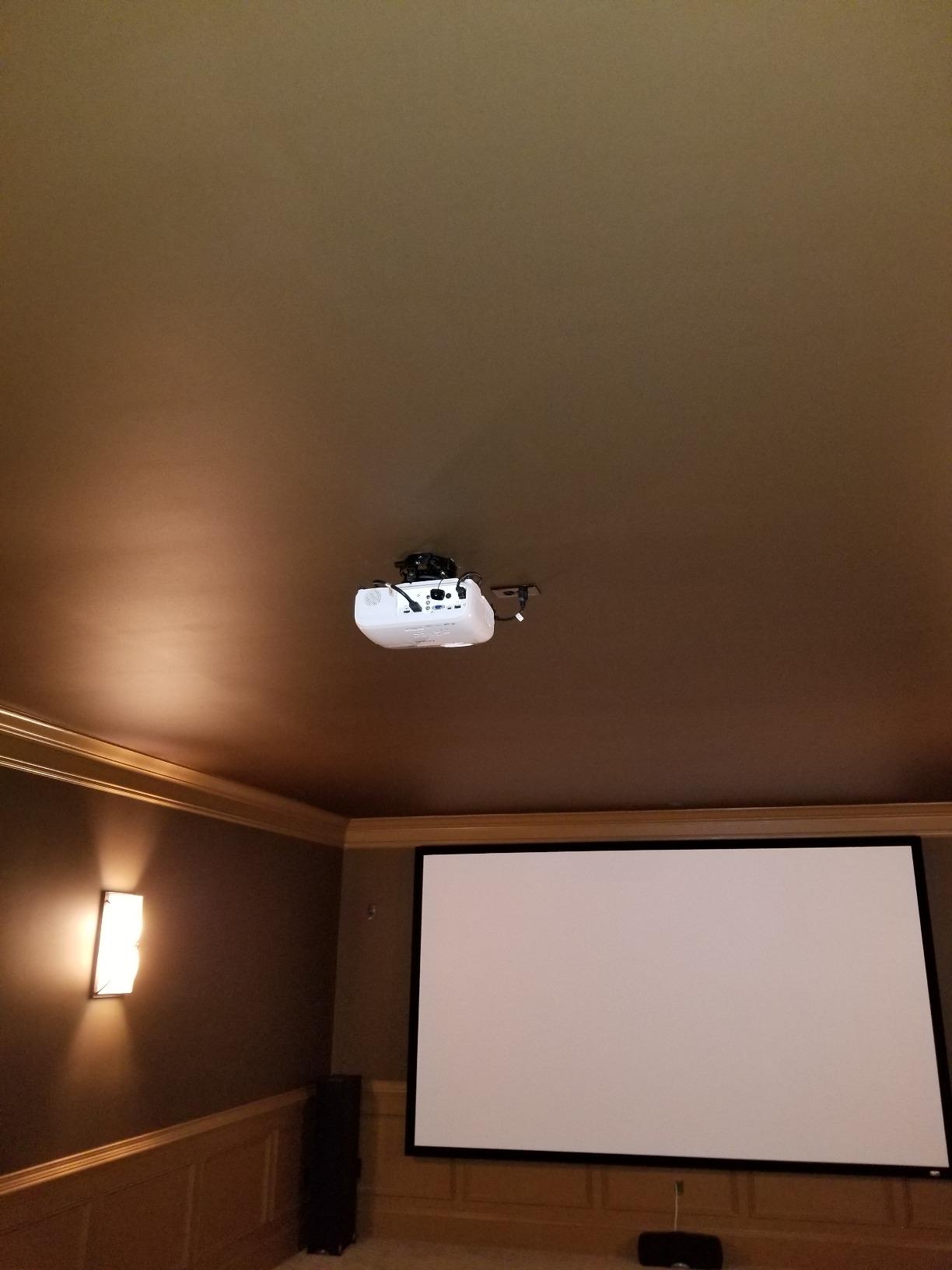

3. Peerless-AV PRG-UNV Precision Gear Mount for Heavy Projectors
Peerless-AV PRG-UNV: Precision Gear Projector Mount for Multimedia Projectors up to 50lb (22kg) in Black
Aluminum construction
50 lb load capacity
Precision gear alignment
Two knobs for pitch and roll
The Good
- Gear-driven knobs give fine repeatable alignment
- Holds position indefinitely without drifting
- Pre-assembled design lets one person lift a heavy projector
- Handles 19 lb and 33 lb units with no flex
- Hidden wrench slots speed up flush installs
The Bad
- Limited downward pitch travel
- Yaw is not knob-adjustable and requires physical rotation
- Arm adjustment screws can strip if overtightened
Most budget mounts align with screws, which means every adjustment nudges everything else. The Peerless-AV PRG-UNV replaces that with a patent-pending precision gear and two dedicated knobs, one for pitch and one for roll, so you can bring a crooked image square without disturbing the axis you already set.
The 50 lb rating is the other reason this mount earns a place in the roundup. Reviewers run 19 lb and 33 lb projectors on it without flex, and the pre-assembled two-piece design means the projector plate slides into the ceiling plate and carries its own weight before the set screw is tightened, so a single installer can lift a heavy body onto it.
The steel security strap included for public installations and the acceptance of a 1.5 inch NPT drop tube make this a mount that works in a classroom or small venue, not just a living room. Hidden horizontal wrench slots let a fitting be done flush to the ceiling without a wrench sticking out.
Two limits are worth knowing. Downward pitch travel is short, which can restrict throw geometry if you are mounting close to a wall, and yaw is not adjusted by a knob at all, so the whole mount has to be loosened and physically rotated. A few buyers also reported stripped arm screws from over-tightening under load, and one customer service interaction disputed compatibility that the specs clearly allow.
Where this mount earns its cost
Heavy chassis units, long-term installs where drifting is unacceptable, and professional work where set-and-forget alignment matters. Home theatre owners who previously watched a cheaper mount wander every time they plugged in a cable tend to end up here.
If your projector is under about 20 lb and the ceiling is low, the gear mechanism is more than you need.
Reasons to look elsewhere
Skip it for a low-ceiling room that needs large downward angles, for a mount that must swivel side to side frequently, or if you want the simplest possible install. The geared adjustment also takes longer to learn than a standard ball joint.

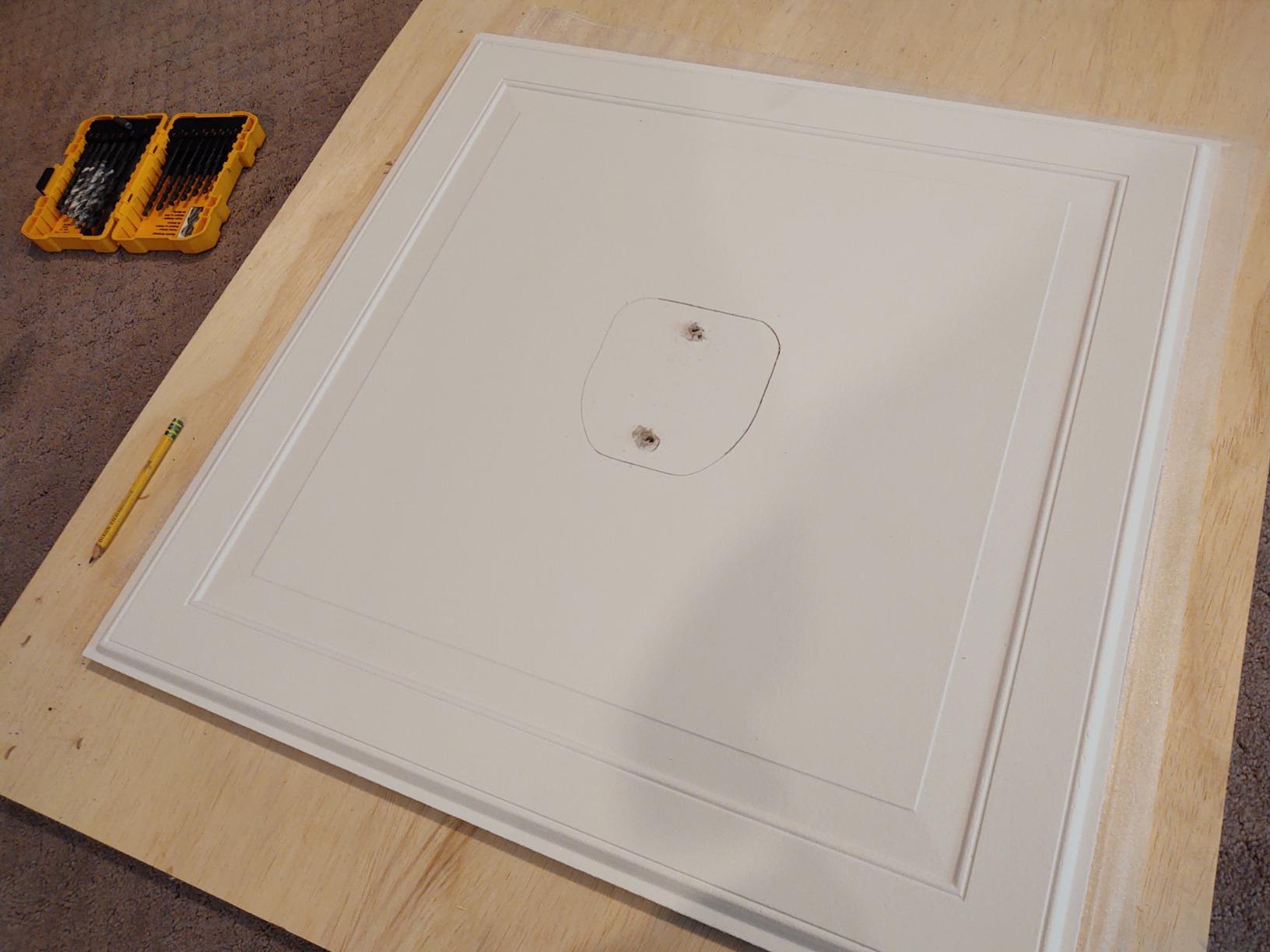

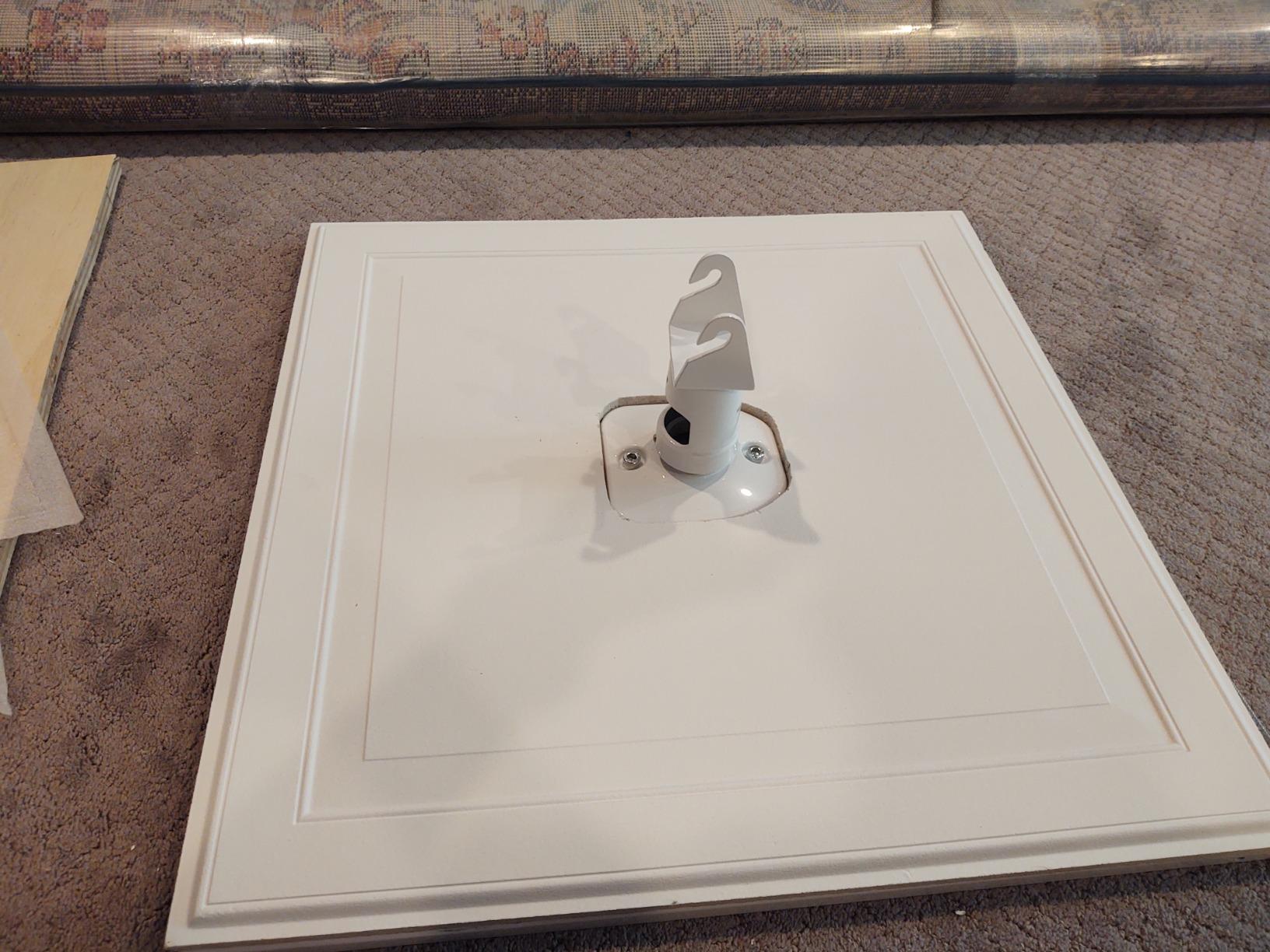

4. Amer Mounts AMRDCP100KIT Drop Ceiling Tile Replacement Mount
Amer Mounts AMRDCP100KIT Universal Adjustable 2 x 2 feet Drop Ceiling Projector Mount, Suspended Drop-in Ceiling Projection Mounting Kit, White
Alloy steel and aluminum
2 x 2 foot reinforced plate
Supports up to 30 lb
The Good
- Plate fits a standard 2 x 2 suspended grid and replaces the tile
- Reinforced steel that does not bow the ceiling grid
- Multiple hole positions for fine alignment
- Extra hardware included for a finished install
- Cable access and an electrical box fit inside the plate
The Bad
- No vertical adjustment at all
- Heavier and bulkier looking than a slim pole mount
- No extension arm for higher ceilings
This is the mount to buy if your room has a suspended tile ceiling. Instead of hanging a bracket from the grid, you cut out one 2 by 2 foot tile and drop the reinforced steel plate into the opening, so the mount becomes part of the ceiling rather than something bolted underneath it.
That construction is why it behaves so well. Reviews from owners with suspended ceilings consistently describe it as the most stable drop ceiling mount they have used, with the steel clearly better than cheaper imported alternatives, and installation typically takes under an hour even for people who describe themselves as not handy.
Multiple mounting holes on the plate let you square up the image without a ball joint fight, and the plate has room inside for cable routing and an electrical box, which keeps the ceiling face clean in an office or classroom. Tether hardware is included for running up into a beam or other structural support when you want a secondary restraint.
The real constraint is that there is no vertical adjustment. Once the tile is in, the projector sits at a fixed height, and there is no extension arm for a room where more drop is needed. Owners also note that the unit is heavy and visually clunky next to a slim pole mount, and the plate size cannot be trimmed to fit a non-standard grid.
Why this suits a drop ceiling
Any office, classroom or finished basement with a 2 by 2 grid. The plate spreads load instead of concentrating it on a single grid tee, which is the main reason it stays put where a hanging bracket creaks.
If your ceiling is solid drywall over joists rather than a suspended grid, this is the wrong hardware and you want a pole mount anchored into a joist instead.
When to skip it
Skip it if you need any height adjustment, if you plan to add a motorized drop later, or if you want a slim look from below. Anything heavier than 30 lb is also outside its rating.

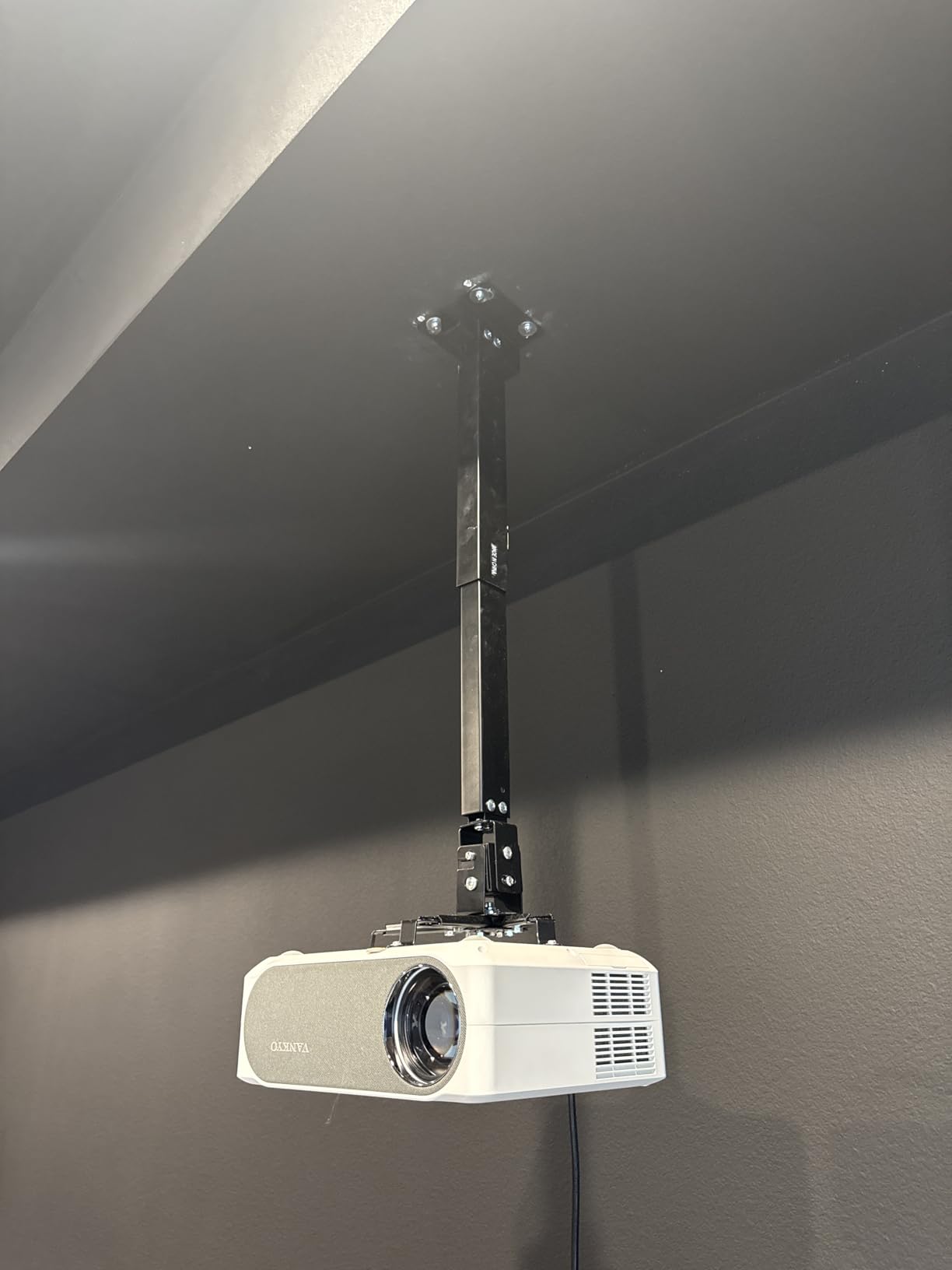

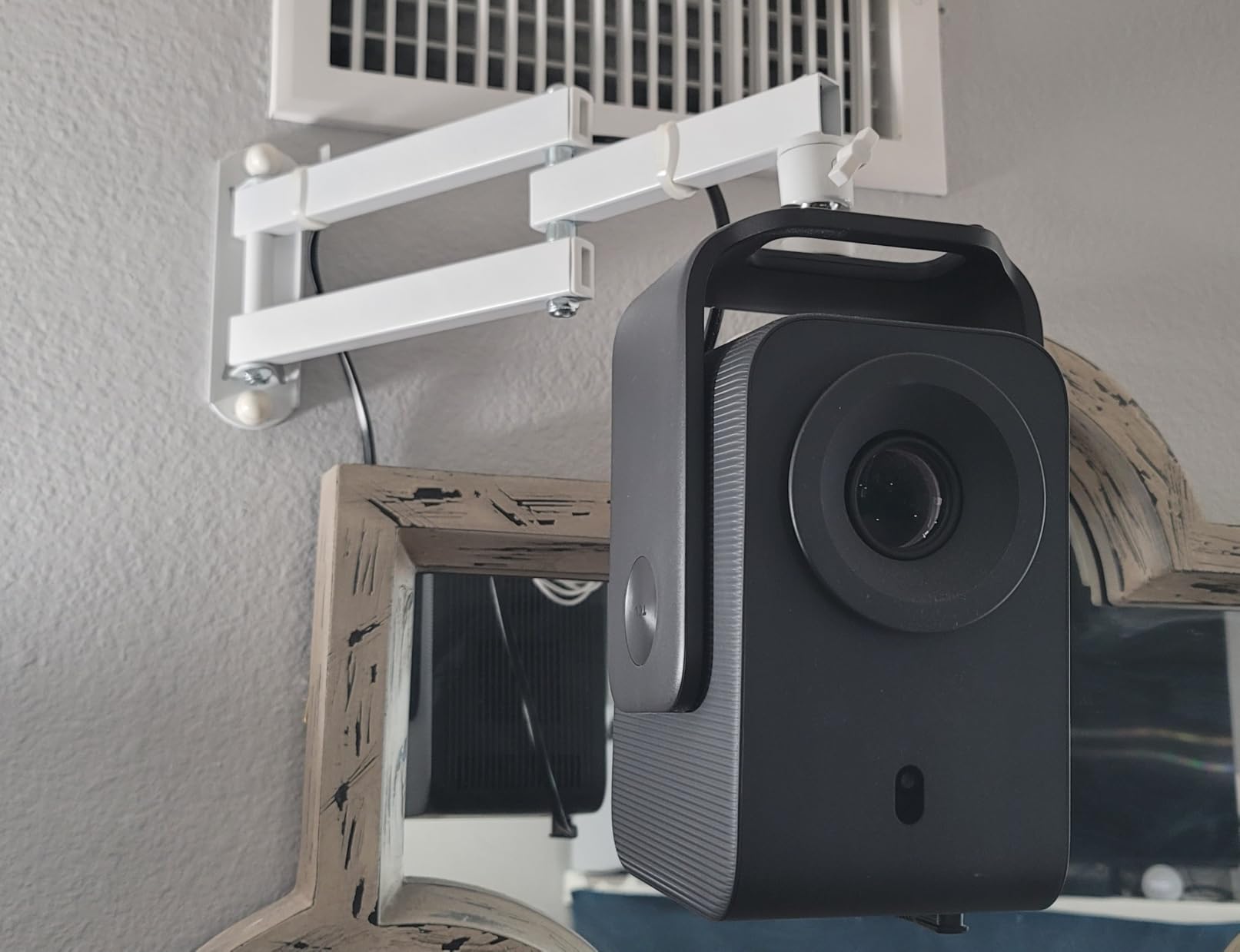

5. WALI PM-005-B Universal Mount With Hidden Cable Management
WALI Universal Projector Ceiling Wall Mount with Hidden Cable Management
Iron construction
22 lb load capacity
Ceiling drop adjustable 14.17 to 22.44 inches
The Good
- Built-in cable storage inside the pole keeps runs tidy
- Same hardware works for ceiling and wall installation
- Adjustable pole length suits different room layouts
- Step-by-step manual and full hardware kit included
- Ten-year manufacturer warranty
The Bad
- 22 lb load limit excludes larger room and theatre projectors
- Projector size cap of 13.7 by 8.6 inches rules out many full-size bodies
- Narrower adjustment range than longer-pole mounts in the same bracket
WALI’s bracket is built around the cable run. The pole has an internal storage structure, so HDMI, power and audio stay inside it rather than looping visibly below the ceiling, and for an install over a seating row that single feature does more for the finished look than any other mount in this group.
It is also genuinely dual-purpose. The same hardware covers ceiling and wall mounting, with the wall version gaining a tray that extends from 22.05 to 31.5 inches, while the ceiling position adjusts from 14.17 to 22.44 inches, so you are not buying two brackets if a corner of the room needs a side projection.
The detailed step-by-step manual and complete hardware kit make it one of the more approachable first-time installs here, and the ten-year manufacturer warranty is the longest in this roundup. Buyers with a home theatre projector under roughly 12 lb are consistently the happiest with the fit.
The load rating is the deciding factor. At 22 lb, with a projector size cap of 13.7 by 8.6 inches, it sits well under the 44 lb class that larger room projectors need, and anyone with a full-size body reports a poor fit. The adjustment range is also narrower than other mounts at this level, and some reviews note the brand has shifted its focus toward trading card display hardware.
Best fit for
Light to mid-weight projectors in home theatres, small meeting rooms or a living room where the wiring is visible and you want it hidden. The dual ceiling and wall capability is a genuine bonus for awkward room shapes.
The bundled manual also makes it a comfortable choice for a first ceiling mount, with no extra adapter purchase required.
When to choose something heavier
Move up if your projector is over 22 lb, if the chassis exceeds 13.7 by 8.6 inches, or if you want a longer adjustment stroke. The higher-capacity mounts in this list cost little more and remove the ceiling on size.

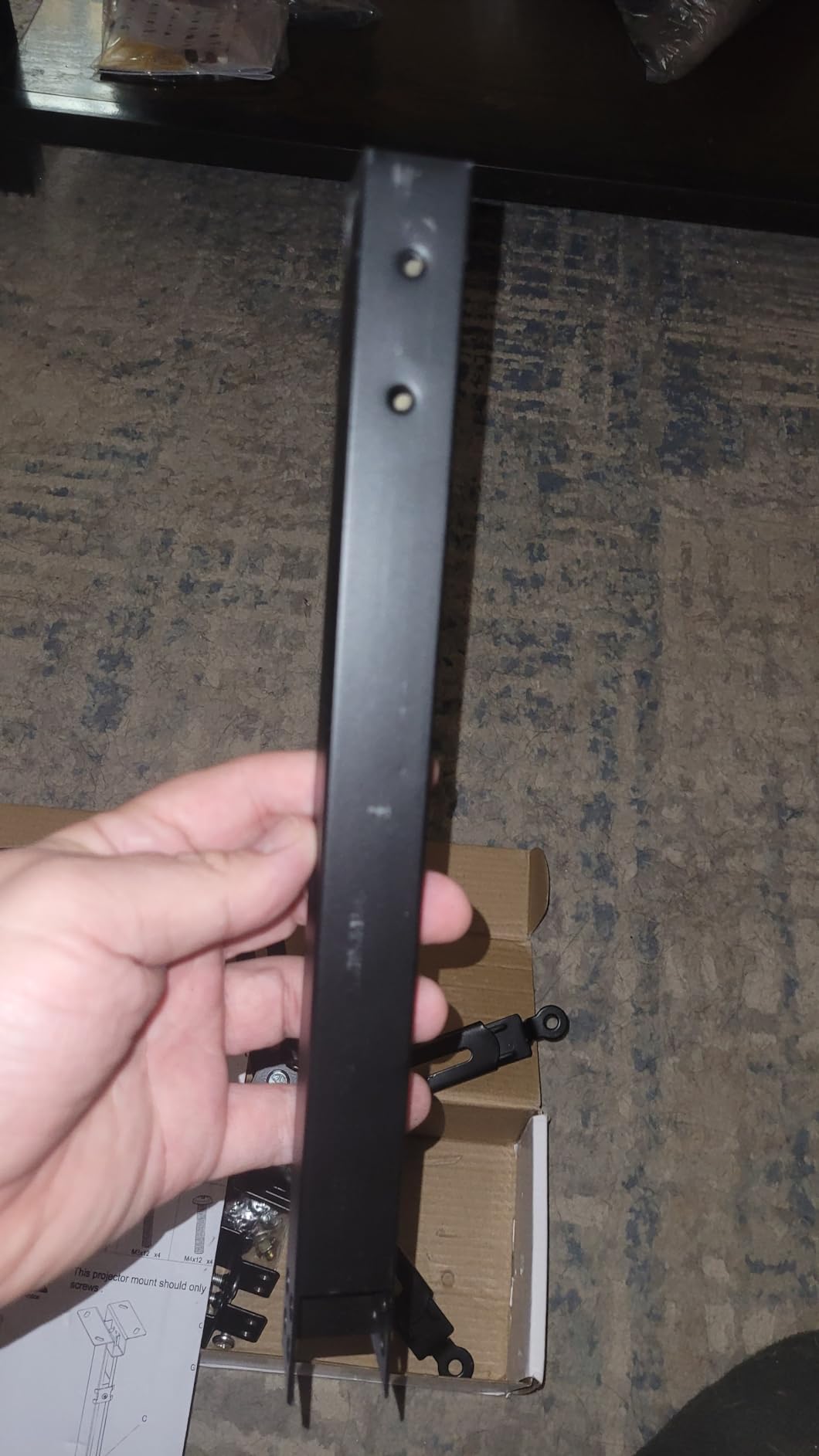

6. Tonalee 3-in-1 Flush, Telescoping and Wall Bracket
Tonalee Projector Mount Wall or Ceiling Projection Mount Bracket with Adjustable Height and Extendable Arms Mounts for Home and Office Projector
Alloy steel
Ceiling rated to 40 lb, wall to 20 lb
Telescoping 16.9 to 25.6 inches on ceiling
The Good
- Wider 30 degree tilt and swivel than most mounts at this level
- Three mounting modes including a 5 inch flush option
- 40 lb ceiling rating is generous for this bracket
- High-grade steel holds firmly once bolts are tightened
- Quick-release hooks with hardware included
The Bad
- Will not fit mini projectors
- Will not hold on vaulted ceilings or plain drywall
- Tightening the head while holding the angle is awkward
The pitch here is range of movement. Thirty degrees of tilt and 30 degrees of swivel is wider than most brackets at this cost, and it comes with three mounting modes: a telescoping ceiling drop from 16.9 to 25.6 inches, a wall position from 13.8 to 22.5 inches, and a flush ceiling position with a 5 inch minimum for rooms where a pole would be in the way.
The 40 lb ceiling rating is the other standout. That figure is unusually high for a bracket in this price band, and it comfortably covers a mid-size projector with room to spare. Build is high-grade steel throughout, and quick-release hooks make service access straightforward.
The limitations are compatibility rather than build. It explicitly does not fit mini projectors, because the hole diameter and spacing are too large, and it does not support vaulted ceilings or plain drywall, which means you need solid structure above the mounting point. The adjustment head is also the hard part of the install: reviewers describe holding the desired angle while tightening the hex bolts as the most fiddly step.
One spec listing has also drawn buyer confusion, since a stated weight figure in the specification block does not match the 40 lb capacity described elsewhere on the same listing.
Where it works best
A mid-size projector in a home or small office setup where you may want the option of a wall mount later, and where a low-ceiling flush position might be useful as a fallback. The wide articulation helps when the projector is not centred directly in front of the screen.
It is a strong choice when you have one ceiling screw location but an uncertain screen position, since the extra swivel range absorbs small placement errors.
When to pick something else
Choose a different bracket for mini projectors, for a vaulted ceiling, or for a drywall-only ceiling with no framing above the fix point. If your projector is genuinely light, the 40 lb rating is more capacity than you will use, though it costs nothing extra.

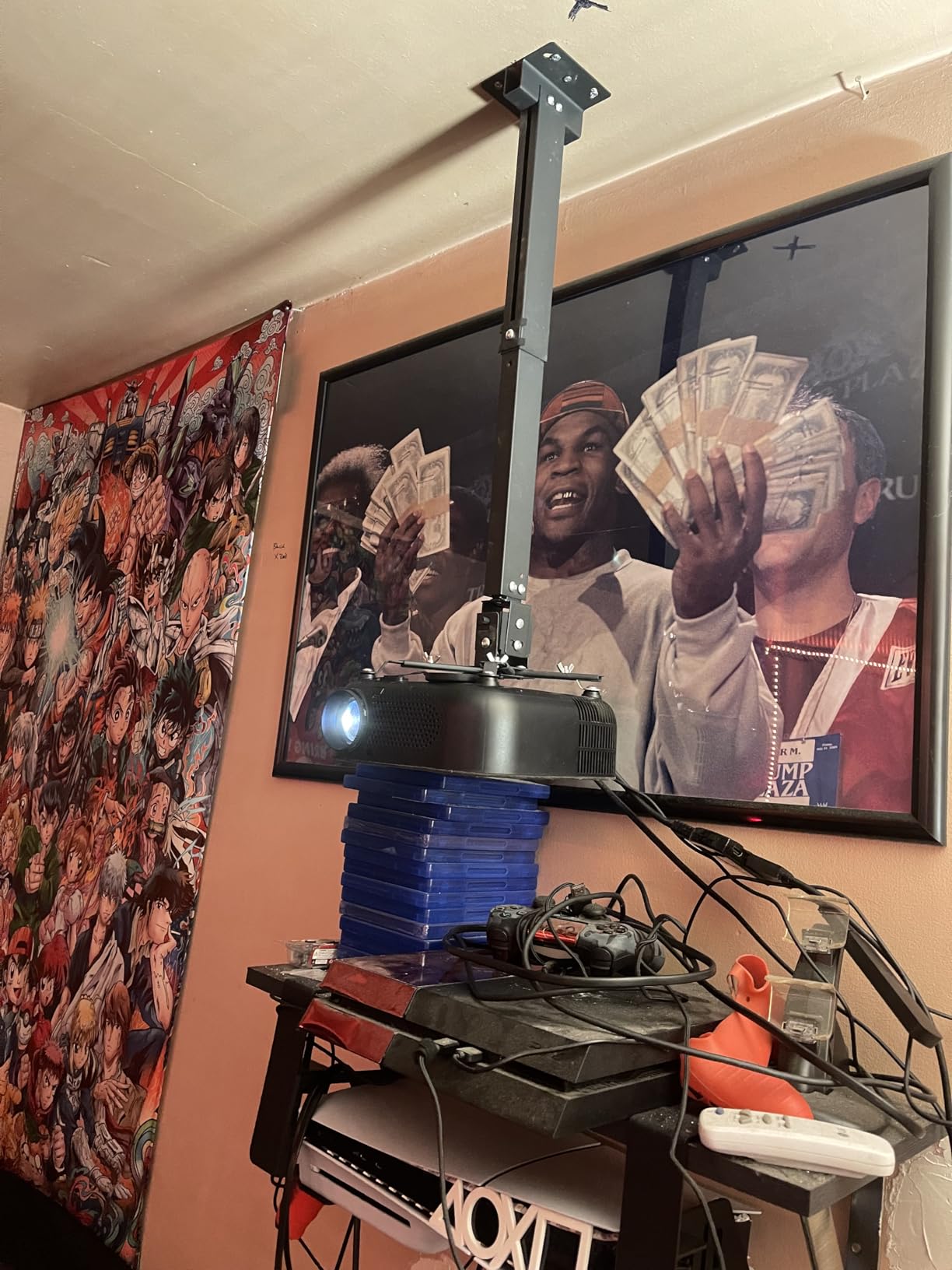

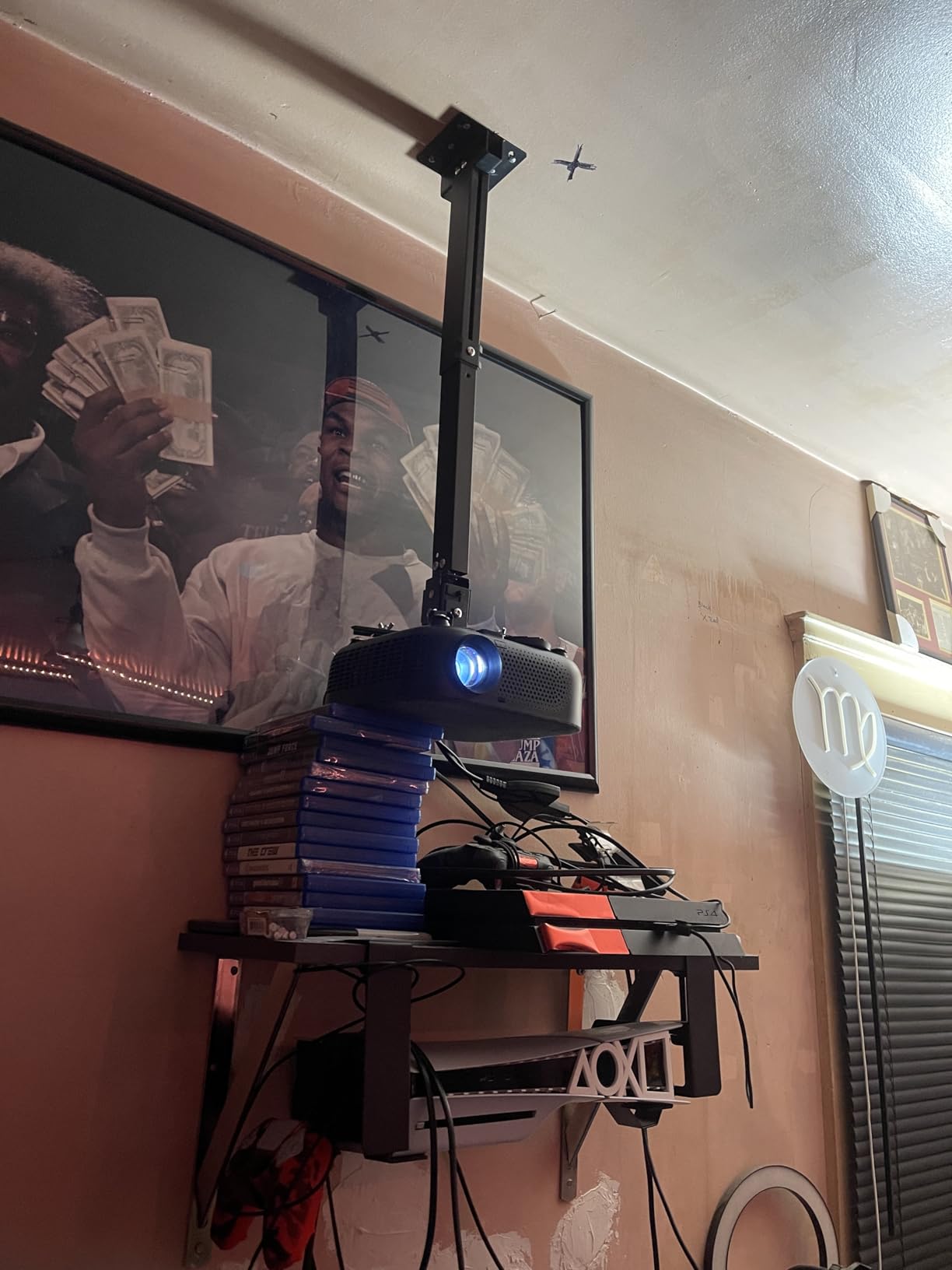

7. Homcine 44 lb Mount with Concealed Square Tube
Homcine Projector Ceiling/Wall Mount White, Low Profile Universal Projector Holder/Bracket/Hanger Kit with Extendable Arm, Adjustable Height Pole Drop Ceiling Quick Release for Epson Optoma Benq
Cold rolled steel
44 lb weight-tested load capacity
Telescoping 16.9 to 25.6 inches
The Good
- Square tube fully conceals HDMI audio and power cables
- 44 lb weight-tested rating is the strongest capacity claim among the budget mounts
- Telescoping arm plus a 4.5 inch flush option covers both ceiling types
- Holds heavy projectors without creep
- Adjustable adapters handle projectors smaller than the bracket arms
The Bad
- Adjustment head shifts the angle as you tighten
- Thin steel can flex under an off-centre heavy projector
- Telescoping length limited to two detents
At 44 lb weight-tested, this mount carries more than most of the group and matches the load ceiling that installers on AVS Forum and r/CommercialAV describe as the practical limit for a projector hanging from real structure rather than drywall. For a heavy DLP chassis or a large installation room, that headroom is the reason to start here.
The large square tube is the second argument. It hides HDMI, audio, video and power cables completely, and long-term owners report a heavy Panasonic hanging on it for months without movement, even in a room with a subwoofer shaking the walls.
It also covers the awkward ceiling situations. The telescoping arm runs from 16.9 to 25.6 inches, and the flush ceiling option comes down to a 4.5 inch minimum, so the same bracket works in a low room and a tall one. Hole spacing up to 14.2 inches is wider than most universal mounts accept, which widens the pool of compatible projectors.
The complaints cluster around the adjustment head, where tightening the clamps shifts the angle you just set, and around thin steel flexing when a heavy projector hangs off centre. The telescoping length has only two detents rather than a smooth slide, screw sizes are not clearly labelled in the instructions, and a few buyers reported arriving orders with missing hardware that needed an exchange.
Reasons to choose this one
Heavy projectors where 30 lb is too close for comfort, rooms with a powerful subwoofer, and installs where fully hidden cabling is the priority. It also suits a projector with unusually wide mounting hole spacing.
The three-in-one design means the flush option gives you a fallback if your measured drop turns out shorter than expected.
Reasons to look elsewhere
Skip it if you need smooth fine height adjustment, if you will hang a very heavy projector off centre, or if you want a mount that will not flex at all. The Peerless precision gear mount is the more rigid choice for that last point.

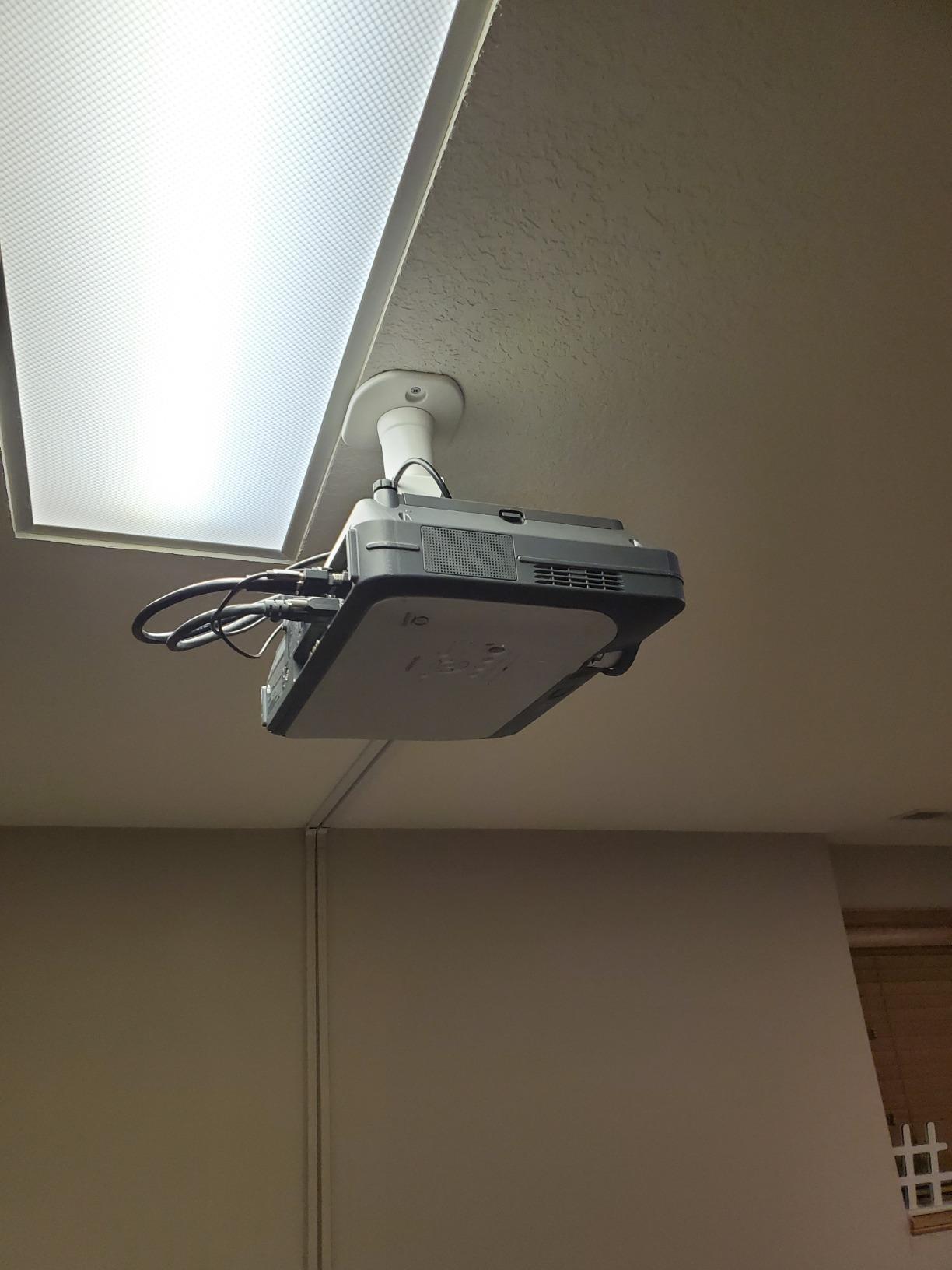

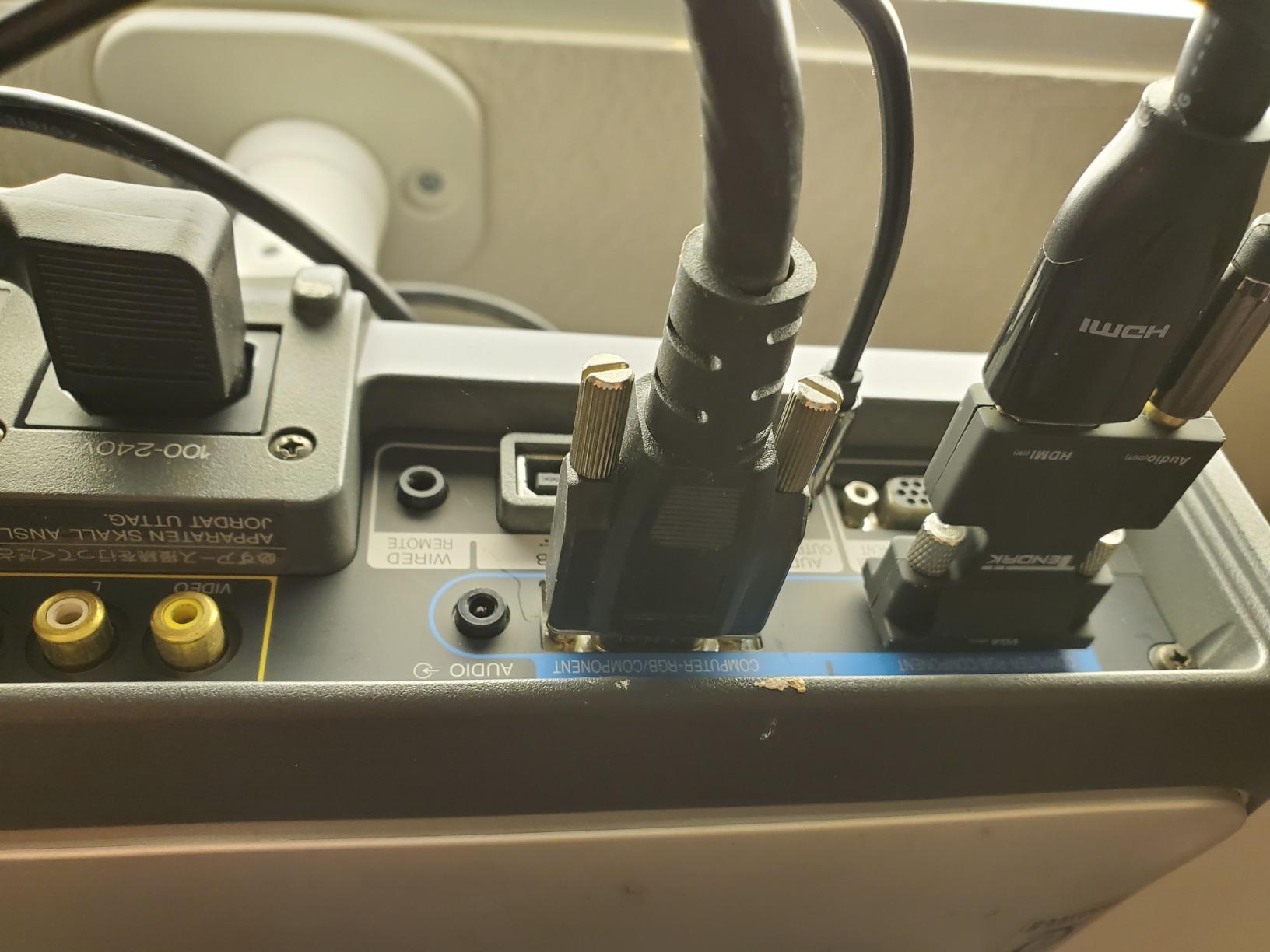

8. DYNAVISTA Full Motion Ceiling Mount with Extending Arm
DYNAVISTA Full Motion Universal Ceiling Projector Mount Bracket with Adjustable Height and Extendable Arms Rotating Swivel Mount for Home and Office Projector (Black)
Alloy steel
Extends up to 43.6 inches
30 lb load capacity
25 degree tilt, 90 degree swivel, 360 degree rotation
The Good
- Genuinely full-motion articulation for the price
- 43.6 inch extension gives far more placement flexibility
- Pre-assembled so install is a few steps
- Steel build stays quiet with no wavering once fastened
- Works base-only or with the arm fitted
The Bad
- Top ceiling plate has only two screw holes for a heavy projector
- Long pivot bolts can strip or slip without a locking washer
- Mount can wobble side to side while attaching the projector
The name is accurate here. It swings 90 degrees left to right, further than any other mount in this roundup, and it comes with an arm that extends to 43.6 inches. That combination solves the awkward room where the only fix point is far from where the screen actually needs to be.
It is pre-assembled, so installation is a few steps with quick-release hooks rather than a build from parts, and the steel construction stays quiet and does not waver once the marked screws are properly tightened. You can leave the arm off and use it as a shorter base mount at 8.9 inches.
Two engineering weaknesses drive the 8 percent one-star share that is the highest in this roundup. The ceiling plate has only two screw holes, which some owners consider too few for a heavier projector, and the long pivot bolts can strip or slip, leaving the projector unable to hold a downward tilt without a locking washer. The mount also wobbles side to side while you are attaching the projector, which is unsettling but resolves once it is loaded.
The other recurring note is length. With a 23 inch minimum on the arm, this is not a low-ceiling mount, and several owners bought it expecting a short drop and found it far too long for the room.
What you get here
Serious placement freedom for a room where geometry is difficult: a very high ceiling, a screen off to one side, or a projector that needs to sit far back for throw distance. The 90 degree swivel is the feature that matters in an angled room.
It is also useful as a semi-permanent rig for staging or rental work where the projector changes but the ceiling plate stays.
When to skip it
Skip it for low ceilings, for a very heavy projector on a plate with only two fix points, or if you need the head to lock rigidly at a downward angle without extra hardware. If stability under load matters most, choose a geared or heavier-plate mount instead.

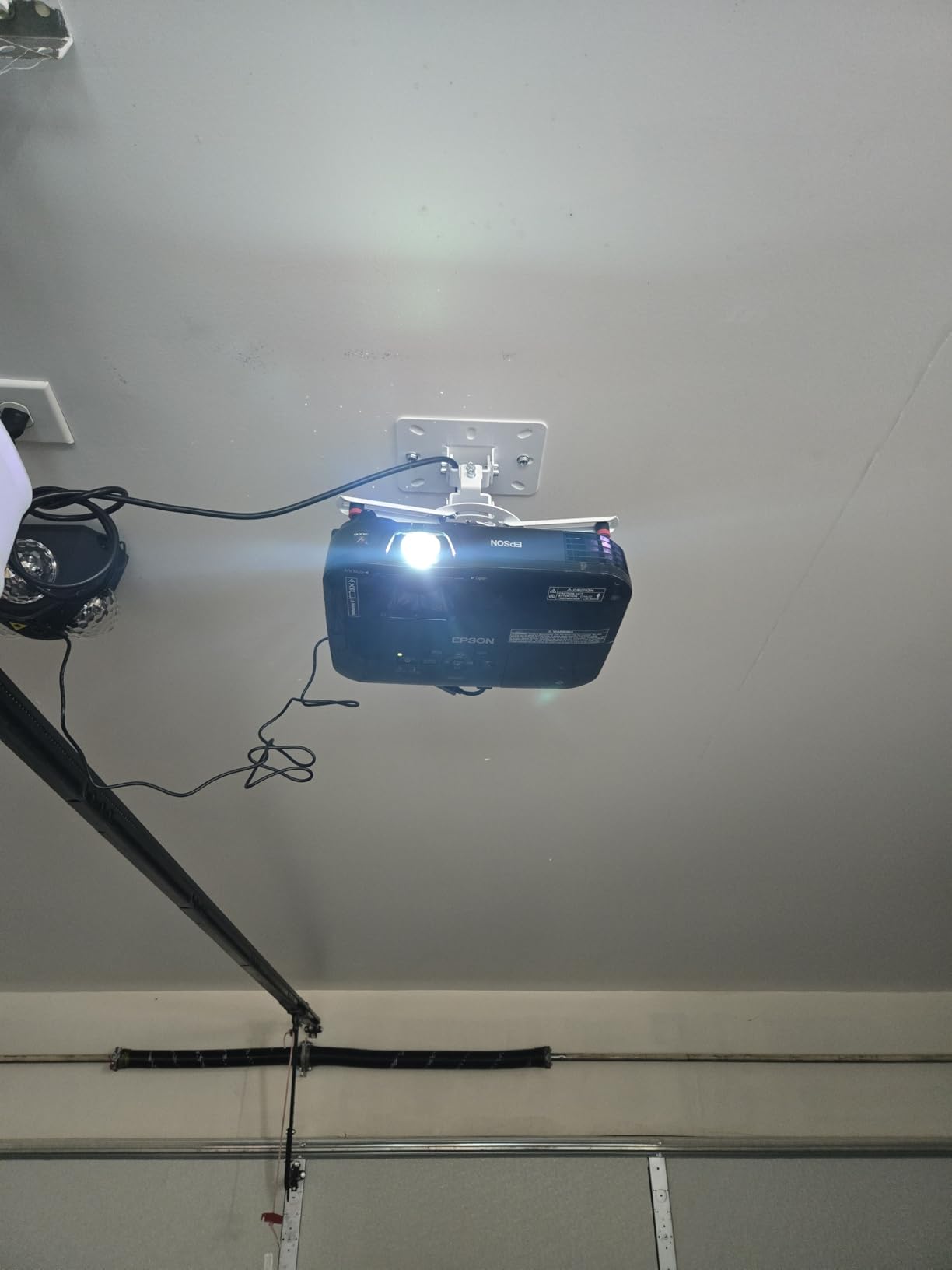

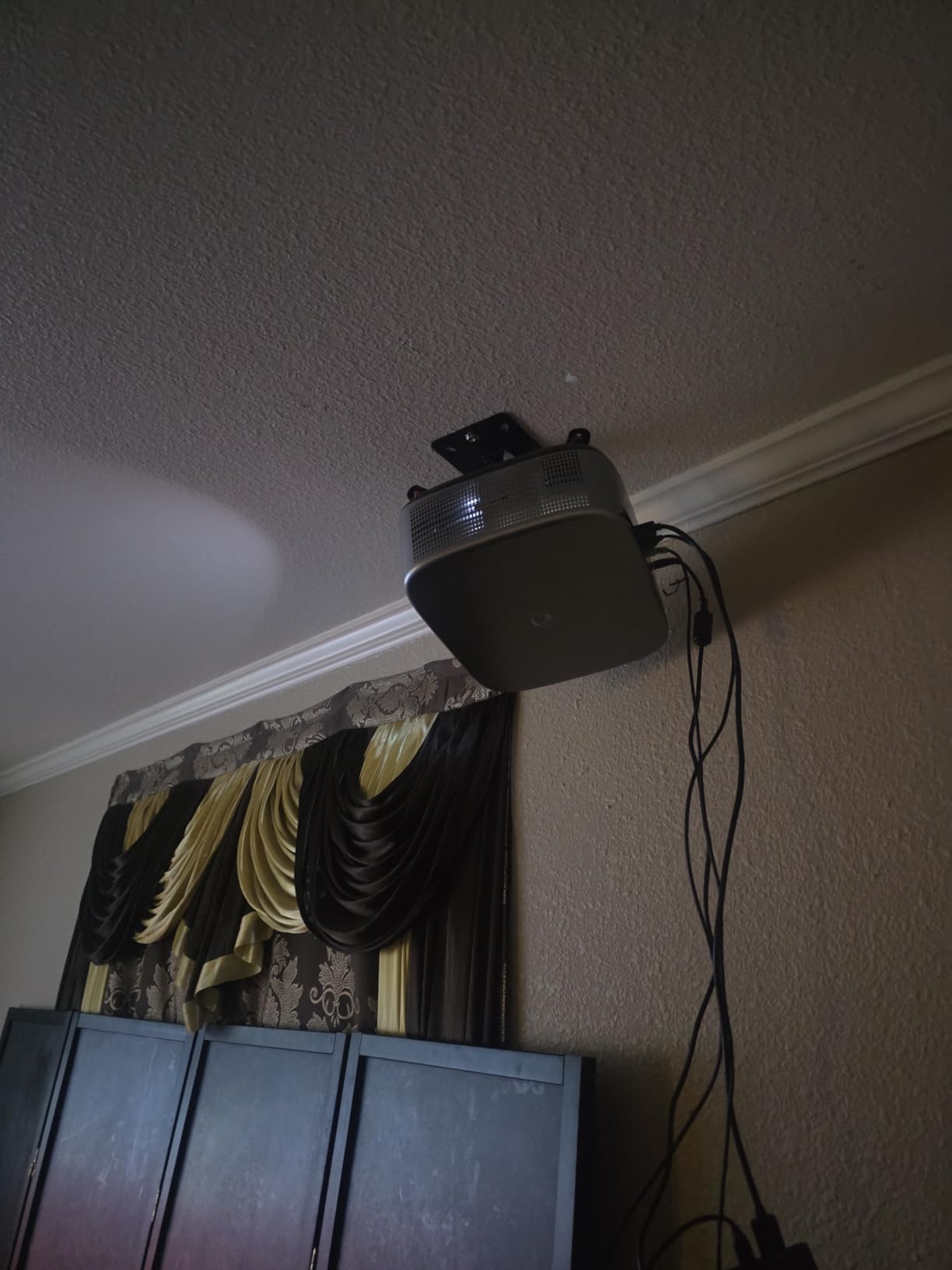

9. XINLEI PR14W Low-Profile Mount with Retractable Arms
XINLEI Universal Projector Ceiling Mount Low Profile Projector Mount w/Retractable Arms and Multiple Adjustment Function PR14W
Alloy steel
Holds projector about 5 inches from ceiling
Supports up to 30 lb
Mounting hole spacing 2.83 to 11.42 inches
The Good
- Very low 5 inch profile is nearly invisible from a normal seat
- Wide 2.83 to 11.42 inch hole range fits small and mid-size projectors
- 20 degree swivel is wider than most mounts in this tier
- Cold rolled steel is sturdier than folding-sheet alternatives
- Retractable arms and quick-release hooks for fast servicing
The Bad
- Requires a projector with four mounting holes
- No telescoping pole so drop height is fixed at about 5 inches
- 30 lb rating is below the 40 to 44 lb class
- Instructions are minimal and the arms take a moment to work out
Where the VIVO low-profile mount drops 6 inches, this one brings the projector to about 5 inches from the ceiling, which in a room with a 7 foot ceiling keeps it above head height and largely out of sight. The mounting hole range of 2.83 to 11.42 inches is unusually wide for a low-profile bracket, covering both very compact bodies and mid-size units.
Articulation is 15 degrees of tilt, 20 degrees of swivel and 360 degrees of rotation. That 20 degree swivel is wider than most mounts in this price tier and gives you some room to correct an off-centre ceiling fix point without digital keystone.
The build is cold rolled steel, which reviewers consistently rate as sturdier than the folding-sheet mounts at this level, and retractable arms with quick-release hooks make installation and future filter or lamp service fast.
The recurring practical note is compatibility. This mount needs a projector with four mounting holes, so single-hole mini projectors need the other variant, and measuring your hole spacing first is the advice repeated across the reviews. There is no telescoping pole, so height is fixed at roughly 5 inches and alignment has to come from the projector’s own lens shift or keystone correction. The 30 lb rating sits below the 40 to 44 lb class.
Where it fits best
Bedroom and low-ceiling installs where a pole mount would hang into the room, or any ceiling where keeping the projector tight to the plaster matters. Retractable arms mean the finished bracket looks smaller than the number of arms suggests.
If your projector has lens shift, a fixed low drop plus lens shift gives a clean, uncropped image without any digital correction at all.
When to choose something else
Pick a telescoping model if your screen centre sits higher than a 5 inch drop allows, choose the single-hole variant if your projector has one mounting point, and look at a 44 lb mount if you are carrying anything close to the ceiling of the rating.

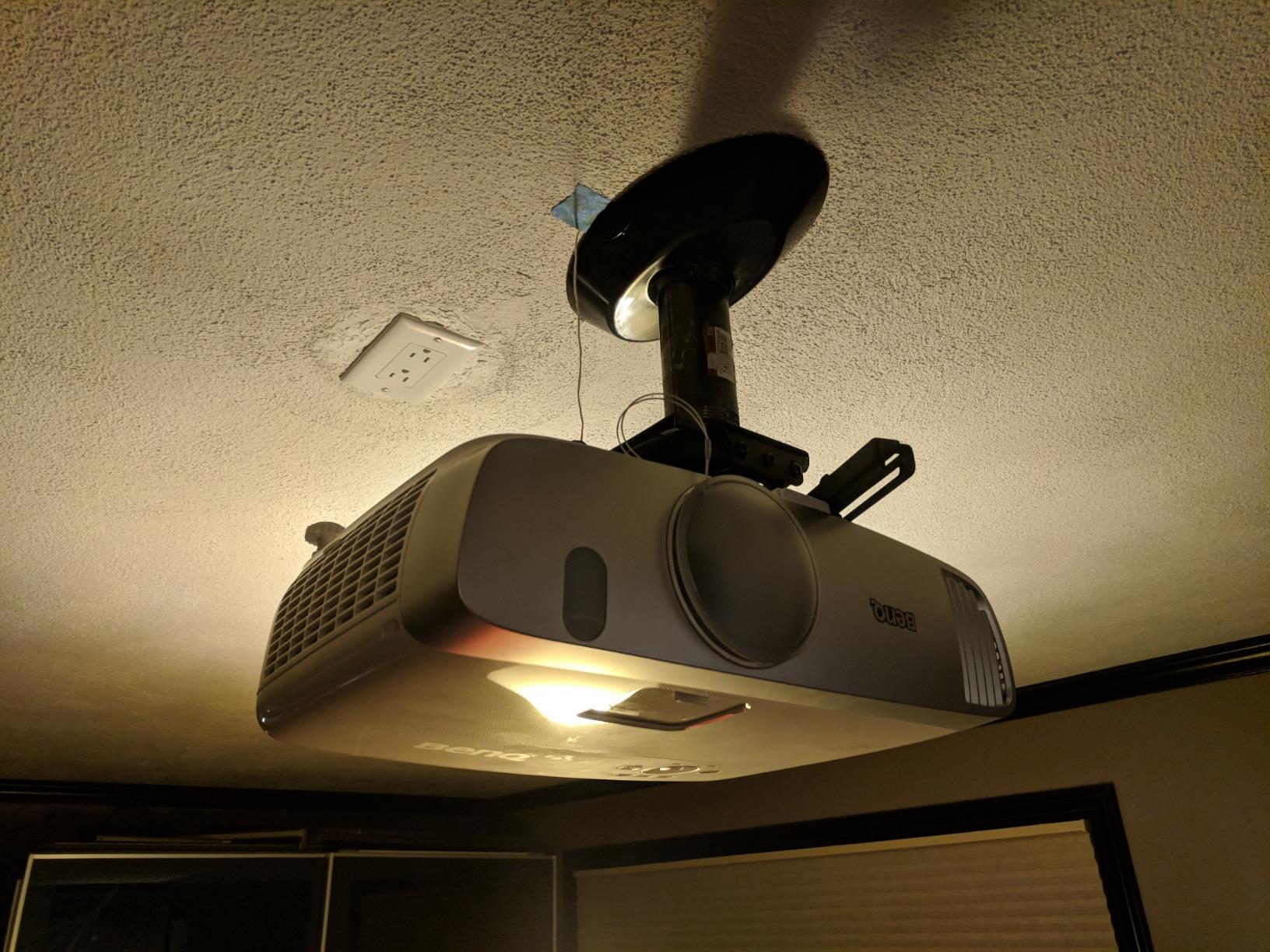

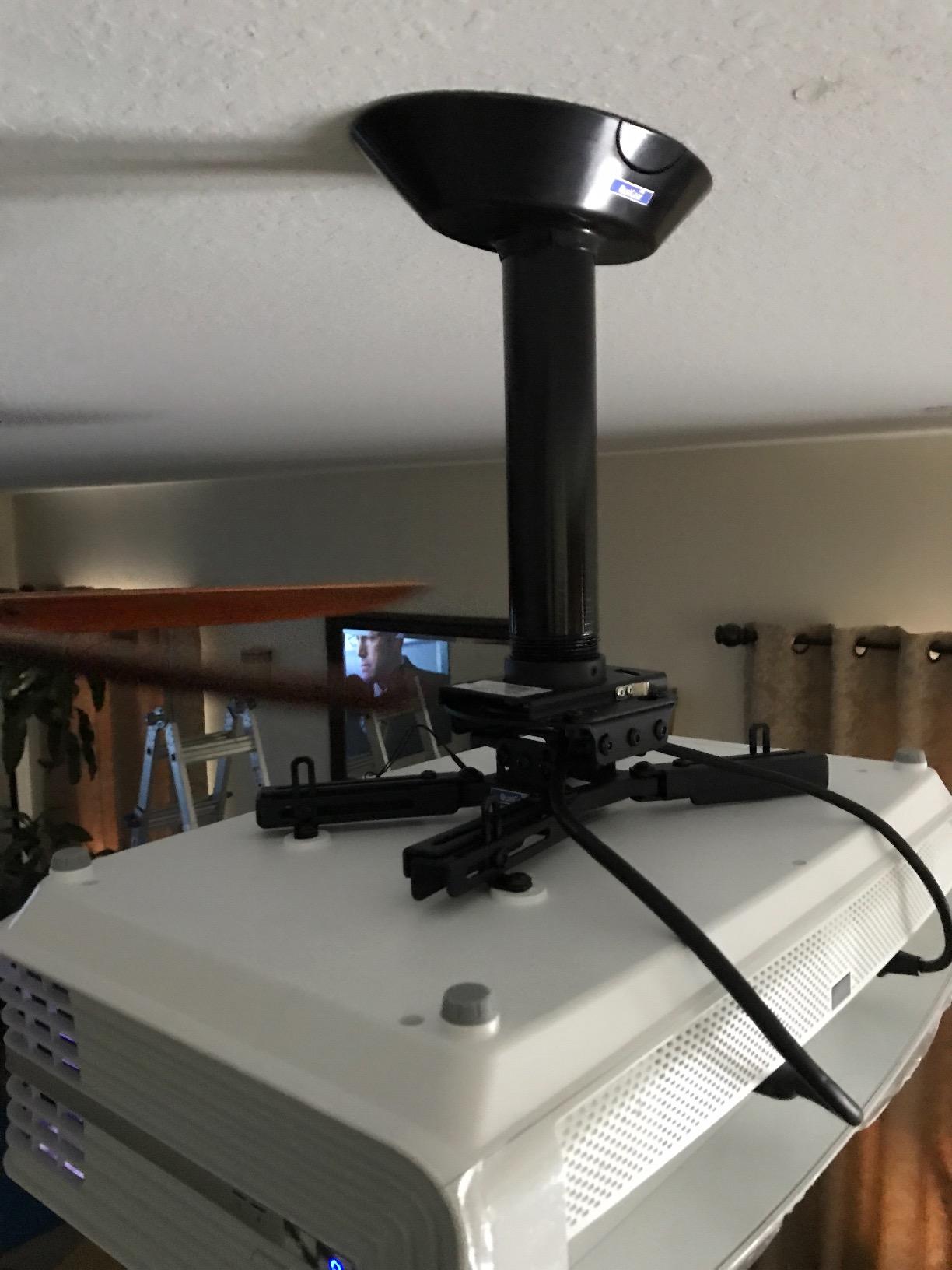

10. QualGear Pro-AV Single Joist Ceiling Adapter Kit
QualGear Pro-AV QG-KIT-CA-3IN-B Single Joist Ceiling Adapter, 3″ 1.5″ Projector Mount Kit Accessory, Black
Wood and concrete ceiling support
15 lb load rating
3 inch arm length
1.5 inch NPT thread compatible pipe
The Good
- Purpose-built single joist adapter solves the no-joist-above-the-screen problem
- 3 inch arm gives clearance to get the projector body past the ceiling
- Standard 1.5 inch NPT thread pairs with ordinary drop pipe
- Complete kit with mount adapter pipe manual and hardware
- Professional grade build for a permanent install
The Bad
- 15 lb rating is low compared with 30 to 50 lb mounts
- Single joist design is less forgiving if the joist is not ideally placed
- An accessory-style bundle rather than a complete universal solution
Most pole mounts assume you can screw into framing. This kit assumes the opposite problem: that the one joist in the room is not above your screen. The single joist adapter clamps onto that joist and provides a clean drop point from an arm 3 inches long, which gives enough clearance to bring the projector body and lens past the ceiling plane.
It is a wood and concrete ceiling solution rather than a drywall one, and it takes standard 1.5 inch NPT threaded pipe, which means it pairs with ordinary drop pipe and the rest of the QualGear range. The box includes the mount, the adapter, the pipe, the manual and the hardware, so there is no second purchase to make.
Reviewers are integrators and serious home theatre owners who want a tidy, deliberate drop from a known structural point, and they rate the professional finish highly. The interface being standard rather than proprietary means you can extend the drop yourself with more pipe if the ceiling is taller than the arm allows.
The 15 lb rating is the constraint that pushes most people toward a larger mount, and a single-joist design is less forgiving when the joist sits a little off from where you want the image. It is also an accessory-style bundle, so it is often bought alongside another universal mount rather than instead of one, and it has fewer detailed customer comments than the mass-market brackets here.
When this kit is the answer
A room with exposed or accessible framing where no joist lands over the screen, and a light projector under 15 lb. It is especially useful in a basement media room or a garage conversion where you can reach the framing directly.
The standard pipe thread also makes it a good starting point if you want to build up a longer drop with hardware you already understand.
When to skip it
Skip it for anything over 15 lb, for a suspended grid ceiling where a tile plate is the right hardware, or if you have no way to reach a joist. For heavier projectors anchored to structure, the Peerless precision gear mount is the stronger choice.

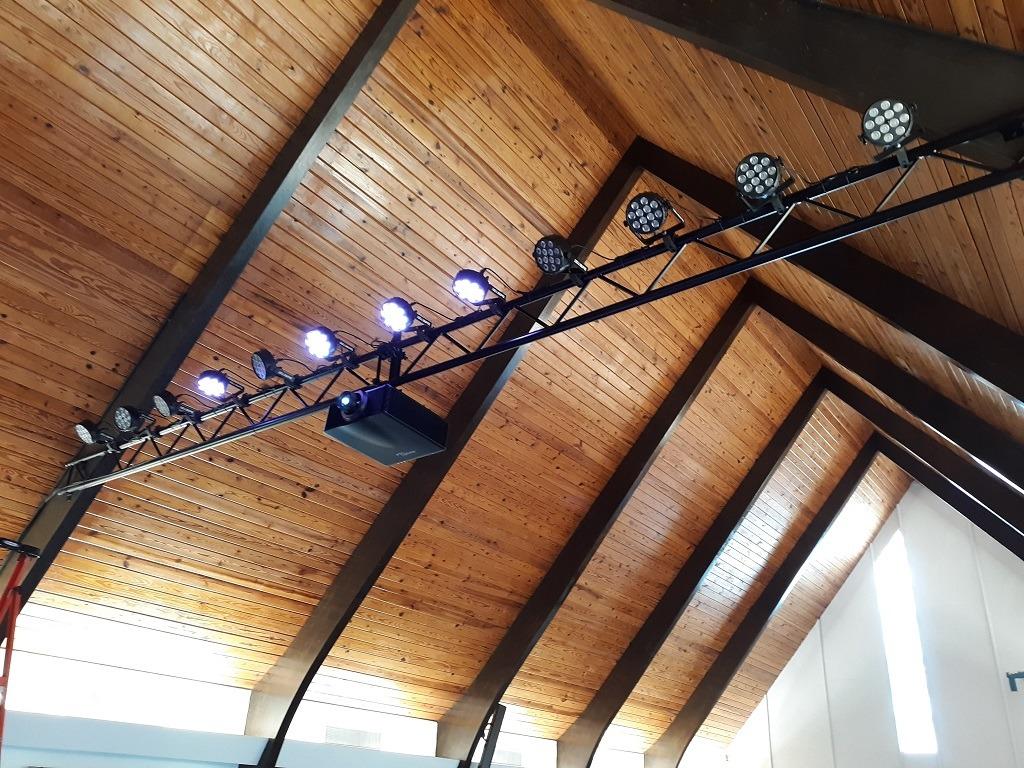

11. Chief RPAU Universal Ceiling Mount for Institutional Installs
Chief RPAU Universal Projector Ceiling Mount
Alloy steel construction
Universal projector ceiling plate
Three installation paths including 1.5 inch NPT column
Integrated cable management
The Good
- Chief is the reference brand in AV mounting with the most premium finish in this group
- Lamp and filter service keeps registration and preset adjustments intact
- Integrated cable routing through the mount top without extra accessories
- Flush threaded rod or NPT column options suit different ceilings
- All-Points Security System locks every connection point
The Bad
- Top of the range in this group with no low-end option
- 5.6 lb mount is substantial for a light consumer projector
- Fewer detailed customer reviews than the mass-market mounts
Chief builds for the rooms where the projector is never coming down. The RPAU alloy steel mount offers three installation paths, flush to the ceiling, on quarter inch threaded rod, or on a 1.5 inch NPT extension column, which means it adapts to almost any ceiling structure a commercial job throws at you.
The detail that distinguishes it for installed equipment is serviceability. Lamp and filter access works on most projectors without losing registration or disturbing preset adjustments, so a maintenance visit does not turn into a full re-alignment. Cable routing runs through the top of the mount without needing extra accessories.
The All-Points Security System uses steel-into-steel locking hardware at every connection, which is why this mount turns up in classrooms and public spaces rather than living rooms. The review base is small and highly satisfied, with very few neutral ratings, which is typical of a professional buyer audience rather than hobbyists.
What you give up is value and weight. At 5.6 lb the mount itself is heavy for a light consumer projector that would be perfectly served by a 2 lb steel bracket, and this is the most expensive option we reviewed. There are also fewer detailed customer reviews, so real-world fit feedback is thinner than for the mass-market options.
Where it belongs
Classrooms, boardrooms, small venues and staging where theft deterrence, service access and a choice of column hardware matter more than cost. If the projector is going to be installed once and aligned once, the registration retention pays for itself.
The NPT column option also makes it a good match for a ceiling that is unusually high or where a service ladder is already in place.
When to look elsewhere
For a home theatre where a mid-weight projector goes up once and stays, the spend is hard to justify. Choose a 30 lb steel mount with a cable channel instead, and put the budget toward a better screen.

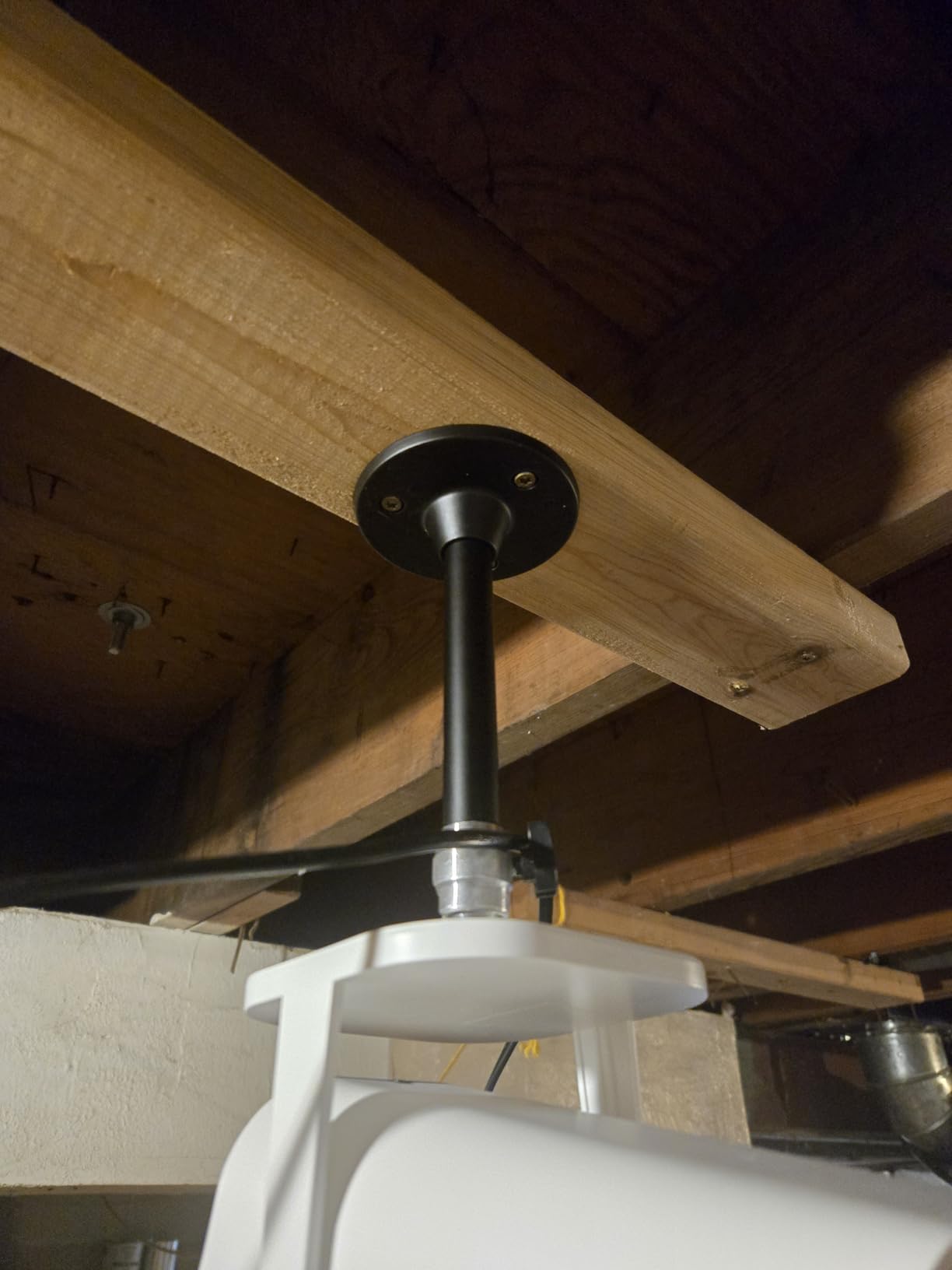

12. YiePhiot 175 mm Mini Projector Ceiling and Wall Mount
YiePhiot Mini Ceiling Wall Projector Mount Stand 175mm, Black
Metal construction
175 mm drop arm
Rated to 5 kg, about 11 lb
Adjustable ball joint for aiming
The Good
- Volume seller with over 7400 ratings
- Single ceiling screw and done
- no assembly required
- Adjustable ball joint is enough to aim a small projector
- Fits the majority of budget mini projector brands
- Lightweight arm keeps the projector close to the ceiling
The Bad
- Fixed 175 mm drop with no height adjustment at all
- 5 kg rating is only meaningful for mini projectors
- Minimal adjustment compared with full-motion mounts
- Small size gives limited tolerance for odd hole spacing
Most mini projectors ship with a screw hole and a plastic screw. This mount does the same job in metal for a few dollars, with a 175 mm arm and a ball joint you can actually aim. For a bedroom, travel or a rental setup it is exactly the right amount of hardware, and a full mount would be overkill.
Installation takes one ceiling screw and a minute, with no assembly required, which is why it is the highest-ranked seller in the projector mounts category by volume. The ball joint gives you enough movement to point a small projector at a screen or a bedroom wall.
The compatibility list is explicit, covering QKK, DR.J, DBPOWER, Anker, VANKYO, AAXA, Jinhoo, PVO, TMY and AuKing among others, so check your model against it before ordering. The arm can also be used as a wall mount.
The limits are equally clear. The drop is fixed at 175 mm with no telescoping, the 5 kg rating covers only mini projectors and will not carry a full-size body, adjustment is minimal compared with full-motion mounts, and the small plate gives limited tolerance for unusual screw spacing. The 4.3 average reflects honest scope rather than defects.
Who should buy it
Anyone with a compact projector who wants it off a table or shelf without spending real money. It works ceiling or wall, so it suits a small rental, a dorm or a travel setup where the projector changes often and the mount does not need to last a decade.
If your mini projector has no mounting hole at all, this is still the wrong tool, since it needs a threaded insert or a suitable plate.
When to step up a tier
Move up as soon as you own a projector heavier than about 11 lb, or any projector with four mounting holes and a centre of gravity that matters. At that point a 30 lb low-profile steel bracket costs a little more and gives you tilt, swivel and a proper safety margin.
Why Ceiling Projectors Shake and How to Stop It
Shake almost always traces back to the anchor, not the mount. Installers on r/CommercialAV are blunt about it: anchors in ceiling drywall are asking for failure. A bracket screwed into a hollow ceiling with plastic anchors will move, and a 30 lb projector hanging off that movement is what people see as a wobbling image or a fan noise that changes with the picture.
The second cause is grid flex. A suspended ceiling moves when a door slams or a fan cycles, and a projector on a grid tee will show it. The third is loose hardware, which is the easiest fix and the most commonly skipped one.
Five things fix it in order of effect. Anchor into a joist or stud rather than drywall. Re-tighten every bolt after the mount has settled for a day, because loaded frames compress slightly. Check that the projector’s feet are fully seated so there is no gap loading one side of the bracket. Choose a mount with a rigid plate, like the Peerless precision gear model or a tile-replacement plate, rather than a long single-bolt cantilever. Add a safety cable as a secondary restraint, which stops a total failure even if the anchor moves.
If the room has a subwoofer or an air handler that never fully shuts down, tell the mount maker before you buy. Heavier steel and a vibration-damping head matter more than articulation range in that situation.
Installing Projector Mounts for Ceilings on a Drop Ceiling
Yes, you can hang a projector from a drop ceiling, and the method is simpler than most people expect. You are not attaching anything to the grid. You remove one 2 by 2 foot tile, place a tile-style mounting plate in the opening, and hang the projector from that plate, which spreads the load across the framing above instead of concentrating it on a thin tee.
The load limit is the part people get wrong. Installers repeatedly advise against hanging a heavy projector or a motorized lift from the grid itself, with roughly 44 lb treated as the practical ceiling for grid-carried loads. Above that, run the mount into joists above the ceiling plane, which means cutting out a section of tile and fixing into structure.
A quick reference on what each ceiling type can carry:
Suspended grid, tile plate replacement: up to the plate rating, typically 30 lb, with the plate seated in the grid opening and wire hangers running up to structure above.
Drywall over joists: mount directly into the joist with structural screws, which is the most stable option for heavy units.
Drywall only, no framing at the fix point: installers generally consider this unsuitable for a projector, because hollow anchors cannot hold the weight reliably over time.
Concrete: anchor with masonry fixings and any mount rated above your projector weight works, and this is the standard for retrofit commercial work.
Fitting a projector into an existing drop ceiling is straightforward and usually an afternoon job for a competent DIYer. Building a new drop ceiling is trade work. If you already have the grid in place, the tile swap is the easy part.
How to Choose the Best Projector Mounts for Ceilings
Start with weight, and give yourself a margin. Check your projector’s listed weight and pick a mount rated comfortably above it, not level with it. A 20 lb projector on a 22 lb mount leaves no room for the shock loads that come with a ceiling being walked on or a door closing. Anything rated 30 lb or more covers typical home and office projectors, and 44 lb or 50 lb covers large-chassis home theatre and installation units.
Second, work out the drop length before you shop. Throw distance is the distance from lens to screen, and it is set by the projector’s throw ratio multiplied by image width. A 1.5 to 1.8 ratio projector filling a 100 inch screen needs roughly 12 to 15 feet of throw, so a 6 inch drop from a low ceiling puts the lens far too close and you end up relying on digital correction. Measure from your ceiling to the lens height you need before choosing a fixed drop.
Third, match the mount type to the ceiling. Low-profile fixed drops under 6 inches suit normal ceilings. Telescoping poles from about 15 to 26 inches suit high ceilings and give you a range to tune. Tile-replacement plates suit suspended grids. Single-joist adapters suit rooms where no joist lands over the screen. Full-motion arms with long extension suit awkward geometry where the projector must sit far back or off to one side.
Fourth, plan the anchoring before the mount. Identify the ceiling material, find structure with a stud finder or by measuring joist spacing, and confirm the fix point can carry the projector plus the mount. On suspended grids, use a tile plate. On drywall, get into a joist. Installers on r/CommercialAV and AVS Forum are consistent that drywall anchors are the single most common cause of a failed projector mount.
Fifth, decide how you feel about visible cables. A mount with an internal channel, such as the WALI or the Homcine square tube, keeps power and signal runs inside the pole. Without one, you are bundling cables and routing them along the ceiling, which is fine but always visible. If you are pairing this with a new screen, our guide to motorized projector screens assumes the same planning around drop length and image size.
Sixth, weigh universal against model-specific. Universal mounts cost less and survive a projector upgrade, which is why every mount in this roundup is universal. Model-specific mounts fit one body exactly and give tighter clearance, but they are pointless if you plan to change projectors. Think about your screen choice too: our picks for projector screens with stand and outdoor projector screens both change how much drop you need.
Finally, think about who maintains the projector. If bulbs, filters or lenses get changed by someone other than you, quick-release hooks save real time, and a mount like the Chief that holds its preset adjustments through service is worth considering for a room you cannot easily get into.
Best Projector Mounts for Ceilings: Frequently Asked Questions
Can I hang a projector from a drop ceiling?
Yes. Remove one 2 by 2 foot ceiling tile and fit a tile-replacement projector mount plate into the opening, rather than attaching anything to the grid. The plate spreads load into the framing above. Treat roughly 44 lb as the practical limit for grid-carried loads, and run the mount into joists for anything heavier.
Are projector ceiling mounts universal?
Most are. A universal projector ceiling mount fits any projector whose mounting holes match its pattern and whose weight is under the mount rating, usually via adjustable arms on a single bolt or a square of four holes. Measure the spacing and diameter of your projector’s mounting holes before ordering, because hole patterns vary between models.
How to install a ceiling projector?
Find structure and confirm the ceiling material, verify the mount rating exceeds your projector weight, then mark the plate position and check the drop length against your throw distance. Fix the ceiling plate into a joist or replace a ceiling tile with a tile plate, attach the drop tube or arm, hang the projector, set tilt and swivel, route cables, add a safety cable, and re-check every bolt after the mount settles.
Why does my projector shake?
Shake usually comes from the anchor, not the mount. Hollow drywall anchors, loose bolts after the frame settles, flex in a suspended ceiling grid, or a projector foot that is not fully seated are the usual causes. Anchor into a stud or joist, tighten every bolt again after a day, seat the feet fully, and add a safety cable as a secondary restraint.
Do I need a professional to install a ceiling projector mount?
A fixed low-profile mount into an existing joist is a reasonable DIY job for a competent homeowner with a ladder and a stud finder. A heavy projector, a suspended ceiling tile swap, a concrete ceiling, or a room where no joist sits above the screen is worth handing to an installer, because the anchor is the part that fails and it fails above your head.
Conclusion: Our Best Projector Mounts for Ceilings Picks
The VIVO MOUNT-VP01B is the best projector mount for most people in 2026. A 6 inch steel drop, a 30 lb rating and quick-release hooks cover the majority of rooms, and the fixed height is only a problem if your screen centre does not line up. When the ceiling is tall or the throw distance is generous, the VIVO MOUNT-VP02B telescopes from 15 to 23 inches and hides the cables inside the pole.
For a suspended tile ceiling, the Amer Mounts plate is the correct hardware. For a heavy projector, take the Peerless-AV PRG-UNV with its 50 lb rating and gear-driven alignment, or the Homcine mount if 44 lb is enough and you want fully concealed cabling. For a mini projector, the 175 mm YiePhiot mount is all the hardware you need.
Whichever one you choose, confirm the anchor before the mount goes up. A projector is only as stable as what holds it, and that is the decision that costs nothing now and a lot later.
