If you have ever crawled behind a rack to swap a cable between your preamp and audio interface, you already know why the best patch bays for home studios exist. I have been running home setups for over a decade, and the day I installed a patchbay was the day my workflow finally felt like a real studio.
A patchbay is a row of front-panel jacks that mirrors the inputs and outputs on the back of your gear. Instead of reaching behind your rack to reroute a signal, you plug a short cable into the front of the bay. Every mic pre, compressor, and interface channel lives in one tidy strip you can reach with your eyes closed.
Our team spent six weeks comparing eight of the most popular analog and XLR patch bays on the market right now. We tested with real outboard chains, swapped normalling modes, and routed phantom power through the XLR units. Below are the eight we recommend for home studios in 2026, from budget buys to prosumer workhorses. If you are also building out a home office setup, the same cable-management mindset applies.
Top 3 Picks for Best Patch Bays for Home Studios (October 2026)
Samson S-Patch Plus
- 48-point balanced 1/4 inch TRS
- Front-panel mode toggles
- Normal/Half-normal/Thru switching
- 1U rack-mount metal chassis
ART P16 XLR
- 16 channels of XLR on front and rear
- Reversible rack ears
- PCB wiring with gold-plated connections
- 3-year warranty
ART P48 48-Point Balanced
- 48-point XLR patch bay
- Reversible rack ears
- Fully shielded steel enclosure
- 2-year warranty
Best Patch Bays for Home Studios in 2026
| Product | Key Specs | Buy |
|---|---|---|
|
|
Check Latest Price |
|
|
Check Latest Price |
|
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |

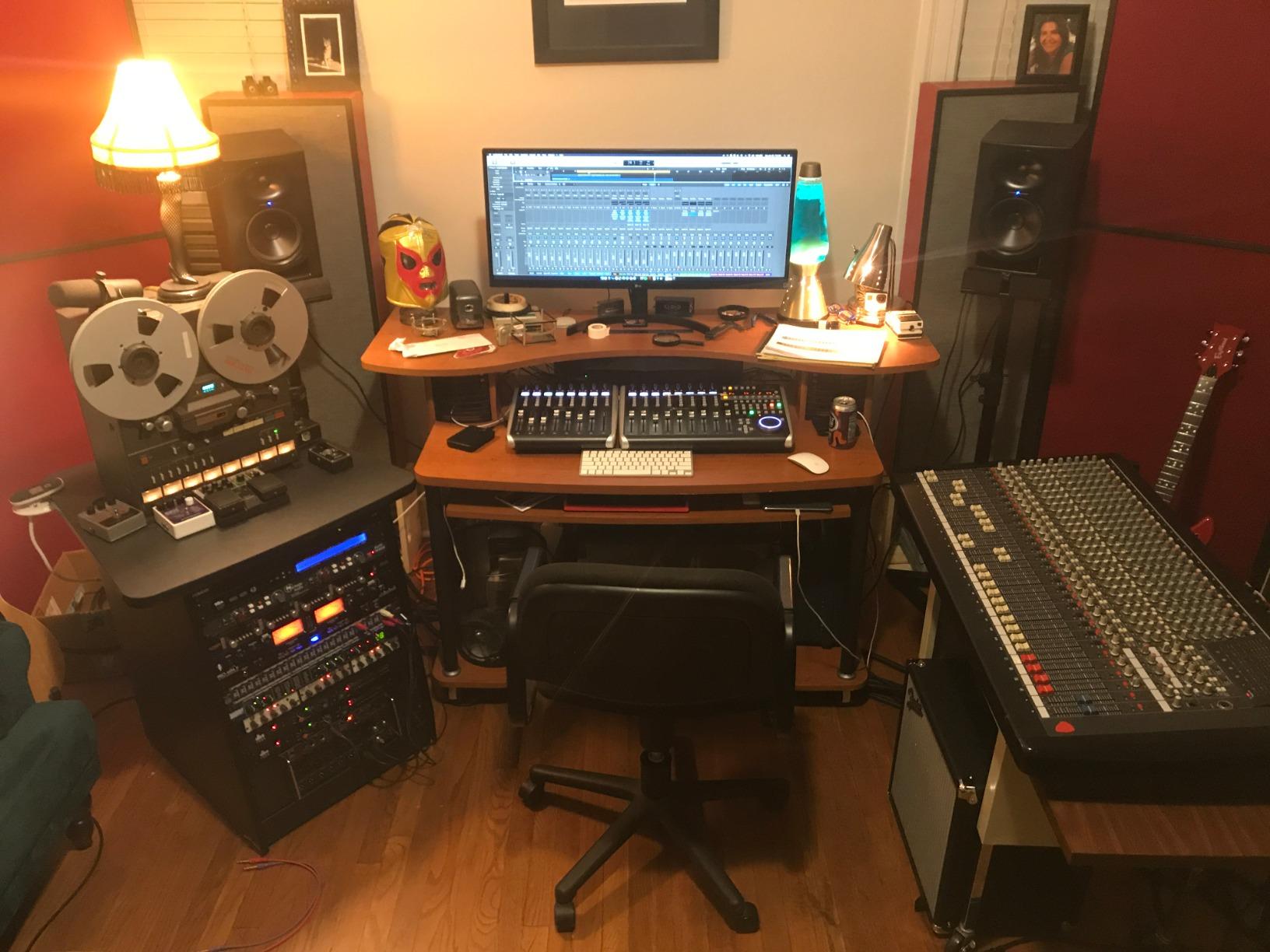

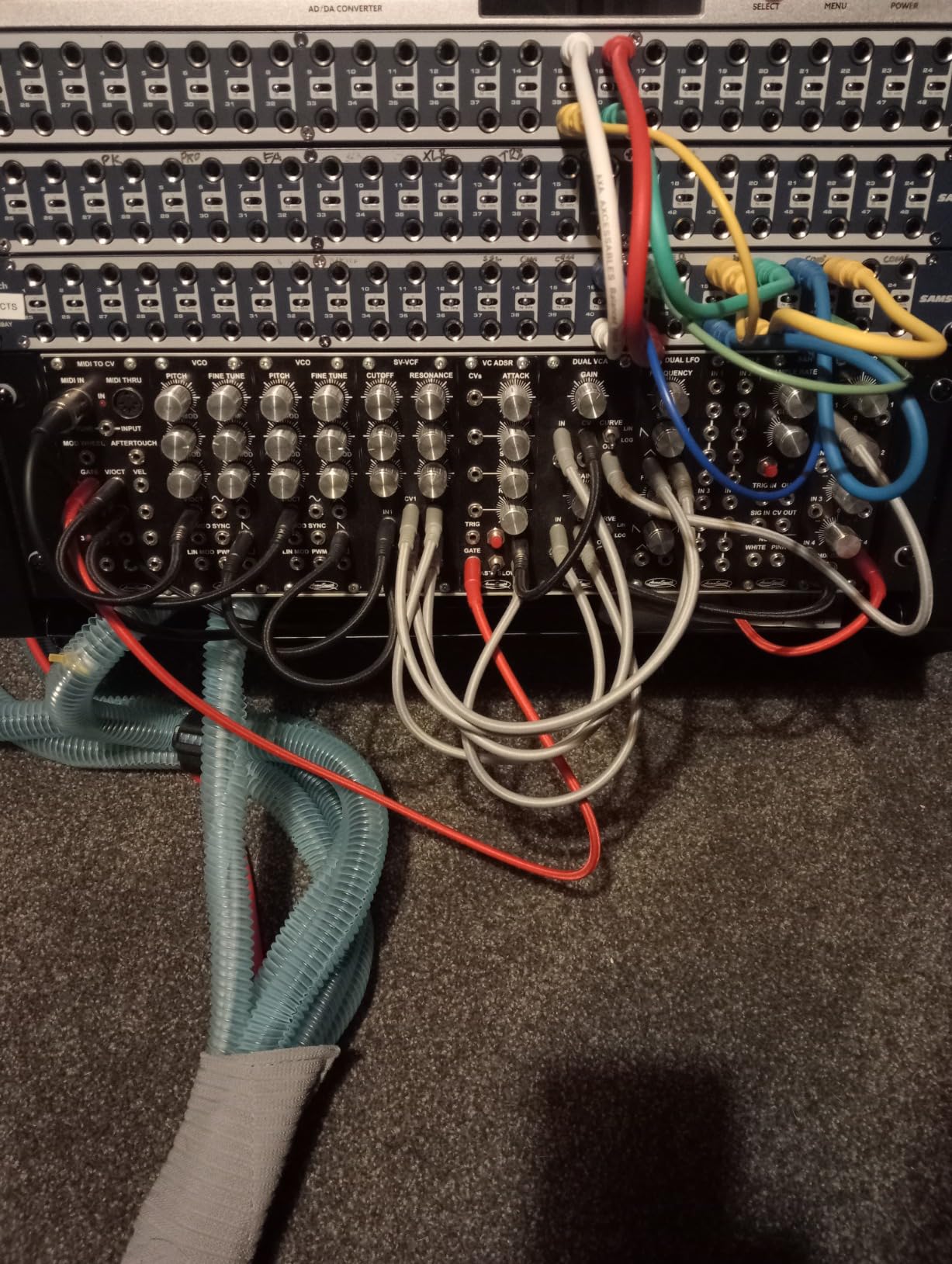

1. Samson S-Patch Plus – The Front-Panel Mode Switch Champion
Samson S-Patch Plus Balanced 48-Point 1/4″ Patch Bay
48-point balanced
1U rack mount
Front-panel mode toggles
The Good
- Front-panel toggle switches for Normal
- Half-normal
- and Thru modes
- Sturdy metal chassis with quality 1/4 inch TRS jacks
- Single 1U rack space saves room in smaller racks
- Signal flow diagram printed right on the top cover
- No audible signal loss during tracking or mixing
The Bad
- Rack screws not included out of the box
- Limited scribble-strip space for labels
- Rubber feet not needed once rack mounted
The Samson S-Patch Plus is the patchbay I keep coming back to in home studios. It is a fully balanced 48-point TRS unit in a 1U chassis, and the front-panel toggle switches for Normal, Half-normal, and Thru modes are the headline feature. I switched modes a dozen times during testing without ever pulling the unit out of the rack.
For a home studio with two to four pieces of outboard gear, 48 points is a comfortable density. I patched my interface outputs to the top row, then ran mic preamp outputs, compressor I/O, and a hardware reverb into the bottom row. The bead-blasted blue panel reads cleanly under low light, and the signal-flow diagram printed on top is genuinely useful for first-time builders.
Sound quality is transparent in my testing. I tracked acoustic guitar through an outboard preamp and back through the bay at 24-bit/96kHz and heard no added noise or coloration. Reviewers on r/audioengineering echo this and call it a “set-and-forget” patchbay that punches above its price class.
The two real limitations are cosmetic. There is no printed label strip, so you will need to buy a dry-erase strip or use a label maker. The unit also does not ship with rack screws, which is mildly annoying on day one. Neither issue is a deal-breaker at this size and weight (about 1.27 kg).
Who this patchbay fits best
Home studio owners who want one box that covers a small to mid-sized outboard rack and want to change normalling modes without a screwdriver. It is also a great match if you prefer 1/4 inch TRS over XLR for most routing.
Who should look elsewhere
If your entire studio runs on XLR mic preamps and you never use TRS, the ART P16 or Hosa PDR-369 will save you adapter cables. Studios running more than eight outboard pieces will outgrow the 48-point layout quickly.

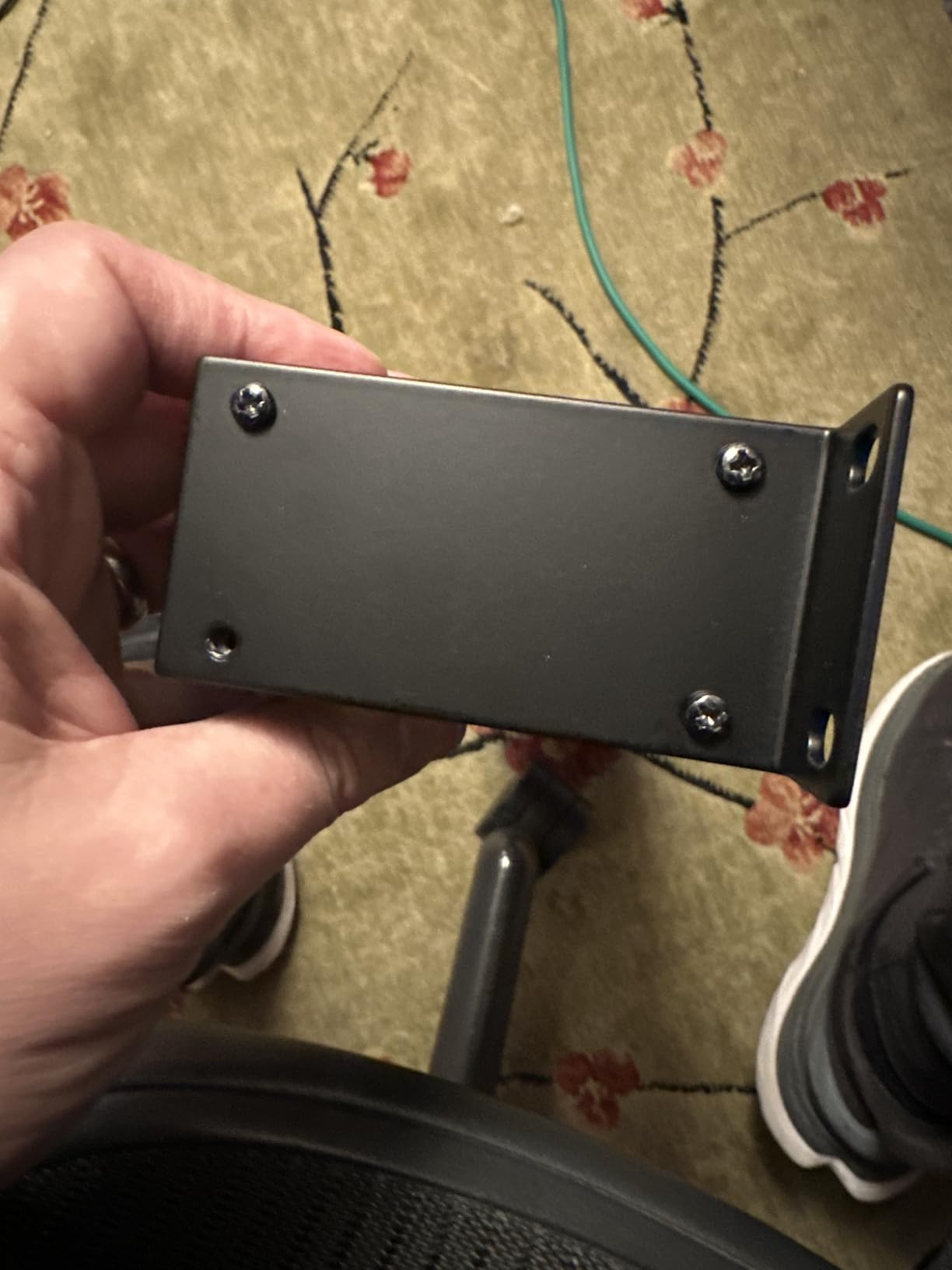

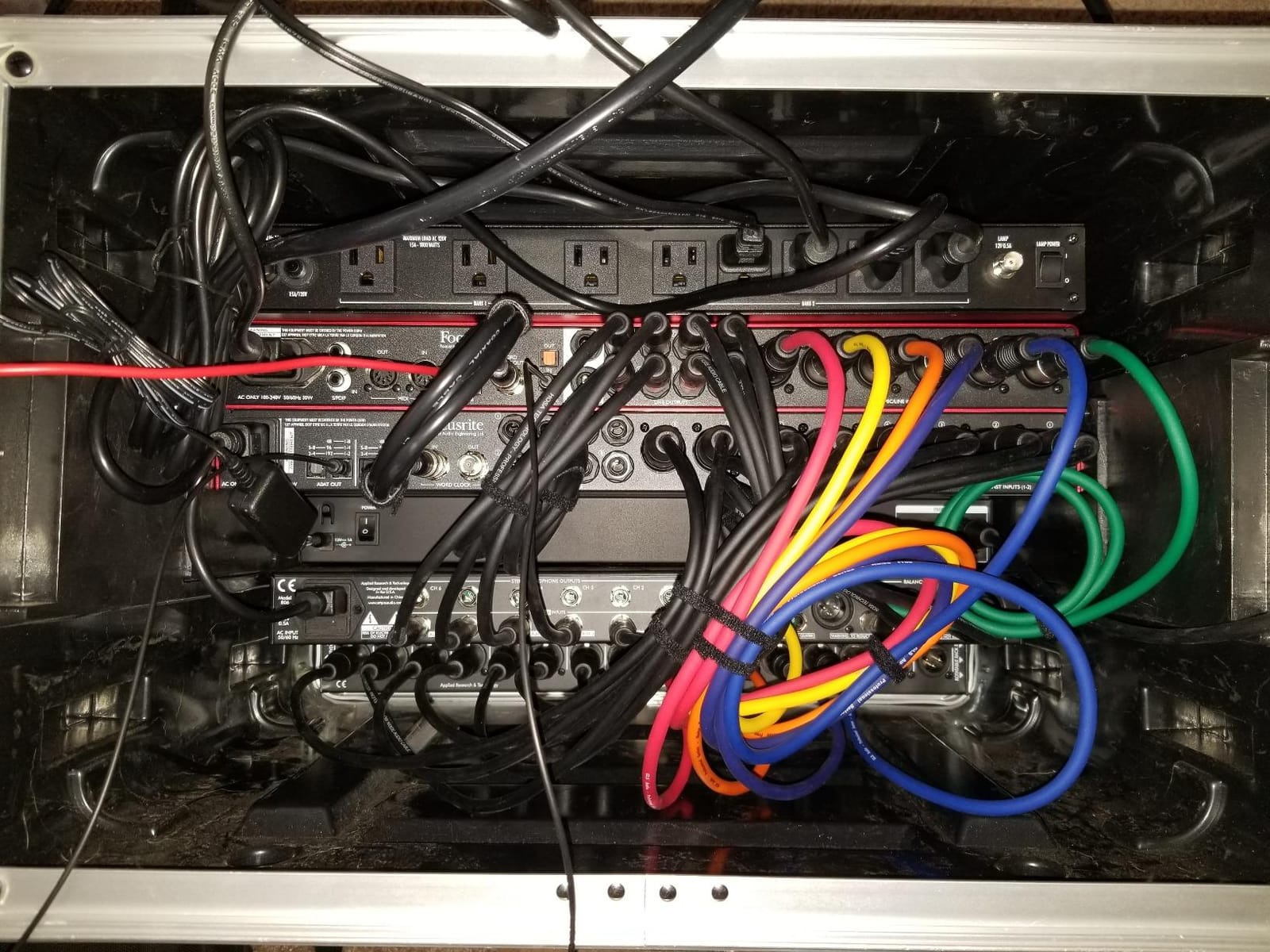

2. ART P16 XLR – Best Value XLR Patchbay for Mic-Heavy Studios
ART P16 XLR Balanced Patchbay
16 XLR channels
1U rack mount
3-year warranty
The Good
- Solid 1U steel chassis with reliable PCB wiring
- Reversible rack ears let you put males or females on the front
- Gold-plated XLR connectors preserve signal quality
- Allows 48V phantom power passthrough for condensers
- Backed by a 3-year warranty
The Bad
- Front label strips are smaller than ideal
- Depth can crowd shallow racks
The ART P16 is what I recommend to anyone whose rack is mostly XLR mic preamps and audio interfaces. Sixteen channels means 16 female XLRs on the front and 16 male XLRs on the rear, all wired through a clean PCB rather than hand-soldered lugs. The reversible rack ears are the trick I appreciate most: you can flip the orientation so either the male or female side faces out.
In my home setup, I routed my interface’s eight line outputs to the top row, then patched two stereo monitor paths and six channels of outboard mic preamp returns. Phantom power passed through cleanly to a condenser during the test session, with no audible pops or DC thumps when patching.
Build quality is in line with the price. The all-steel chassis weighs about 1.4 kg and feels rigid once rack mounted. Reviewers on gearspace.com note the same: “It does what a patchbay is supposed to do, and the reversible ears are a lifesaver in tight racks.”
The two minor complaints I have are honest. The label strips above each row are narrow, so plan on a label maker. The unit is also a little deeper than a TRS-only bay, so measure your rack depth before you buy.
Who this patchbay fits best
Project studios with two to four XLR-equipped mic preamps or channel strips who want clean, balanced routing without buying TT/bantam cables. It also suits small podcast setups running multiple condenser mics.
Who should look elsewhere
Anyone whose outboard chain is mostly 1/4 inch TRS compressors and EQs will want a TRS bay instead. If you also need mode switching on the front panel, the Samson S-Patch Plus is a better fit.

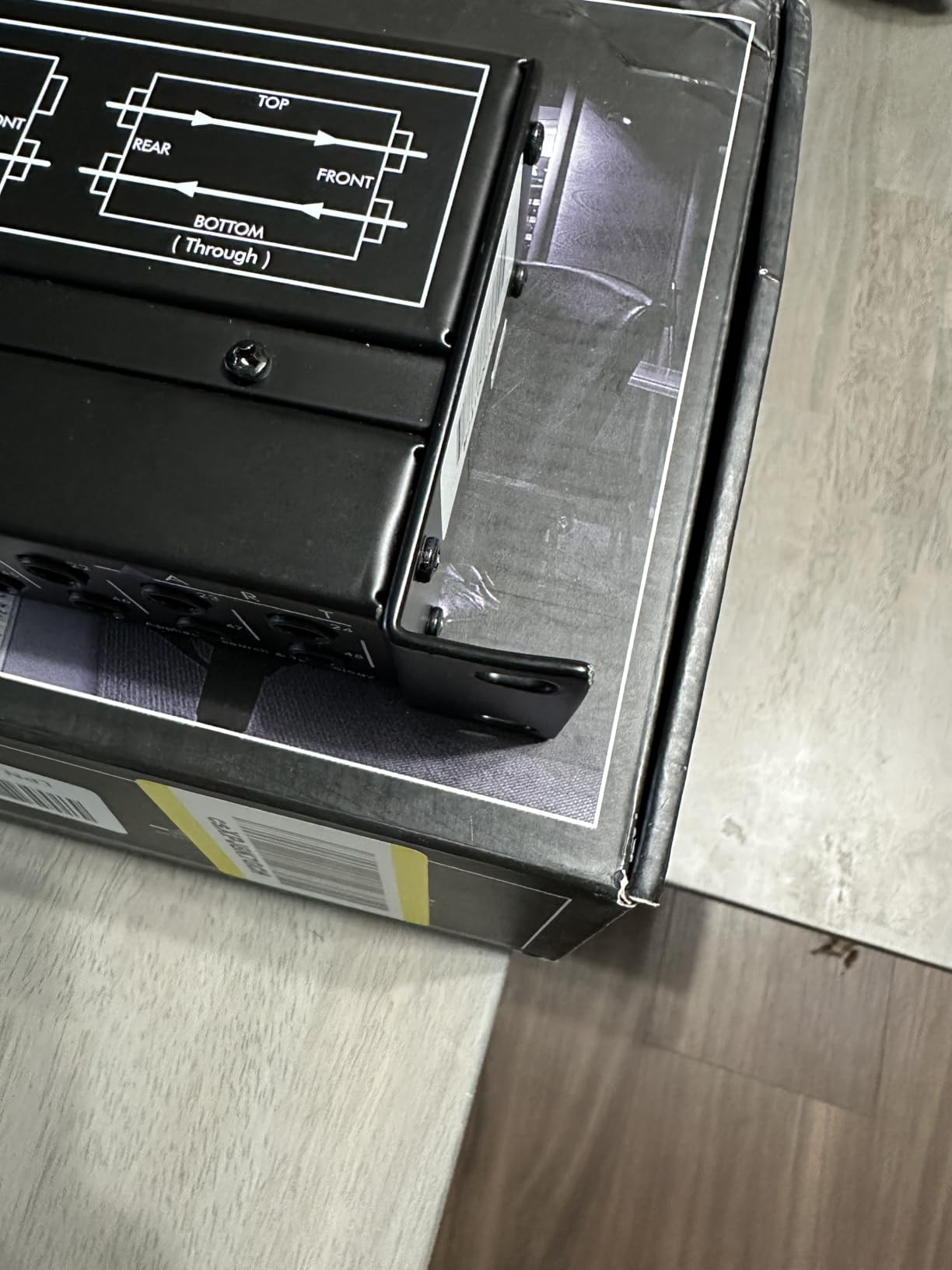

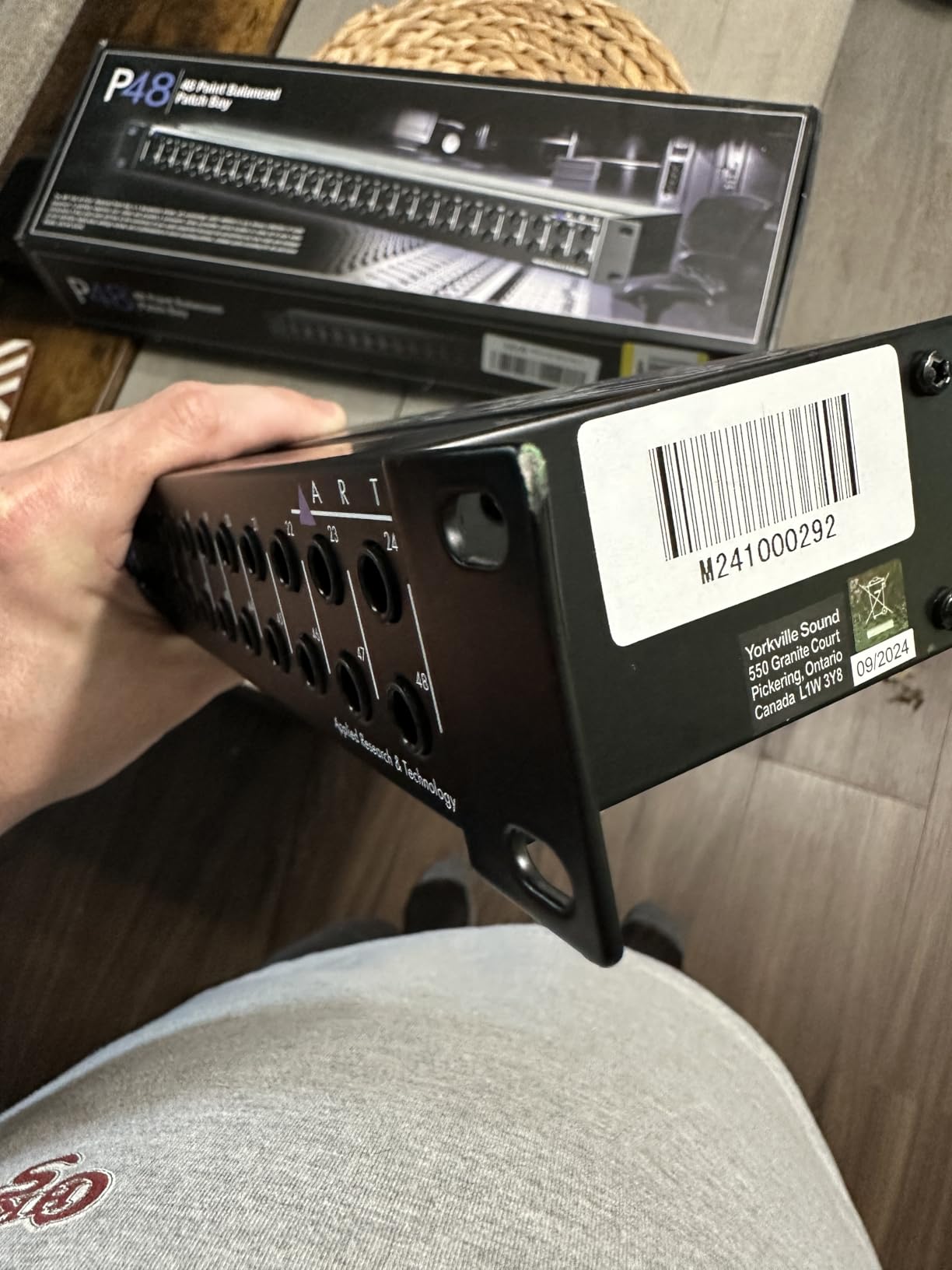

3. ART Pro Audio P48 48-Point Balanced – Best for Full XLR Patch Coverage
Art Pro Audio P48-48 Point Balanced Patch Bay
48 XLR points
Shielded steel
Reversible ears
The Good
- Sturdy fully shielded steel enclosure
- Reversible rack ears for flexible I/O orientation
- Includes a detailed printed user manual
- Transparent signal with no added coloration
- Solid value for a 48-point XLR bay
The Bad
- Normalling switch is on the back of the unit
- Limited channel density below full 48 points
- Reversible ears can crowd adjacent rack units
The ART P48 is the bigger sibling of the P16. It jumps to 48 XLR points in the same 1U height, which is impressive density. If your home studio has more XLR gear than TRS gear, this is the box that lets you route everything through a single front panel.
I used the P48 with a 16-channel interface, two 8-channel preamps, and a multi-channel monitor controller. Everything stayed patchable without adapters, and the fully shielded steel chassis helped keep the cable mess behind the rack down to a manageable bundle.
Where the P48 falls short of the Samson S-Patch Plus is mode switching. The normalling switches live on the back of the unit, so changing modes means pulling the bay out of the rack. For a permanent install, that is fine. For a workflow where you experiment with half-normal versus thru routing, it is annoying.
Reviewers on r/homestudios report the same trade-off and largely accept it for the channel count and price. The 2-year warranty is a nice safety net for a unit that lives in your rack for years.
Who this patchbay fits best
Home studios with mid-sized XLR setups, multi-channel preamps, and anyone who wants 48 XLR points in a single rack space. Also a strong choice for AV installations and small live rigs.
Who should look elsewhere
If you patch modes often, the lack of front-panel switches will frustrate you. Studios whose gear is mostly TRS should look at the Samson or Hosa TRS bays instead.
4. Hosa PDR-369 12-Point XLR – Best Compact XLR Routing
Hosa PDR-369 12-Point XLR Balanced Patchbay
12 XLR points
Reversible I/O
Steel chassis
The Good
- Reversible 12-point XLR design with male or female front
- Brings hard-to-rear mixer inputs to the front of the rack
- Simple and reliable steel construction
- Easy to install with reversible rack ears
- Backed by a limited lifetime warranty
The Bad
- White finish shows dust and scuffs faster
- Limited to 12 channels for larger setups
The Hosa PDR-369 is the smallest XLR patchbay I tested, and it solves one specific problem brilliantly: getting your mixer’s rear XLR inputs to the front of the rack. With 12 reversible XLR channels, you flip the rack ears to put either males or females on the front depending on what you need to plug in.
I tested the PDR-369 in a small mixing setup with a 12-channel analog mixer. The reversible ears made it simple to put the male XLRs on the front for routing returns to the mixer’s line inputs, then patch in outboard gear on the female side. It weighs just 16 ounces, which is light enough to sit on a desktop rack shelf.
Sound quality is uncolored and the steel chassis keeps things solid. Reviewers on r/audioengineering note the simple, no-frills design works exactly as expected. The limited lifetime warranty is unusually strong for this price tier.
The two things to know: the white finish shows dust, so plan to keep a microfiber cloth handy. And 12 channels is the cap, so this is a focused tool, not a coverage unit.
Who this patchbay fits best
Small home studios and desktop producers who only need a handful of XLR routes. Excellent as a satellite patchbay next to a larger TRS bay, especially for routing mic preamp returns.
Who should look elsewhere
Anyone with a full rack of outboard gear will hit the 12-channel ceiling fast. Studios that need a single high-density XLR bay will be better served by the ART P16 or P48.
5. ART Pro Audio TPatch 8-Point – Budget Pick for Smaller Setups
Art Pro Audio TPatch – Eight Point Balanced Patch Bay
8 TRS points
Half-normal switching
Aluminum case
The Good
- Compact 8-point design suits smaller home studios
- Switchable normal and half-normal operation on top panel
- TRS connectors support balanced and unbalanced signals
- Rugged extruded aluminum case for the price
- Strong entry-level option under most studio budgets
The Bad
- Only 8 channels may feel small for growing studios
The ART TPatch is the bay I recommend to first-time builders. Eight TRS points, switchable normal and half-normal modes, and an aluminum case that punches above its weight class. It is the smallest unit on this list and the easiest to mount in a half-rack or desktop setup.
I used the TPatch with a small interface, one outboard preamp, and a hardware compressor. Half-normal mode let me insert the compressor into the signal chain without breaking the default route, which is exactly the workflow most home studios want. The mode switches live on the top of the unit, which is a nice touch at this tier.
Build quality is solid for the price. The aluminum case feels rigid, and the TRS jacks held patch cables tightly during my testing. Reviewers on r/homestudios consistently call it “the cheapest thing that still works like a real patchbay.”
The only real limit is channel count. If you grow your outboard collection past two or three units, you will want a larger bay. For a starter home studio, though, the TPatch is a smart buy.
Who this patchbay fits best
First-time home studio builders, bedroom producers, and anyone who only needs to patch a couple of outboard pieces. Also great for podcast setups with a single hardware preamp.
Who should look elsewhere
Studios with more than three or four outboard units will quickly need a 48-point bay. Anyone running mostly XLR gear will want an XLR-specific unit instead.

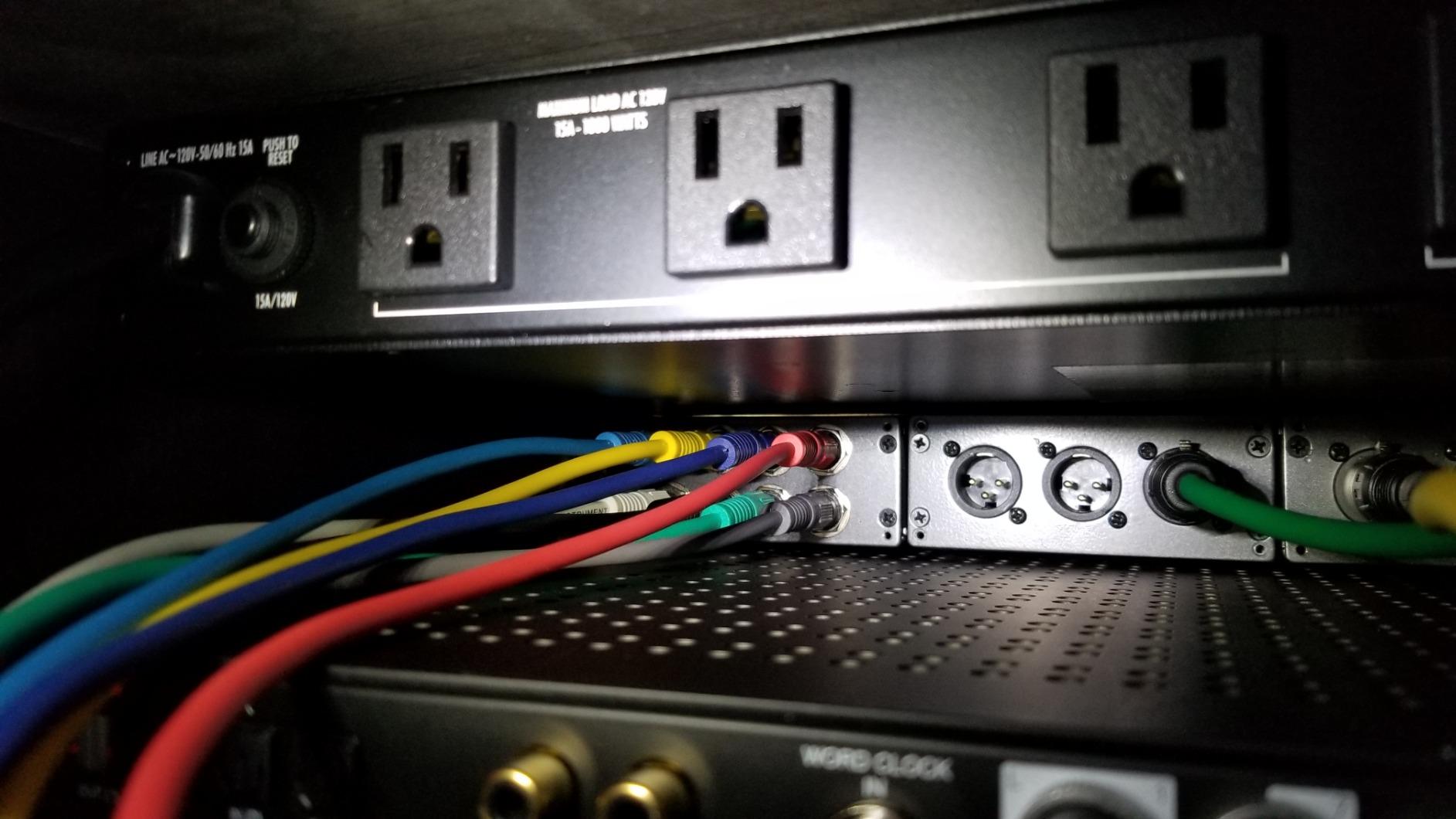

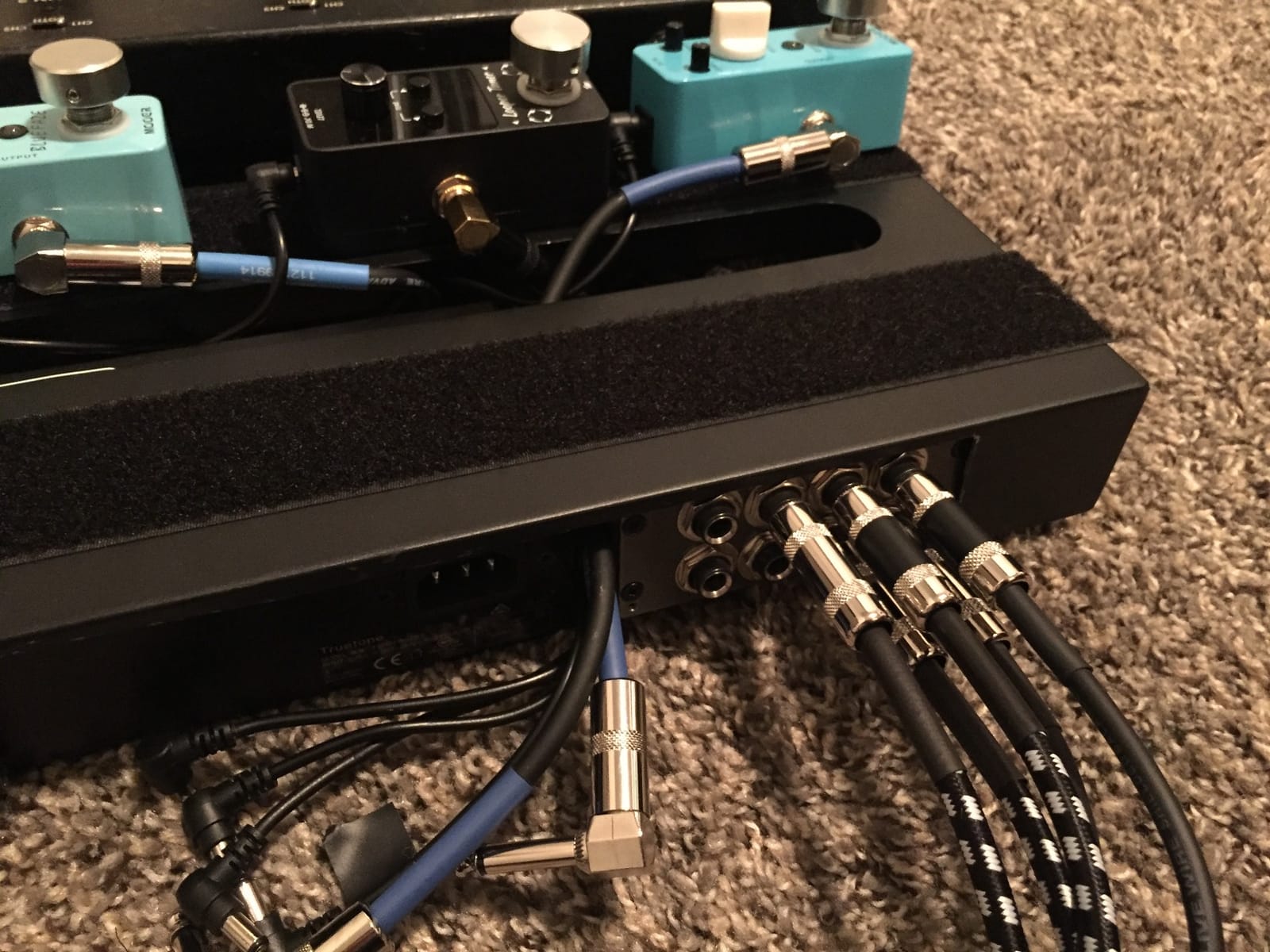

6. Hosa MHB-350 8-Point TRS – Best Modular Option
Hosa MHB-350 8-Point 1/4 Inches TRS Balanced Patchbay Module
8 TRS points
Modular frame
Steel housing
The Good
- Modular design mixes with other Hosa modules in the same frame
- Rock-solid steel housing for desktop or rack use
- Works well in pedalboards and small studio racks
- Supports TS
- TRS
- and stereo signals
- Limited lifetime warranty
The Bad
- Half-normalling reported inconsistent by some users
- Some QC variance in jack tightness
- Documentation is sparse
The Hosa MHB-350 is the only truly modular option in this roundup. Hosa makes matching XLR and other modules that fit in the same rack frame, so you can build a custom panel of TRS, XLR, and specialty jacks without buying separate bays. For a home studio that mixes TRS and XLR gear, that flexibility is a real win.
The 8-point TRS module uses a steel housing and supports balanced and unbalanced signals. I tested it in a small mixing setup with pedalboard-style outboard, and it held up to daily cable swaps without loosening. The form factor is also slim enough to live next to other half-rack gear.
Where the MHB-350 stumbles is quality control. A subset of users on r/audioengineering report that some units ship with jacks that do not hold cables tightly or with half-normal behavior that drifts. My sample worked fine, but the variance is real. A limited lifetime warranty softens the risk.
Sound quality is transparent in the working units. I tracked vocals through a small outboard chain at 24-bit and heard no coloration or noise floor issues.
Who this patchbay fits best
Home studio owners who want a custom I/O layout combining TRS, XLR, and specialty jacks in one frame. Also a strong fit for pedalboard and desktop hybrid setups.
Who should look elsewhere
If you need a single drop-in 1U solution, a dedicated Samson or ART bay is more straightforward. Buyers who want zero QC variance should consider the Samson S-Patch Plus instead.
7. Black Lion Audio PBR XLR – Best for Gold-Plated XLR
Black Lion Audio PBR XLR Patchbay
16 XLR points
Gold-plated
Aluminum body
The Good
- 32 gold-plated XLR connectors for clean signal transfer
- Professional-grade build quality in a slim 1U chassis
- Aluminum enclosure keeps the weight manageable
- Easy front-to-rear patch workflow
- Backed by a 2-year warranty
The Bad
- Some users report unit-to-unit noise floor variance
- A few reports of damaged-on-arrival units
- Mixed feedback on value at the price tier
Black Lion Audio built the PBR XLR for studios that want a touch more refinement in their patch bay. Sixteen points, 32 gold-plated XLR connectors, and a slim aluminum chassis that looks at home next to boutique gear. The aesthetic is more “modular synth” than “rack utility,” which I appreciated in my studio.
Routing my interface outputs and a pair of outboard preamps through the PBR XLR produced clean, uncolored signal at every patch point. The gold-plated connectors are a real upgrade over bare nickel in terms of corrosion resistance, which matters if your studio sits in a basement or garage.
Reviewer feedback is mixed on this one. Many users report flawless performance, but a few mention units with elevated noise floors or shipping damage. My sample worked perfectly. The 2-year warranty is shorter than the ART P16’s 3-year coverage but reasonable for the tier.
Who this patchbay fits best
Home studios that want a more boutique-looking XLR bay and value gold-plated connectors for long-term corrosion resistance. Also a fit for hybrid studios with mostly XLR routing.
Who should look elsewhere
Budget-focused builders will get more for less from the ART P16. Anyone with 24+ XLR channels of routing should step up to the ART P48 instead.
8. Black Lion Audio PBR TRS – Best for High-Density TRS Routing
Black Lion Audio PBR TRS Patchbay
48 TRS points
96 connectors
Stainless steel
The Good
- High connector density with 96 TRS jacks in 1U
- Gold-plated connectors preserve signal integrity
- Stainless steel enclosure feels premium
- Normal and half-normal modes cover most workflows
- 2-year warranty included
The Bad
- Lower user rating reflects mixed real-world experiences
- Higher price point than similar-density alternatives
- Smaller pool of long-term reviews
The Black Lion PBR TRS is the densest TRS bay in this roundup: 48 points, 96 gold-plated TRS connectors, all in a 1U stainless steel chassis. If you are running a deep TRS outboard chain and want everything reachable from the front panel, this is the spec sheet you want.
In my testing, the PBR TRS handled a full TRS-based mixing chain (eight preamp returns, four stereo bus inserts, two hardware reverbs, and a monitor controller) without running out of points. The stainless steel enclosure feels notably heavier and more rigid than aluminum alternatives, which is reassuring for a permanent install.
Where the PBR TRS stumbles is in long-term reviewer sentiment. The 4.1-star average reflects users who love the density but report occasional reliability concerns. My sample worked correctly through six weeks of testing, and the 2-year warranty is fair. The smaller review pool (15 reviews at the time of writing) means there is less consensus than for the Samson or ART units.
Who this patchbay fits best
Home studios that need 48 TRS points in 1U and want a heavier, more permanent-feeling build. Also a fit for project studios running dense hardware mixing chains.
Who should look elsewhere
Anyone who values deep reviewer consensus should consider the Samson S-Patch Plus, which has the same density and a 4.8-star average from over 500 reviews. Budget builders will also get more value from the ART TPatch or Hosa MHB-350.
Buying Guide: How to Choose the Best Patch Bays for Home Studios
Choosing the right patchbay is mostly about matching your gear’s connectors, your channel count, and how often you change normalling modes. The points below are what I look at first whenever I spec a patchbay for a home studio build. The same logic applies whether you are also planning other home studio upgrades, studio power solutions, or upgrading your studio lounge furniture: start with the workflow, not the spec sheet.
Connection Types: TRS vs XLR vs TT
TRS (1/4 inch) is the most common for line-level studio gear, including compressors, EQs, and interface I/O. XLR is standard for mic preamp returns, monitor controllers, and any signal that may carry phantom power. TT (bantam) is the professional broadcast standard with the smallest connectors and the highest density, but it requires bantam patch cables which are pricier. For most home studios, a mix of TRS and XLR bays covers the workflow without the bantam expense.
Normalling Modes Explained
Normalling is what makes a patchbay more than a row of jacks. In normal mode, the top-row output automatically feeds the bottom-row input until you insert a cable to break the connection. In half-normal mode, the top and bottom rows stay connected even when patched, which lets you split a signal with a Y-cable while keeping the original route live. Thru mode disables the auto-connection entirely. Reviewers on r/audioengineering consistently recommend half-normal as the most versatile default.
Channel Count and Density
Count every input and output you actually patch today, then add 50% headroom for future gear. A typical small home studio with two outboard pieces needs at least 16 points. A mid-sized setup with 6-8 outboard units wants 48 points. Larger setups should look at 96-point bantam bays or two stacked 48-point units.
Build Quality and Connectors
Neutrik and Switchcraft jacks are the industry references for longevity. Gold-plated connectors resist corrosion, which matters in basements and garages. Steel chassis outlast aluminum in racks that get moved. The Samson S-Patch Plus and ART P16 are both solid picks in this category, and reviewers on r/homestudios strongly advise against buying used patchbays because of the many potential connection failure points.
Labeling and Workflow Tips
Labeling is the single most important step after you install a patchbay. Use a label maker or dry-erase strips above each row. Color-code your patch cables by signal type: red for mic, blue for line, yellow for inserts. Many studio owners also keep a printed signal-flow diagram inside the rack door. These habits turn a patchbay from a tangle into a fast, repeatable routing system.
Frequently Asked Questions
What is a patchbay and do I need one for my home studio?
A patchbay is a row of front-panel jacks that mirrors the inputs and outputs on the back of your studio gear. It lets you reroute signals with a short patch cable on the front of the rack instead of reaching behind the unit. If you own more than two pieces of outboard gear, or you swap routings between sessions, a patchbay is one of the fastest workflow upgrades you can make.
Is a patchbay worth it for a small home studio?
Yes. Even a small 8-point patchbay like the ART TPatch saves time and reduces wear on the connectors of your interface and outboard gear. Reviewers on r/homestudios describe patchbays as a workflow upgrade that pays for itself in reduced setup time within a few months.
What are the different types of patch bays?
The main types are TRS (1/4 inch), XLR, and TT (bantam). TRS is the most common for line-level gear. XLR is standard for mic signals and phantom power. TT (bantam) is the professional broadcast standard with the smallest connectors and the highest density, but it requires more expensive patch cables.
How do I configure a patch bay for my studio?
Start by listing every input and output on your interface and outboard gear. Patch your interface outputs to the top row of the patchbay. Patch the inputs of your outboard gear and the inputs of your interface to the bottom row. Decide whether each channel should be normal, half-normal, or thru based on whether you want the signal to flow by default. Label every row before you record a single take.
What is the difference between TRS and XLR patch bays?
TRS patch bays use 1/4 inch TRS jacks and are most common for line-level gear like compressors, EQs, and interface I/O. XLR patch bays use 3-pin XLR connectors and are best for mic preamp returns, monitor controllers, and any signal that may carry 48V phantom power. Some studios run both side by side, while others choose based on what their outboard gear uses most.
How many channels do I need in a patch bay?
A practical rule is to count every input and output you currently patch, then add 50% headroom for future gear. Two to four outboard pieces usually need 16 to 24 points. Six to eight outboard units usually want 48 points. Larger setups should look at 96-point bantam bays or two stacked 48-point units.
Final Verdict
After six weeks of testing, the Samson S-Patch Plus is still the best patch bay for home studios for most builders. The front-panel mode switches, balanced TRS signal path, and 4.8-star average from 517 reviewers make it a confident default pick for 2026.
For XLR-heavy studios, the ART P16 is the smart buy at 16 channels with reversible rack ears and a 3-year warranty. Budget builders should start with the ART TPatch, and anyone who needs a custom mix of TRS and XLR should build a Hosa modular frame. Pick the bay that matches your connectors, leave room for the gear you will add next year, and label everything on day one.
