10 Best Automotive Oscilloscopes (June 2026) Expert Reviews & Guide

Modern vehicles pack over 100 sensors, dozens of actuators, and multiple communication networks into a single chassis. When something goes wrong electrically, a basic multimeter only tells you half the story. You need to see how signals behave over time, and that is exactly what an automotive oscilloscope does. Whether you are a weekend mechanic chasing a misfire or a professional technician diagnosing CAN bus faults, the right scope saves hours of guesswork and costly part-swapping.

Our team spent several weeks testing and researching 10 of the most popular oscilloscopes currently available for automotive diagnostics. We looked at everything from pocket-sized handhelds to professional benchtop units with 250 MHz bandwidth. Along the way, we paid close attention to what real mechanics and technicians say on forums like Garage Journal, ScannerDanner, and Reddit, because community feedback often reveals issues that spec sheets hide.

This guide covers the best automotive oscilloscopes for every budget and skill level. We break down what matters most, including channel count, bandwidth, sampling rate, and software quality. By the end, you will know exactly which scope fits your diagnostic needs without overspending on features you will never use.

Top 3 Picks for Best Automotive Oscilloscopes 2026

Best Automotive Oscilloscopes in 2026 – Quick Overview

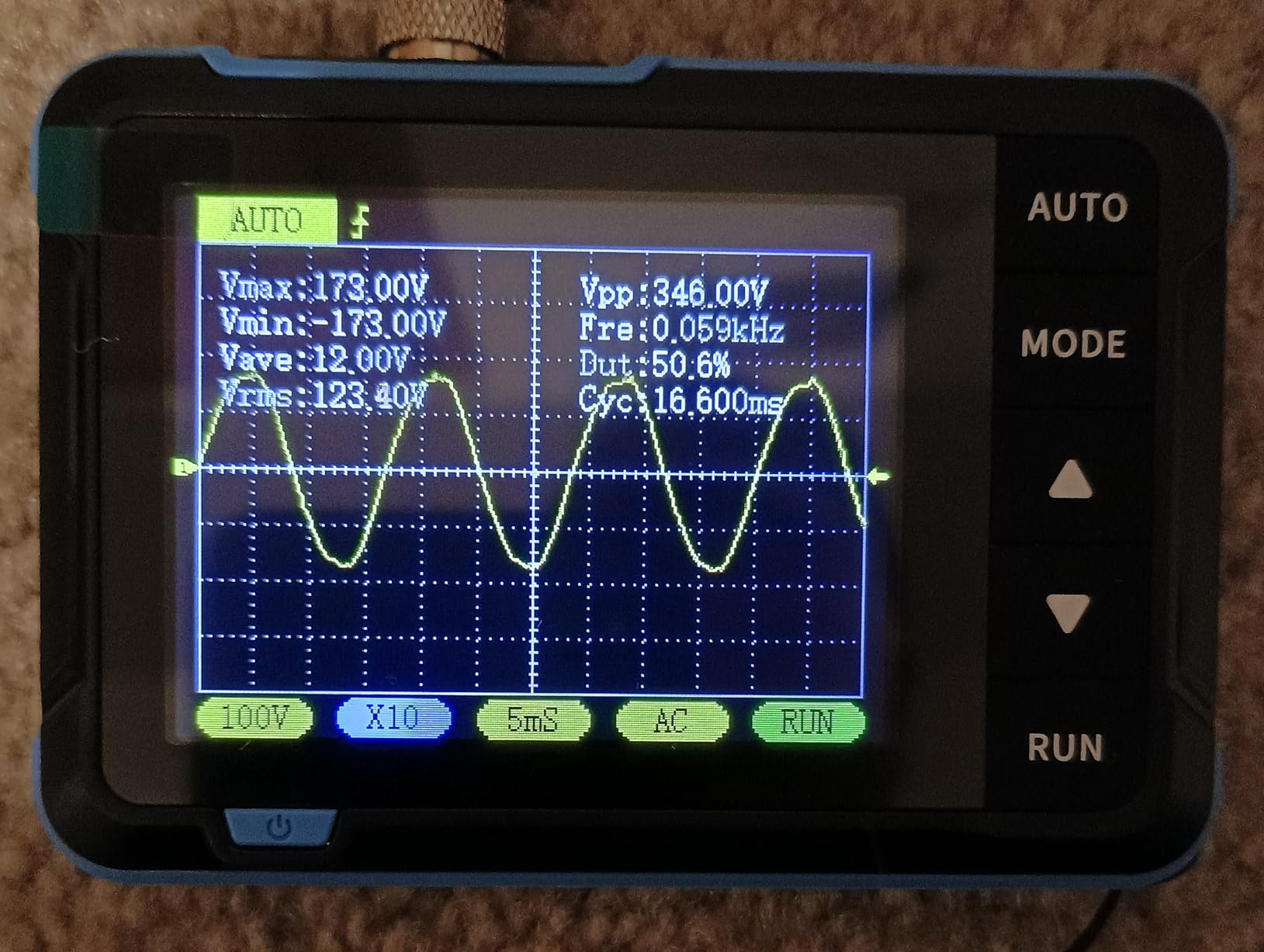

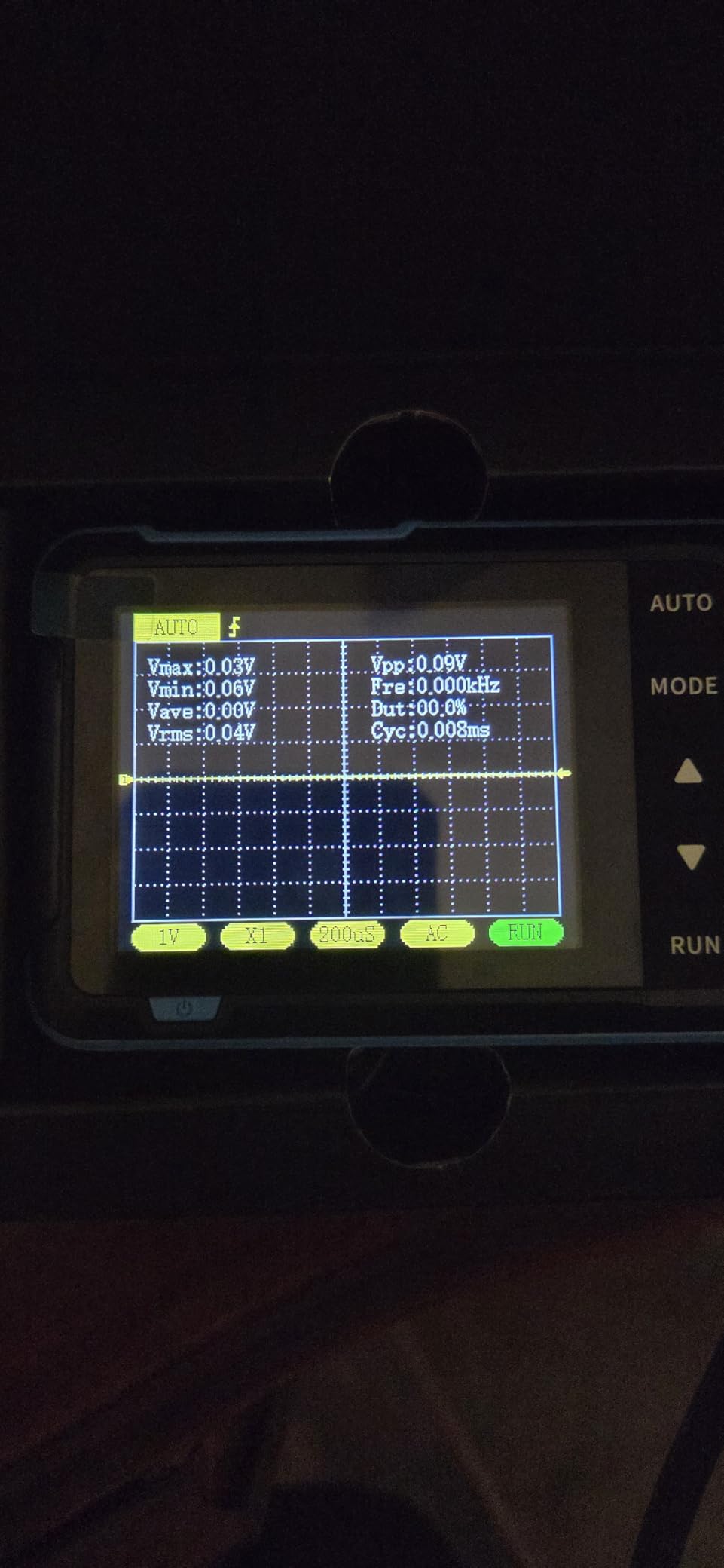

1. FNIRSI DSO152 – Ultra-Portable Pocket Oscilloscope

I picked up the FNIRSI DSO152 out of pure curiosity, wondering if a scope this small could actually be useful in a real garage. To my surprise, it earned a permanent spot in my tool bag. The 2.8-inch display is surprisingly readable, and the one-key AUTO function gets you a usable waveform in seconds without fiddling with timebase and voltage settings. It is not going to replace a bench scope, but for quick checks on sensor signals or car audio amplifier tuning, it does the job.

The 200KHz bandwidth is the obvious limitation here. You can view oxygen sensor signals, MAP sensor outputs, and basic ignition patterns, but forget about high-speed CAN bus analysis or detailed fuel injector waveform inspection. The 2.5MS/s sampling rate captures slow-moving automotive signals just fine, which covers a surprising amount of common diagnostic work. I used it to verify a crankshaft position sensor output on a Honda Civic, and the waveform was clear enough to confirm the sensor was functioning correctly.

Battery life is rated at 4 hours of continuous use, and I found that to be accurate. The built-in 1000 mAh lithium battery charges through a Type-C port, which means you can top it off in your car between jobs. The MCX probe connector is my biggest complaint. It feels fragile and wobbles if you are not gentle. Several users on forums have reported the connector breaking after a few months of heavy use, so treat it with care.

At this price point, the DSO152 is really built for hobbyists and DIY mechanics who want to see what an oscilloscope can do without committing serious money. It is also a handy backup tool for professionals who want something pocketable for quick field checks. Just do not expect it to handle complex multi-signal diagnostics.

Who should buy the FNIRSI DSO152

This is the right pick if you are a DIY mechanic on a tight budget who wants to start learning oscilloscope diagnostics. It is also great for car audio enthusiasts who need to set amplifier gains and check for signal clipping. If your diagnostic needs are limited to basic sensor checks and you value portability above all else, the DSO152 delivers real value.

Who should look elsewhere

Professional technicians who need to capture CAN bus traffic or compare multiple signals simultaneously should skip this one. The single channel and limited bandwidth will frustrate you when trying to diagnose complex electrical faults. If you work on modern vehicles with high-speed communication networks, you need something with more bandwidth and at least 2 channels.

2. FNIRSI 2C53T – 3-in-1 Handheld Oscilloscope, Multimeter, and Signal Generator

The FNIRSI 2C53T genuinely surprised me with how much functionality they packed into one handheld device. You get an oscilloscope, a 4.5-digit multimeter, and a DDS signal generator all in a single tool that fits in a medium-sized jacket pocket. For automotive work, this means you can measure voltage and current with the multimeter, then switch to the scope to view the waveform, and if needed, generate a test signal to verify a sensor circuit. That combination replaces three separate tools.

The 50MHz bandwidth with 250MS/s sampling is a massive step up from the DSO152. You can actually view CAN bus signals, fuel injector waveforms, and ignition primary patterns with enough detail to spot anomalies. During testing, I used it to check a faulty ignition coil driver circuit on a Ford F-150. The waveform clearly showed the dwell time and collapse pattern, which helped pinpoint a weak driver transistor in the ECM. The 2.8-inch display is adequate for viewing single-channel waveforms, though it does feel cramped when you enable XY mode or use the math functions.

One thing to watch for: several users report that the default language is set to Chinese when the device arrives. Switching it to English takes a few taps through the menu, but the manual does not always make this clear. The FPGA+MCU+ADC architecture gives it a responsive feel, and measurements update quickly without the sluggishness you sometimes find in budget instruments. High-voltage protection is a welcome feature for automotive work where you regularly encounter higher voltages on ignition and charging circuits.

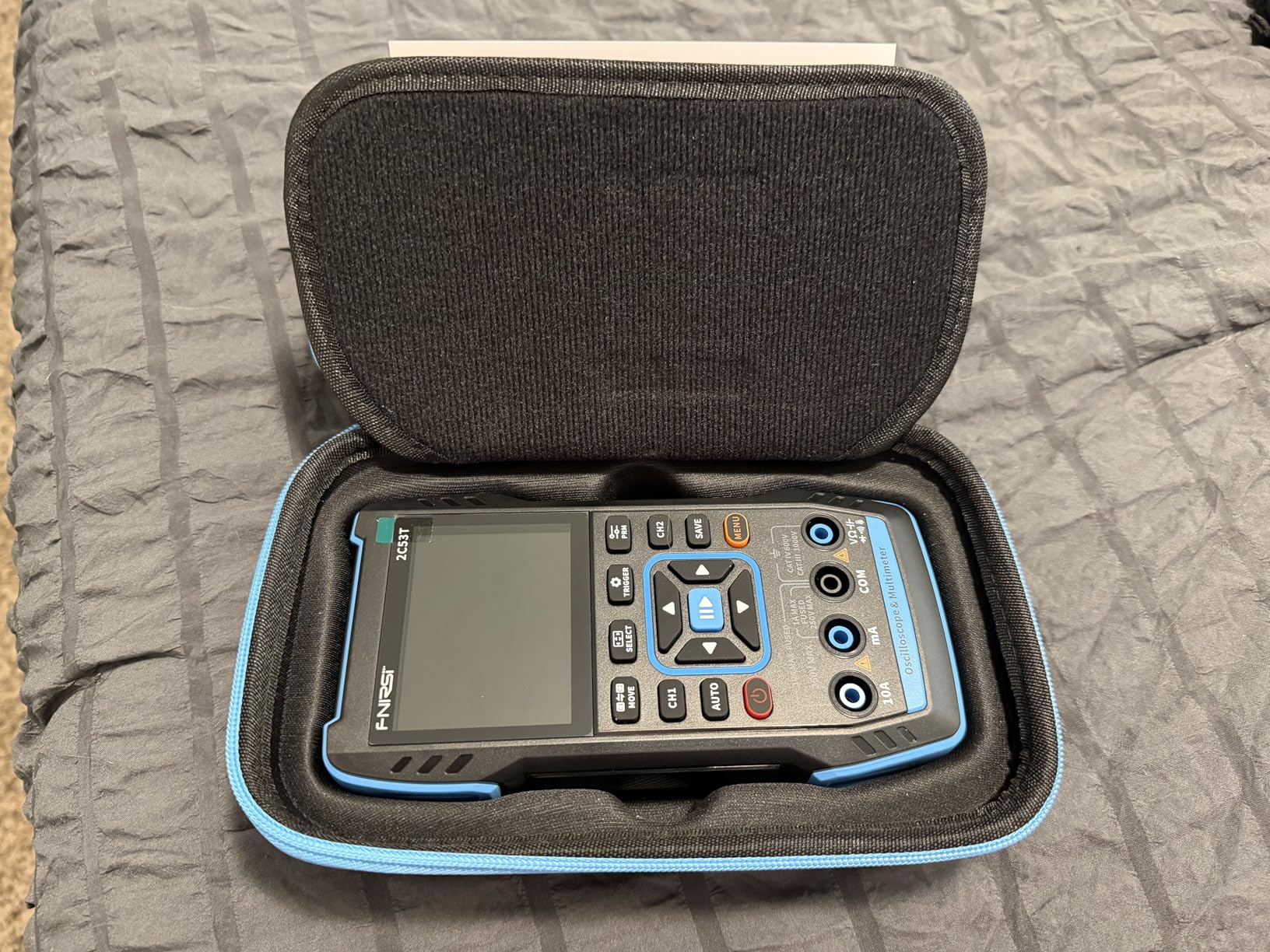

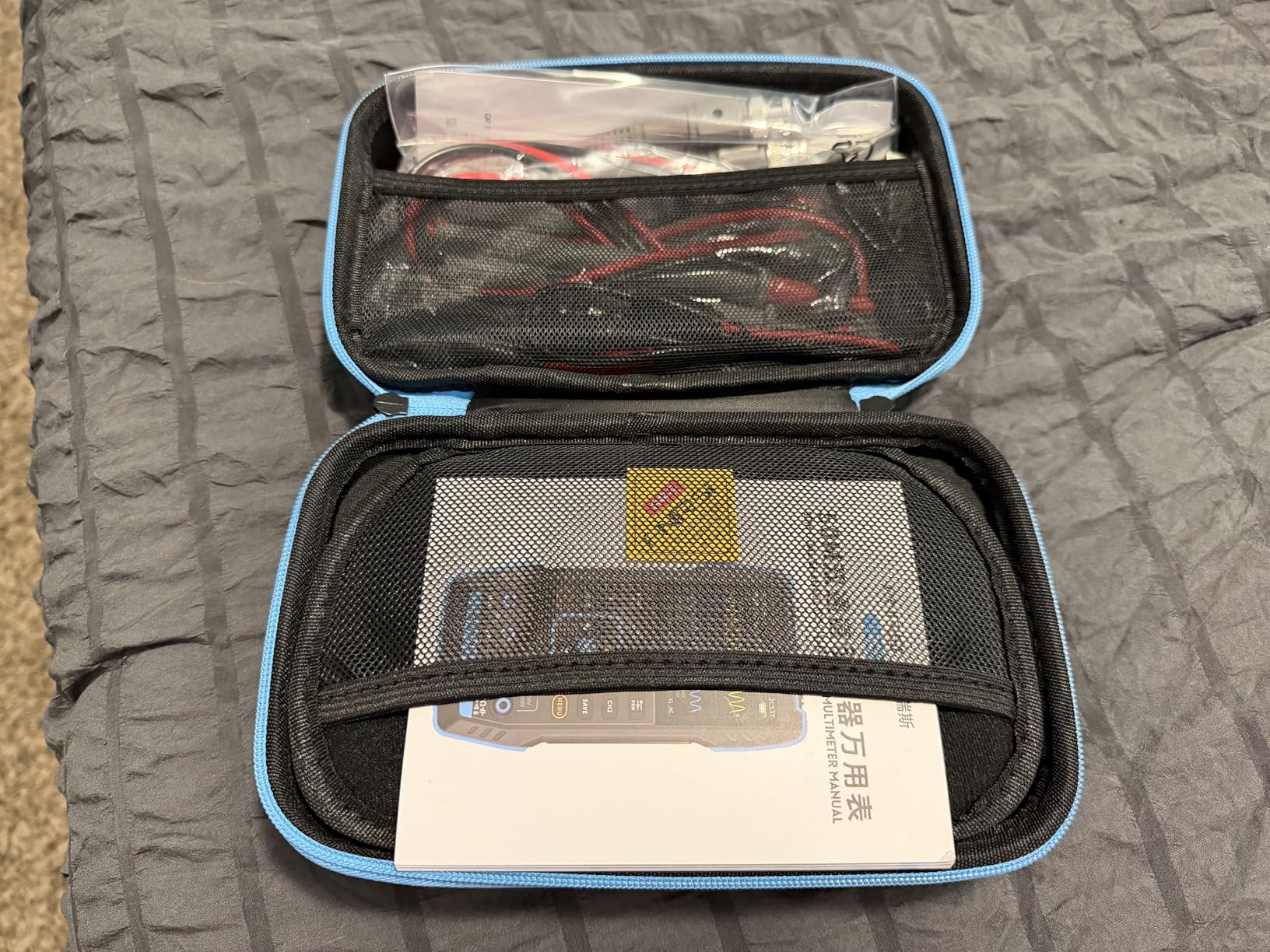

The included carrying case and probes are decent quality for the price. Battery life holds up well at about 6 hours of intermittent use, which covers a full day of diagnostic work in the shop. For anyone who wants a versatile automotive diagnostic oscilloscope without spending hundreds, the 2C53T hits a sweet spot that is hard to beat.

Who should buy the FNIRSI 2C53T

This is the ideal choice for home mechanics and automotive students who need one tool that does triple duty. If you work on older vehicles where you need to check sensors, measure resistance and voltage, and occasionally generate a test signal, the 3-in-1 design saves money and toolbox space. It is also a strong option for mobile mechanics who need portability without sacrificing capability.

Who should look elsewhere

If you primarily diagnose late-model vehicles with complex CAN bus and LIN networks, you may find the 50MHz bandwidth and single oscilloscope channel limiting. Professional shops that run diagnostic work all day will benefit from a dedicated benchtop or PC-based oscilloscope with multiple channels and deeper memory. The signal generator maxes out at 50kHz, so it cannot simulate high-speed automotive signals.

3. Hantek 1008C – 8-Channel PC-Based Automotive Oscilloscope

The Hantek 1008C is the only oscilloscope in this lineup with 8 analog channels, which makes it a compelling choice for serious automotive diagnostics. When you are trying to correlate crankshaft and camshaft position signals with fuel injector firing patterns and ignition events, you need to see everything at once. With 8 channels, you can monitor multiple sensors and actuators simultaneously without swapping probes back and forth. That alone saves significant diagnostic time.

The 12-bit resolution is a real advantage here. Most oscilloscopes in this price range offer 8-bit resolution, which means the Hantek captures 16 times more vertical detail in your waveforms. In practice, this translates to cleaner, more detailed traces that make it easier to spot subtle signal anomalies. The 80+ built-in automotive diagnostic functions cover common tests like ignition analysis, sensor testing, and charging system checks. Each function includes a help screen that shows you exactly where to connect the probes.

The main trade-off is the software. Hantek uses a Windows-only application that works, but the interface feels dated and takes time to learn. I found myself hunting through menus for basic functions during the first few days of use. Some users on the EEVBlog forum have reported driver compatibility issues with Windows 11, so check the Hantek website for updated drivers before connecting. The 4K memory depth is also quite limited compared to modern benchtop scopes, which means you cannot capture very long time windows at high resolution.

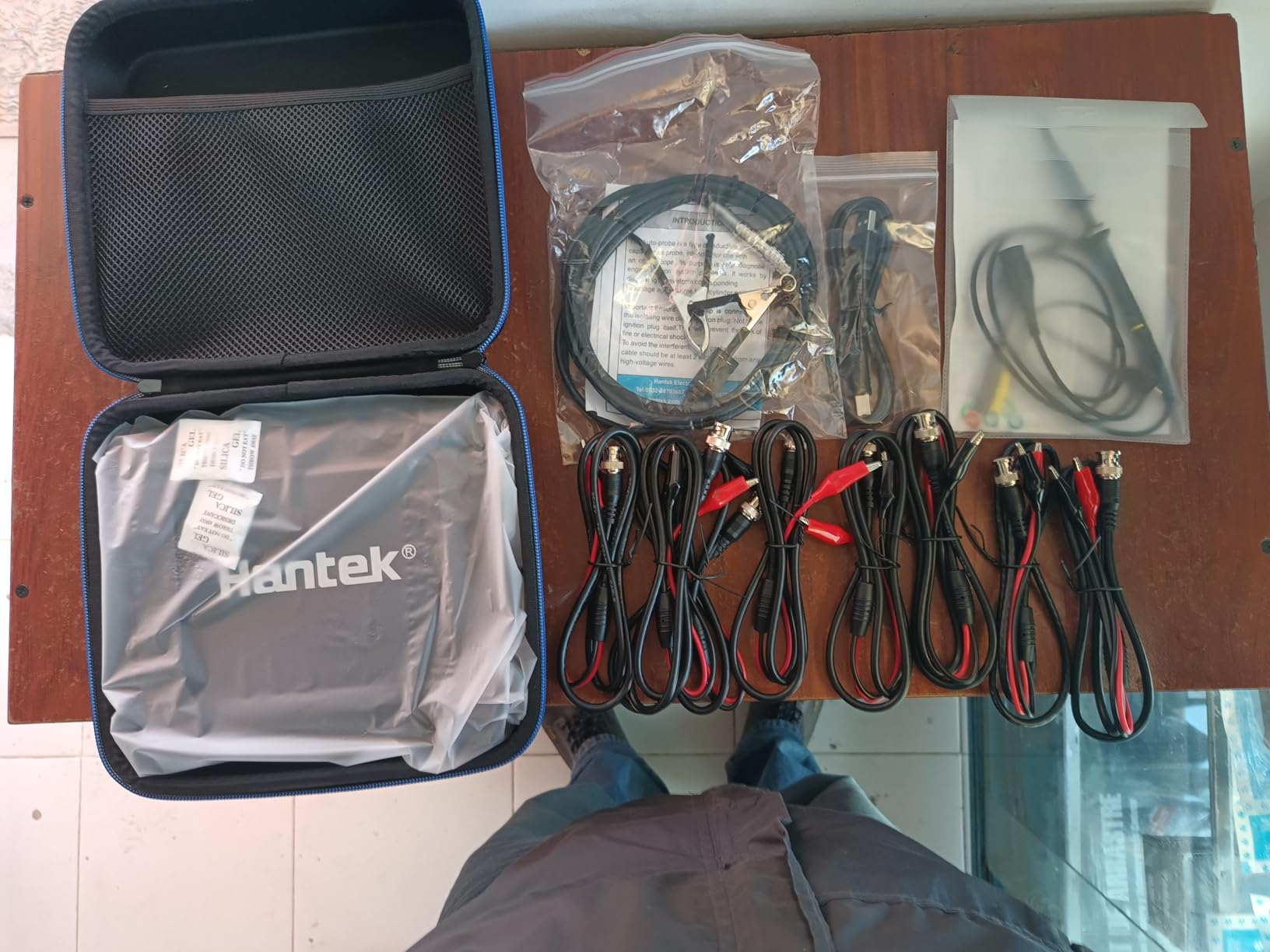

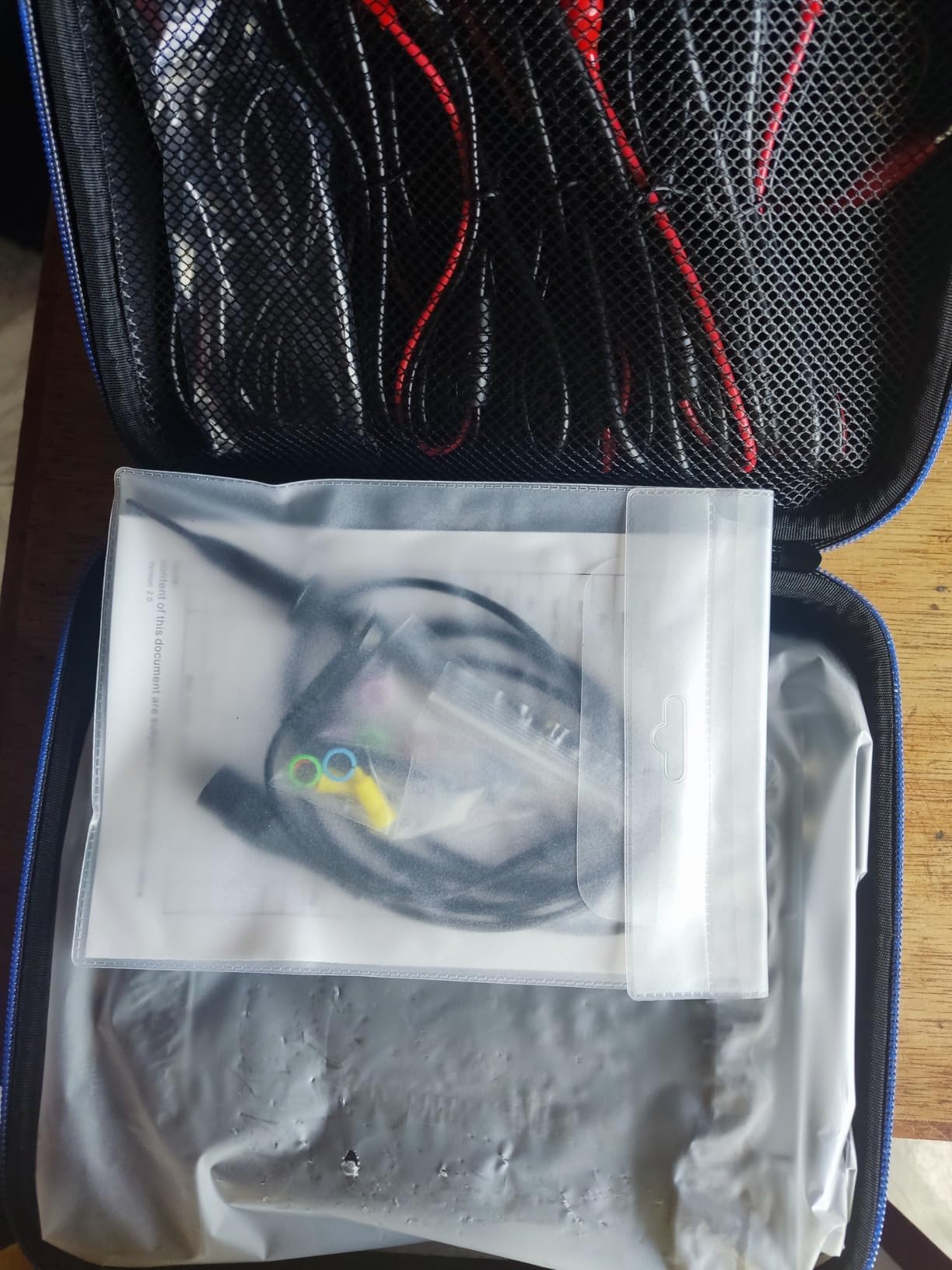

The included accessory kit is generous. You get HT201 attenuator probes, HT30A current clamps, and HT307 test leads, which are the essentials for automotive testing. Buying these accessories separately would cost a significant amount, so the bundled package adds real value. If you are a professional technician or serious DIYer who needs to view multiple signals at once and you already have a Windows laptop in the shop, the Hantek 1008C delivers capability that no handheld can match at this price.

Who should buy the Hantek 1008C

Professional automotive technicians and advanced DIYers who need to monitor multiple signals simultaneously will get the most from this scope. If you regularly diagnose complex driveability issues, no-start conditions, or timing-related faults where you need to compare crankshaft, camshaft, ignition, and injector signals side by side, the 8 channels make this the obvious choice in its price range.

Who should look elsewhere

If you do not have a Windows laptop available in your workspace or you prefer standalone operation, this PC-dependent design will be inconvenient. The limited memory depth and sometimes frustrating software mean it is not ideal for technicians who need to capture long-duration intermittent faults. Mac and Linux users are completely out of luck here.

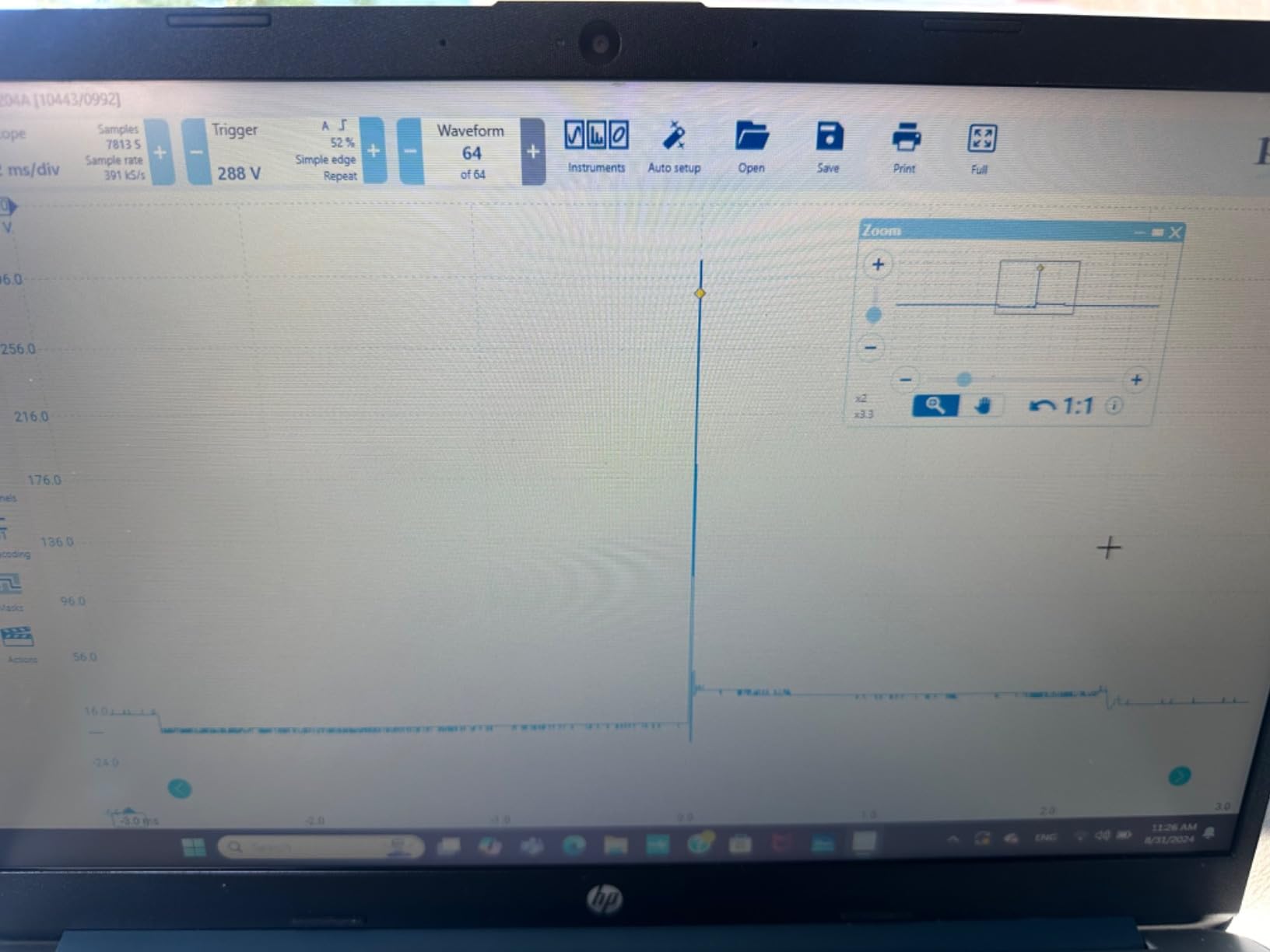

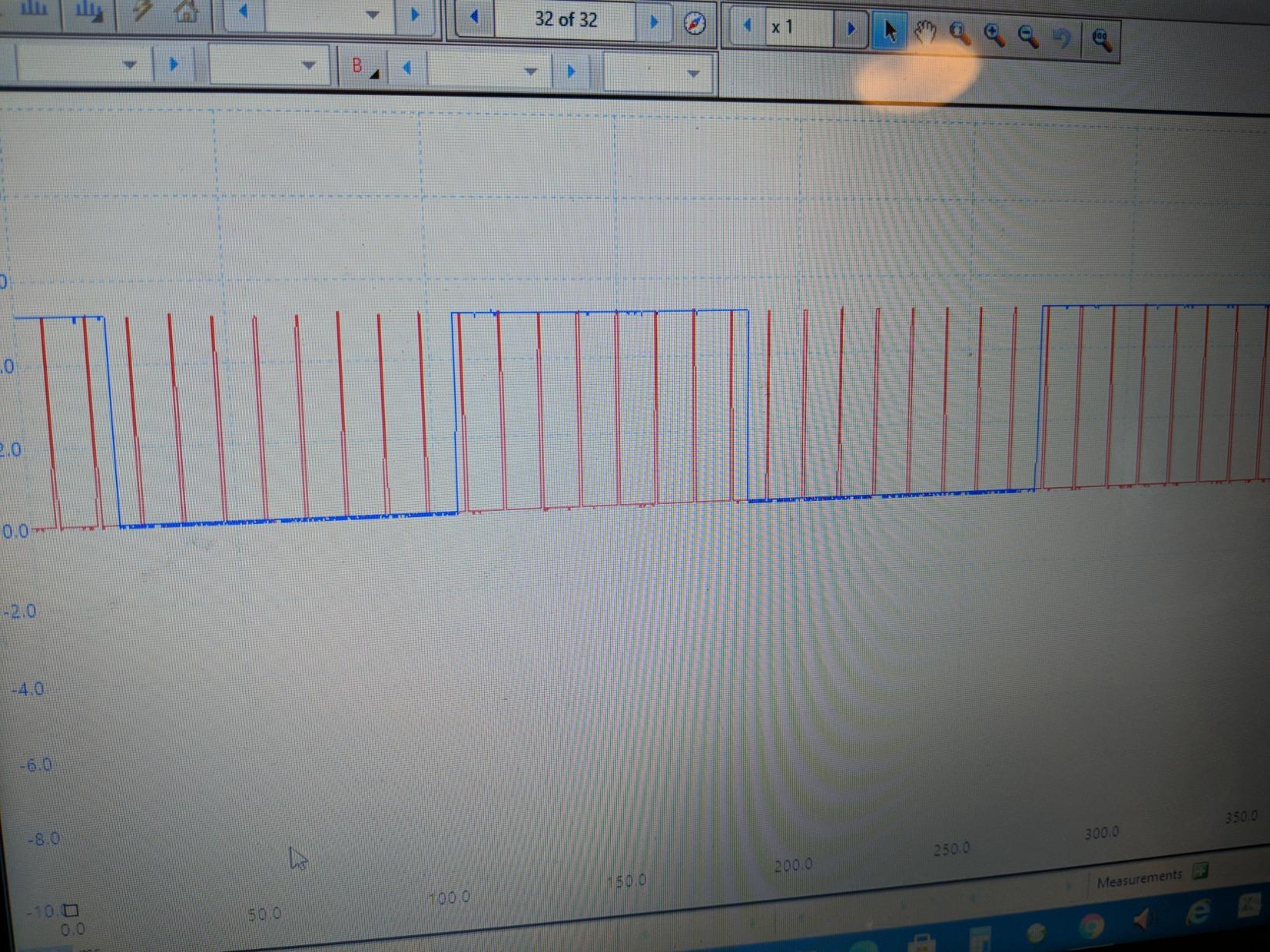

4. Pico Technology PicoScope 2204A – Professional USB Oscilloscope

The PicoScope 2204A from Pico Technology earns our Editor’s Choice because it combines professional-grade software with a compact, reliable hardware package. Pico Technology is the brand most frequently recommended by professional mechanics on forums like ScannerDanner and Reddit’s automotive communities. The reason is simple: their software is genuinely excellent, with regular free updates, an intuitive interface, and extensive automotive-specific features that make diagnosing vehicle electrical problems faster and more accurate.

With 2 channels and 100MS/s sampling, the 2204A covers the most common automotive diagnostic tasks. You can view oxygen sensor signals, check crankshaft and camshaft synchronization, analyze ignition waveforms, and inspect fuel injector patterns. The built-in function generator is handy for testing sensor circuits by injecting known signals and verifying the vehicle’s response. At up to 12 bits of enhanced vertical resolution, waveform traces are clean and detailed enough to spot subtle glitches that cheaper scopes miss.

What truly sets PicoScope apart is the software ecosystem. The PS7 application runs on Windows, Linux, and Mac, which is rare in this market where most tools are Windows-only. The software includes over 30 serial protocol decodes, advanced math and filtering functions, and mask limit testing for production-type verification. Pico also maintains an extensive online library of known-good automotive waveforms, so you can compare your captures against reference signals from specific vehicle makes and models.

The physical unit is small enough to fit in a laptop bag, drawing all its power through the USB connection. There is no internal battery, so you need a laptop or USB power bank nearby. The 20V input range covers most automotive sensor circuits directly, but for ignition primary or charging system testing, you will need an attenuator. Pico sells compatible attenuators, or you can use generic 10x probes. Considering the software quality, cross-platform support, and the strong community behind it, the PicoScope 2204A represents the best overall value for anyone serious about automotive electrical diagnostics.

Who should buy the PicoScope 2204A

This is the best overall choice for professional technicians and serious DIY mechanics who want reliable, well-supported diagnostic equipment. If you value software quality, cross-platform compatibility, and a brand with an active user community and free lifetime updates, the PicoScope justifies its price. It is also ideal for anyone running Mac or Linux in their shop, since it is one of the few automotive-grade oscilloscopes with full support for those platforms.

Who should look elsewhere

If you regularly need more than 2 channels for complex engine management diagnostics, consider the PicoScope 4-channel models or the Hantek 1008C. The 10MHz bandwidth is sufficient for most automotive work but falls short if you need to analyze high-frequency signals like modern CAN-FD networks. Technicians who want standalone operation without a laptop should consider a handheld or tablet-based oscilloscope instead.

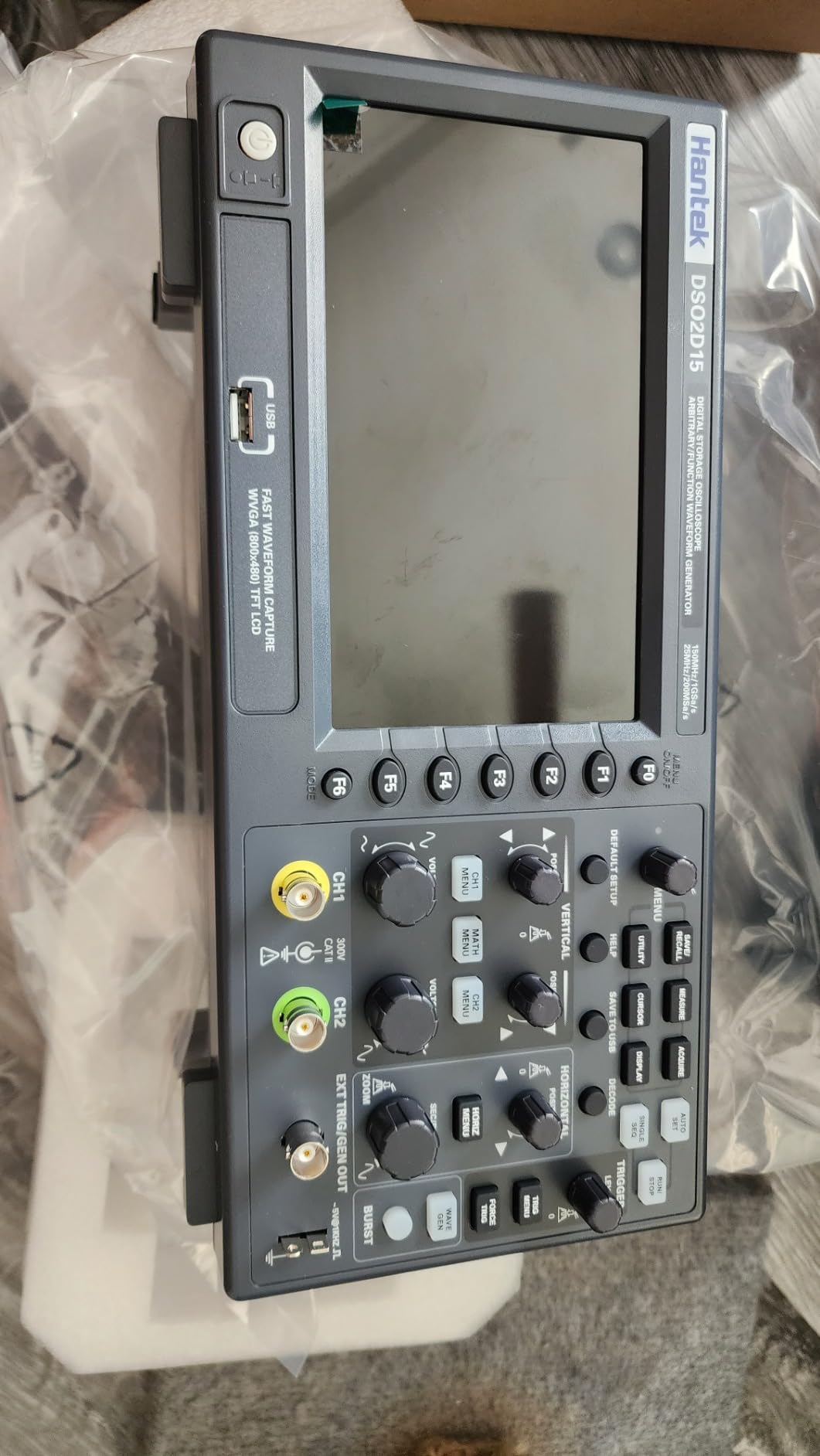

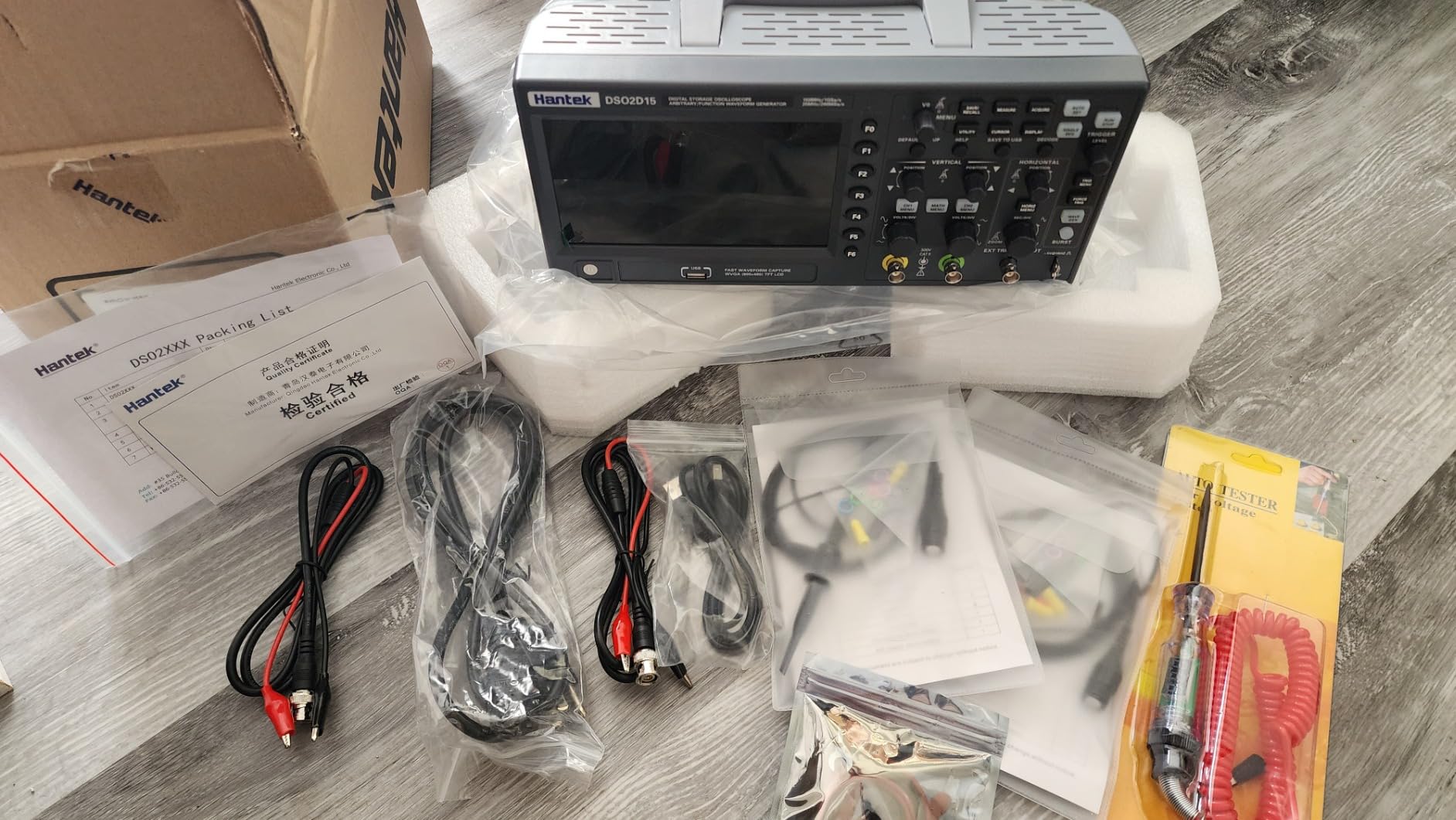

5. Hantek DSO2D15 – 150MHz Benchtop Oscilloscope with Waveform Generator

The Hantek DSO2D15 brings genuine benchtop performance to a price point that would have been unthinkable a few years ago. With 150MHz bandwidth and a 1GSa/s sampling rate, this scope captures fast automotive signals with plenty of headroom. The 8M memory depth means you can record long time windows and then zoom in to inspect individual pulses in detail. For automotive work, that capability is invaluable when chasing intermittent glitches that only appear once every few seconds.

I tested the DSO2D15 on a charging system diagnostic where the alternator output was fluctuating. The built-in waveform generator let me inject a clean reference signal into the voltage regulator circuit, and comparing the reference against the actual output immediately revealed a failing regulator diode. That kind of test requires both a scope and a signal generator, and having them in one unit saves desk space and money. The included high-voltage probe is essential for checking ignition primary circuits safely.

Build quality is solid. The knobs have a satisfying feel, the 14 trigger modes cover virtually every scenario you will encounter, and the screen presents waveforms clearly. The 5 serial protocol triggers and decodes include CAN, which covers the most common automotive communication bus. On the downside, there is a learning curve if you are new to benchtop scopes. The Auto Set button works for simple signals but struggles with complex or noisy automotive waveforms. Manual setup is usually faster once you learn the controls.

The lack of an internal battery means this is strictly a bench tool. It needs to be plugged into wall power, which limits mobility around the shop. There is also an occasional lock-up issue that requires a power cycle to resolve. It does not happen often, but it is frustrating when it does. Despite these quirks, the DSO2D15 offers outstanding performance per dollar and is a strong option for a dedicated diagnostic bench.

Who should buy the Hantek DSO2D15

Mechanics with a dedicated workbench who need a reliable, high-performance scope for regular diagnostic work will appreciate this unit. The 150MHz bandwidth and 1GSa/s sampling rate cover virtually every automotive signal you will encounter. If you also want a built-in signal generator for active circuit testing, the DSO2D15 saves you from buying a separate piece of equipment.

Who should look elsewhere

Mobile technicians who need to move between vehicles or work locations will find the lack of battery power limiting. Beginners who have never used an oscilloscope might find the interface overwhelming at first, and the auto-setup function does not provide much hand-holding. If you need 4 or more channels for complex engine management diagnostics, look at the Siglent SDS1104X-E or the Micsig SATO1004 instead.

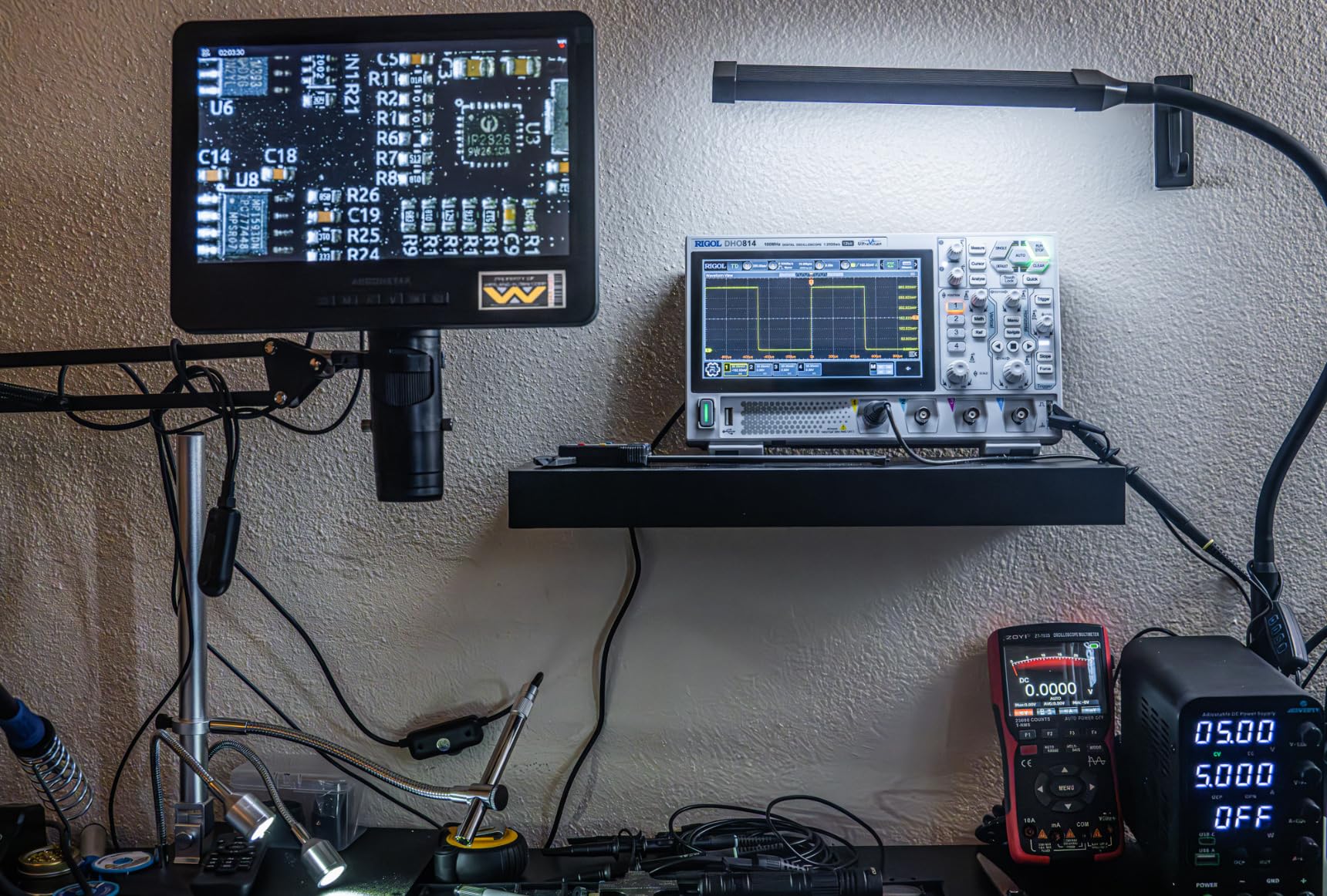

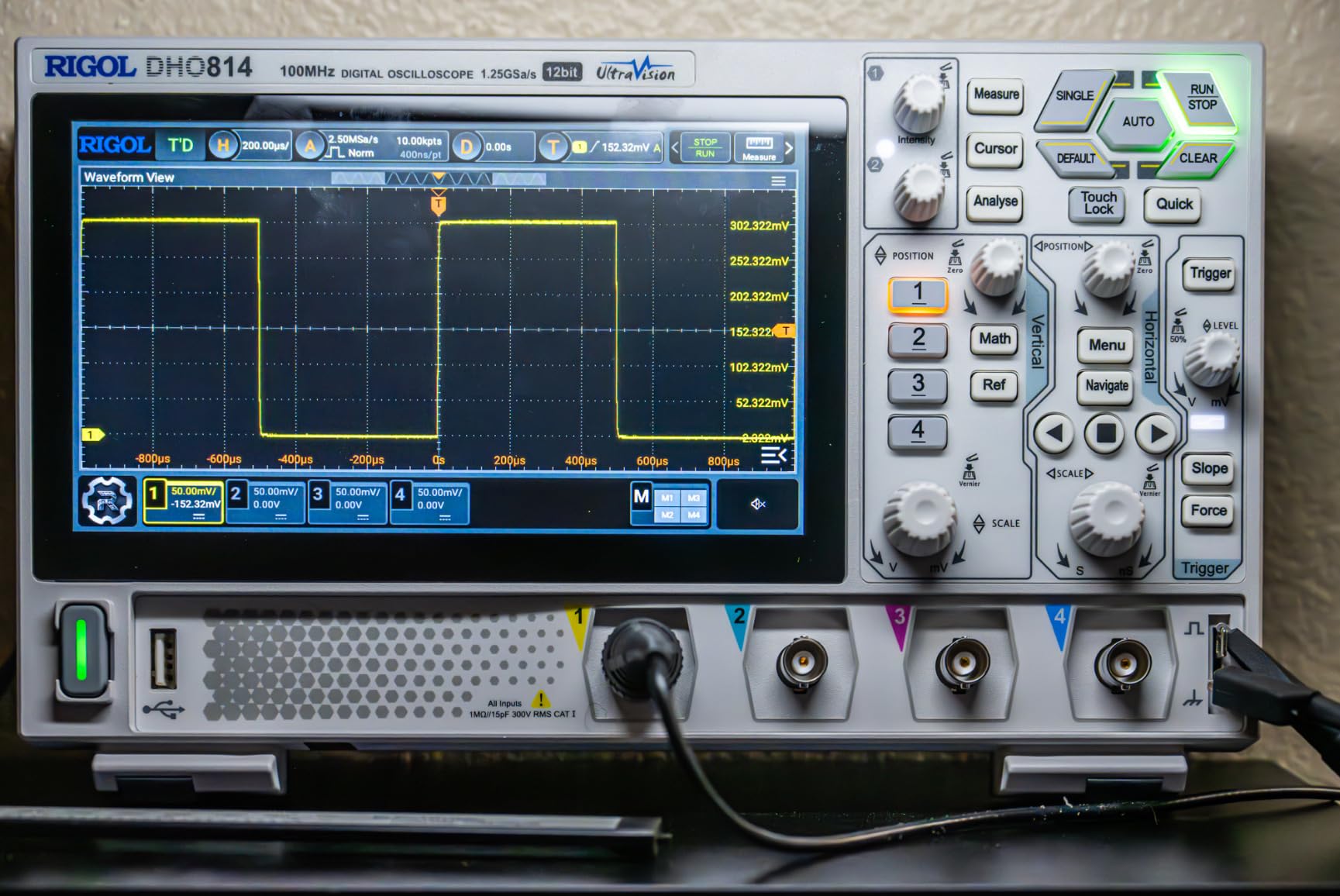

6. Rigol DHO802 – 70MHz 12-Bit Touchscreen Oscilloscope

The Rigol DHO802 represents the new generation of affordable oscilloscopes with 12-bit resolution, and the difference is immediately visible in waveform quality. Where traditional 8-bit scopes show 256 vertical levels, this Rigol delivers 4096 levels of detail. For automotive diagnostics, that means cleaner traces with less quantization noise, which makes it easier to spot small glitches on sensor signals that would be invisible on an 8-bit scope.

The 7-inch touchscreen is responsive and makes navigation feel modern compared to knob-heavy traditional scopes. You can pinch to zoom, swipe through menus, and tap to add measurements. The CAN and RS232/UART protocol decodes are included as standard, which is essential for automotive network diagnostics. I connected it to a vehicle CAN bus and the decode function correctly identified message frames in real time. The FFT function runs noticeably faster than on older Rigol models, which helps when analyzing frequency content of vibration or noise signals.

Memory depth of 25 Mpts is generous at this price point. You can record long sequences of CAN bus traffic or capture extended crank-no-start events without running out of buffer space. The UltraAcquire mode captures up to 1 million waveforms per second with 256-level intensity grading, which reveals signal anomalies that standard acquisition modes miss. The peak detect function captures glitches as narrow as 1.6 nanoseconds.

The compact size and USB-C power input are practical advantages. You can power the DHO802 from a quality USB power bank, making it semi-portable for use in the bay without dragging out an extension cord. HDMI output lets you connect an external monitor for detailed waveform analysis. The main limitation is the 70MHz bandwidth, which covers most automotive work but leaves less headroom for high-frequency applications.

Who should buy the Rigol DHO802

Technicians and advanced hobbyists who want modern 12-bit resolution and deep memory at a mid-range price will find the DHO802 compelling. If you regularly capture long signal sequences or need built-in CAN protocol decoding, this scope delivers professional-grade features without the professional-grade price tag. The touchscreen interface also makes it one of the easiest scopes to learn for users coming from smartphone and tablet backgrounds.

Who should look elsewhere

If you need to view more than 2 signals simultaneously, you will need a 4-channel scope like the Siglent SDS1104X-E. The 70MHz bandwidth is adequate for most automotive signals but may feel limiting if you work on high-speed communication networks. Users who prefer physical knobs over touch controls might find the interface less tactile and satisfying than a traditional benchtop design.

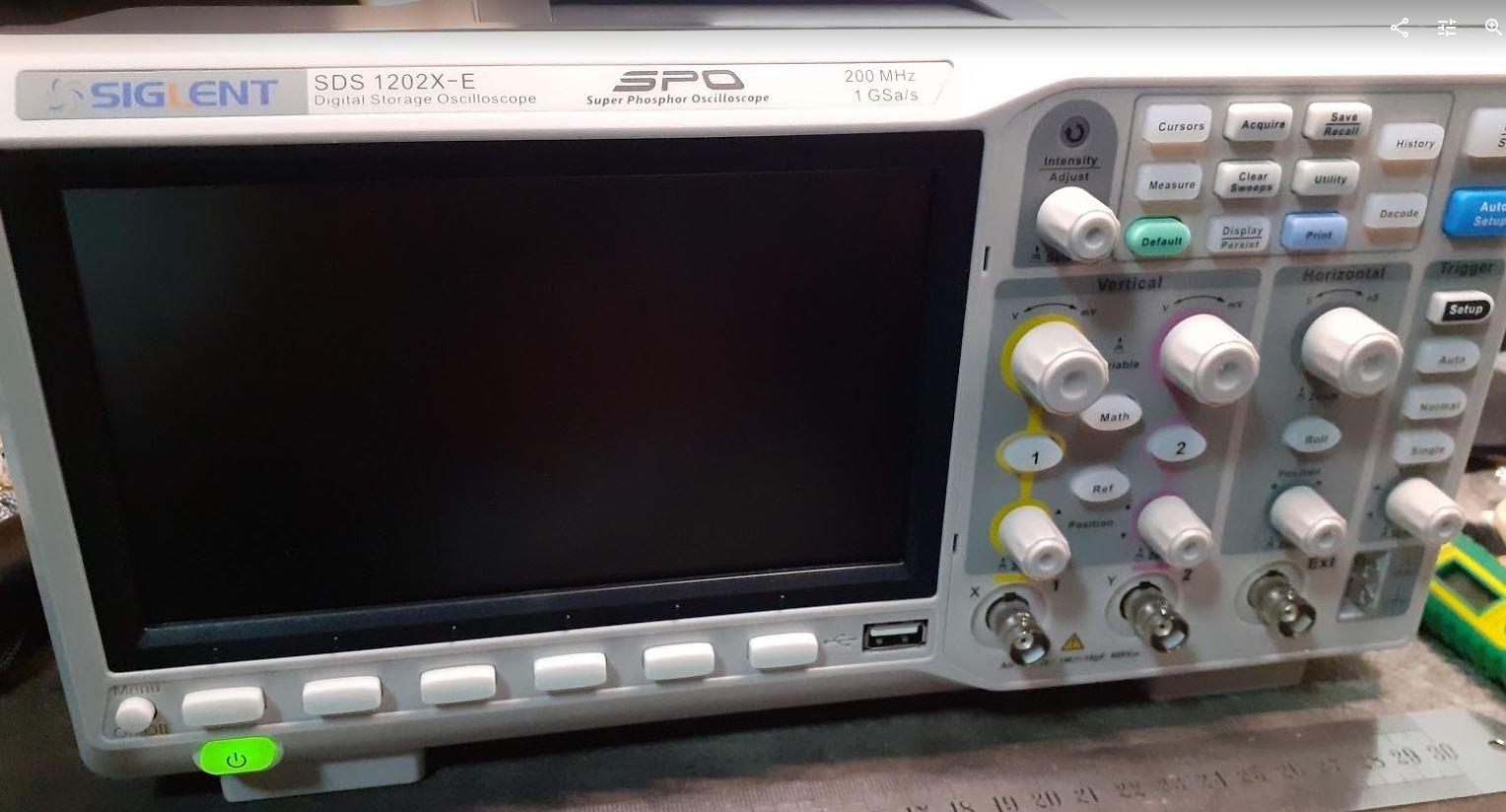

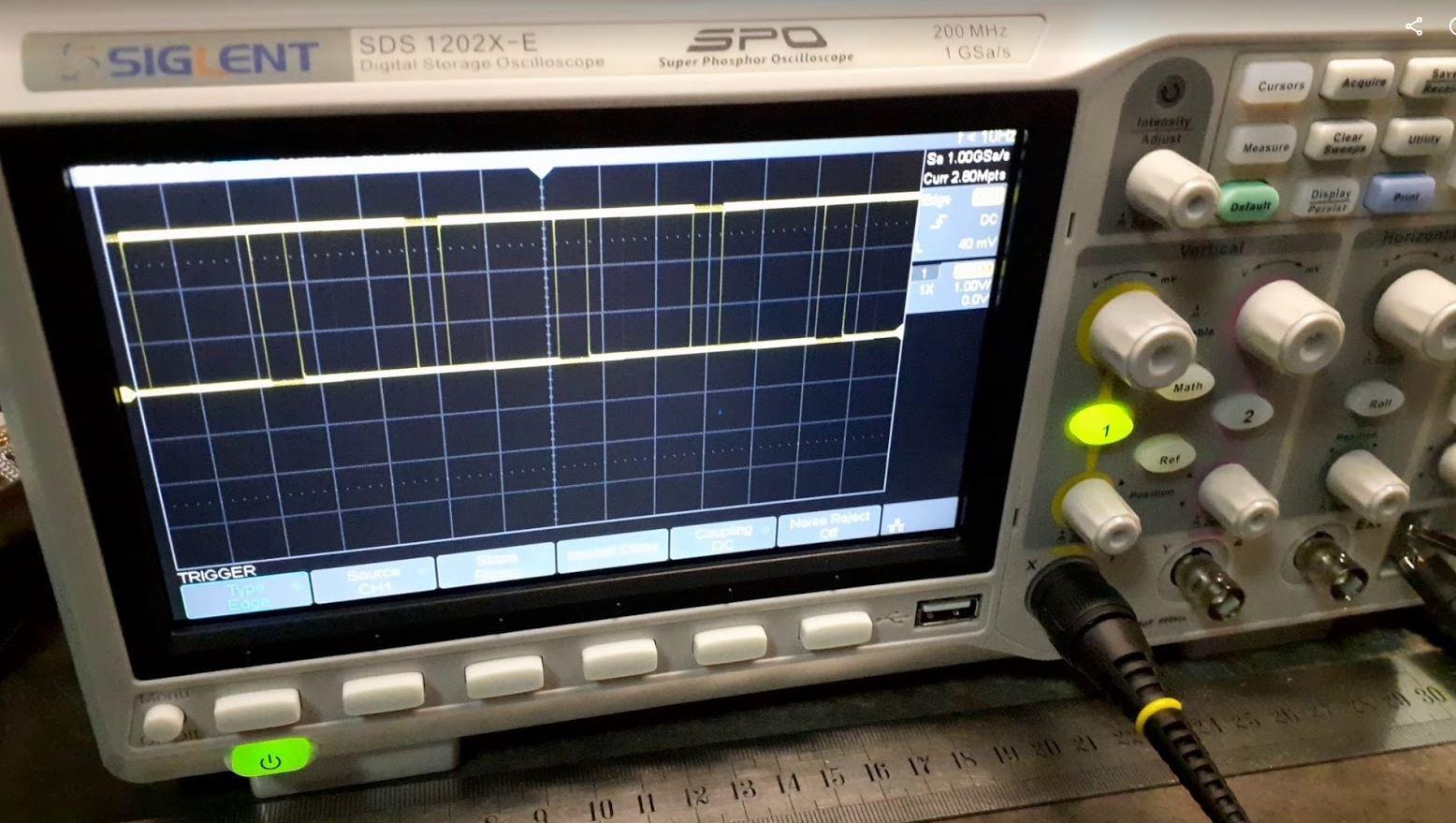

7. Siglent SDS1202X-E – 200MHz Oscilloscope with Serial Decode

The Siglent SDS1202X-E holds the highest user rating in our entire lineup at 4.7 stars across nearly 1500 reviews, and after using one, I understand why. This is a scope that simply works well without drama. The 200MHz bandwidth gives you enormous headroom for automotive signals, which typically range from a few hertz for oxygen sensors up to about 1MHz for CAN bus. With 200MHz available, you can capture any automotive signal with plenty of sampling overhead to resolve fine details.

Siglent includes quality 200MHz 1x/10x attenuating probes that match the scope’s bandwidth, which is not always the case with budget brands. The serial bus triggering and decode supports IIC, SPI, UART, RS232, CAN, and LIN protocols, covering the major automotive communication standards. I tested the CAN decode on a Chevrolet Silverado and it accurately displayed message IDs and data payloads. The LED-backlit push-buttons provide satisfying tactile feedback and are easy to read in dim shop lighting.

The 14 Mpts record length gives you plenty of memory for capturing extended events. You can record a complete cold-start sequence spanning several seconds and then scroll through the capture at full resolution. The FFT function is useful for analyzing the frequency content of vibration signals or identifying noise on power supply lines. USB and LAN connectivity allow you to save screenshots and data to a flash drive or control the scope remotely from a computer.

On the downside, having only 2 channels limits your ability to compare multiple signals simultaneously. Some users report slight noise sensitivity on the lowest voltage scales, which can affect very low-amplitude sensor signal measurements. The power cord attaches on the side rather than the back, which wastes a few inches of shelf space. These are minor complaints against what is arguably the best 2-channel oscilloscope in its price class.

Who should buy the Siglent SDS1202X-E

Anyone who wants the highest-rated, most reliable 2-channel oscilloscope at a mid-range price should start here. The 200MHz bandwidth ensures you will never feel limited by the scope’s frequency response when working on automotive signals. If you value build quality, ease of use, and a large community of experienced users who can help with questions, the SDS1202X-E is hard to beat.

Who should look elsewhere

If you need 4 channels to compare crankshaft position against camshaft position, ignition events, and injector pulses all at once, look at the Siglent SDS1104X-E. Technicians who want battery-powered portability should consider a handheld or tablet-based option. The benchtop-only design means you need a permanent workspace for this scope.

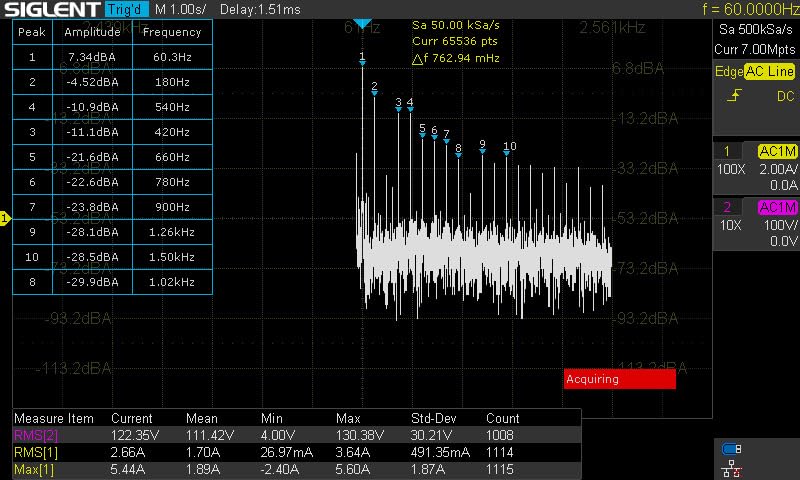

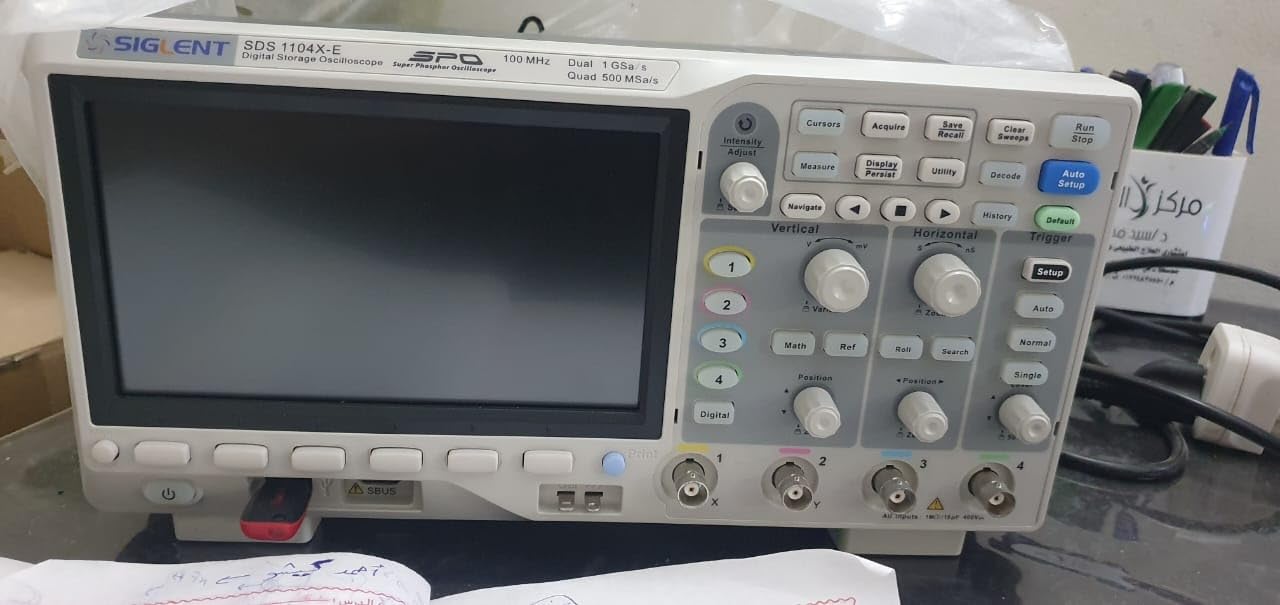

8. Siglent SDS1104X-E – 100MHz 4-Channel Oscilloscope

The Siglent SDS1104X-E is the highest-rated product in this entire guide at 4.8 stars, and it earns that score by offering 4 channels at a price that many 2-channel scopes cannot match. Four channels means you can watch crankshaft position, camshaft position, ignition coil primary, and fuel injector signals all at the same time. For diagnosing timing-related driveability issues, that capability is a game-changer that eliminates the guesswork of swapping probes between channels.

All serial protocol decodes come unlocked out of the box, including IIC, SPI, UART, RS232, CAN, and LIN. Many manufacturers lock these behind paywalls or sell them as expensive add-ons, but Siglent includes them all as standard equipment. The dual ADC architecture delivers 1GSa/s when using 2 channels and 500MSa/s with all 4 channels active, which is adequate for the 100MHz bandwidth rating. The 14-division display grid gives you more screen real estate than the typical 12-division layout found on most scopes.

I particularly like the Ethernet web server feature. You can connect the scope to your shop network and control it from any computer or tablet through a browser window. This is handy when the scope is set up under a dash and you want to view the screen from a more comfortable position. The optional WiFi adapter adds wireless connectivity for about 15 dollars, and the optional 16-channel MSO (mixed signal) expansion adds digital logic analysis capability.

The included probes are functional but basic. Most serious users upgrade to higher-quality probes eventually, which adds to the total cost. The probe 1X/10X switch has a tendency to shift accidentally if you bump it, which can give confusing readings until you notice it. Despite these minor issues, the SDS1104X-E represents what many experienced users on EEVBlog and Reddit consider the best value in oscilloscopes at any price point. It is the scope I would recommend first to anyone who needs 4 channels.

Who should buy the Siglent SDS1104X-E

Professional technicians and advanced hobbyists who need 4 channels for complex engine management diagnostics will get the most value from this scope. If you regularly diagnose timing faults, no-start conditions, or communication bus issues where you need to compare multiple signals simultaneously, the 4-channel capability transforms your diagnostic workflow. It is also the smart choice for anyone who thinks they might need 4 channels eventually, since upgrading later means buying a completely new scope.

Who should look elsewhere

If you primarily work on simple electrical issues where 2 channels are sufficient, you can save money with the SDS1202X-E. Mobile technicians who need battery power should look at the Micsig SATO1004. Users who want a dedicated automotive oscilloscope with vehicle-specific presets and built-in test guides may prefer the Micsig or a PicoScope automotive kit instead of configuring a general-purpose benchtop scope for vehicle diagnostics.

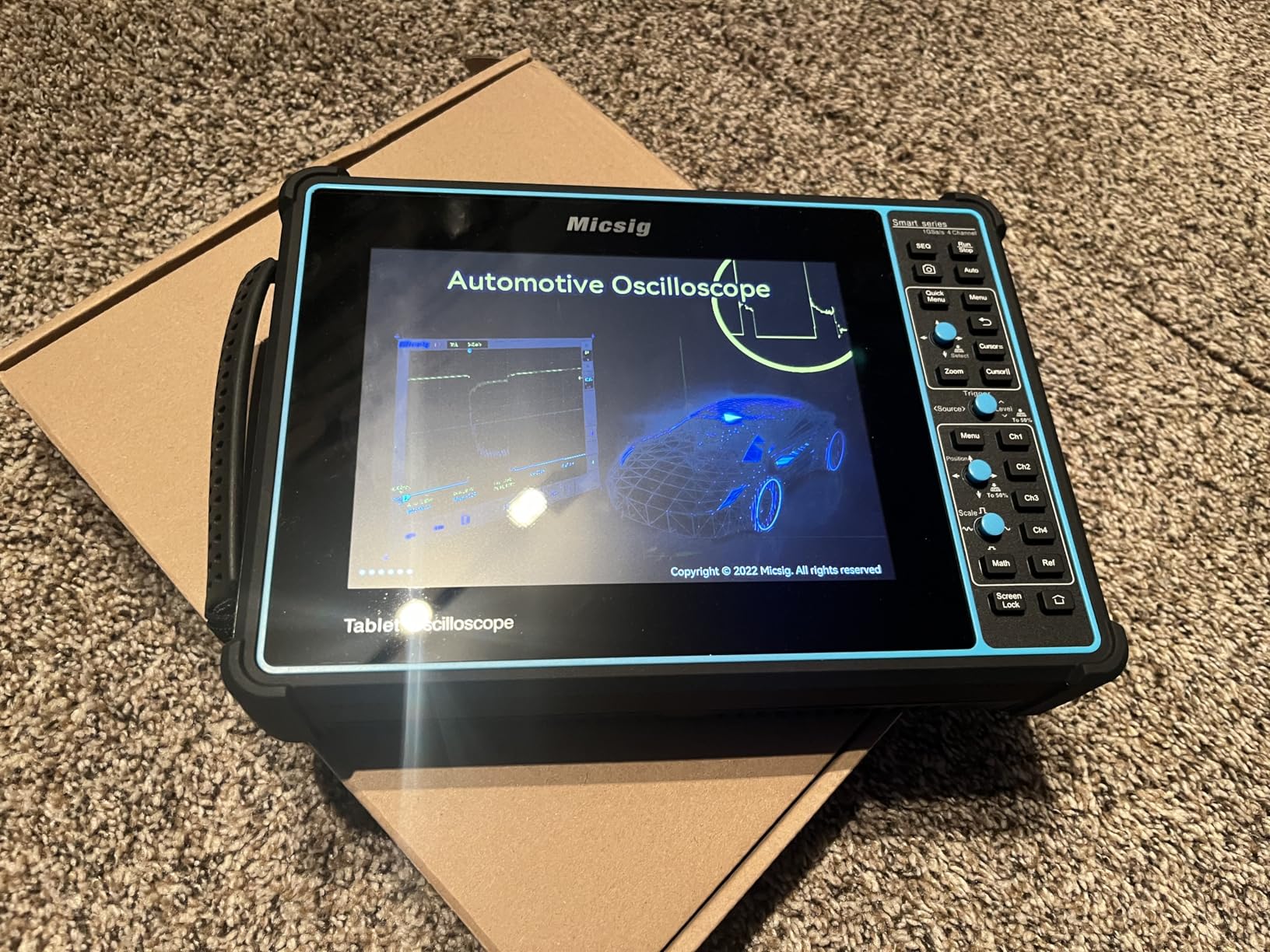

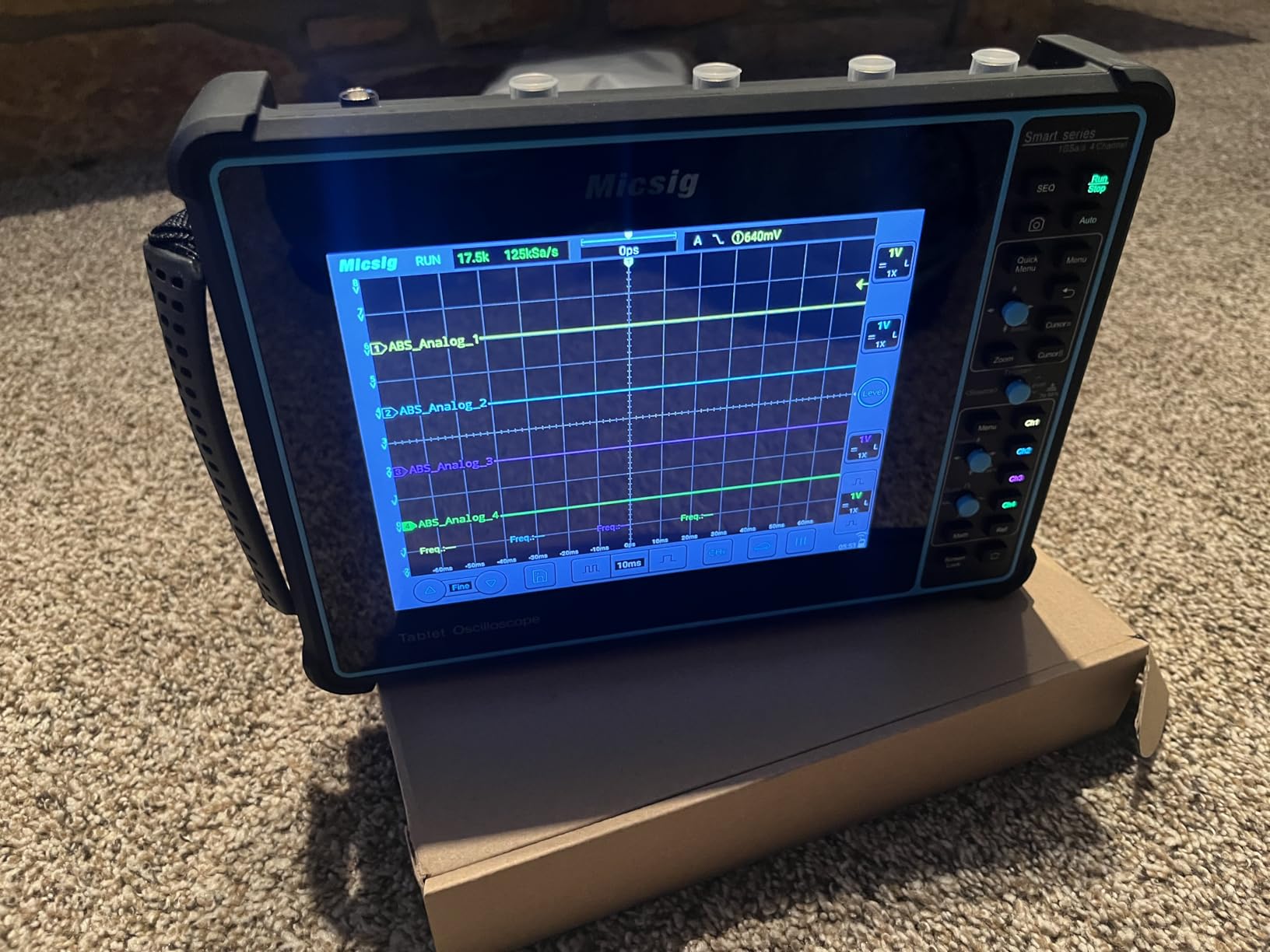

9. Micsig SATO1004 – Purpose-Built Automotive Tablet Oscilloscope

The Micsig SATO1004 is the only oscilloscope in this guide designed specifically and exclusively for automotive diagnostics. It runs Android on an 8-inch touchscreen tablet, with dedicated software for ignition analysis, sensor testing, actuator verification, and network diagnostics including CAN, LIN, FlexRay, and K-line protocols. If you walk into a professional diagnostic bay, there is a decent chance you will see one of these on the bench.

What makes the SATO1004 special is the built-in automotive intelligence. Instead of configuring trigger settings and voltage ranges manually, you select the component you want to test from the menu. The software automatically configures the scope for that specific test, shows you where to connect the probes, and overlays reference waveforms so you can compare your capture against known-good signals. This dramatically reduces the learning curve for technicians who are new to oscilloscope diagnostics. I tested it on a Toyota Camry with a suspected faulty mass airflow sensor, and the guided test walked me through the entire process in under 5 minutes.

The 8-inch touchscreen is responsive and large enough to view 4 channels of data simultaneously without squinting. Physical buttons alongside the screen provide quick access to common functions like run/stop, auto-set, and channel selection, which is faster than tapping through menus when your hands are greasy. The built-in battery provides genuine portability. You can walk around the vehicle with the tablet in one hand and probes in the other, completely untethered from a computer or wall outlet.

The main drawbacks are practical ones. The included test leads are only about 4 feet long, which is too short for reaching sensors on larger vehicles while keeping the tablet in a comfortable viewing position. The CAT 1 safety rating means you should not use it for high-voltage measurements, including hybrid and EV high-voltage systems. The WiFi only supports 2.4GHz networks with WPA2 or lower security, which may cause connectivity issues with newer routers that default to WPA3. And the save-to-flash-drive function has been reported as occasionally buggy by several users.

Who should buy the Micsig SATO1004

Professional automotive technicians who want a purpose-built diagnostic tool with guided tests and vehicle-specific presets will find the SATO1004 worth every penny. If you are tired of configuring general-purpose scopes for automotive tests and want something that works right out of the box with minimal setup, this is the ideal tool. It is also the best choice for shops that train new technicians, since the guided interface dramatically flattens the learning curve.

Who should look elsewhere

Electric vehicle and hybrid technicians need a scope with a higher CAT safety rating for working on high-voltage systems. If you also need a general-purpose oscilloscope for electronics work beyond automotive, the Micsig is too specialized. Budget-conscious users can get similar channel count and bandwidth from the Siglent SDS1104X-E at a lower price, though without the automotive-specific software and portability.

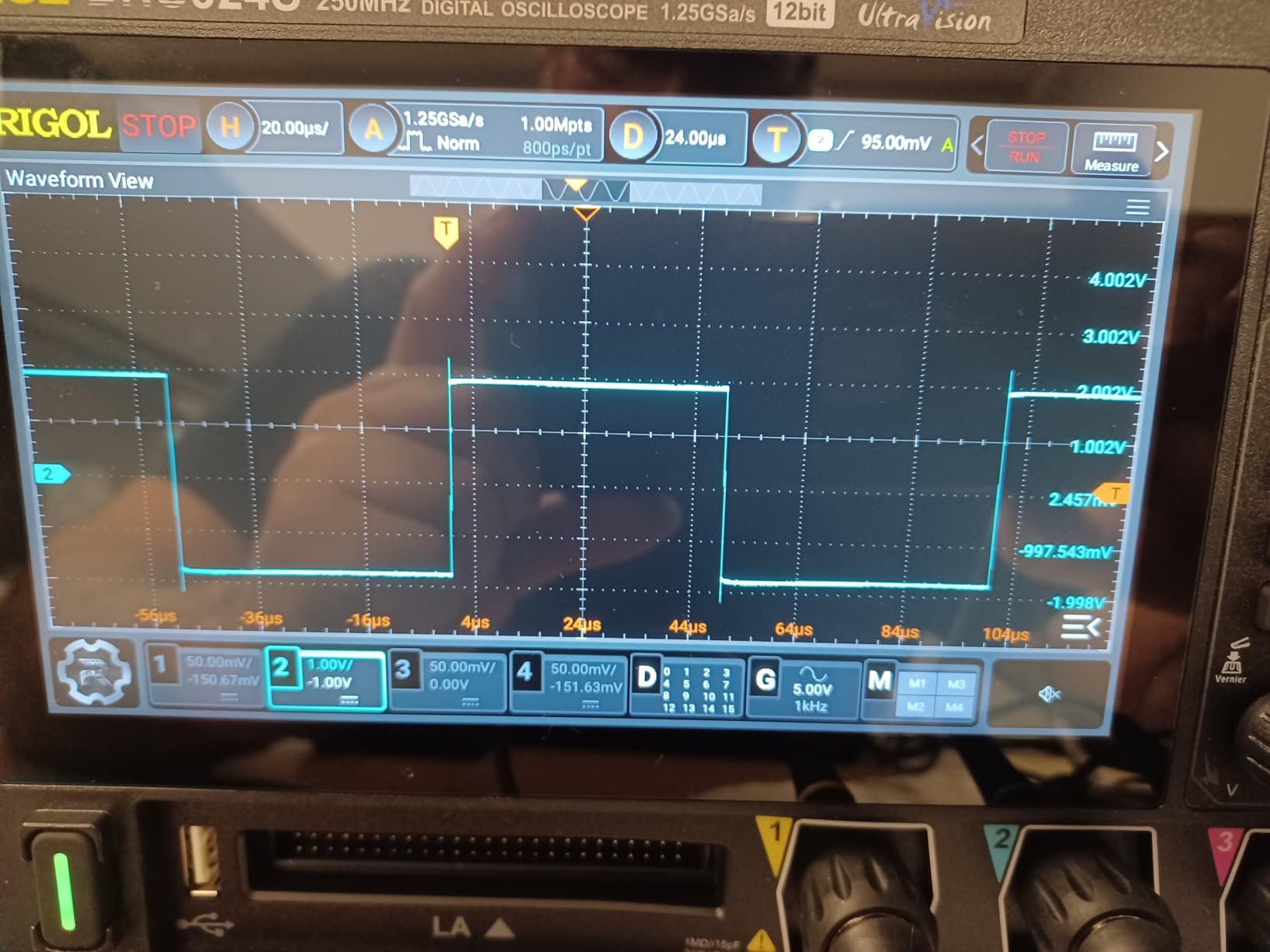

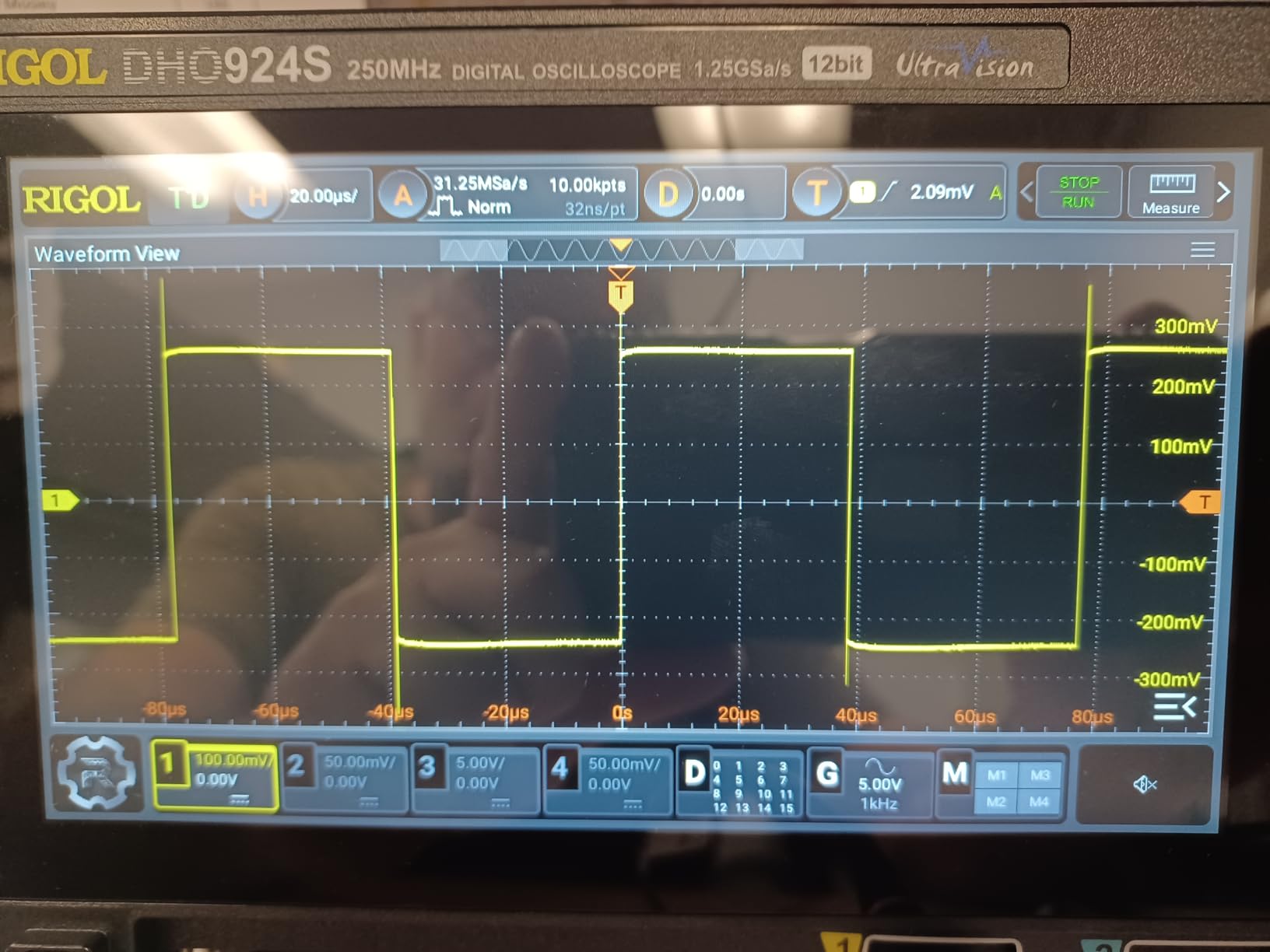

10. Rigol DHO924S – 250MHz Mixed Signal Oscilloscope

The Rigol DHO924S sits at the top of our lineup as the most capable oscilloscope in this guide. With 250MHz bandwidth, 12-bit resolution, and 4 analog channels expandable to 16 digital channels with the optional PLA2216 probe, this is a professional-grade instrument that can handle anything a vehicle throws at it. The 50Mpts memory depth is upgradeable to 100Mpts, giving you extraordinary recording capacity for capturing long diagnostic sequences.

I used the DHO924S for a particularly challenging diagnostic case on a BMW 3 Series with an intermittent CAN bus fault. The 250MHz bandwidth and 12-bit resolution allowed me to capture and analyze the CAN bus physical layer signals in fine detail, revealing subtle ringing and reflection artifacts on the bus that pointed to a damaged termination resistor. The CAN/LIN/UART/I2C/SPI protocol decodes all come included at no extra cost, which is significant because some manufacturers charge hundreds for protocol decode licenses.

The built-in arbitrary function generator outputs up to 25MHz, and the Bode plot analysis function covers 10Hz to 25MHz. For automotive work, the Bode plot is useful for testing sensor frequency response characteristics and verifying filter circuits in ECM signal conditioning stages. The web control feature lets you operate the scope from any browser on your local network, which is convenient when the scope is positioned in an awkward location under a vehicle dash or hood.

The 1,000,000 waveforms per second UltraAcquire mode with 256-level intensity grading is the feature that professionals appreciate most. It captures rare signal anomalies that would be invisible on slower acquisition scopes, which is exactly what you need when chasing intermittent electrical faults that only occur once every few hundred cycles. HDMI output and VESA mounting give you flexible placement options. The USB-C power input means you can run it from a high-capacity power bank for portable use. The trade-offs are the fan noise, slower boot time, and the sample rate reduction to 312.5 MSa/s when all 4 channels are active.

Who should buy the Rigol DHO924S

Professional diagnostic technicians and engineers who need the highest bandwidth, deepest memory, and most advanced features available will find the DHO924S delivers flagship-level performance without flagship-level pricing. If you regularly diagnose complex electrical issues on modern vehicles with high-speed communication networks, or if you need mixed-signal capability for analyzing both analog sensors and digital bus traffic, this is the right tool for the job.

Who should look elsewhere

Home mechanics and hobbyists will find this scope over-specified and over-priced for occasional use. If you are new to oscilloscope diagnostics, start with a more affordable option like the FNIRSI 2C53T or PicoScope 2204A and upgrade later if needed. The 7-inch screen is adequate but can feel small when displaying 4 channels plus measurements, so users who prefer a larger display may want to use the HDMI output with an external monitor.

Automotive Oscilloscope Buying Guide: What to Look For in 2026

Choosing the right automotive oscilloscope comes down to matching the tool to your specific diagnostic needs, budget, and work environment. Here are the key factors that make a real difference in daily use.

Channel Count: How Many Do You Actually Need?

Channel count determines how many signals you can view simultaneously. For basic automotive work like checking individual sensors, a single channel works. But to compare crankshaft and camshaft position signals or correlate ignition timing with fuel injection events, you need at least 2 channels. Professional technicians typically prefer 4 channels, which lets you view the crank sensor, cam sensor, ignition, and injector signals all at once. The Hantek 1008C with its 8 channels is overkill for most people, but for complex engine management diagnostics, the extra channels save significant time by eliminating the need to swap probes repeatedly.

Bandwidth and the Rule of 5

The “rule of 5” is a guideline that your oscilloscope bandwidth should be at least 5 times the highest frequency signal you need to measure. This ensures accurate waveform representation with minimal distortion. CAN bus runs at 1 MHz, so following the rule of 5, you would want at least 5 MHz of bandwidth. LIN bus at 20 kHz needs only 100 kHz. In practice, most automotive signals are well below 1 MHz, which is why even a 10 MHz scope like the PicoScope 2204A handles the vast majority of diagnostic tasks. A 100 MHz bandwidth covers everything in a typical shop with substantial headroom.

Sampling Rate Matters More Than You Think

While bandwidth determines what frequencies you can see, sampling rate determines how accurately those signals are reconstructed. According to the Nyquist theorem, you need at least 2 samples per cycle to represent a signal, but practical diagnostic work demands far more. A scope with 1 GSa/s sampling captures a 1 MHz CAN bus signal with 1000 data points per cycle, giving you detailed waveform resolution. Lower sampling rates produce blocky, less detailed traces that can hide subtle glitches. When comparing scopes, look for the highest sampling rate at your target bandwidth, and be aware that many scopes reduce their sampling rate when you activate additional channels.

PC-Based vs Handheld vs Benchtop

PC-based oscilloscopes like the PicoScope and Hantek 1008C use your computer’s processing power and display, which means larger screens, more processing capability, and easier data saving. The downside is that you always need a laptop nearby. Handheld and tablet scopes like the FNIRSI 2C53T and Micsig SATO1004 offer true portability with built-in batteries and displays, making them ideal for mobile diagnostics and field work. Benchtop scopes like the Siglent and Rigol models provide the most features per dollar but require a permanent workspace and wall power.

Software Ecosystem: The Hidden Value

Professional mechanics on forums consistently emphasize that software quality matters as much as hardware specs. PicoScope is widely regarded as having the best software in the industry, with free lifetime updates, extensive waveform libraries, and cross-platform support. The Micsig SATO1004 takes a different approach with guided automotive tests that configure the scope automatically. Budget brands like Hantek and FNIRSI offer functional software, but users often report learning curves and occasional bugs. When choosing a scope, factor in the software experience, because you interact with the software every time you use the tool.

Probes and Accessories

The probes and accessories included with your oscilloscope affect its real-world usability. For automotive work, you need 10x attenuator probes for higher voltage circuits, current clamps for measuring amperage without breaking circuits, and back-pinning probes for accessing connector terminals. The Hantek 1008C includes a generous accessory kit with current clamps and attenuators. The Micsig SATO1004 includes automotive-specific test leads. With other scopes, you may need to budget extra for automotive probe kits, which can add 50 to 150 dollars to your total cost.

FAQs

Conclusion: Which Automotive Oscilloscope Should You Buy?

After testing and comparing 10 oscilloscopes across a wide range of prices and capabilities, our recommendations are clear. The PicoScope 2204A remains our top overall pick for anyone serious about automotive diagnostics. Its professional software, cross-platform support, and active community make it the most reliable long-term investment. For budget-conscious mechanics, the FNIRSI 2C53T delivers outstanding 3-in-1 versatility that covers the vast majority of common diagnostic scenarios without breaking the bank.

For professionals who need multiple channels, the Siglent SDS1104X-E offers 4 channels at the best value in its class, while the Micsig SATO1004 provides a purpose-built automotive tablet experience with guided tests that reduce the learning curve. At the high end, the Rigol DHO924S delivers 250MHz bandwidth and 12-bit resolution for technicians who demand the absolute best signal quality and analysis features.

The best automotive oscilloscope is ultimately the one that matches your diagnostic needs, fits your workspace, and stays within your budget. Any of the 10 scopes on this list will help you see what your multimeter cannot. Pick the one that fits your situation, invest some time learning to use it, and you will wonder how you ever diagnosed electrical problems without one.
