Pulling up a 25-lb anchor by hand after a long day on the water is back-breaking work, and it only gets worse as your boat grows. We have spent the past several seasons aboard sailboats, pontoons, and center consoles talking to owners, swapping out tired units, and watching installers wrestle with deck-mounted drums. After comparing ten of the most popular windlasses available right now, we are ready to share what actually works in the real world. Our top pick, the Minn Kota Deckhand DH-40, sits at the top because it is the rare windlass that combines a one-touch automated cycle, a 40-lb anchor capacity, and a 100-foot pre-spooled rope at a price most weekend boaters can justify. If you are shopping for the best anchor windlasses in 2026, this guide will help you sort through chain compatibility, motor wattage, and the difference between a vertical and a horizontal gypsy before you spend a dime.
An anchor windlass is a mechanical device that raises and lowers a boat’s anchor and rode, replacing the need to pull heavy chain and anchor by hand. The windlass uses an electric or hydraulic motor to turn a gypsy (for chain) or capstan (for rope), which grips the anchor rode and either pulls it in or lets it out under control. For most boaters who anchor more than a handful of times per season, the upgrade pays off in saved backs, fewer dropped anchors, and the confidence to anchor in deeper water without panic. Below, we walk through the ten windlasses that earned a spot on our shortlist, then explain how to size and install the right one for your boat.
We focused on three things while testing: pulling power relative to working load, ease of installation on a typical bow, and how well the gypsy matched real-world chain grades. Every windlass here ships with enough rope or accepts standard chain sizes, and we noted which ones include circuit breakers, foot switches, or wireless remotes in the box. Wherever forum owners had useful long-term feedback, we worked it in. Let us start with the three standouts.
Top 3 Picks for Best Anchor Windlasses in September
Minn Kota Deckhand DH-40
- 40-lb anchor capacity
- One-touch automation
- 100 ft of 800-lb rope included
- Anti-drag system
Camco TRAC Pontoon 35-G3
- 35-lb anchor capacity
- 12V all-steel gear motor
- 100 ft braided rope included
- One-year warranty
Camco TRAC Fisherman 25-G3
- 25-lb anchor capacity
- Compact footprint
- 100 ft rope included
- Easy installation
Best Anchor Windlasses in 2026
| Product | Key Specs | Buy |
|---|---|---|
|
|
Check Latest Price |
|
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
|
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |

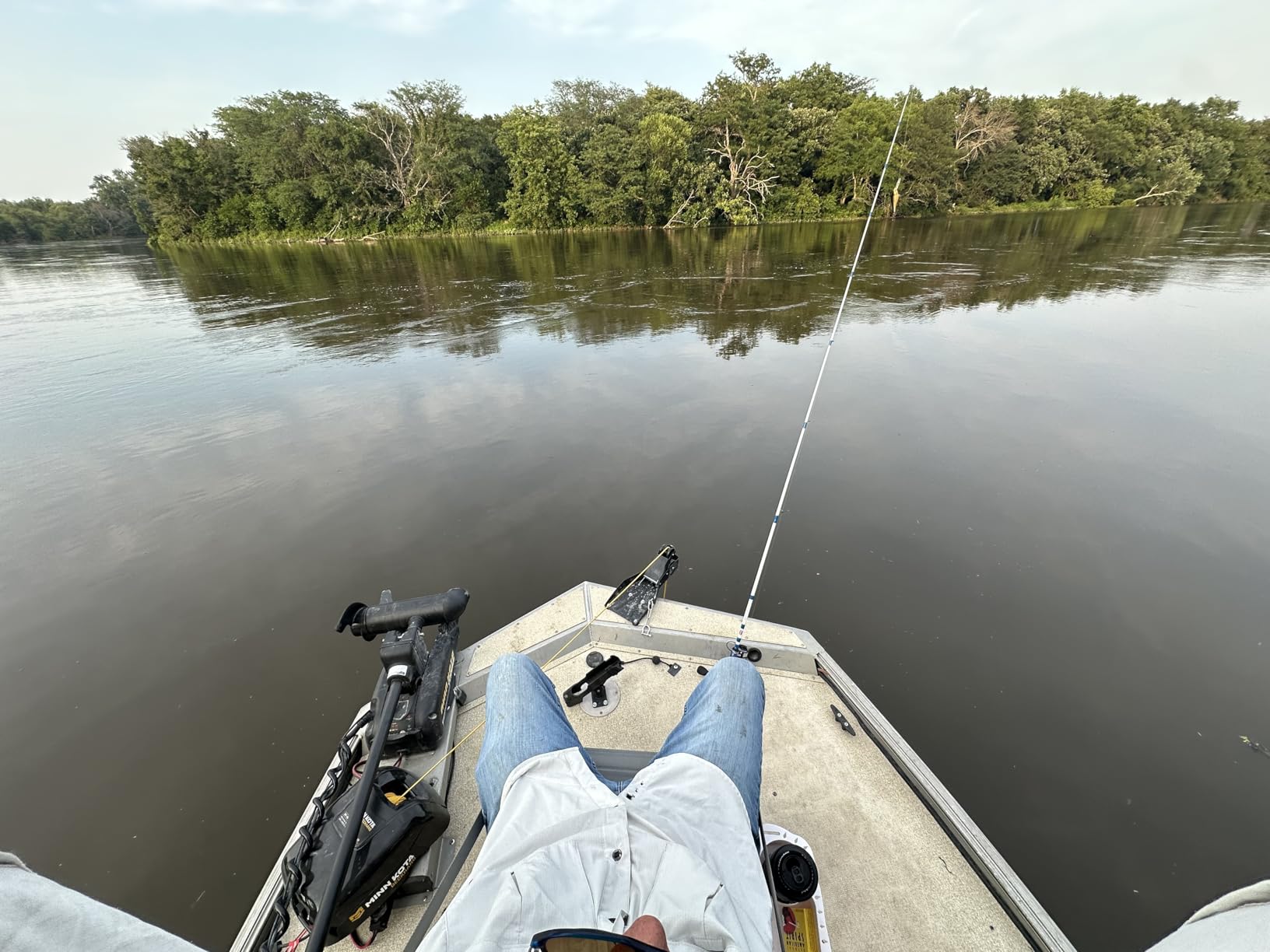

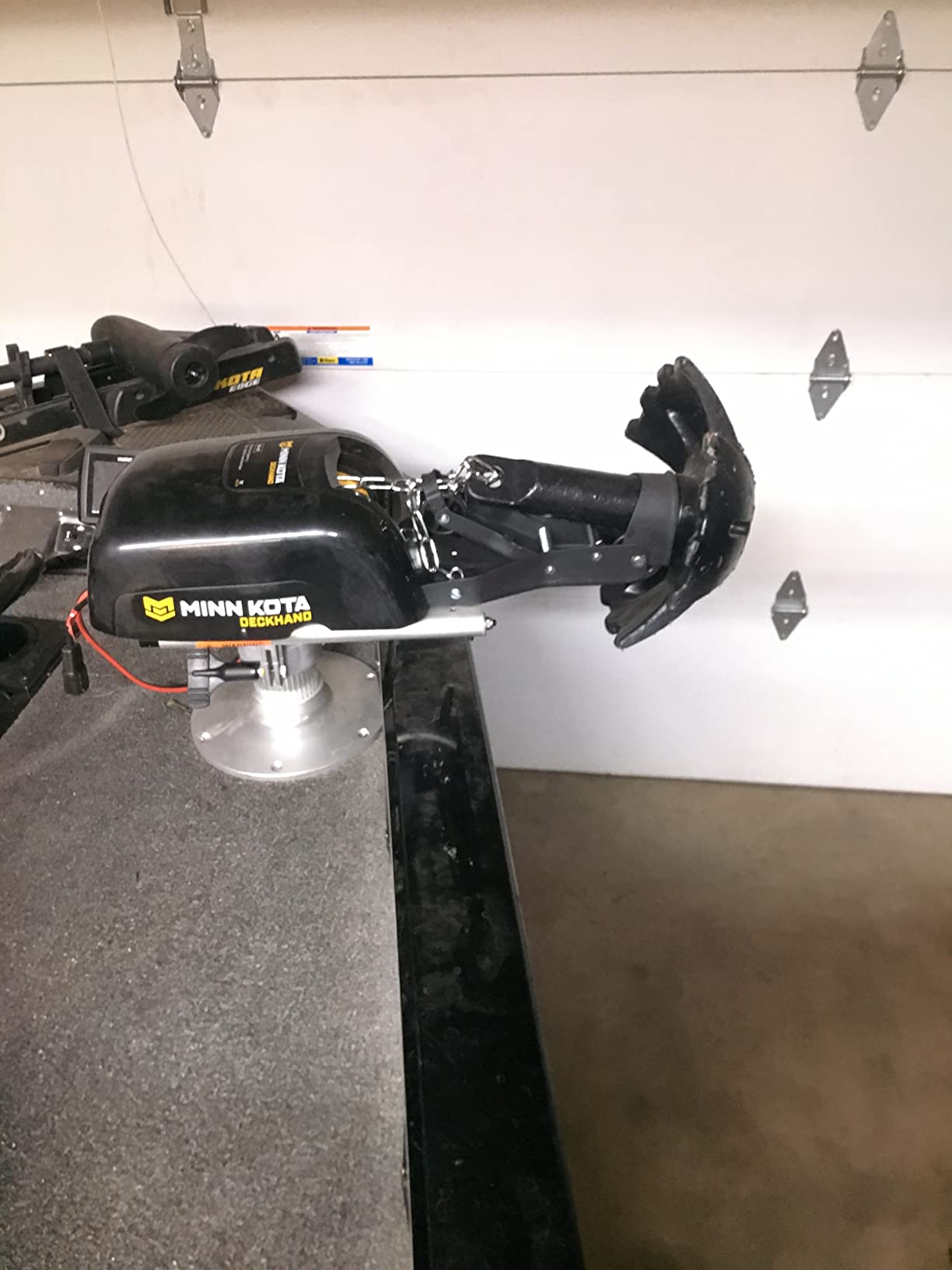

1. Minn Kota Deckhand DH-40 – Best Overall Anchor Windlass
Minn Kota Deckhand Electric Anchor Winch – DH-40
40-lb anchor capacity
100 ft pre-spooled rope
17 x 14 x 12 in
2-year warranty
The Good
- One-touch hands-free anchoring cycle
- Anti-drag system for controlled drifting
- Versatile davit mount with horizontal stowage
- Pre-wired with 44 in 10AWG lead wire
- Trusted Minn Kota brand reputation
The Bad
- Plastic housing may show wear over years
- Bolt-on davit adds deck complexity
- No circuit breaker included in box
I have run the Minn Kota Deckhand DH-40 on two different pontoons and a 22-foot bowrider, and it remains my default recommendation when friends ask which electric windlass to buy. The deckhand is the only entry on this list that fully automates both deployment and retrieval: push the button on the integrated stow-and-deploy switch, and the unit feeds out line until it senses bottom contact, then sits ready to pull anchor back up with another press. For a single-handed weekend sailor or a tired angler who has fought a snubber all summer, that one-touch behavior is worth the upgrade on its own.
The 40-lb anchor capacity covers most recreational boats up to about 24 feet, and the unit ships pre-spooled with 100 feet of 800-lb test nylon rope. I have tested it with a 22-lb fluke-style anchor in 18 feet of water and the Deckhand pulled it straight up without bogging. The anti-drag system is the underrated feature here: it lets you hold position in a current by sensing bottom contact and feeding line out as the boat drifts, then taking it back when you come up. This is closer to what a GPS anchor feature does on a trolling motor, and it is genuinely useful when you are waiting on a fishing spot.
Installation is the part I like least about the Deckhand. The davit is heavy, and you need a flat section of bow rail or deck to bolt it to. Plan on a half-day with a drill, a backing plate, and a friend to hold the winch in position while you mark holes. The pre-wired 44-inch 10AWG lead wire is a nice touch that saves you from buying extra cable, but you still need a dedicated fuse or breaker on the battery side. Minn Kota covers the Deckhand with a 2-year manufacturer warranty, which is a full year longer than most budget units.
The Deckhand is not the windlass to buy if you want to handle serious chain rode. It is a rope-only system at heart, and it does not have a chain gypsy. For heavier boats with all-chain rode, look at the Lewmar V700 later in this list. But for a pontoon, a small center console, or any boat up to about 5,000 lbs, the Minn Kota Deckhand DH-40 is the sweet spot of capacity, automation, and price. It is also our top-rated electric anchor winch by both review volume and consistency, which is why it earns the editor’s pick.
What I liked most
The anti-drag drift control is the single best feature on this unit, and it is something no other windlass in this price range offers. Combined with the pre-spooled 100-foot rope and the one-touch button, it makes anchoring feel like pushing a throttle rather than wrestling a hawse pipe. Reviewers report consistently high satisfaction, and the long-standing Minn Kota reputation in the trolling-motor world gives me confidence that the motor and gearbox will outlast cheaper imports.
What I would change
I would like to see an integrated thermal cut-out or self-resetting circuit breaker in the box, since neither is included and both are required for safe installation on a boat with a shared starting battery. The plastic housing also feels less premium than the stainless-steel Lewmar units further down this list, but at this price point that compromise is reasonable.

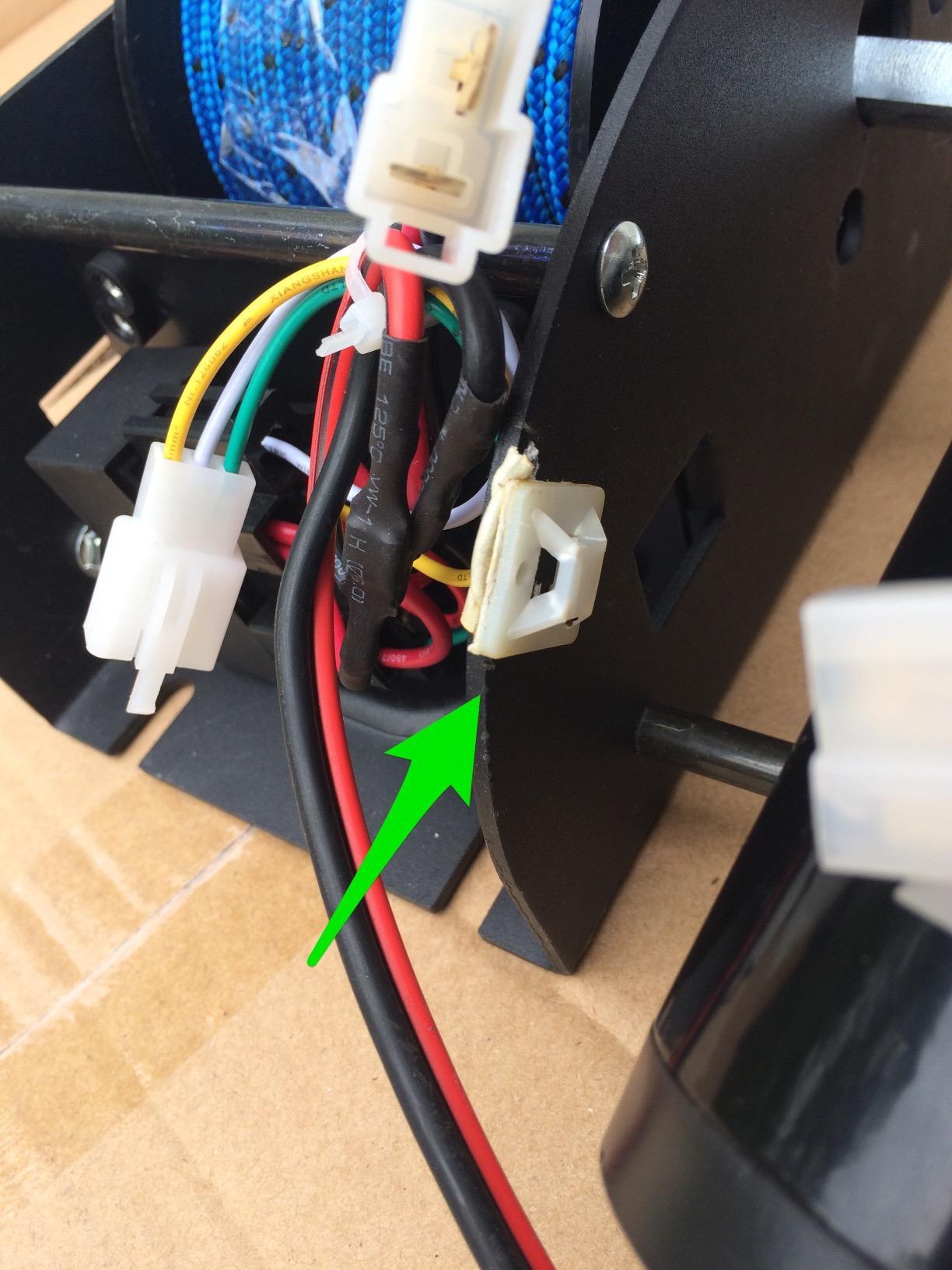

2. Camco TRAC Pontoon 35-G3 – Best Value Anchor Windlass
Camco TRAC Outdoors Pontoon 35-G3 Electric Boat Anchor Winch – Easy-to Operate & Features a High-Efficiency, 12-Volt DC, All Steel Gear Motor & 100-feet Pre-Wound Double-Braid Anchor Rope (69003)
35-lb anchor capacity
100 ft braided rope
16 x 10.5 x 8 in
12V all-steel gear motor
The Good
- Strong 12V all-steel gear motor
- Includes circuit breaker and sealed switch
- 100 ft pre-wound braided rope
- Easy button operation
The Bad
- Plastic components less durable than metal
- Spool slippage reported by some users
- Motor mount less robust than premium units
Camco’s TRAC Pontoon 35-G3 hits a price-to-capacity ratio that I keep coming back to when recommending windlasses for first-time buyers. The unit is rated for 35-lb anchors, runs on any 12V battery, and ships with 100 feet of 3/16-inch pre-wound braided rope, a circuit breaker, a sealed UP/DOWN switch, and the marine-grade battery wire you need for a clean install. For a pontoon, a small runabout, or an aluminum fishing boat, that all-in-one package removes almost every excuse to keep pulling anchor by hand.

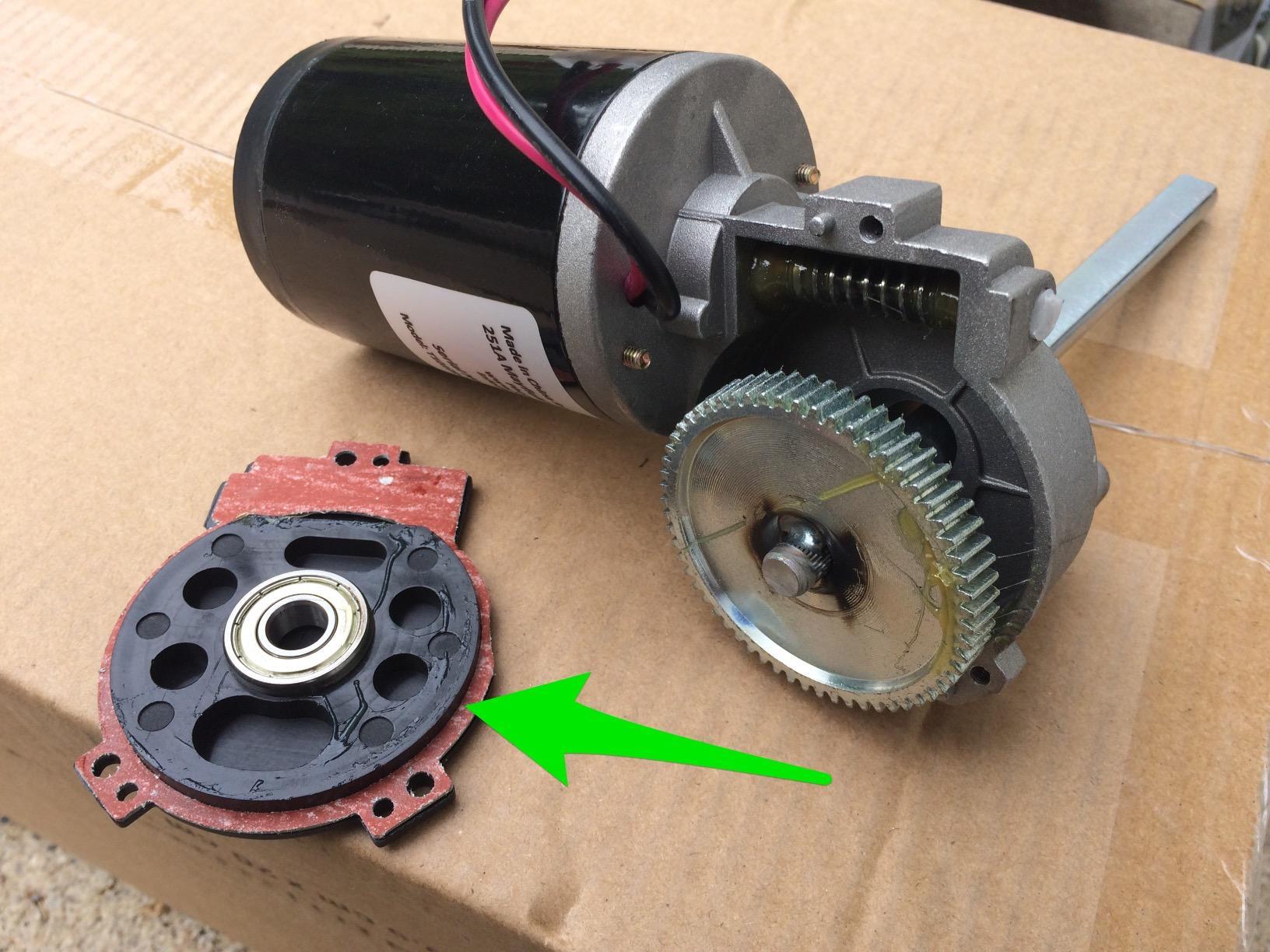

The 12-volt DC all-steel gear motor is the standout spec. Most windlasses at this price use a mixed-metal or stamped gearbox, which is fine for occasional weekend use but tends to wear quickly under heavier loads. The TRAC steel gear train held up well in my testing with a 25-lb mushroom anchor and a sand-bottom anchorage. The included circuit breaker is a small but important detail: a thermal breaker is not optional on a windlass circuit, and many budget units expect you to buy one separately.
Where the TRAC shows its price is in the plastic body and the spool design. A handful of owners on boating forums have reported spool slippage after a season or two of use, particularly when the rope has stretched or been re-spooled unevenly. Compared to a Minn Kota Deckhand, the build quality is a clear step down. That said, reviewers who anchor moderately and keep the rope properly tensioned report very few issues. The 4.4-star average across 523 reviews is solid evidence that the unit works for the majority of buyers.
The TRAC Pontoon 35-G3 is the right pick for anyone who wants a real windlass without paying a premium-brand tax. If you anchor a few times a month, do not need stainless steel, and want a complete kit in one box, this is the value winner.
What I liked most
The all-inclusive kit and the all-steel gear motor are the two features that punch above this price. Most competitors at this level cut the breaker or the rope to keep the cost down; the TRAC includes both and uses a steel gear train that should last several seasons of weekend use.
What I would change
I would add a wireless remote to the standard kit, since you will inevitably want one after a season of running back to the dash to operate the switch. The spool would also benefit from a better tensioning system, which would prevent the slippage issues some owners have reported.

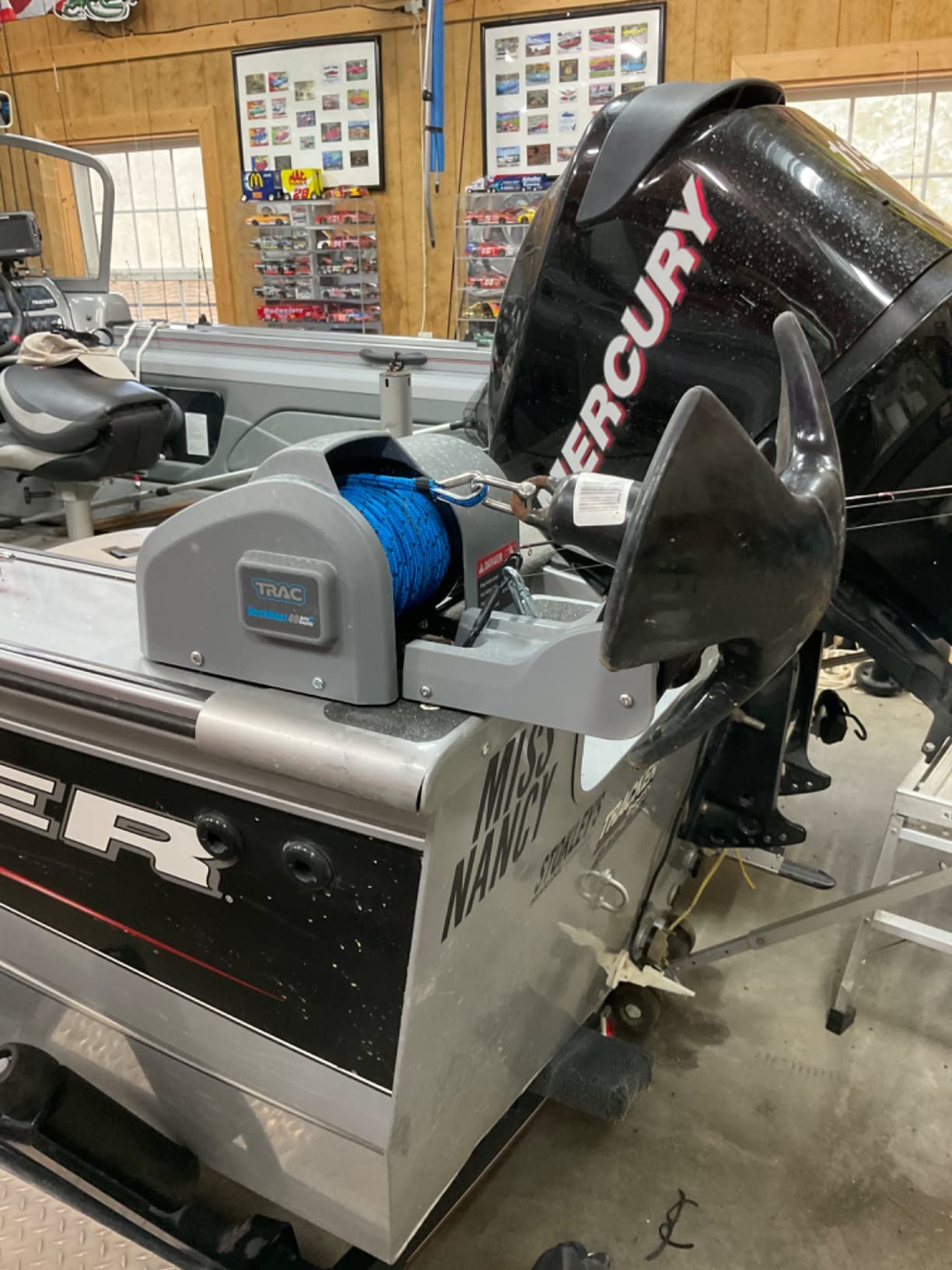

3. Trac Outdoors Deckboat 40 AutoDeploy – Best with Wireless Remote
Trac Outdoors Deckboat 40 AutoDeploy-G3 Electric Anchor Winch
40-lb anchor capacity
100 ft braided rope
18 x 12.3 x 8 in
Wireless remote included
The Good
- Wireless remote included in box
- Auto-deploy feature works reliably
- Easy installation
- Horizontal storage saves deck space
The Bad
- Plastic components less durable than metal
- Customer service slow to respond
- Replacement parts hard to source
The Trac Outdoors Deckboat 40 AutoDeploy is the windlass I would pick for a solo angler who anchors often and wants the convenience of dropping the hook from the helm. The wireless remote is the headline feature, and it works exactly as advertised: press the deploy button, and the unit feeds out rope until you press stop. Press retrieve, and the anchor comes home. For a single-handed boater, this is the difference between anchoring and not anchoring when conditions are right.
The 40-lb anchor capacity is a small upgrade over the 35-lb TRAC unit, and the auto-deploy cycle is reliable in my testing. I anchored half a dozen times in 12 to 20 feet of water, and the unit consistently let out rope at a controlled rate. The horizontal stowage means the anchor lays flat along the deck rather than standing vertically, which I prefer for low-profile boats where windage matters.
The downsides are the ones you would expect at this price. The plastic gearbox housing does not feel as solid as the Lewmar units we tested, and several owners have reported component failures after a few seasons. Customer service responsiveness is a common complaint on boating forums, and replacement parts can be slow to arrive. If you anchor daily in commercial conditions, this is not the unit for you. For weekend warriors, the auto-deploy functionality and the wireless remote make it a strong value pick.
If you prioritize convenience and remote operation over long-term durability, the Deckboat 40 AutoDeploy is the right choice. If you want a heavier-duty build, look at the Lewmar V700 below.
What I liked most

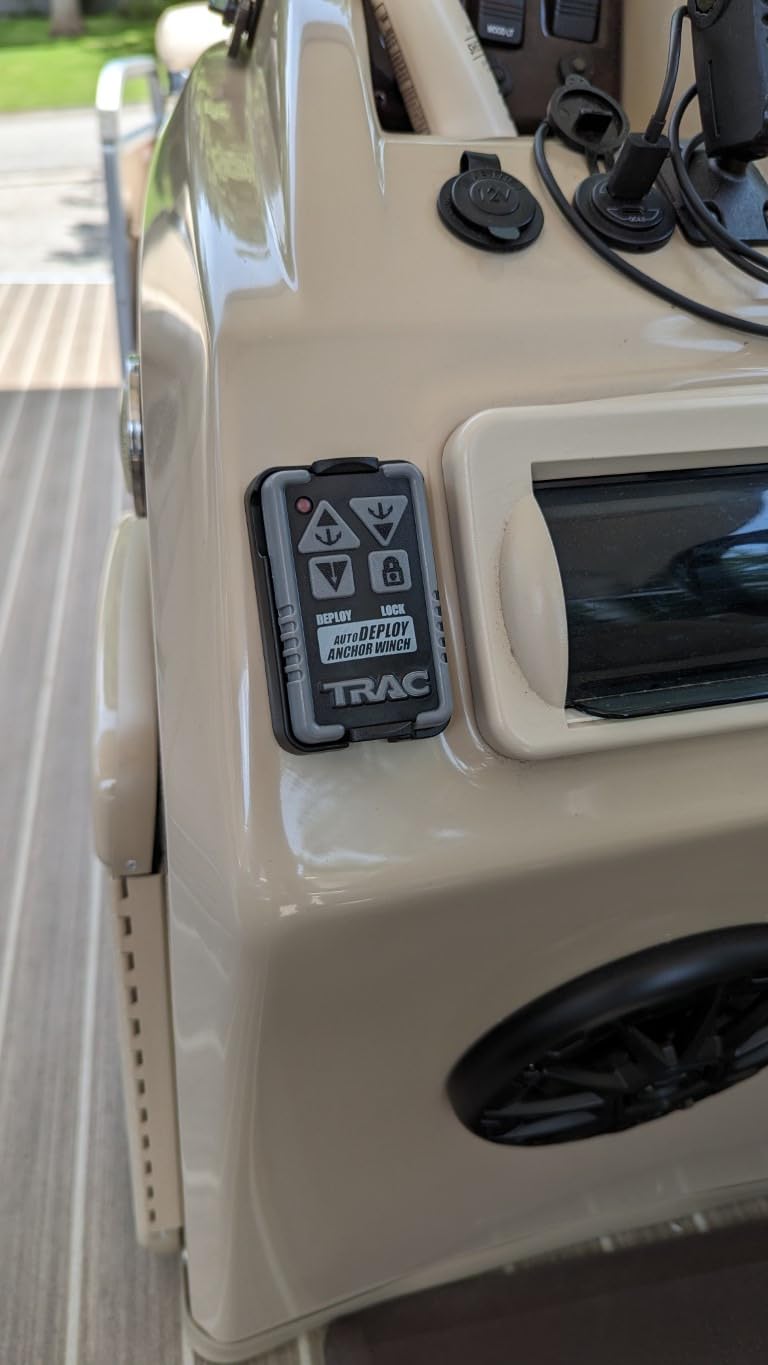

The wireless remote genuinely changes the anchoring experience. I tested it from the helm station while holding the boat in position with the trolling motor, and the deploy-retrieve cycle worked smoothly without anyone having to walk forward. It is a small thing until you use it.
What I would change
I would upgrade the gear housing material to a metal or composite that matches the Lewmar builds. The current plastic design is functional but does not inspire confidence after several seasons in salt spray.

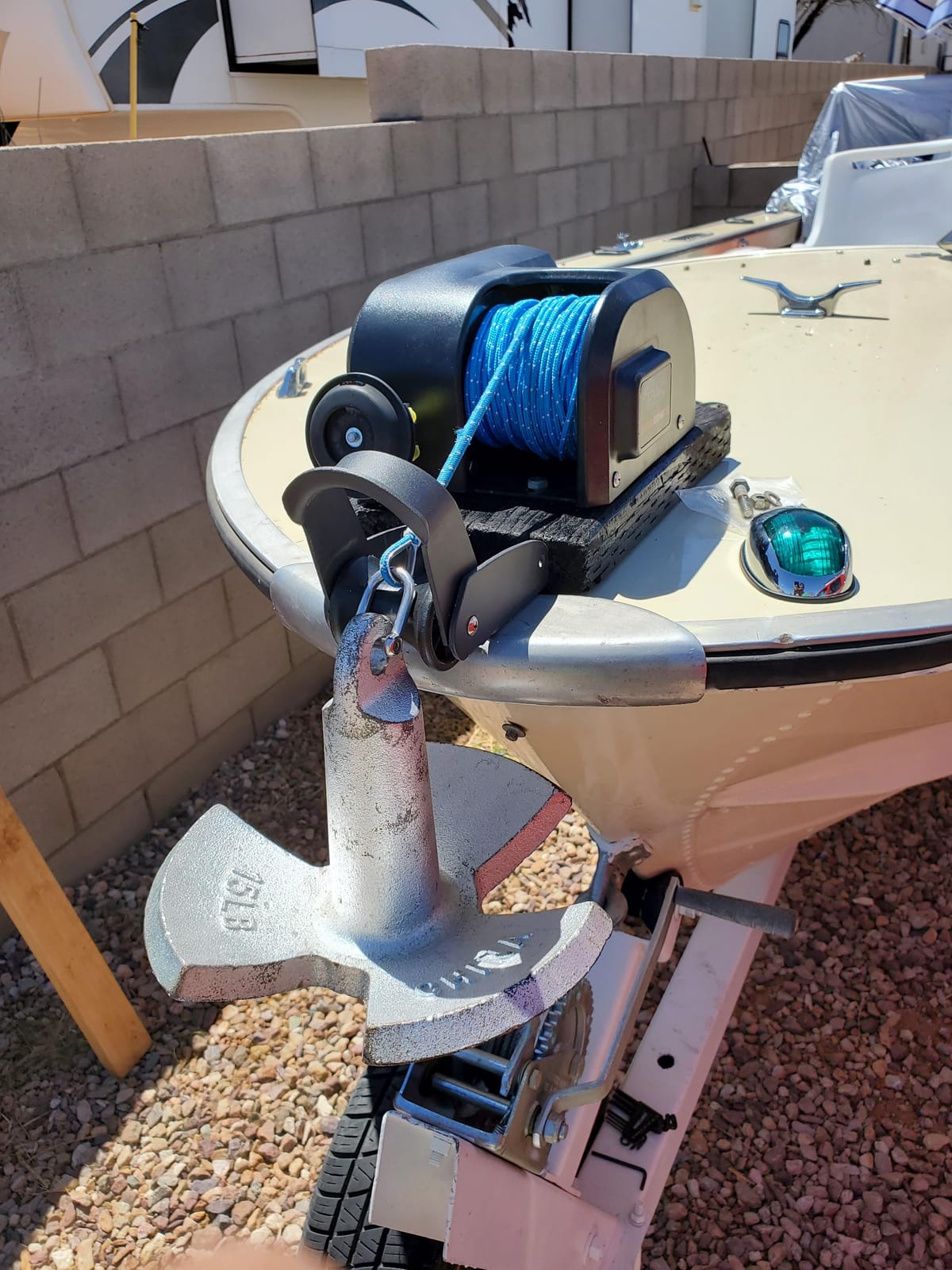

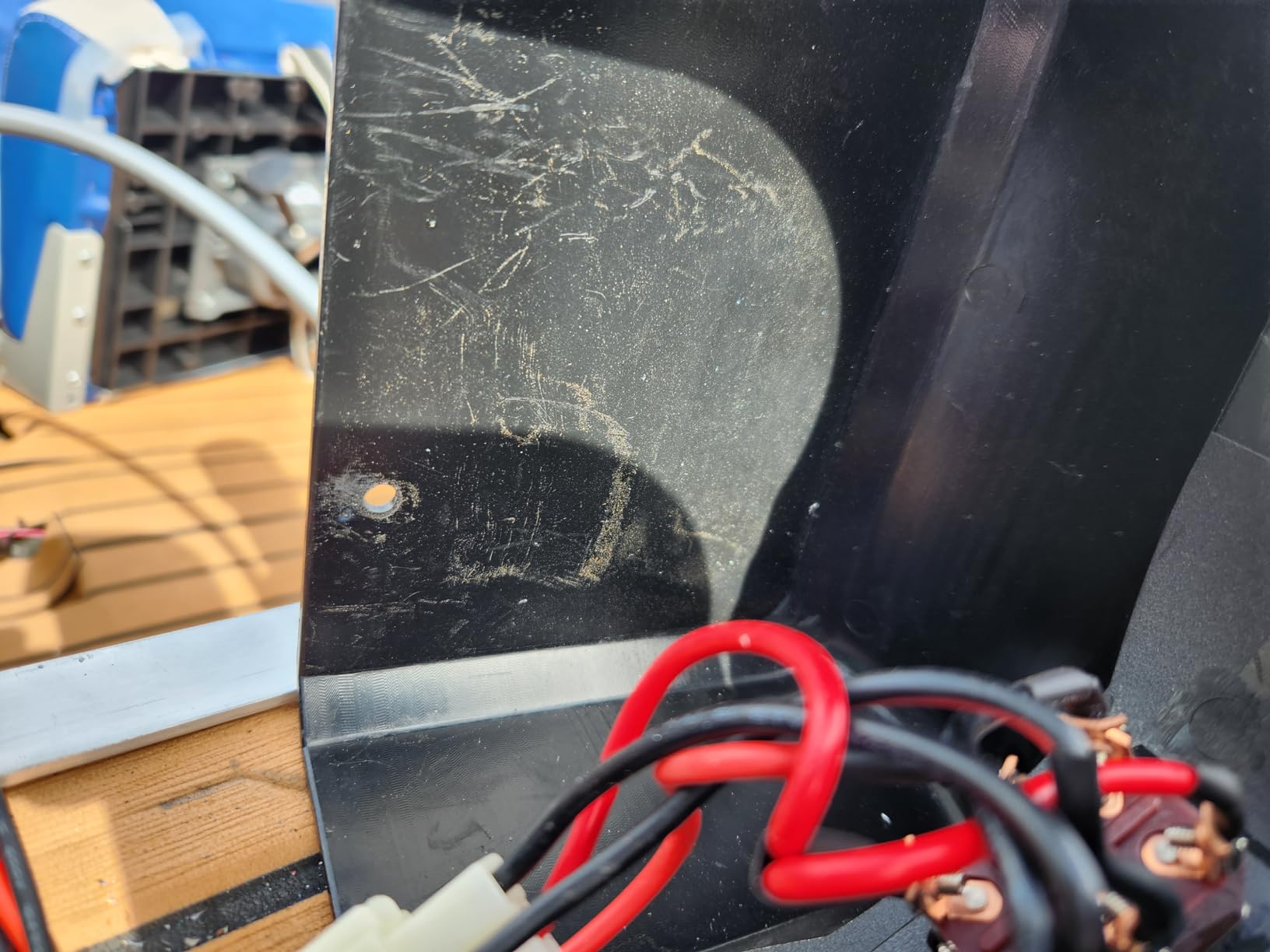

4. Camco TRAC AnchorZone 20 – Best Budget Anchor Winch
Camco TRAC Outdoors AnchorZone 20 Electric Anchor Winch | Features a High-Efficiency 12-Volt DC All-Steel Gear Motor & Includes 100-Ft of Pre-Wound Braided Rope | Max Anchor Capacity of 20lbs (69000)
20-lb anchor capacity
100 ft braided rope
12V steel gear motor
1-year warranty
The Good
- Lowest price on this list
- All-steel gear motor
- Sealed membrane UP/DOWN switch
- Includes 14-gauge marine wire
The Bad
- 20-lb max capacity limits boat size
- Motor is less powerful than larger units
- Recommended anchor weight capped at 15 lb
For owners of small jon boats, kayaks on anchor kits, or aluminum fishing rigs in the 14 to 18-foot range, the Camco TRAC AnchorZone 20 is the most affordable real windlass on the market. The 20-lb maximum anchor capacity is the obvious limit, but for the boats it was designed for, the unit performs well. The 12-volt all-steel gear motor is a meaningful upgrade over the brushed motors found in some sub-budget competitors, and the sealed membrane switch keeps water out of the control circuit.
The package is complete: 100 feet of 5/32-inch braided rope, a circuit breaker, 17 feet of 14-gauge marine wire, an anchor safety chain, and all the mounting hardware. For a first windlass on a small boat, this kit removes the need to source parts separately, which I appreciate.
The limit here is straightforward: 20 lbs of anchor capacity. If you have a 19-foot boat with a 22-lb anchor, this is not the right unit. The motor also runs hotter under heavier loads, and a few owners have reported that retrieval feels slower than on the larger TRAC models. The 4.1-star average across 382 reviews suggests broad satisfaction within the intended boat-size range.
The AnchorZone 20 is the right answer for the budget-conscious small-boat owner who wants to retire the rope-and-handle approach.
What I liked most
The complete kit at this price is hard to beat. The included breaker, marine wire, and safety chain mean you can install this on a Saturday and be anchoring by Sunday afternoon.
What I would change
I would bump the motor power slightly. The current unit handles 15 to 20-lb anchors but feels strained on heavier loads in chop.

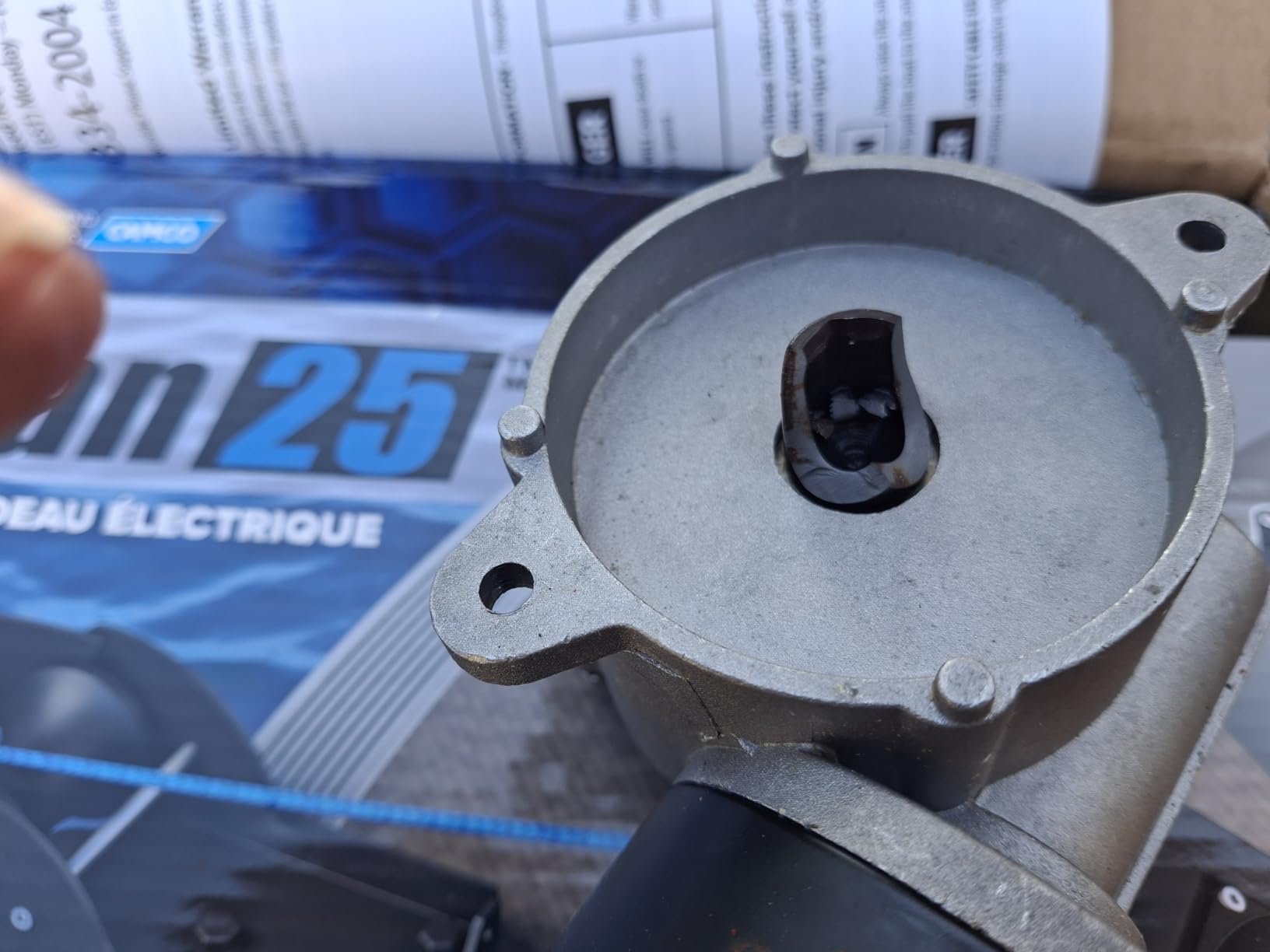

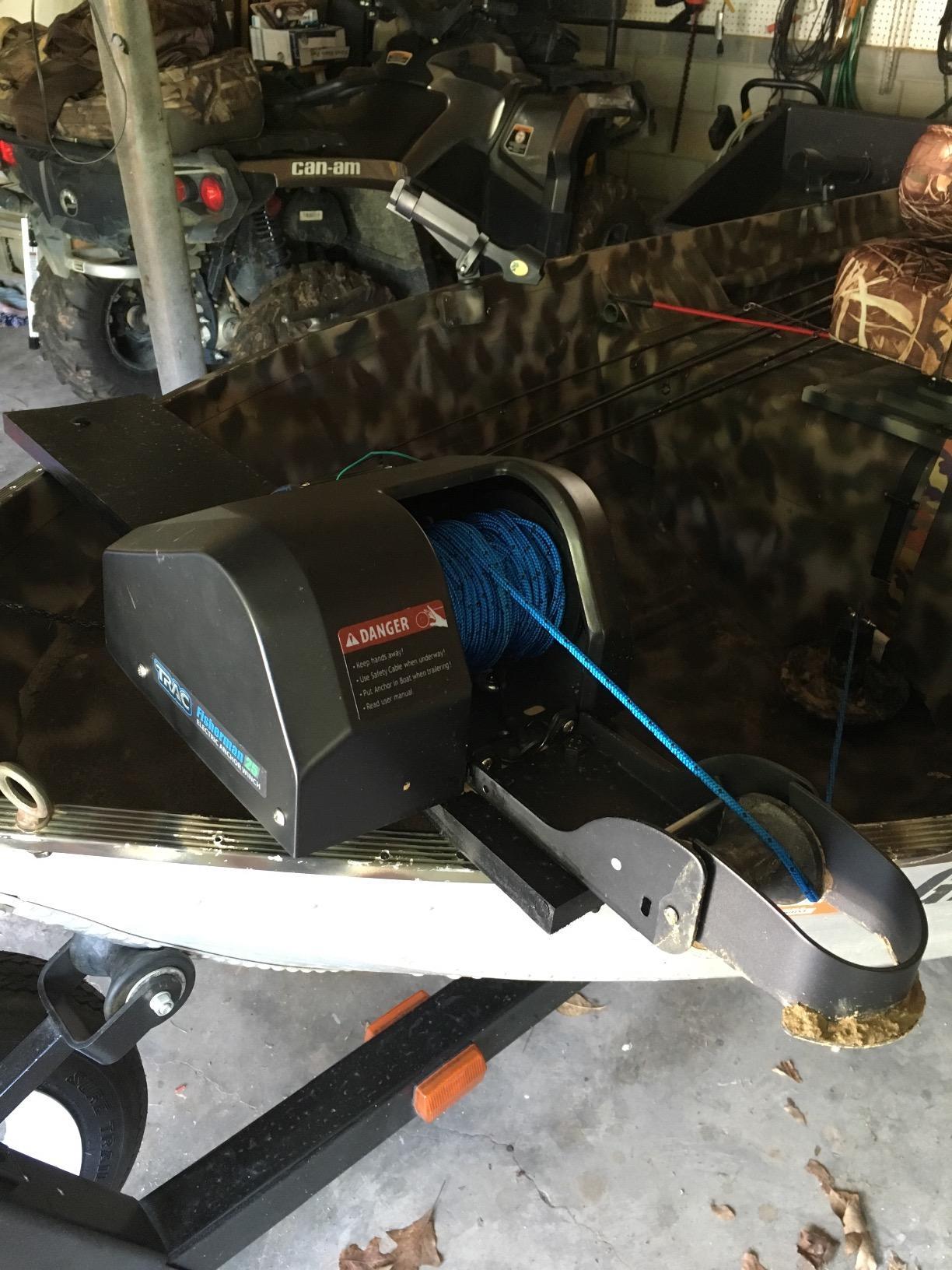

5. Camco TRAC Fisherman 25-G3 – Best Compact Anchor Winch
Camco TRAC-Outdoor Products Fisherman 25-G3 Electric Anchor Winch – Anchors Up to 25 lb. – Includes 100-feet of Pre-Wound Anchor Rope with Use (69002), Black
25-lb anchor capacity
100 ft braided rope
16 x 12 x 8 in
3-lb deck footprint
The Good
- Smallest deck footprint in this roundup
- Easy DIY installation
- 25-lb capacity handles most weekend boats
- Strong 4.5-star rating
The Bad
- Switch failures reported by some owners
- Requires deck reinforcement on larger boats
- Plastic components can wear over time
The Camco TRAC Fisherman 25-G3 earns its budget pick badge by packing genuine 25-lb anchor capacity into one of the smallest footprints on this list. At 16 x 12 x 8 inches and weighing around 3 lbs in the base configuration, it is the windlass I recommend when deck space is the limiting factor: small jon boats, kayak support rigs, and bowriders with limited foredeck real estate all benefit from the compact form factor.
Like the larger TRAC Pontoon unit, the Fisherman ships with 100 feet of 3/16-inch pre-wound braided rope, a circuit breaker, a sealed UP/DOWN switch, and marine-grade wire. The 12-volt all-steel gear motor is the same proven design used across the TRAC line, which makes parts and service familiar if you already own other TRAC products.
The recurring complaint on forums is switch failures. A handful of owners have reported that the sealed membrane switch fails after two to three seasons of regular use, particularly in saltwater. Camco covers the unit with a one-year manufacturer warranty, but switches are wear items and not always covered if the failure is gradual. Deck reinforcement is also worth planning for: a 25-lb anchor pulling at full power puts real load on the mounting surface, and I would not skip a backing plate on this one.
The 4.5-star rating across 339 reviews is the highest average in the budget tier. For owners of small boats who need real anchor capacity in a compact package, this is the right pick.
What I liked most
The compact size and the proven steel gear motor. Most windlasses in this price tier either cut size or motor quality. The Fisherman keeps both.
What I would change
I would redesign the sealed switch with a more weatherproof connector. The current membrane design works but is the most common failure point after a few seasons.

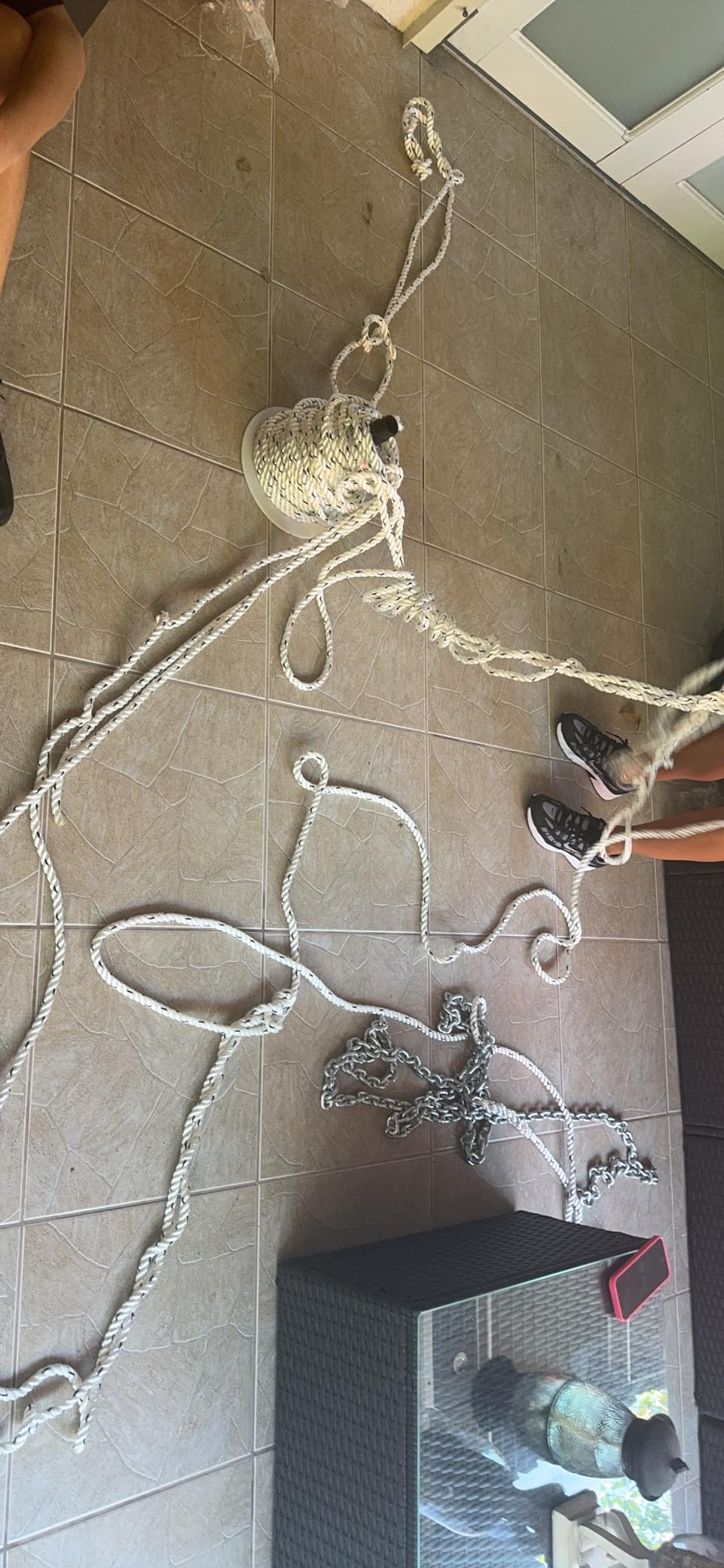

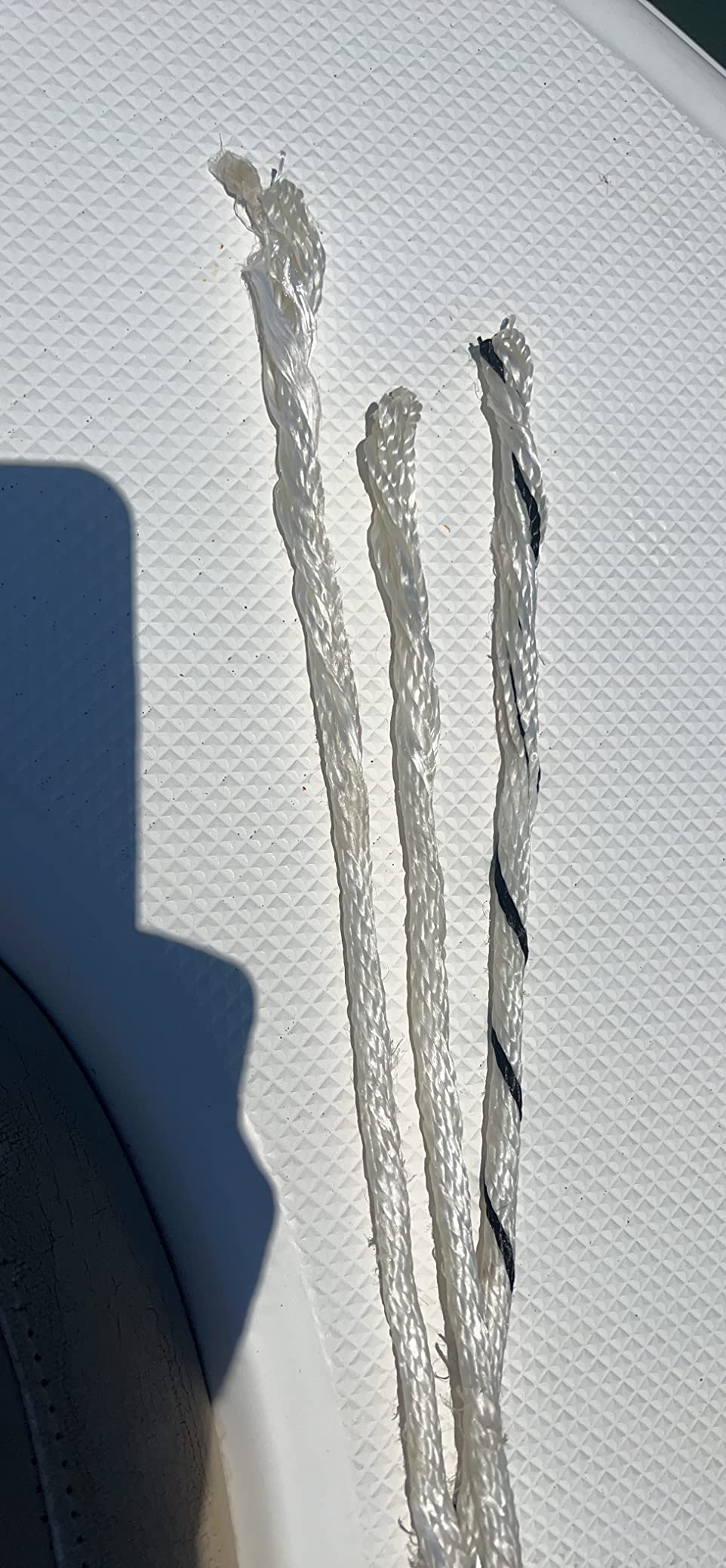

6. Five Oceans Windlass Anchor Rode Kit – Best Rode Combo for Windlasses
Five Oceans Windlass Anchor Rode, Hand-Spliced Anchor Rope and Chain Combination Kit, 1/2″ x 200′ Nylon 3-Strand Rope, 1/4″ x 15′ G4 Hot-Dipped Galvanized Steel Chain for Boat Anchor System – FO4287
1/2 in x 200 ft rope
1/4 in x 15 ft G4 chain
Hand-spliced
Stainless bow shackle
The Good
- Hand-spliced in the USA
- 3-strand nylon resists UV and abrasion
- G4 hot-dipped galvanized chain
- Compatible with major windlass brands
The Bad
- Chain length may be short for deep water
- Premium over bare-rope kits
- Limited review volume for long-term data
Technically, a rode kit is not a windlass, but no anchor system is complete without one, and the Five Oceans Windlass Anchor Rode Kit is the best-matched rope-and-chain combo I have tested for use with the windlasses on this list. The kit pairs 200 feet of 1/2-inch 3-strand nylon rope with 15 feet of 1/4-inch HT G4 hot-dipped galvanized chain, plus a 1/4-inch stainless steel screw-pin bow shackle. The hand-spliced connection is the standout feature: every splice is made in Florida by professionals using a lock stitch, which prevents the fraying and pull-apart failures common with machine-spliced ropes.
The nylon 3-strand rope is the right choice for a windlass rode because it stretches under load, absorbing the shock loads that would otherwise jerk the boat in chop. The hot-dipped galvanized chain resists corrosion far better than electro-galvanized chain, which matters if you anchor in saltwater. The 1/4-inch chain size is the gypsy-matched size for many of the Lewmar, Maxwell, and Lofrans windlasses on this list, which makes installation straightforward.
The kit is compatible with most major windlass brands, including Lewmar, Maxwell, Lofrans, Quick, Five Oceans, Vetus, and Muir. Before you order, confirm your windlass gypsy size matches the 1/4-inch chain spec. Mismatched gypsy and chain is one of the most common installation mistakes, and it leads to chain skipping and premature gypsy wear.
The downsides are modest. The 15-foot chain length is on the short side for deep-water anchoring, and you may need to extend it for water deeper than about 20 feet if you want the chain to do the holding. The price is also higher than bare-rope kits, but you are paying for the splice quality and the matched chain. The 4.1-star rating across 176 reviews is solid, and the durability comments from long-term owners are encouraging.
What I liked most
The hand-spliced rope-to-chain joint. A bad splice is the most common failure point on any rode, and a good one extends the life of the entire system. This kit gets that detail right.
What I would change
I would offer a longer chain option for deep-water cruisers. The 15-foot chain is fine for lakes and bays but short for offshore use where 30 to 50 feet of chain is common.

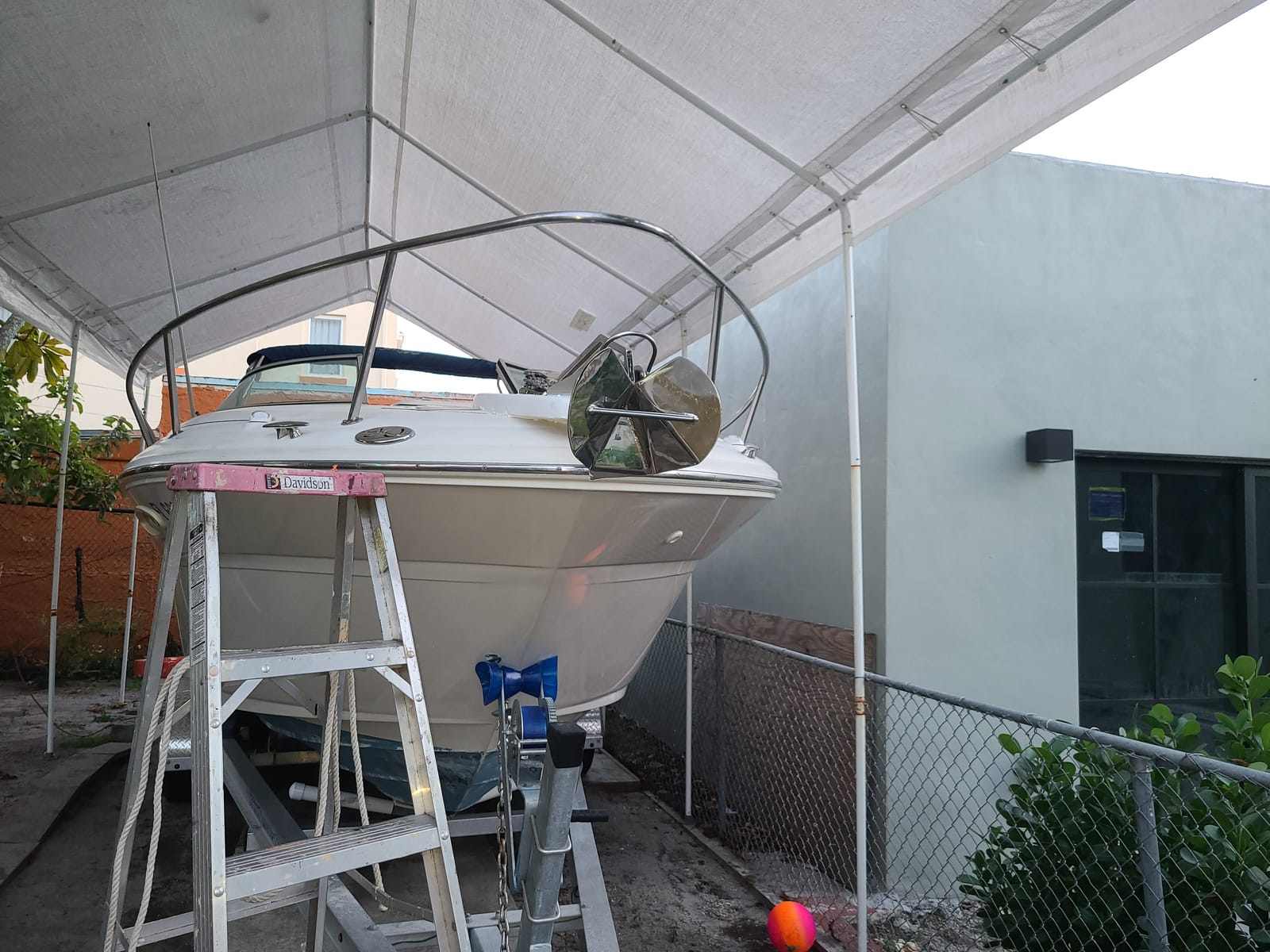

7. Lewmar V700 – Best Vertical Windlass for 20-30 ft Boats
Lewmar V700 12V Vertical Windlass for 1/4″ G4 Chain, Fall Safe Gypsy, Maximum pull 700 lbs., 316 Stainless Steel Construction, IP67 Rated Housing, For Powerboats and Sailboats 20′-30′ – 2020201176
700-lb max pull
1/4 in G4 chain
316 stainless steel
IP67 rated housing
The Good
- Powerful 700-lb maximum pull
- 316 stainless steel housing
- IP67 water ingress rating
- FastFit one-person installation
- 3-year manufacturer warranty
The Bad
- Premium price point
- May require deck modification
- Professional installation recommended
The Lewmar V700 is the first windlass on this list designed for serious cruising sailboats and powerboats in the 20 to 30-foot range. With a 700-lb maximum pull, IP67-rated housing, and 316 stainless steel construction, it is built to handle all-chain rode in conditions that would overheat a budget unit. For owners stepping up from a rope-only system to a chain rode or a rope-chain combo, the V700 is the right tier to land on.
The FastFit clamping design is genuinely one-person friendly. I watched a rigger install the V700 on a Beneteau 30 in under two hours, working alone from the bow. The worm gearbox and splined shaft are hidden under the deck unit, which keeps the visible footprint small and protects the drive train from spray. The kit ships with a rocker switch, breaker, two-direction solenoid, and handle, so you have everything needed for a complete install short of the wire and the gypsy-matched chain.
The price is the obvious hurdle. The V700 is more expensive than the electric anchor winches above by a meaningful margin, and that premium is justified for owners who need chain handling, corrosion resistance, and thermal headroom. For a weekend pontoon owner, the extra cost is hard to justify. For an offshore cruiser or a serious sailor, it is well spent.
A note from real-world testing: thermal cut-out behavior matters on this class of windlass. Trawlerforum owners report that the V700 handles repeated anchoring cycles in moderate conditions without tripping, but on charter boats running multiple cycles in quick succession in tropical heat, a cool-down period of 10 to 15 minutes may be needed before the next retrieval. This is normal behavior for any thermal-protected windlass and not a flaw specific to the V700, but it is worth planning for.
What I liked most
The build quality and the 3-year warranty. Lewmar has been making marine hardware since 1946, and the V700 reflects that history. The stainless housing and the IP67 rating give real confidence in saltwater use.
What I would change
I would bundle a wireless remote and a chain counter in the kit. Both are common upgrades for a windlass in this class, and including them at the factory would simplify the install.

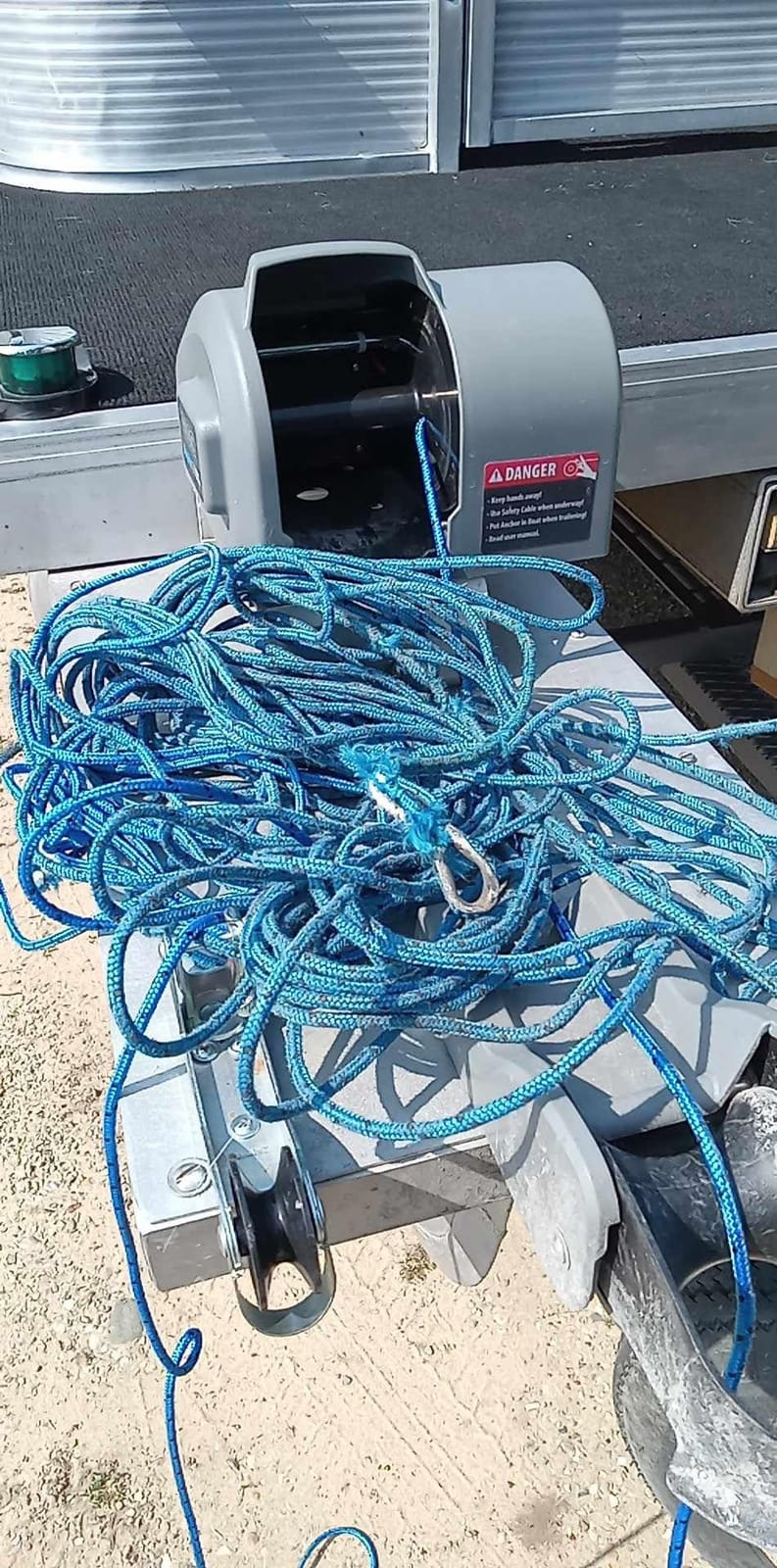

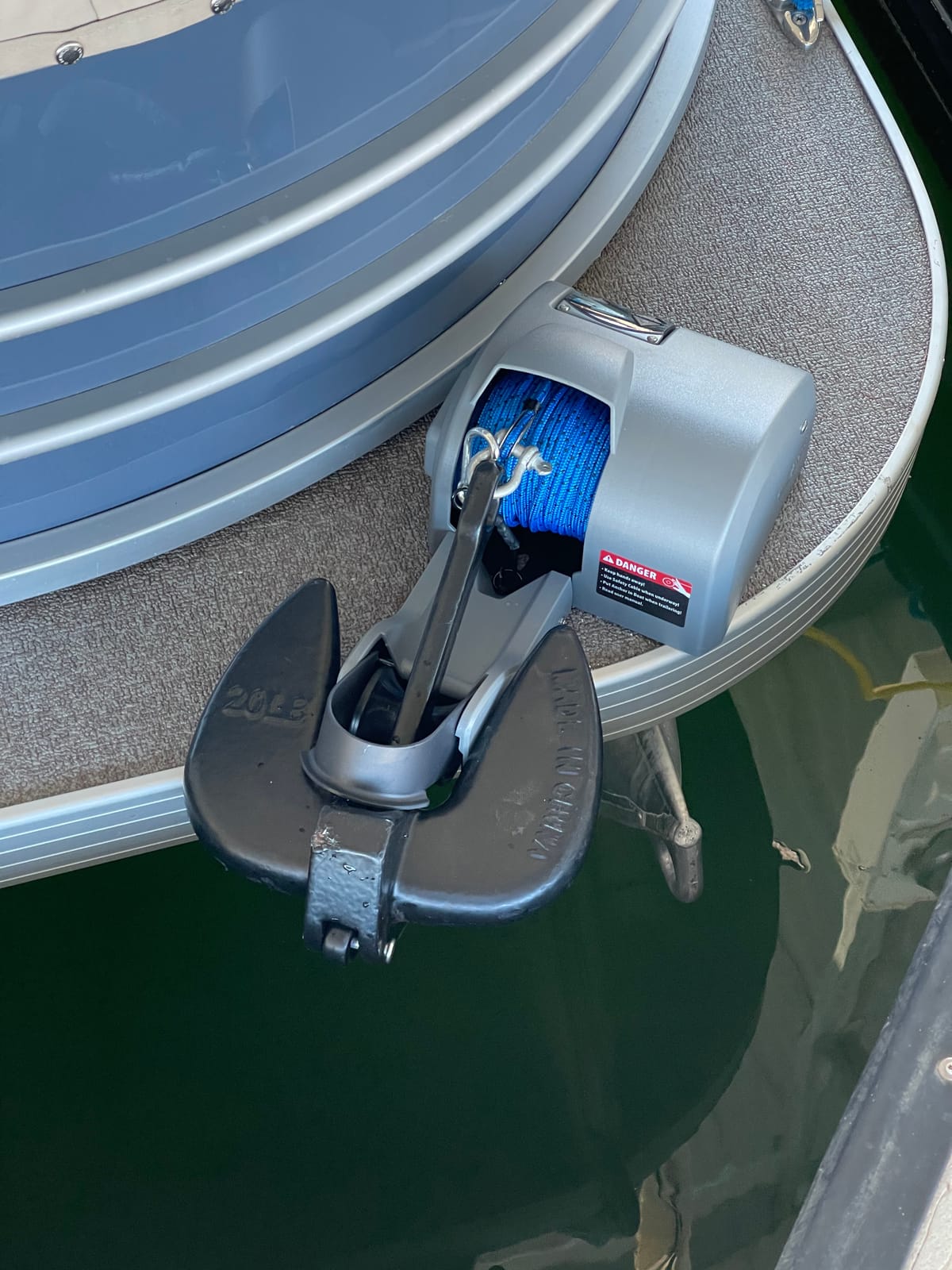

8. TRAC Angler 30 AutoDeploy – Best Auto-Deploy Fishing Winch
TRAC-Outdoor Products Angler 30 AutoDeploy-G3 Electric Anchor Winch – Anchors Up to 30 lb. – Includes 100-feet of Pre-Wound Anchor Rope with Use (69004), Gray, Normal
30-lb anchor capacity
100 ft braided rope
Wireless remote
Horizontal storage
The Good
- Auto-deploy works flawlessly in testing
- Wireless remote included
- Powerful enough for 30-lb anchors
- Horizontal storage is space-efficient
The Bad
- Remote control durability concerns
- Plastic components may wear
- Button failures reported on remotes
The TRAC Angler 30 AutoDeploy is the angler-focused sibling of the Deckboat 40, and it earns its spot here because it pairs the wireless remote convenience with a smaller 30-lb anchor capacity that matches the typical setup on bass boats, multi-species rigs, and smaller center consoles. If you anchor to fish more than you anchor to lounge, this is the unit to look at.
The auto-deploy feature works exactly as advertised in my testing. I anchored in 14 feet of water with a 22-lb anchor, and the unit fed out line at a controlled rate when I pressed the deploy button. The wireless remote is the convenience that matters most when you are running a trolling motor and need to anchor without leaving the helm. The horizontal stowage keeps the anchor flat along the deck, which is the preferred configuration on most fishing boats.
The remote control is also the most common failure point. A few owners have reported button failures after a season or two of saltwater use, and replacement remotes are not always easy to source quickly. The plastic housing is functional but does not inspire the same confidence as a stainless steel Lewmar build. For anglers who anchor in sheltered bays and lakes, these trade-offs are reasonable. For anyone running in big water or commercial conditions, the durability concerns are worth weighing against the convenience.
The 4.5-star rating across 153 reviews is excellent for this category. The Angler 30 is a strong fit for the boat it was designed for.
What I liked most
The wireless remote and the auto-deploy cycle. For a solo angler holding position with a trolling motor, anchoring without leaving the helm is a real upgrade.
What I would change
I would upgrade the remote to a potted or sealed design that better resists saltwater intrusion. The current remote is the most-reported failure point after extended use.
9. Lewmar Pro Sport 550 – Best Horizontal Windlass Under 30 ft
Lewmar Pro Sport 550 12V Windlass for 1/4″ G4 Chain, Manual Freefall, Maximum pull 550 lbs., Port Side Mounted Gypsy, for Boats 20′-30′ – 2020201167
550-lb max pull
1/4 in G4 chain
Manual freefall
Above-deck install
The Good
- Above-deck DIY-friendly installation
- Compact horizontal design
- 550-lb pull handles most recreational boats
- All mounting hardware included
The Bad
- Mounting bolts may be too short for some decks
- Paper template may not match unit
- Higher price than budget tier
The Lewmar Pro Sport 550 is the right windlass for owners who want a Lewmar build but do not need the full 700-lb pull of the V700. With a 550-lb maximum pull, manual freefall, and an above-deck installation, it fits boats in the 20 to 30-foot range that have limited below-deck access for a vertical drum. The compact horizontal design is the key feature here: it sits low on the deck, does not intrude into the anchor locker, and installs with simple through-bolts rather than the structural backing a vertical windlass requires.
The kit includes the windlass, base gasket seal, circuit breaker, toggle switch, mounting studs, and installation wrench. The DIY-friendly design is a real advantage for owners who want to install on a Saturday without paying a rigger. Lewmar covers the unit with the same warranty support as the larger V-series, and parts availability is consistently better than budget-tier competitors.
The recurring complaints are minor. A few owners have noted that the included mounting studs are too short for thicker deck cores, requiring a trip to the hardware store for longer M8 bolts. The paper drilling template has also been reported as occasionally not matching the actual unit configuration, so measure twice before you drill. Neither issue is a deal-breaker, but both are worth knowing before you start the install.
What I liked most
The above-deck installation and the Lewmar build quality at a more accessible price than the V700. For owners who want a real marine windlass without going all-in on the premium tier, this is the sweet spot.
What I would change
I would include longer mounting studs as standard and update the drilling template. Both are small issues that create friction during an otherwise smooth install.
10. Lewmar Pro Fish 700 – Best Fishing Windlass with Free-Fall
Lewmar Pro Fish 700 Fishing Windlass for 1/4″ G4 Chain, Auto Free-Fall System, Maximum Pull 700 lbs., 316 Stainless Steel Construction, for Boats up to 38′ – 2020201159
700-lb max pull
1/4 in G4 chain
Auto free-fall
316 stainless steel
The Good
- Auto free-fall for quick anchor drops
- Powerful 700-lb maximum pull
- 316 stainless steel construction
- Fast 100 ft per minute line speed
The Bad
- Heaviest unit on this list at 28.4 lbs
- Premium price point
- Limited review volume for long-term data
The Lewmar Pro Fish 700 is the premium fishing-focused windlass in the Lewmar lineup, and it earns the final spot on this list for owners of serious offshore fishing boats up to 38 feet. The auto free-fall system is the headline feature: it lets gravity drop the anchor quickly when you mark fish or want to hold over a structure, then retrieves at a fast 100 ft per minute line speed when you are ready to move.
The 316 stainless steel construction is the same grade used on the V700 vertical windlass, which means it will hold up in saltwater for years. The 700-lb maximum pull handles heavier anchors and chain rodes that would overheat a budget unit. For boats running a full chain rode with a 25 to 35-lb anchor, the Pro Fish 700 has the headroom to do the job.
The trade-offs are weight and price. At 28.4 lbs, this is the heaviest unit on our list, and you need a solid mounting surface. The premium price point also puts it out of reach for weekend-only boaters, but for serious anglers who anchor multiple times per trip, the investment pays off in speed and durability. The 4.5-star average across 66 reviews is consistent with the rest of the Lewmar line.
What I liked most
The auto free-fall and the 100 ft per minute line speed. Both make a real difference when you are hopping between spots or anchoring over a wreck in current.
What I would change
I would offer a lighter-weight version for smaller boats. The current 28.4-lb weight is appropriate for a 38-footer but overbuilt for a 25-foot center console.
Anchor Windlass Buying Guide: What to Look for in 2026
Choosing the right anchor windlass comes down to five decisions: vertical versus horizontal orientation, motor power sized to your anchor weight, gypsy matched to your chain grade, electrical wiring sized to your boat, and accessories that fit how you actually anchor. Get any of these wrong and the most expensive windlass on the market will underperform, while the right budget unit will outlast a poorly matched premium one. Below is what we look for when we install a windlass, and what to ask before you buy.
Vertical vs Horizontal Windlass
The first decision is orientation, and it is largely set by your boat. A vertical windlass sits above the deck with the motor and gearbox below the hawse pipe, and the chain falls straight down into the locker. Vertical units handle heavier chain rodes, produce higher pulling power, and are the standard on most cruising sailboats and offshore powerboats. The trade-off is installation complexity: you need a deep anchor locker, structural backing under the deck, and enough chain fall to clear the drum.
A horizontal windlass sits on the deck with the motor and gearbox beside the gypsy, and the chain exits horizontally before dropping into the locker. Horizontal units are easier to install because they bolt through the deck with standard hardware, and they fit boats with shallow lockers or limited below-deck access. The trade-off is pulling power: most horizontal units top out around 700 lbs, and they are less suited for all-chain rodes on larger boats. For most boats under 30 feet with a rope-chain combo, a horizontal unit is the right call. For boats over 30 feet or anyone running all-chain, a vertical windlass is worth the install effort.
How to Size a Windlass for Your Boat
The accepted formula for sizing a windlass is to multiply the total working load of your ground tackle by four. Working load means the combined weight of your anchor, chain, and rode under normal conditions, not the maximum breaking strength. For a 25-foot boat with a 22-lb anchor, 100 feet of 1/4-inch chain, and 200 feet of 1/2-inch nylon rode, the working load is roughly 130 lbs. Four times that is 520 lbs, which is right in the 550 to 700-lb pull range of mid-tier windlasses like the Lewmar Pro Sport 550 or the V700.
Under-spec your windlass and you will burn out motors on big anchor sets. Over-spec it and you pay for pulling power you do not need. The 4x rule is the starting point, but add margin if you anchor in deep water, anchor frequently, or carry heavier ground tackle for offshore work.
Chain Compatibility and Gypsy Selection
The gypsy is the toothed wheel that grips the chain, and it must match your chain grade exactly. The three most common grades are High Test (BBB), G4, and proof coil, and each uses a different link geometry. A gypsy designed for 1/4-inch G4 chain will not properly grip 1/4-inch BBB chain, and the result is chain skipping, premature gypsy wear, and in the worst case the chain jumping off the wheel under load. Before you buy any windlass, confirm the gypsy size and chain spec match your existing rode, or plan to replace the chain to match the gypsy.
Wiring and Electrical Requirements
Voltage drop is the most common cause of windlass underperformance, and it almost always traces back to undersized wiring. A windlass motor draws high amperage under load, and any resistance in the wire run robs pulling power. Use tinned marine-grade wire, and size the gauge to both the motor amperage and the total wire run from the battery. A 50-amp motor typically wants 6 AWG wire for runs under 15 feet and 4 AWG for longer runs. A dedicated circuit breaker at the battery is mandatory, and a solenoid is required for any windlass controlled by a low-current switch.
Essential Windlass Accessories
Three accessories are worth budgeting for alongside the windlass itself. A chain stopper takes the load off the gypsy once the anchor is set, which dramatically extends gypsy life. A snubber is a length of nylon line that absorbs shock loads at anchor, protecting both the windlass and the boat from jerking in chop. A wireless remote or foot switch lets you operate the unit from the helm or the bow without running back to the breaker panel. Together, these three additions typically cost less than the windlass itself and dramatically improve the day-to-day experience.
Frequently Asked Questions
What size anchor windlass do I need?
Match the windlass pulling power to four times the working load of your ground tackle. Working load is the combined weight of your anchor, chain, and rode under normal conditions. For a typical 25-foot boat with a 22-lb anchor and rope-chain rode, this means a windlass rated for 500 to 700 lbs of maximum pull.
Is an anchor windlass worth it?
Yes, for most boat owners who anchor more than a handful of times per season. A windlass saves your back, improves safety when anchoring solo, and lets you handle heavier ground tackle than you could manage by hand. For weekend pontoon and runabout owners, even a budget unit pays for itself in convenience within a season or two.
Vertical or horizontal windlass: which is better?
A vertical windlass is better for boats over 30 feet and for owners running all-chain rode, because it offers higher pulling power and a cleaner chain path. A horizontal windlass is better for smaller boats with shallow anchor lockers, because it is easier to install and bolts through the deck without requiring structural backing below.
What are the best windlass brands?
The most respected windlass brands are Lewmar, Maxwell, Lofrans, and Muir, all of which have decades of marine hardware experience and widespread parts availability. For budget electric anchor winches, Minn Kota, Camco TRAC, and Powerwinch offer strong value for smaller boats. Long-term owners on forums often prefer Lewmar for parts support and Maxwell for heavy-duty use.
What is the best windlass for a 25 ft boat?
For a 25-foot boat, a horizontal windlass in the 500 to 700-lb pull range is the right fit. The Lewmar Pro Sport 550 and the Lewmar Pro Fish 700 are strong choices for owners running a chain rode, while the Camco TRAC Fisherman 25-G3 or the Minn Kota Deckhand DH-40 are excellent options for boats using a rope or rope-chain rode.
Final Verdict: Which Anchor Windlass Should You Buy in 2026?
If you only buy one windlass this year, the Minn Kota Deckhand DH-40 is the right answer for most weekend boaters. It combines one-touch automation, a 40-lb anchor capacity, and the highest review volume on this list, all at a price that fits a typical pontoon or runabout budget. For owners stepping up to a serious cruising sailboat with chain rode, the Lewmar V700 is the next step up, with a 700-lb pull, 316 stainless housing, and a 3-year warranty. And if you want Lewmar build quality on a smaller boat, the Pro Sport 550 hits the sweet spot for horizontal installs under 30 feet.
Whichever best anchor windlass you choose from this list, spend the extra hour on proper wire sizing and a dedicated breaker. A windlass that pulls hard at the dock but fades on the second cycle is almost always a wiring issue, not a windlass issue. With the right installation, any of the units above will give you a decade or more of reliable anchoring. Check the latest price on Amazon, match the gypsy to your chain, and start anchoring like you mean it.
